Removal And Installation: Camshafts: Installation

RH camshafts

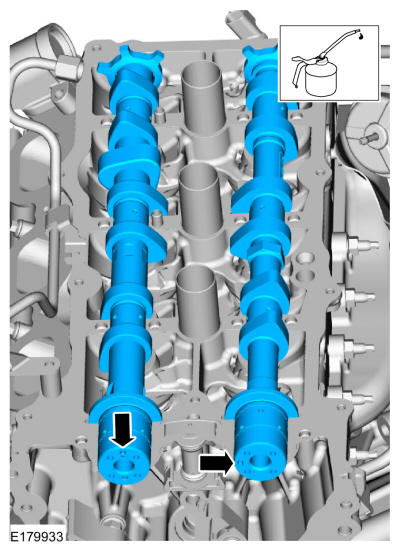

1. Lubricate the camshafts with clean engine oil and position the camshafts onto the RH cylinder head in the neutral position as shown.

   Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

   Courtesy of FORD MOTOR COMPANY

2. NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

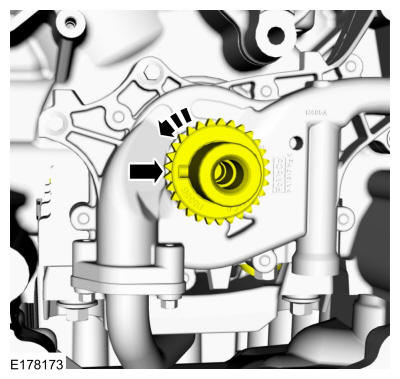

   Rotate counterclockwise to the 9 o'clock position.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

   Position the camshaft seals gaps at 12 o'clock.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

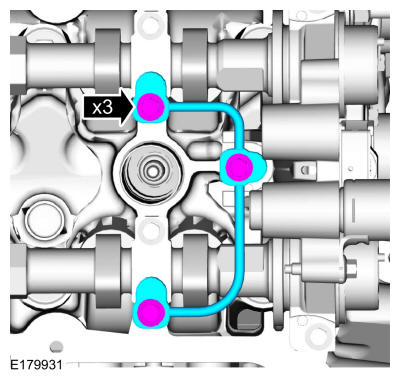

   Install the camshaft caps, oil tube and the bolts.

   Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

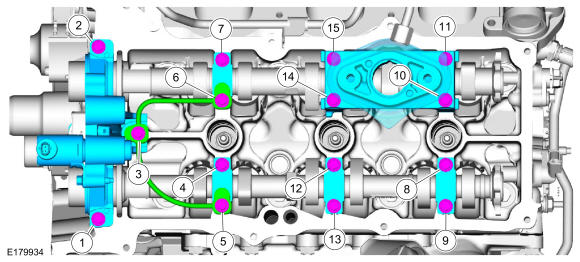

   Fig 1: RH Camshaft Tightening Sequence (1 of 2)

   Courtesy of FORD MOTOR COMPANY
5. Loosen the camshaft cap bolts.

   Courtesy of FORD MOTOR COMPANY

6. Tighten the camshaft cap bolts.

   Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

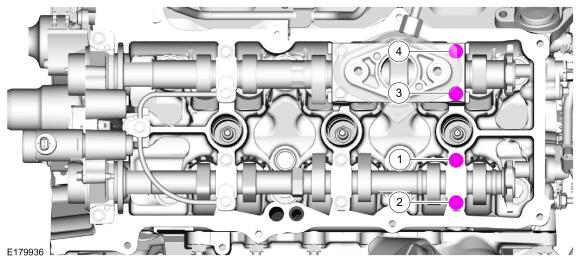

   Fig 2: RH Camshaft Tightening Sequence (2 of 2)

   Courtesy of FORD MOTOR COMPANY
7. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
   NOTE: Use a camshaft sprocket bolt to turn the camshafts.

   Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment . Use the General Equipment: Feeler Gauge

   Courtesy of FORD MOTOR COMPANY

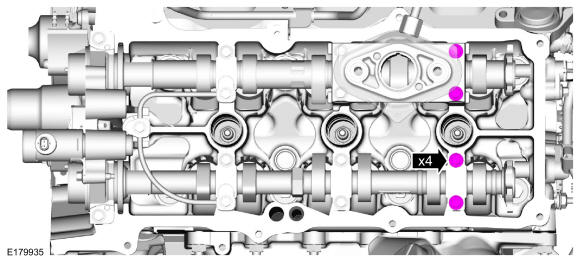

8. Apply 8mm dots of sealant to the camshaft bearing cap as shown.

   Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

   Courtesy of FORD MOTOR COMPANY

9. Install the camshaft bearing cap and bolts.

   Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45 deg.

   Courtesy of FORD MOTOR COMPANY

10. Remove the bolts and the RH oil tube.

    Courtesy of FORD MOTOR COMPANY

11. Rotate the RH camshafts to TDC.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

13. NOTE: The VCT oil control solenoids are removed for clarity.

    Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

14. Install the brake vacuum pump. Refer to: Brake Vacuum Pump - 3.5L EcoBoost (235kW/320PS) .

    LH camshafts

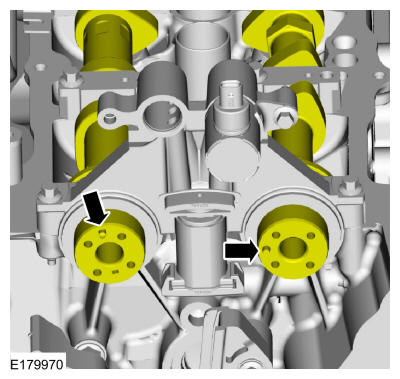

15. Lubricate the camshafts with clean engine oil and position the camshafts onto the LH cylinder head in the neutral position as shown.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    Courtesy of FORD MOTOR COMPANY

16. NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

    Rotate counterclockwise to the 9 o'clock position.

    Courtesy of FORD MOTOR COMPANY

17. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the camshaft seals gaps at 12 o'clock.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

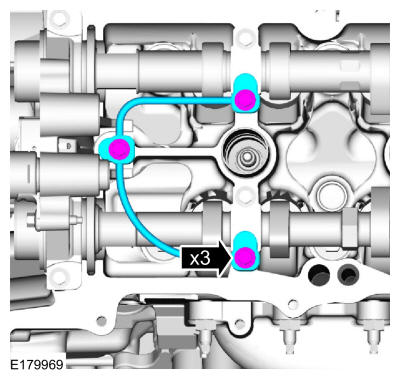

    Install the camshaft caps, oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    Fig 3: LH Camshaft Tightening Sequence (1 of 2)

    Courtesy of FORD MOTOR COMPANY
19. Loosen the camshaft cap bolts.

    Courtesy of FORD MOTOR COMPANY

20. Tighten the camshaft cap bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45 deg.

    Fig 4: LH Camshaft Tightening Sequence (2 of 2)

    Courtesy of FORD MOTOR COMPANY
21. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

    Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment . Use the General Equipment: Feeler Gauge

    Courtesy of FORD MOTOR COMPANY

22. Remove bolts and the LH oil tube.

    Courtesy of FORD MOTOR COMPANY

23. Rotate the LH camshafts to the TDC.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: The VCT oil control solenoids are removed for clarity.

    Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

    All camshafts

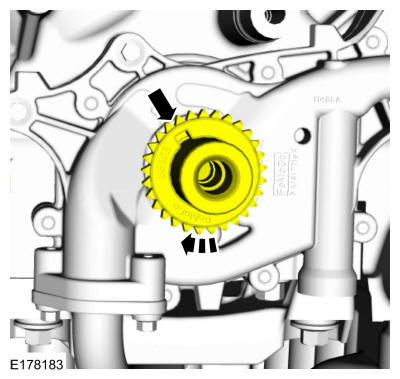

26. Rotate the crankshaft clockwise 60 degrees to the TDC position (crankshaft dowel pin at 11 o'clock).

    Courtesy of FORD MOTOR COMPANY

27. Install the LH or RH VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit .
