Section 13 (Engine - 3.5L ECOBOOST (235KW/320PS)): Installation: Engine

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD308627Courtesy of FORD MOTOR COMPANY
303-050 (T70P-6000)
Lifting Bracket, Engine
GFD308628Courtesy of FORD MOTOR COMPANY
303-1529
Lift Eye, Engine
TKIT-2010A-F
TKIT-2010A-LM
TKIT-2010A-ROW
Floor Crane
Adjustable Mounting Arm
Vehicle/Axle Stands
Hose Clamp Remover/Installer
Wooden Block

Materials

Name Specification
Motorcraft® Multi-Purpose Grease Spray
XL-5-A
ESB-M1C93-B
Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil
XO-5W30-Q1SP
WSS-M2C946-B1
Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC
WSS-M2C938-AMERCON® LV,
  1. Lubricate the torque converter pilot hub with multi-purpose grease.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

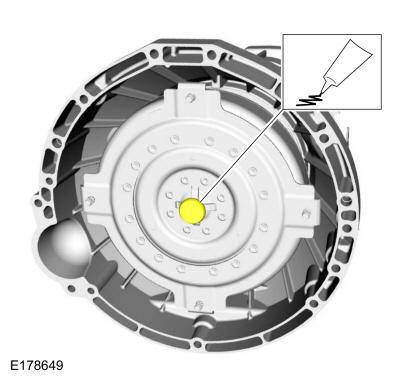

    GFD308888Courtesy of FORD MOTOR COMPANY

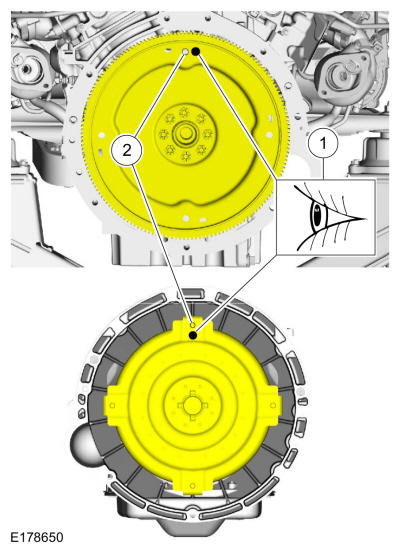

    • Inspect the torque converter stud and flexplate for paint marks.

    • Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

    GFD308889Courtesy of FORD MOTOR COMPANY

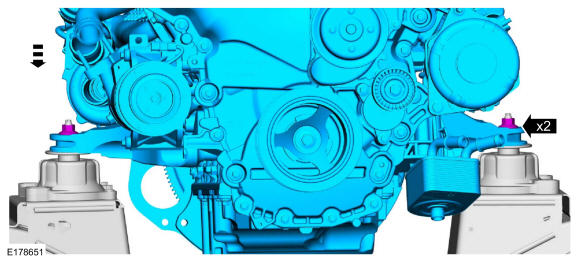

    • Using the floor crane, lower the engine onto the engine crossmember. Use the General Equipment: Floor Crane

    • Install new engine mount nuts.

      Torque: 85 lb.ft (115 Nm)

    GFD308890Courtesy of FORD MOTOR COMPANY
  2. Remove Special Service Tool: 303-1529 Lift Eye, Engine, 303-050 (T70P-6000) Lifting Bracket, Engine. Use the General Equipment: Floor Crane
    GFD308666Courtesy of FORD MOTOR COMPANY

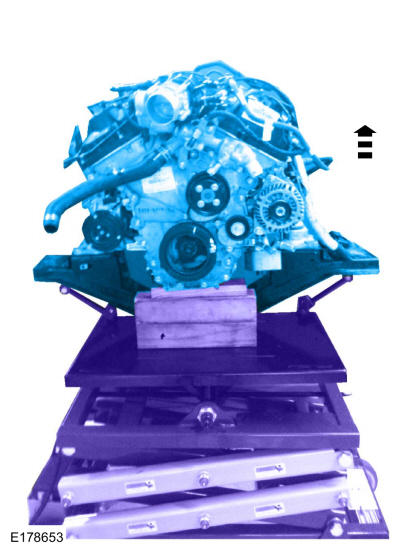

  3. Using the powertrain lift table raise the engine into the vehicle.
    GFD308891Courtesy of FORD MOTOR COMPANY

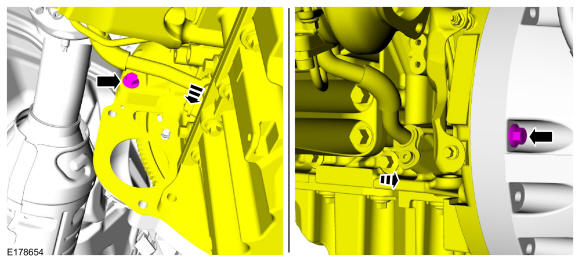

  4. Align the engine to the transmission and draw together using the bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD308892Courtesy of FORD MOTOR COMPANY

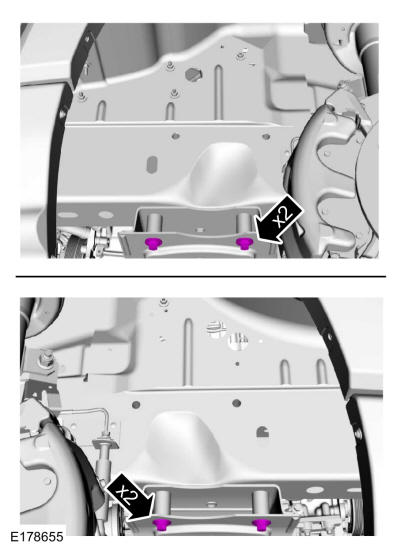

  5. Install new engine crossmember bolts.

    Torque: 46 lb.ft (63 Nm)

    GFD308893Courtesy of FORD MOTOR COMPANY
  6. Install the RH engine crossmember bracket and new bolts.

    Torque: 22 lb.ft (30 Nm)

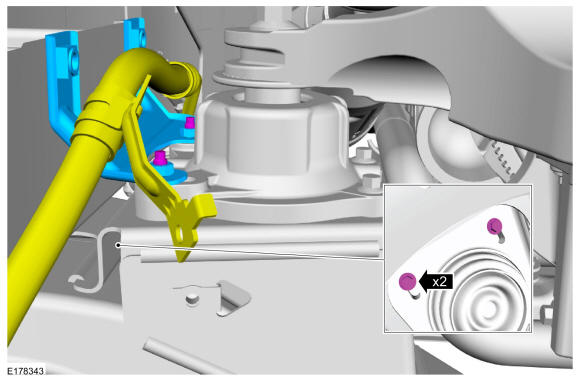

    GFD308894Courtesy of FORD MOTOR COMPANY
  7. Install new RH engine crossmember bracket bolts.

    Torque: 46 lb.ft (63 Nm)

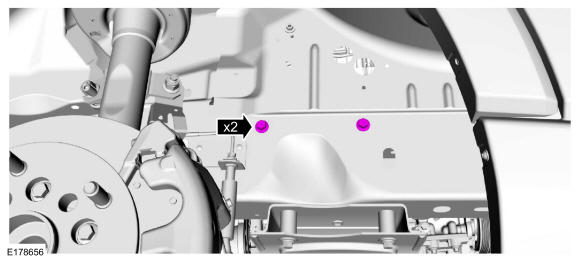

    GFD308895Courtesy of FORD MOTOR COMPANY
  8. Install the LH engine crossmember bracket and new bolts

    Torque: 22 lb.ft (30 Nm)

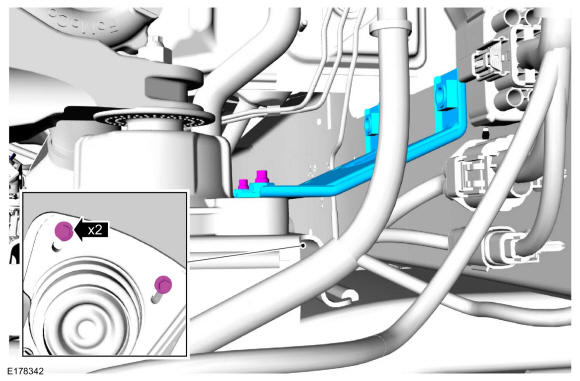

    GFD308896Courtesy of FORD MOTOR COMPANY
  9. Install new LH engine crossmember bracket bolts.

    Torque: 46 lb.ft (63 Nm)

    GFD308897Courtesy of FORD MOTOR COMPANY

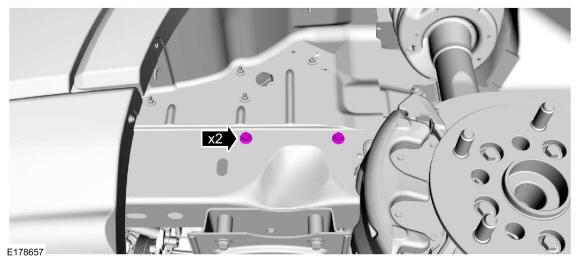

  10. Remove the adjustable mounting arm from the RH side of the engine crossmember. Use the General Equipment: Adjustable Mounting Arm

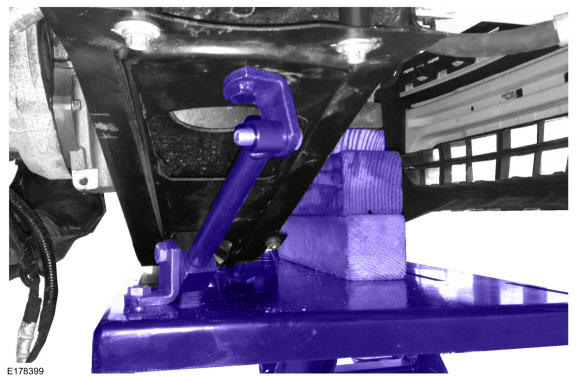

    GFD308658Courtesy of FORD MOTOR COMPANY
  11. Remove the adjustable mounting arm from the LH side of the engine crossmember. Use the General Equipment: Adjustable Mounting Arm

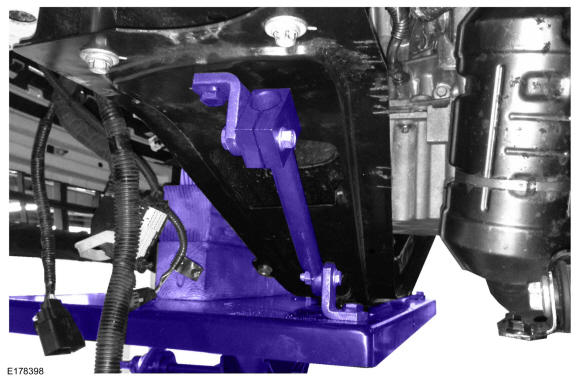

    GFD308657Courtesy of FORD MOTOR COMPANY

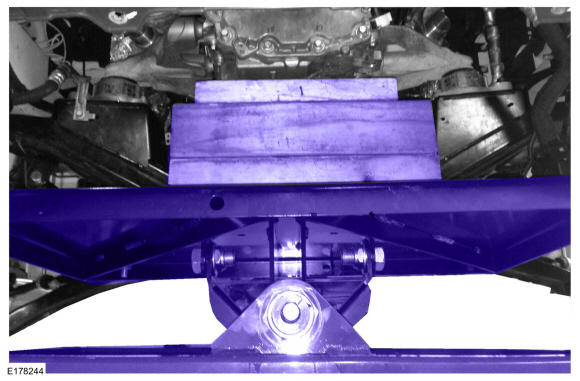

  12. Remove the powertrain lift table and wood blocks. Use the General Equipment: Wooden Block
    GFD308656Courtesy of FORD MOTOR COMPANY

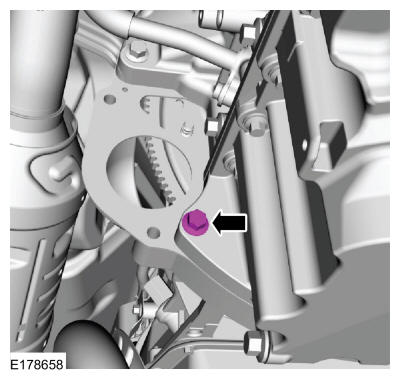

  13. Install the RH side bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD308898Courtesy of FORD MOTOR COMPANY
  14. Install the shift cable bracket and the LH side bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD308899Courtesy of FORD MOTOR COMPANY

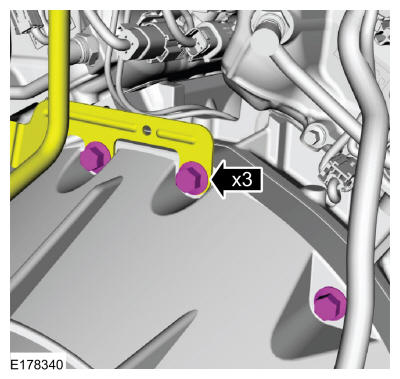

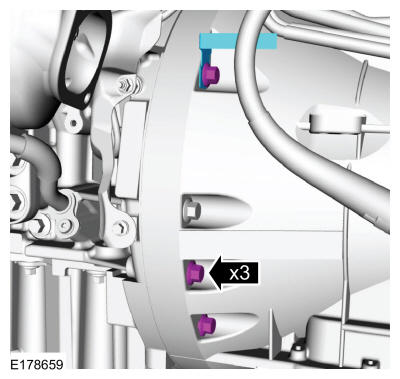

  15. Install the upper bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD308654Courtesy of FORD MOTOR COMPANY

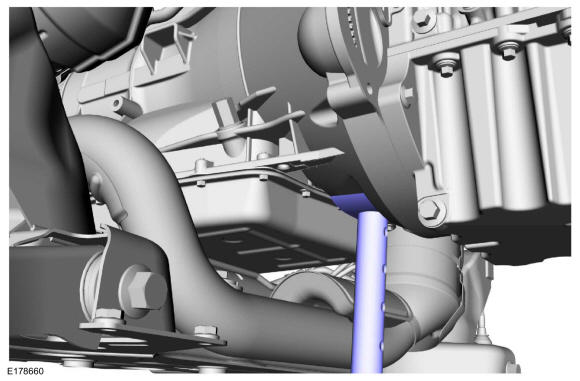

  16. Remove the stand. Use the General Equipment: Vehicle/Axle Stands
    GFD308900Courtesy of FORD MOTOR COMPANY

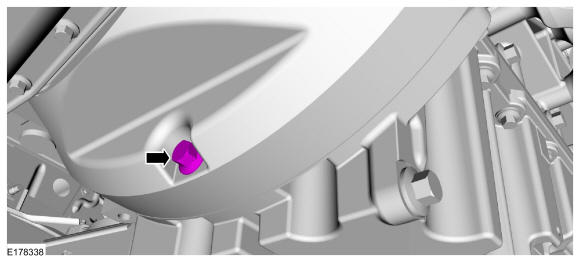

  17. Install the lower bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD308652Courtesy of FORD MOTOR COMPANY

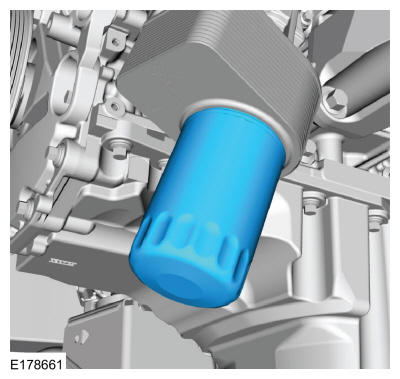

  18. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 180 deg.

    GFD308507Courtesy of FORD MOTOR COMPANY

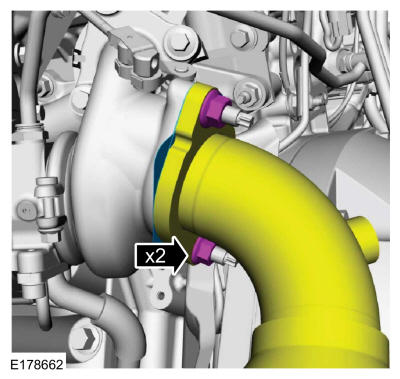

    • Using a new gasket, position the LH catalytic converter flange onto the TC.

    • Install new nuts

      Torque: 30 lb.ft (40 Nm)

    GFD308901Courtesy of FORD MOTOR COMPANY

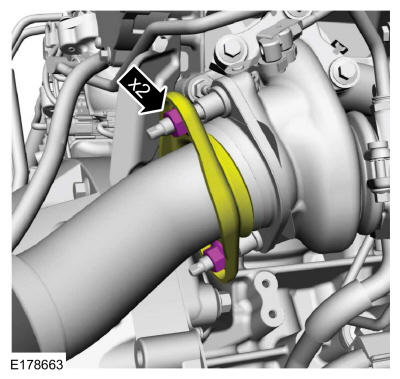

  19. Install the RH catalytic converter flange and new nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD308902Courtesy of FORD MOTOR COMPANY

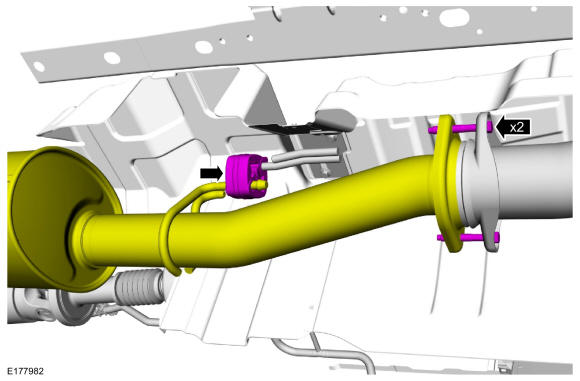

  20. Attach the exhaust hanger and install the exhaust flange bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD308649Courtesy of FORD MOTOR COMPANY

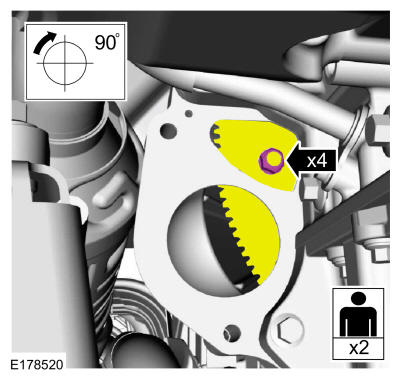

  21. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

    GFD308903Courtesy of FORD MOTOR COMPANY

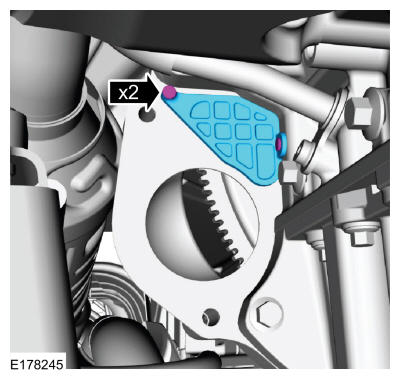

  22. Install the access cover and the retainers.
    GFD308647Courtesy of FORD MOTOR COMPANY

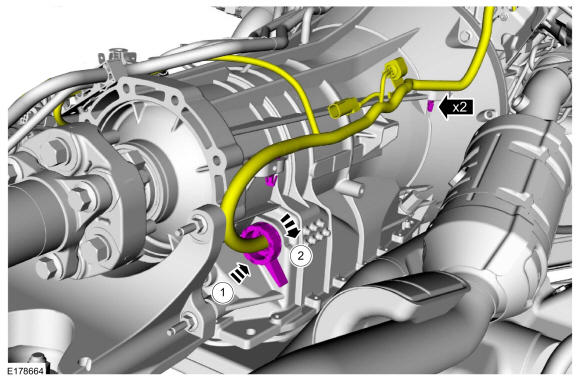

    • Push the transmission electrical connector in to connect.

    • Rotate the transmission electrical connector clockwise.

    • Attach the wiring harness retainers.

    GFD308904Courtesy of FORD MOTOR COMPANY

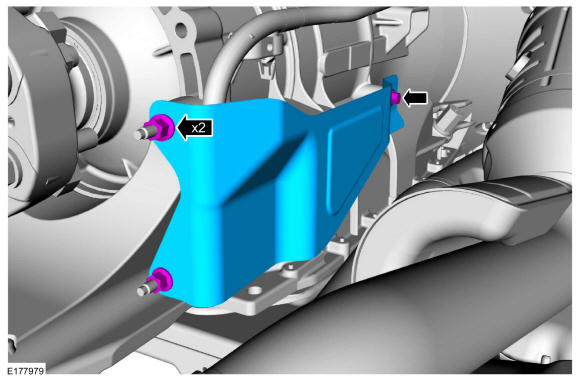

  23. Install the transmission heat shield, the bolts and the nut.

    Torque: 18 lb.ft (25 Nm)

    GFD308645Courtesy of FORD MOTOR COMPANY

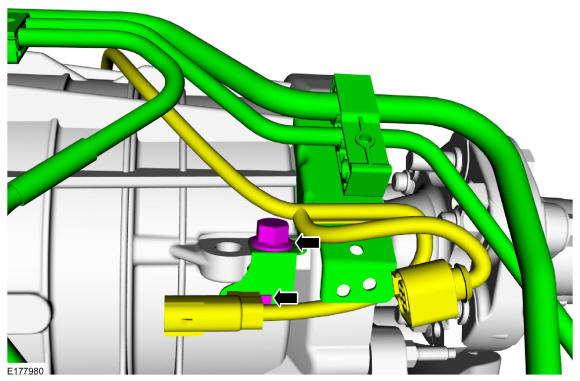

  24. Position the wiring harness, attach the wiring harness retainer and install the bolt.

    Torque: 26 lb.ft (35 Nm)

    GFD308644Courtesy of FORD MOTOR COMPANY

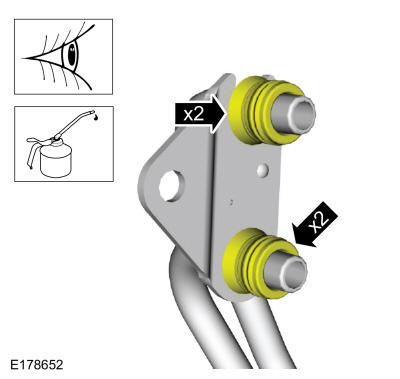

  25. NOTE: Lubricate with clean transmission fluid.

    Inspect the transmission cooler tube band seal and backing rings, replace if necessary.

    Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

    GFD308905Courtesy of FORD MOTOR COMPANY

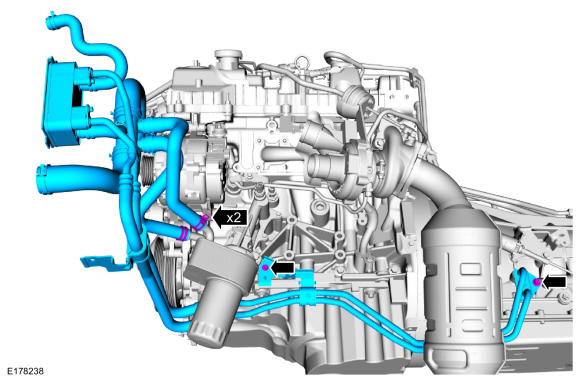

    • Install the transmission cooler tube assembly and bolts.

      Torque: Transmission cooler tube assembly-to-transmission bolt: 18 lb.ft (25 Nm) Transmission cooler tube bracket-to-engine bolt: 106 lb.in (12 Nm)

    • Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    GFD308643Courtesy of FORD MOTOR COMPANY

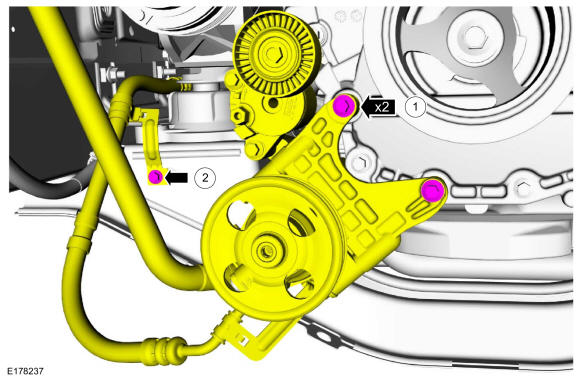

  26. NOTE: Do not tighten the power steering bolts at this time.

    • Position the power steering pump assembly and install the bolts by hand.

    • Install the power steering hose bracket and bolt.

      Torque: 106 lb.in (12 Nm)

    GFD308509Courtesy of FORD MOTOR COMPANY
  27. Install the power steering pump bracket stud bolt.

    Torque: 27 lb.in (3 Nm)

    GFD308433Courtesy of FORD MOTOR COMPANY

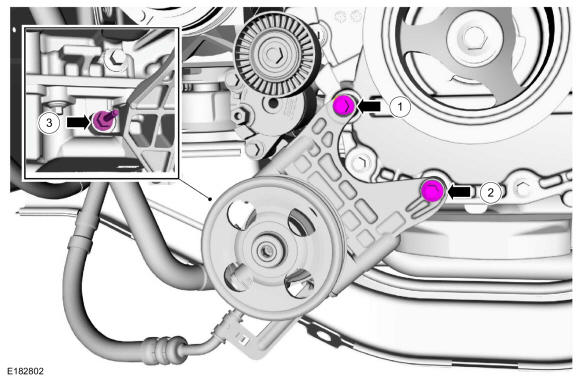

    1. Torque

      : 26 lb.ft (35 Nm)

    2. Torque

      : 26 lb.ft (35 Nm)

    3. Torque

      : 19 lb.ft (26 Nm)

    GFD308448Courtesy of FORD MOTOR COMPANY
  28. Install the wiring harness conduit and nut.

    Torque: 71 lb.in (8 Nm)

    GFD308432Courtesy of FORD MOTOR COMPANY
  29. Install the wiring harness conduit bolt.

    Torque: 106 lb.in (12 Nm)

    GFD308431Courtesy of FORD MOTOR COMPANY

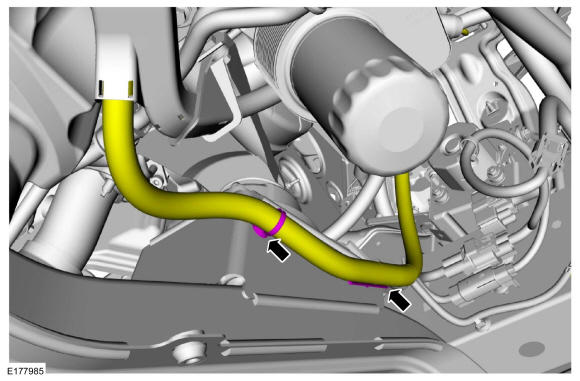

  30. Attach the 2 wiring harness retainers.
    GFD308472Courtesy of FORD MOTOR COMPANY

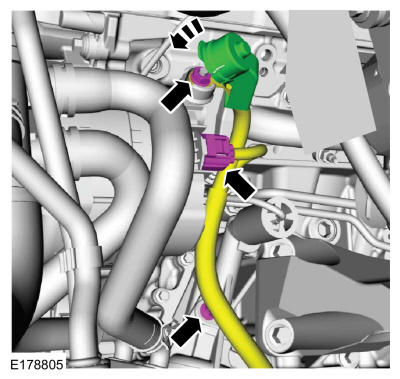

    • Install the generator B+ terminal nut.

      Torque: 142 lb.in (16 Nm)

    • Position the protective cover.

    • Connect the generator electrical connector and attach wiring harness retainer.

    GFD308906Courtesy of FORD MOTOR COMPANY
  31. Install the following items:

    1. NOTE: RH and LH.

      Refer to: Catalyst Monitor Sensor .

    2. NOTE: RH and LH.

      Refer to: Heated Oxygen Sensor (HO2S) .

    3. Refer to: Starter Motor .

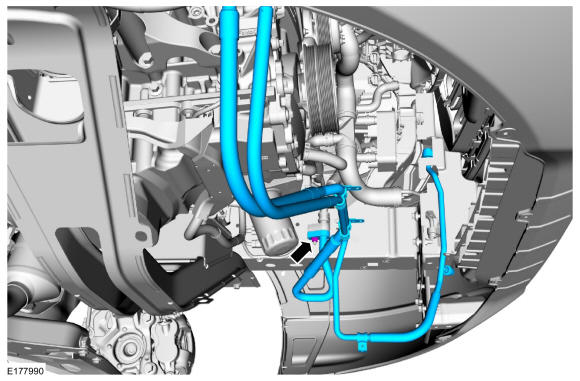

  32. Install the A/C tube assembly and nut.

    Torque: 133 lb.in (15 Nm)

    GFD308641Courtesy of FORD MOTOR COMPANY
  33. Install the front wheels and tires. Refer to: Wheel and Tire .

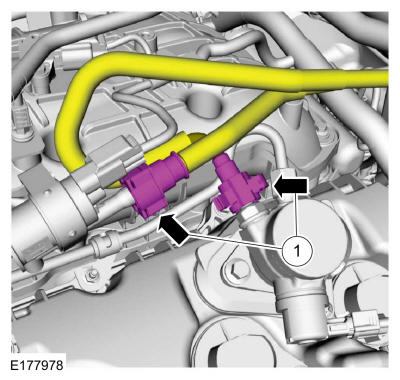

  34. GFD308640Courtesy of FORD MOTOR COMPANY

    1. Connect the fuel and fuel vapor quick release couplings. Refer to: Quick Release Coupling .

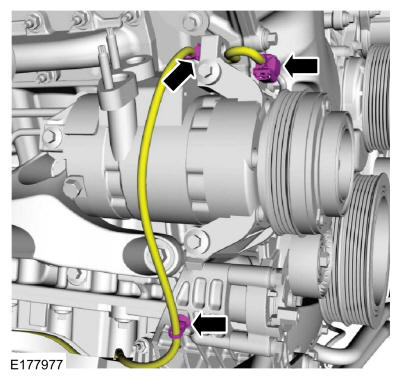

  35. Connect the A/C compressor electrical connector and attach the wiring harness retainers.
    GFD308639Courtesy of FORD MOTOR COMPANY

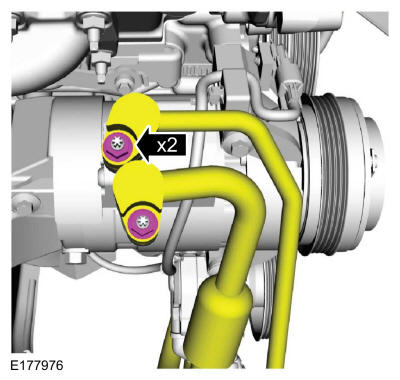

  36. Install the A/C tubes and nuts.

    Torque: 133 lb.in (15 Nm)

    GFD308638Courtesy of FORD MOTOR COMPANY

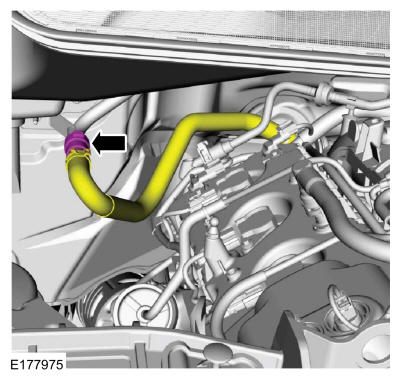

  37. Connect the heater hose quick release coupling.
    GFD308637Courtesy of FORD MOTOR COMPANY
    • If equipped, connect the block heater electrical connector and attach the wiring harness retainers.

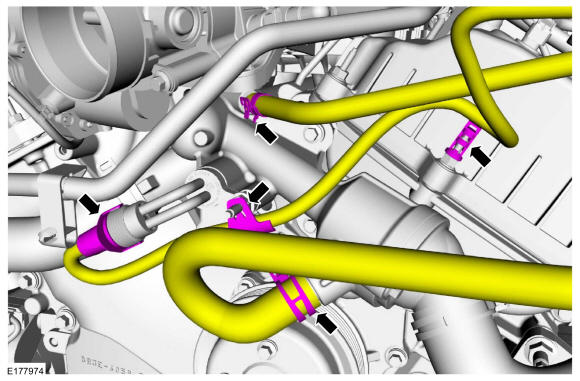

    • Connect the heater and degas bottle hoses. Use the General Equipment: Hose Clamp Remover/Installer

    GFD308636Courtesy of FORD MOTOR COMPANY

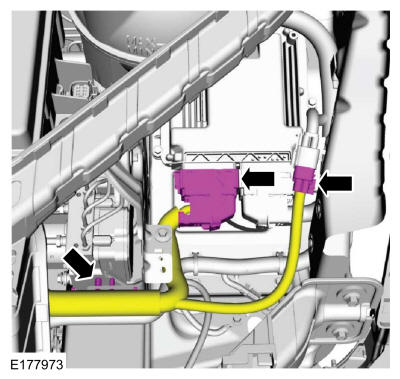

  38. Connect the following items:

    • wiring harness electrical connector.
    • PCM electrical connector.
    • wiring harness retainer.

    GFD308635Courtesy of FORD MOTOR COMPANY

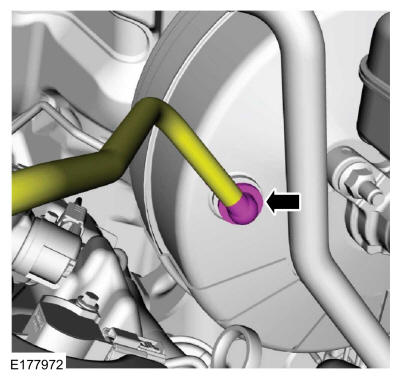

  39. Connect the brake vacuum tube.
    GFD308634Courtesy of FORD MOTOR COMPANY

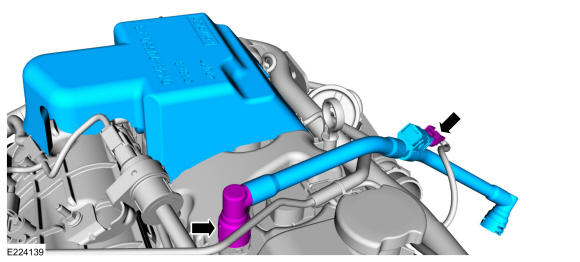

    • Install the PCV tube and connect the quick release coupling.

    • Connect the crankcase pressure sensor electrical connector.

    • Install the fuel injection pump noise insulator.

    GFD308633Courtesy of FORD MOTOR COMPANY

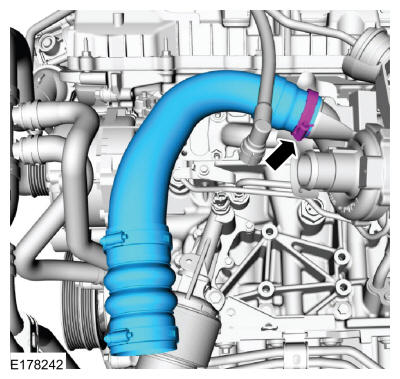

  40. Install the LH TC outlet pipe and clamp.

    Torque: 53 lb.in (6 Nm)

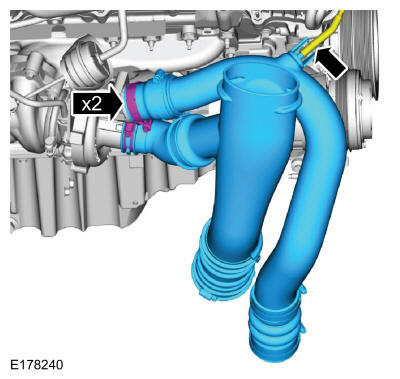

    GFD308632Courtesy of FORD MOTOR COMPANY

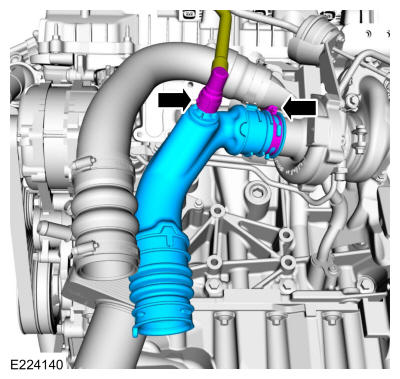

    • Install the LH TC inlet pipe and clamp.

      Torque: 53 lb.in (6 Nm)

    • Connect the PCV tube quick release coupling.

    GFD308631Courtesy of FORD MOTOR COMPANY
    • Install the RHTC outlet and inlet pipes and clamps.

      Torque: 53 lb.in (6 Nm)

    • Connect the vacuum hose.

    GFD308630Courtesy of FORD MOTOR COMPANY

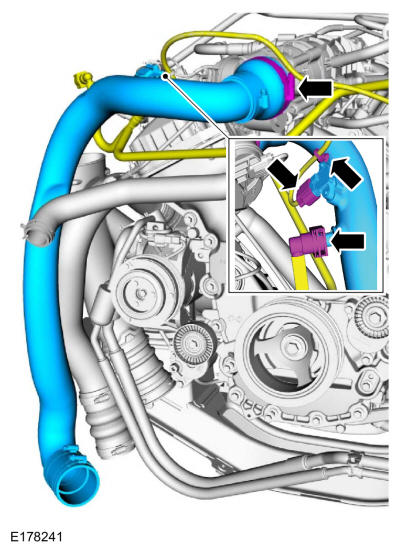

    • Install the CAC outlet pipe and clamp.

      Torque: 53 lb.in (6 Nm)

    • Connect the fuel vapor tube quick release coupling.

    • Connect the wiring harness electrical connector and attach the retainer.

    GFD308629Courtesy of FORD MOTOR COMPANY
  41. Install the following items:

    1. Refer to: Cooling Module .
    2. Refer to: Air Conditioning (A/C) Compressor Belt .

  42. Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  43. Fill the engine with clean engine oil.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

  44. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
