Manifold Absolute Pressure and Temperature (MAPT) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

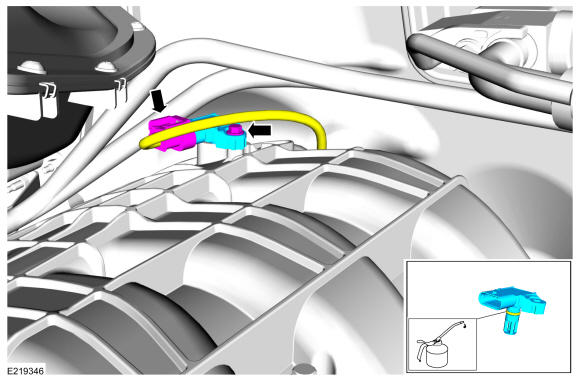

  1. NOTE: Lubricate the O-ring seal with clean engine oil

    • Install the MAPT sensor and the bolt.

      Torque: 27 lb.in (3 Nm)

    • Connect the MAPT electrical connector.

GFD310260Courtesy of FORD MOTOR COMPANY
