Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

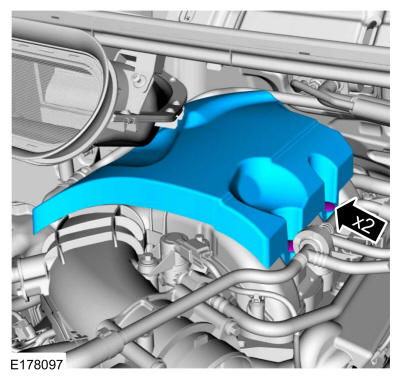

- Remove the retainers and the engine appearance cover.

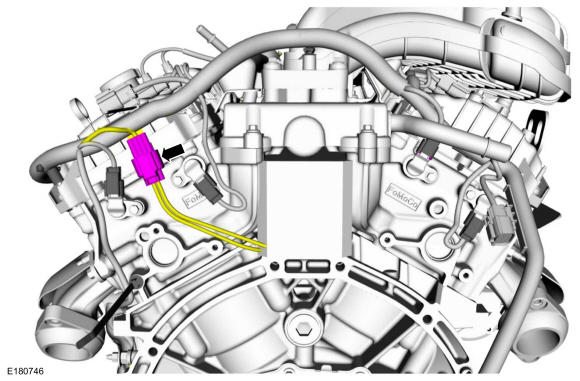

- Disconnect the KS electrical connector.
- Remove the lower intake manifold. Refer to: Lower Intake Manifold .
-
NOTE: The cylinder heads are removed for clarity.

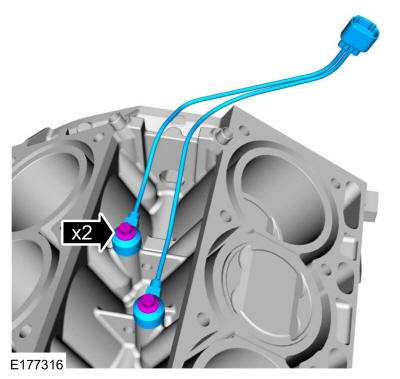

Remove the bolts and the KS.
Torque: 177 lb.in (20 Nm)
