Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the lower intake manifold. Refer to: Lower Intake Manifold .

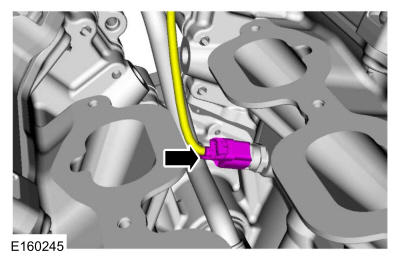

  2. Disconnect the CHT sensor electrical connector.
    GFD310250Courtesy of FORD MOTOR COMPANY

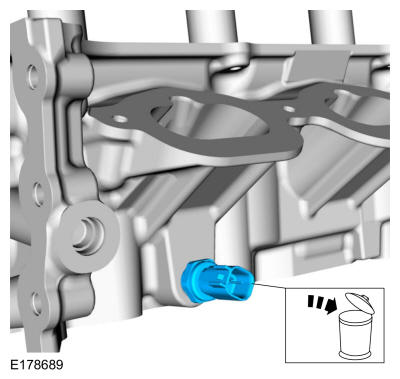

  3. Remove and discard the CHT sensor.

    Torque: 89 lb.in (10 Nm)

GFD310251Courtesy of FORD MOTOR COMPANY
