Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

RH CMP Sensors

  1. Remove the upper intake manifold. Refer to: Upper Intake Manifold .
  2. Disconnect the CMP sensor electrical connectors.

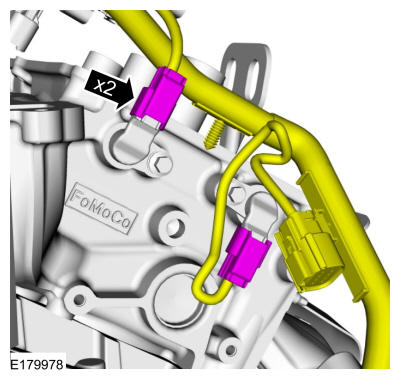

    GFD310240Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the CMP sensors.

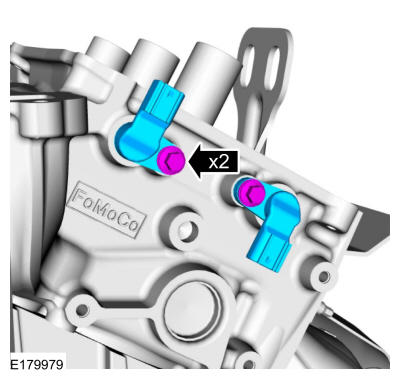

    GFD310241Courtesy of FORD MOTOR COMPANY

    LH CMP sensor

  4. Disconnect the CMP sensor electrical connectors.

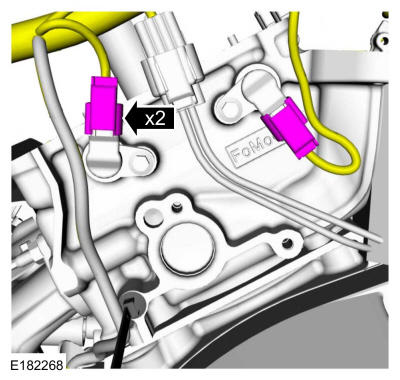

    GFD310242Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and the CMP sensors.

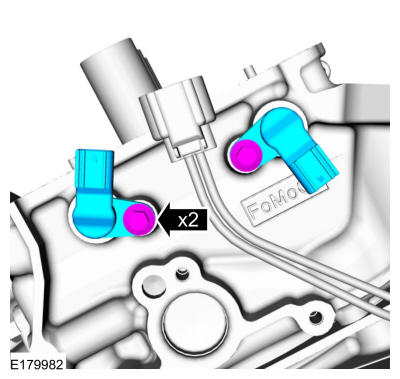

GFD310243Courtesy of FORD MOTOR COMPANY
