Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

RH CMP sensor

  1. NOTE: Apply clean engine oil to the CMP sensor O-ring seals.

    Install the CMP sensors and the bolts.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Torque: 89 lb.in (10 Nm)

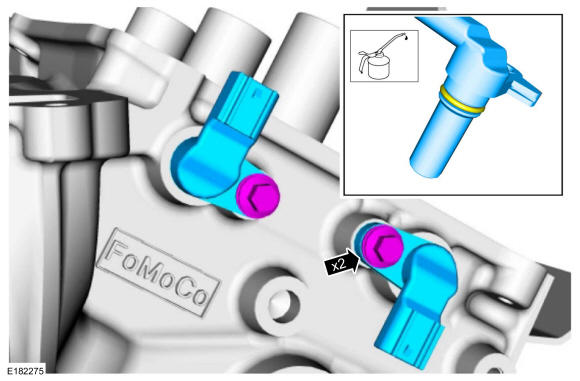

    GFD310244Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.

    LH CMP sensor

  3. NOTE: Apply clean engine oil to the CMP sensor O-ring seals.

    Install the CMP sensors and the bolts.

    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

    Torque: 89 lb.in (10 Nm)

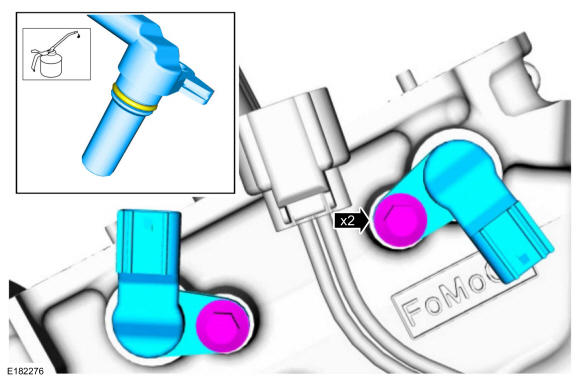

    GFD310245Courtesy of FORD MOTOR COMPANY
  4. To install, reverse the removal procedure.
