Electronic Engine Controls- Front

WARNING: This page is about a different variant/trim than selected.

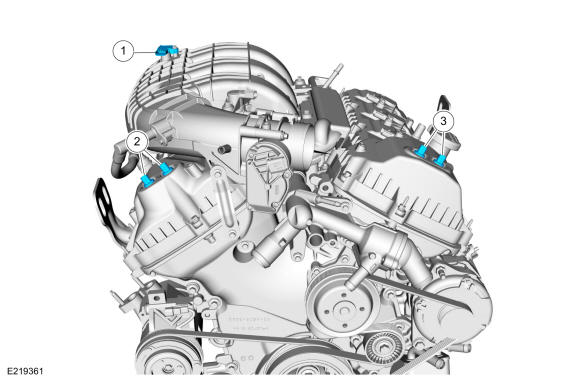

GFD310237Courtesy of FORD MOTOR COMPANY
Item Description
1 MAPT sensor.
2 RH VCT oil control solenoid
3 LH VCT oil control solenoid
