Electronic Engine Controls - Rear

WARNING: This page is about a different variant/trim than selected.

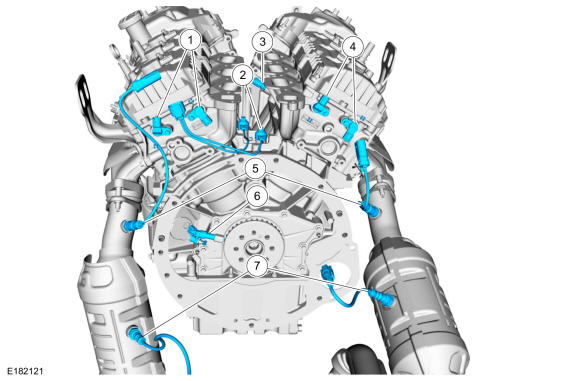

GFD310238Courtesy of FORD MOTOR COMPANY
Item Description
1 LH CMP sensor
2 KS
3 CHT sensor
4 RH CMP sensor
5 HO2S
6 CKP sensor
7 Catalyst monitor sensor
