Turbocharger Bypass Valve: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

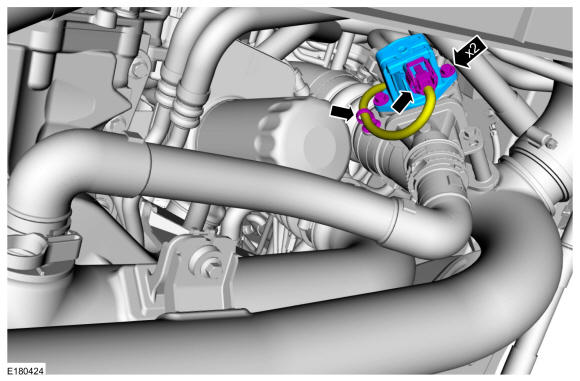

    • Disconnect the Turbo bypass valve electrical connector and release the wiring retainer to position aside the harness.

    • Remove the 2 bolts and the Turbo bypass valve.

      Torque: 62 lb.in (7 Nm)

GFD310236Courtesy of FORD MOTOR COMPANY
