Knock Sensor (KS): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the fuel rail. Refer to: Fuel Rail .

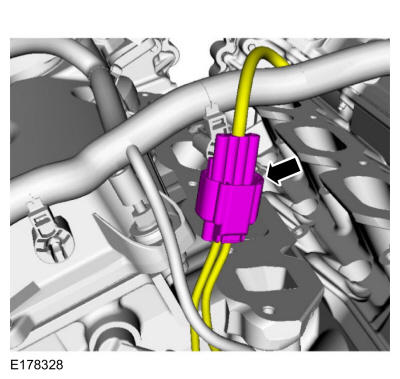

  2. Disconnect the KS electrical connector.
    GFD310226Courtesy of FORD MOTOR COMPANY

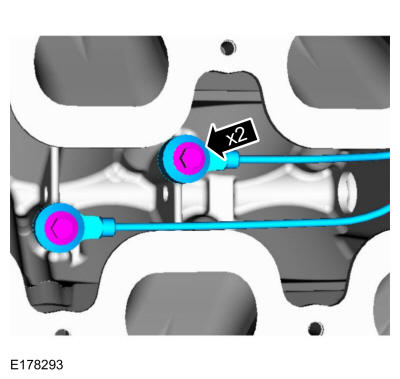

  3. Remove the bolts and the KS.

    Torque: 177 lb.in (20 Nm)

GFD310227Courtesy of FORD MOTOR COMPANY
