Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Vehicles With: Single Battery . Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  3. Remove the intake manifold. Refer to: Intake Manifold .

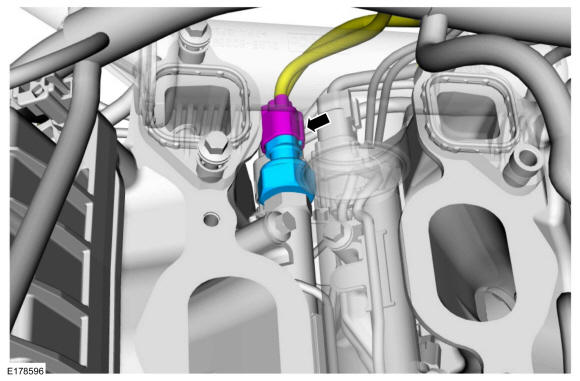

    • Disconnect the FRP sensor electrical connector.

    • Remove the FRP sensor.

GFD310218Courtesy of FORD MOTOR COMPANY
