Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

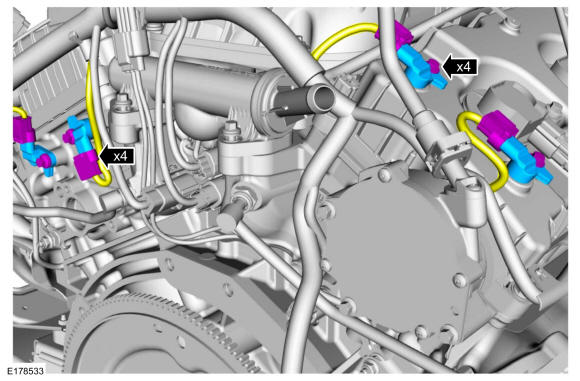

    • Disconnect the CMP sensor connectors.

    • Remove the bolts and the CMP sensors.

GFD310205Courtesy of FORD MOTOR COMPANY
