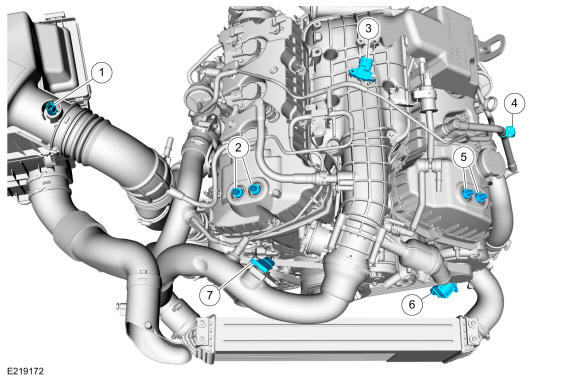

Electronic Engine Controls- Front
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
IAT sensor |
| 2 |
RH VCT oil control solenoid |
| 3 |
MAPT sensor |
| 4 |
Crankcase pressure sensor |
| 5 |
LH VCT oil control solenoid |
| 6 |
Turbocharger By-Pass Valve |
| 7 |
Turbocharger Boost Pressure and Charge Air Temperature Sensor |
