Removal And Installation: Turbocharger: Installation

NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: Failure to inspect the components for debris may result in repeat failures.

NOTE: It may be necessary to use a borescope to inspect the components.

When an engine or turbocharger is replaced due to a failure, inspect the following components for potential metal debris. If evidence of debris is found, clean or replace the components as needed.
- CAC and the CAC tubes
- Intake air system
- Exhaust manifolds
- EGR cooler and pipes
- Diesel Oxidation Catalyst (DOC)
- Turbocharger (on engine failure only)

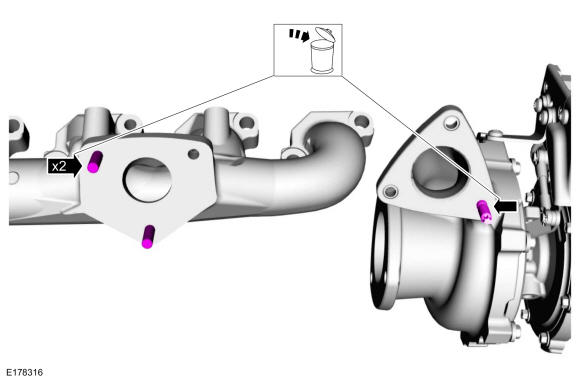

Replace the turbocharger mounting studs.
Torque: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY

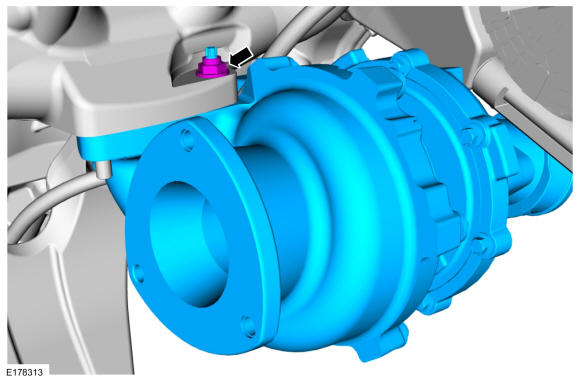

Install the turbocharger assembly and the new upper turbocharger retaining nut.
Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Make sure a new turbocharger oil supply tube assembly with new turbocharger oil supply tube bolts and new turbocharger oil supply tube sealing washers are installed.

Courtesy of FORD MOTOR COMPANY
Install the new turbocharger oil feed tube assembly with new turbocharger oil feed tube bolts and new turbocharger oil feed tube sealing washers.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

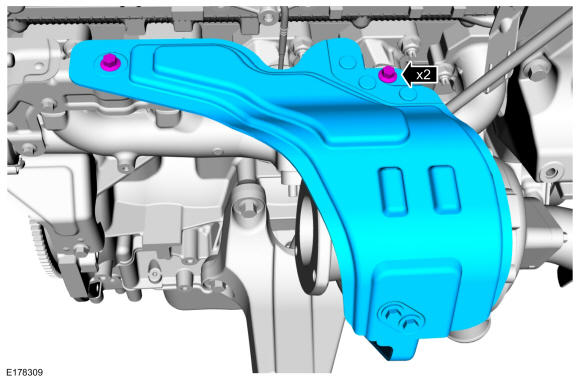

Install the turbocharger heat shield and the upper turbocharger heat shield bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the lower turbocharger heat shield bolt.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

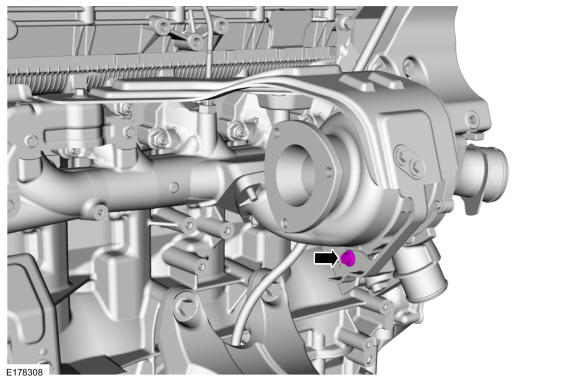

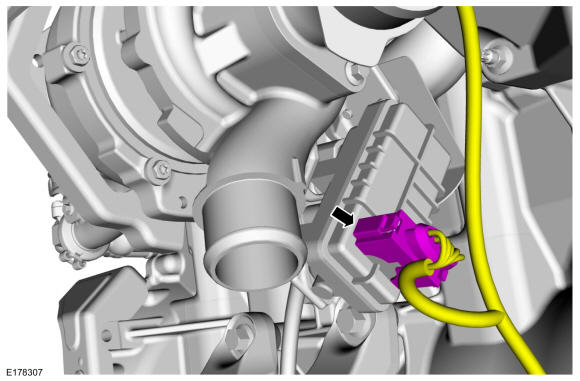

Connect the turbocharger electrical connector.

Courtesy of FORD MOTOR COMPANY

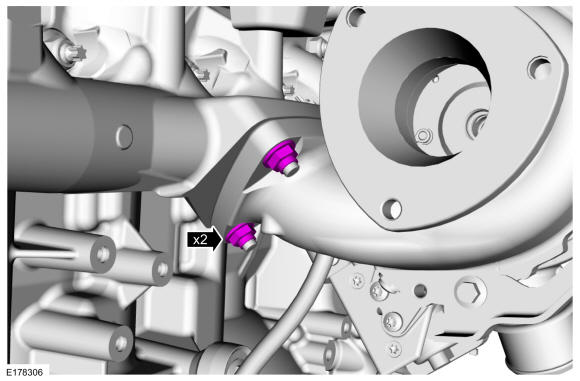

Install the new lower turbocharger mounting nuts.
Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

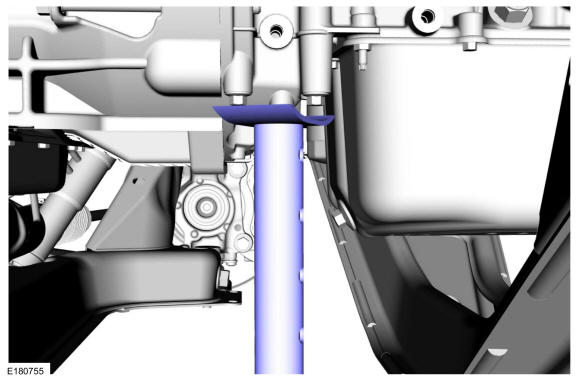

Position the stand on the RH back corner of the cylinder block. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the bracket.

Courtesy of FORD MOTOR COMPANY
Install a new turbocharger oil drain tube gasket and lubricate the turbocharger oil drain tube O-ring seal with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

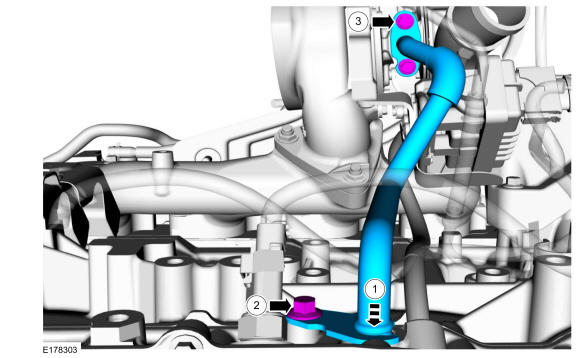

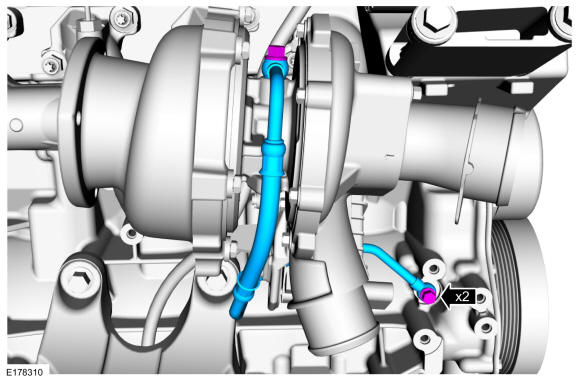

Install the turbocharger oil drain tube and the turbocharger oil drain tube bolts only finger tight at this stage.

Courtesy of FORD MOTOR COMPANY

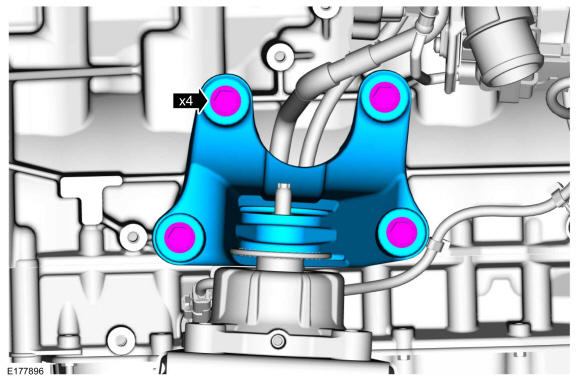

Install the bracket and the bolts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the stand and then remove the wooden block between the oil pan and the crossmember. Use the General Equipment: Vehicle/Axle Stands. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

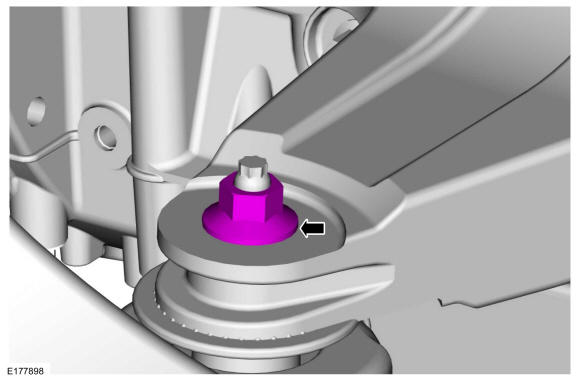

Install the new engine mount nut.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

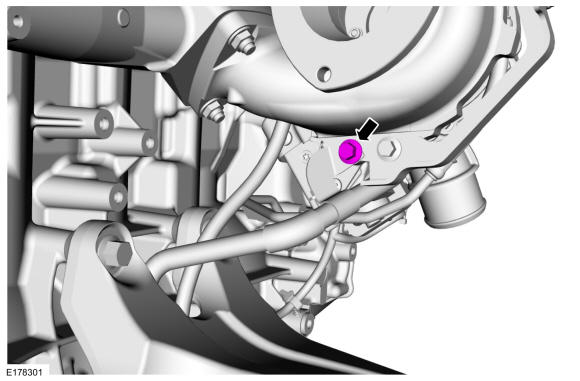

Install the turbocharger oil drain tube bracket bolt finger tight at this stage.

Courtesy of FORD MOTOR COMPANY

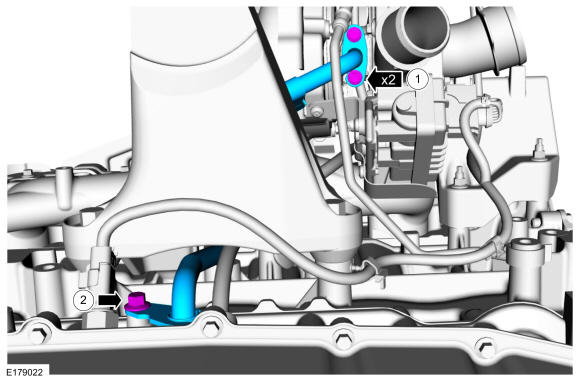

1. Tighten the upper turbocharger drain tube bolts.
  Torque: 89 lb.in (10 Nm)
2. Tighten the lower turbocharger drain tube bolt.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY
Tighten the turbocharger oil drain tube bracket bolt.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

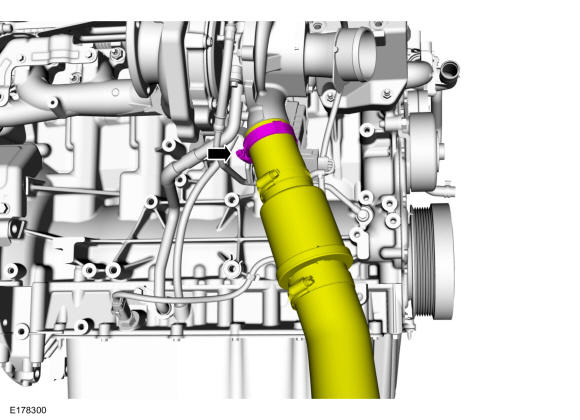

Position back and connect the turbocharger outlet tube at the turbocharger.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

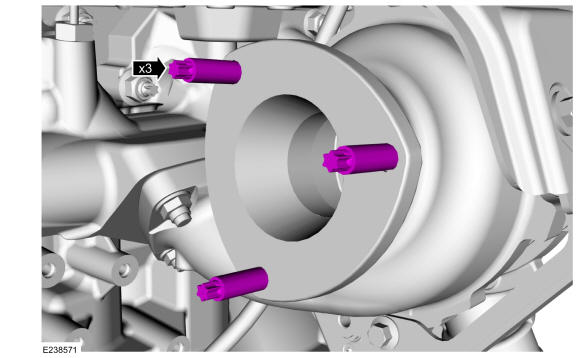

If removed, install and tighten the turbocharger exhaust studs.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Install the gasket with the tab at the top inboard corner.

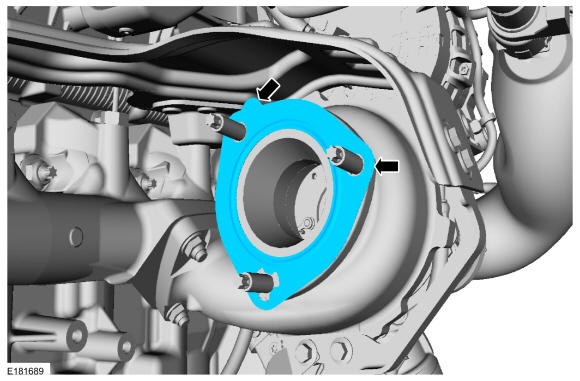

Install a new gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The catalytic converter/DPF engine bracket bolts are 2 different sizes. Install in same position noted from removal.

NOTE: Do not tighten the fasteners at this time.

Install the catalytic converter/DPF and install the engine bracket bolts hand tight.

Courtesy of FORD MOTOR COMPANY

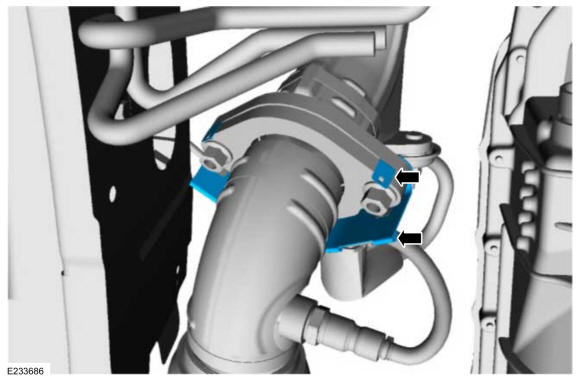

Install a new gasket and the heat shield.

Courtesy of FORD MOTOR COMPANY

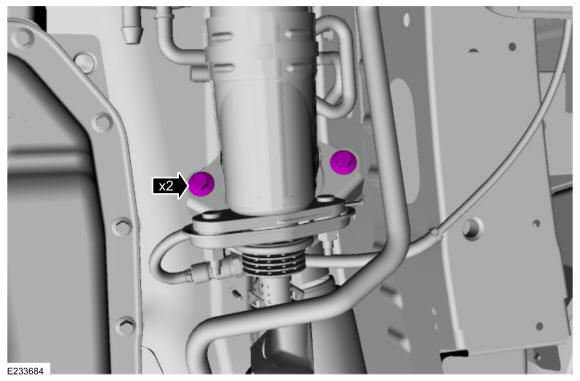

Install the catalytic converter/DPF to DPF fasteners.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

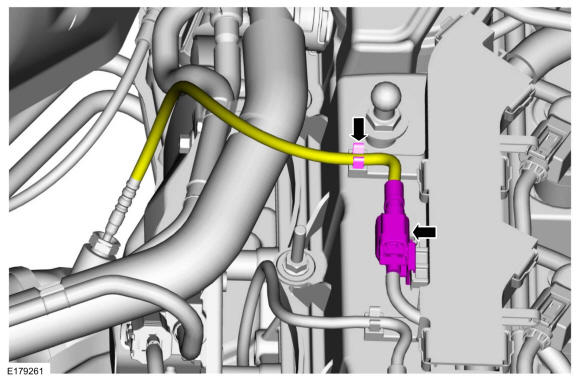

Connect the exhaust gas temperature sensor wiring connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Typical application shown.

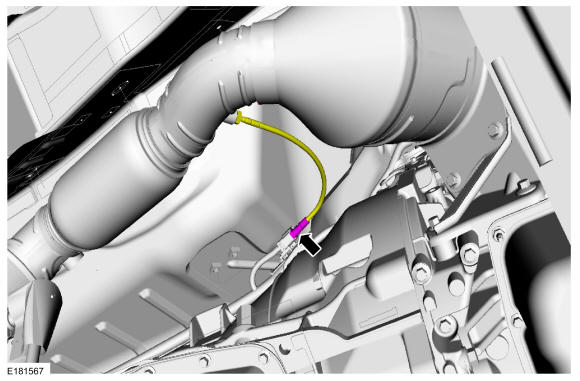

Connect the NOX sensor electrical connector and wiring retainers.

Courtesy of FORD MOTOR COMPANY

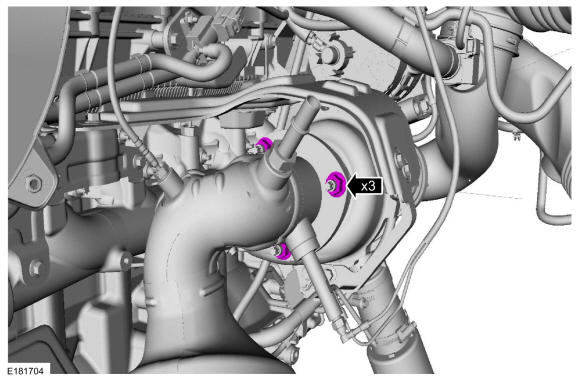

Install the new catalytic converter/DPF nuts to the TC.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

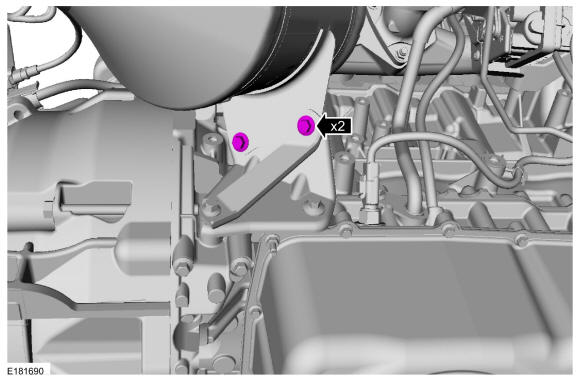

Tighten the catalytic converter/DPF engine bracket bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

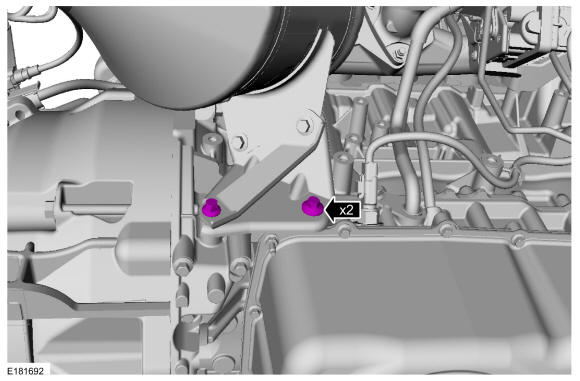

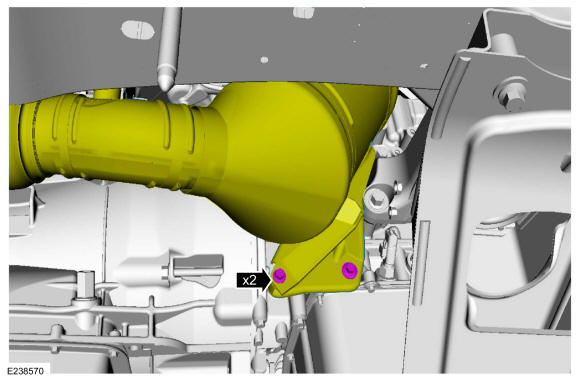

Install the catalytic converter/DPF to bracket bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the fuel vaporizer system glow plug. Refer to: Fuel Vaporizer System Glow Plug .

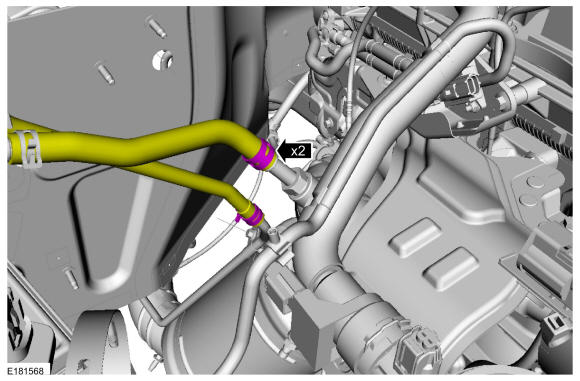

Connect the 2 hoses to the catalytic converter/DPF.

Courtesy of FORD MOTOR COMPANY

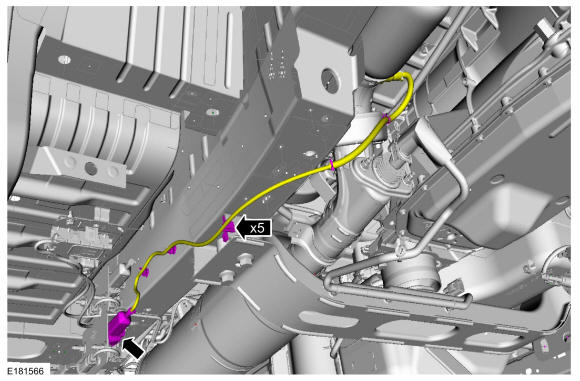

Connect the exhaust gas temperature sensor wiring connector and wiring retainer.

Courtesy of FORD MOTOR COMPANY

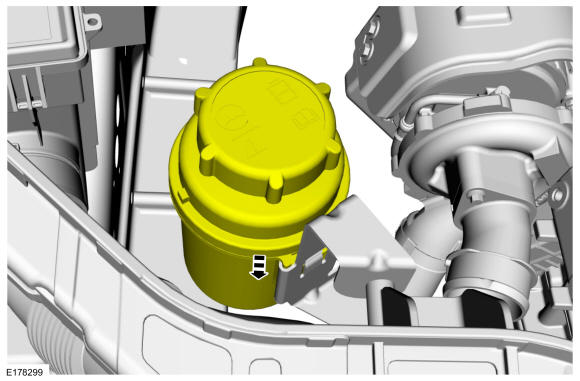

Reposition and attach the power steering reservoir.

Courtesy of FORD MOTOR COMPANY

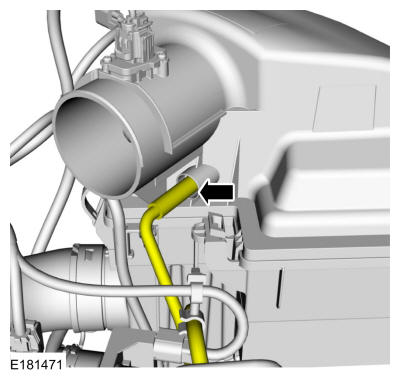

Reposition and connect the hose to the air cleaner.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet tube. Refer to: Air Cleaner Outlet Pipe .

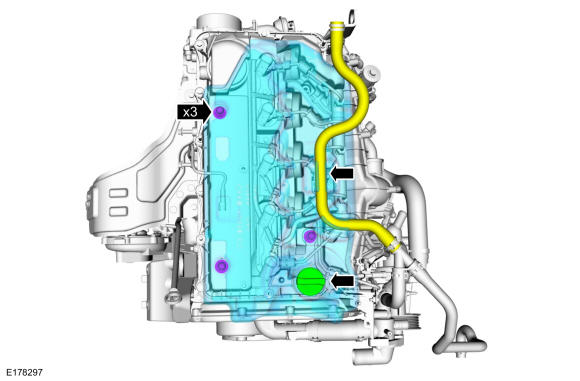

Remove the oil filler cap. Install the engine appearance cover, reposition the hose and install the oil filler cap.

Courtesy of FORD MOTOR COMPANY
Check the exhaust system for leaks.
