Turbocharger - Component Location

3.2L Duratorq TDCi Puma

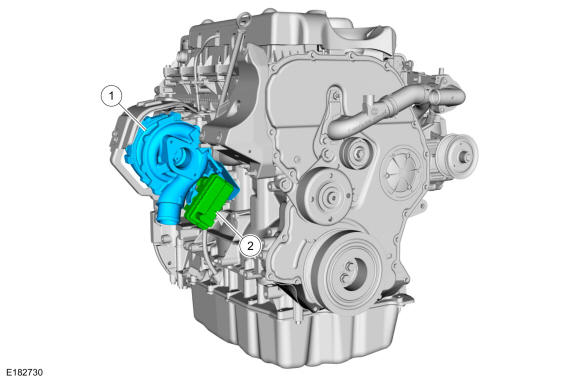

GFD309949Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger Refer to: Turbocharger .
2 Turbocharger actuator (part of turbocharger assembly) Refer to: Turbocharger .
