Starting System

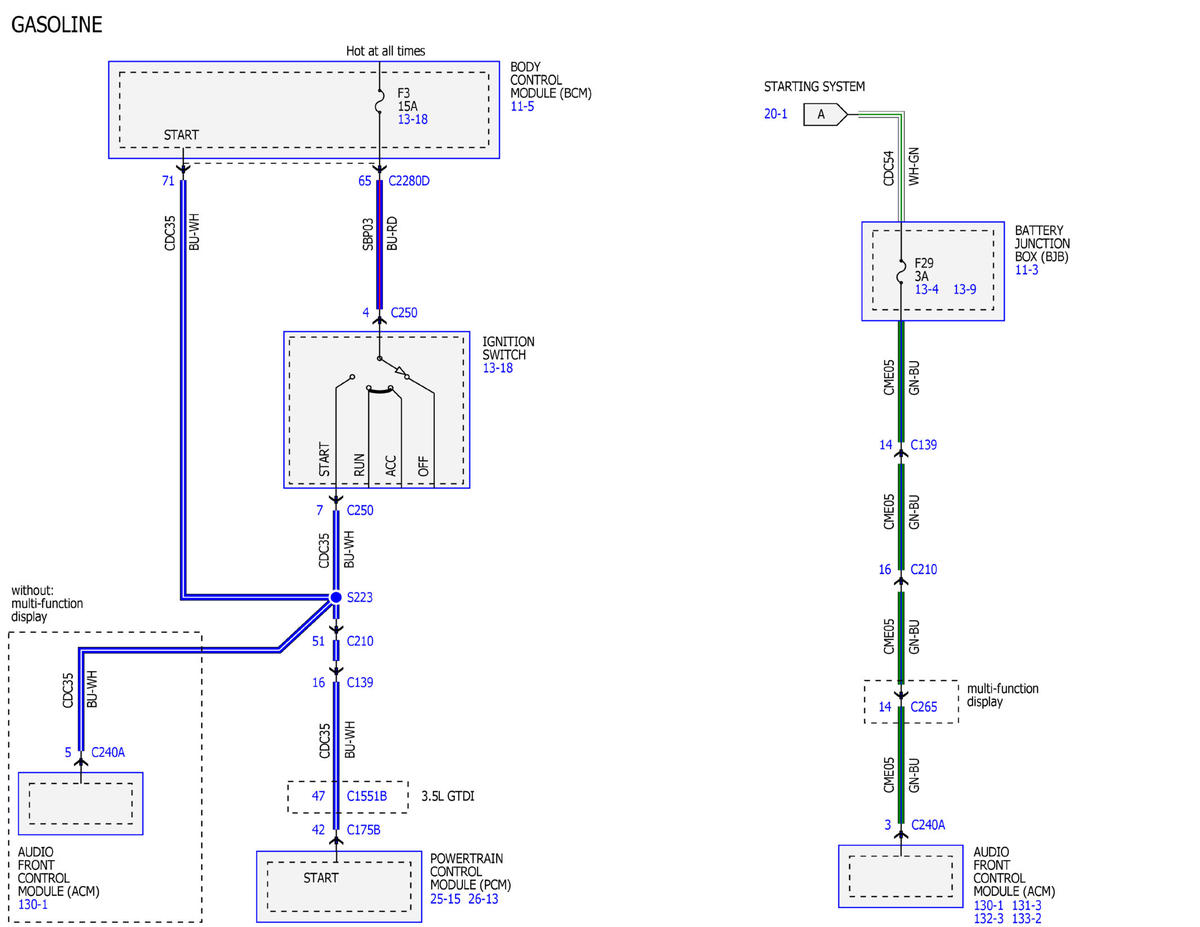

Fig 1: Starting System Wiring Diagram (1 of 4)
GFDWR21950Courtesy of FORD MOTOR COMPANY

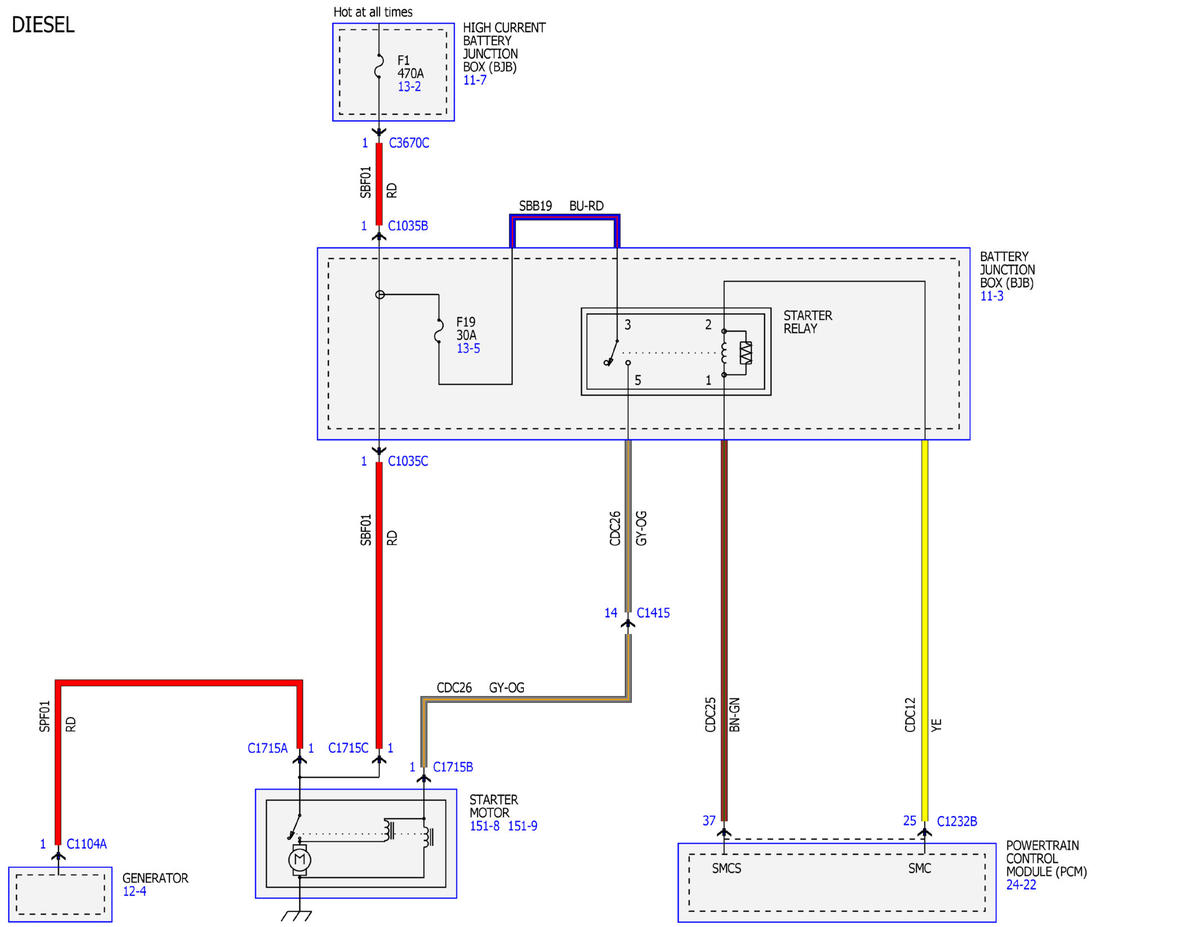

Fig 2: Starting System Wiring Diagram (2 of 4)
GFDWR21951Courtesy of FORD MOTOR COMPANY

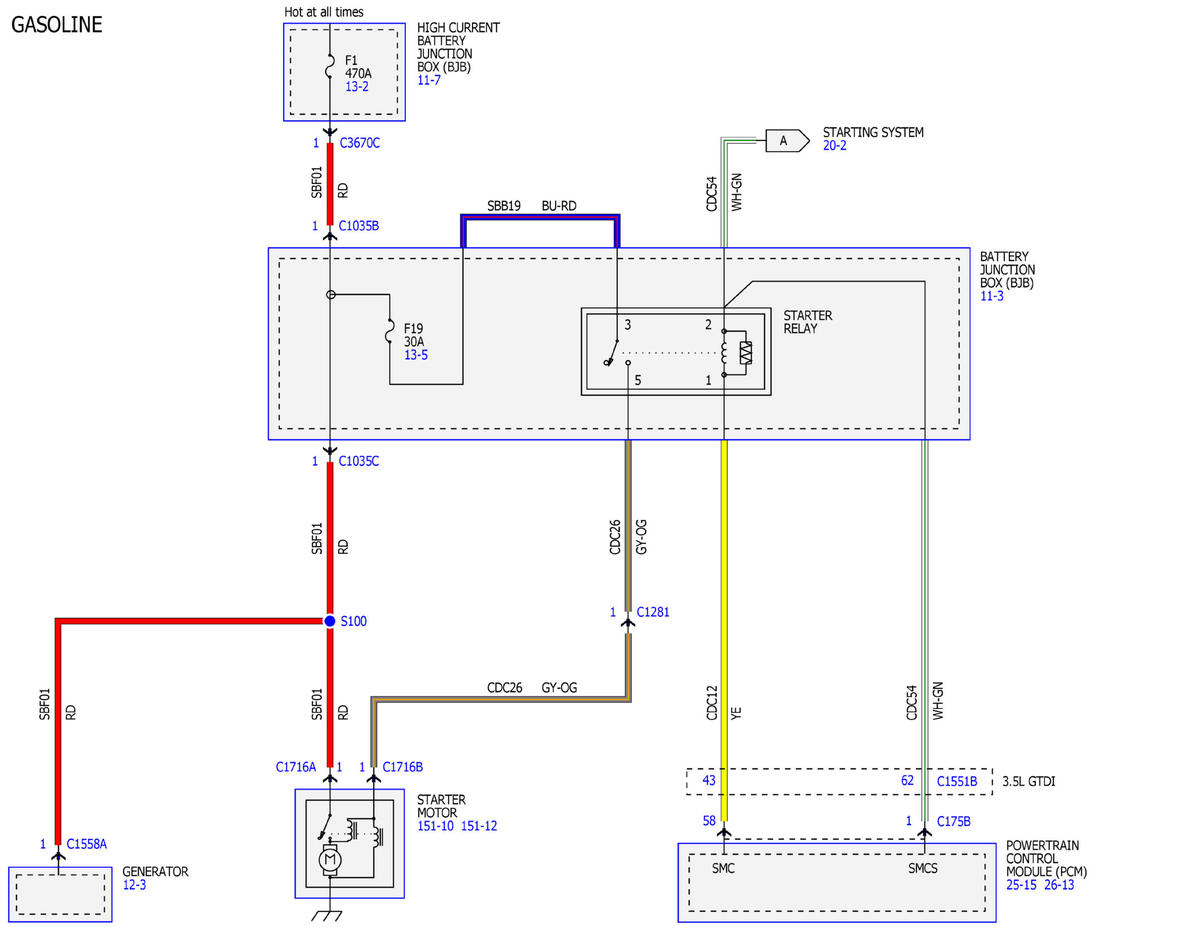

Fig 3: Starting System Wiring Diagram (3 of 4)
GFDWR21952Courtesy of FORD MOTOR COMPANY

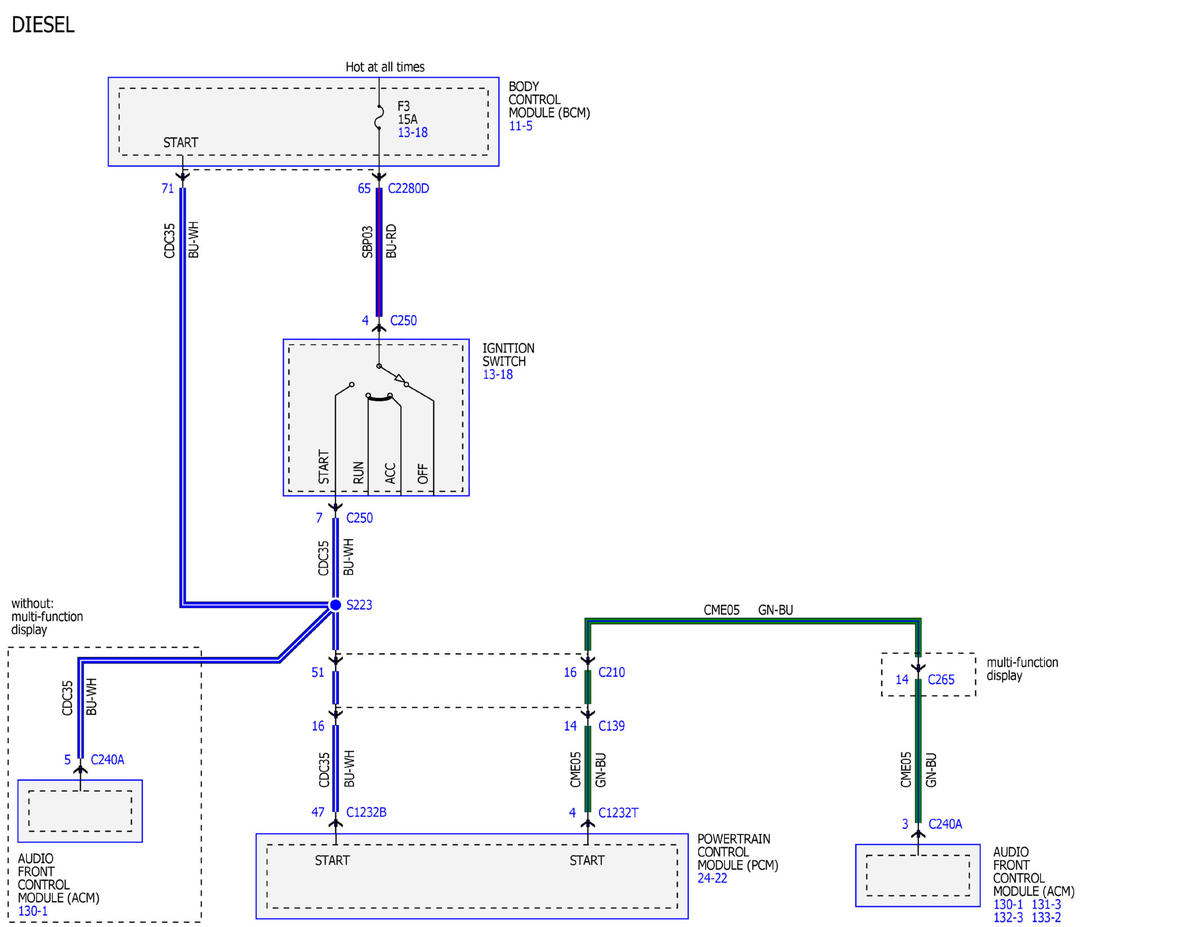

Fig 4: Starting System Wiring Diagram (4 of 4)
GFDWR21953Courtesy of FORD MOTOR COMPANY
