Power Distribution

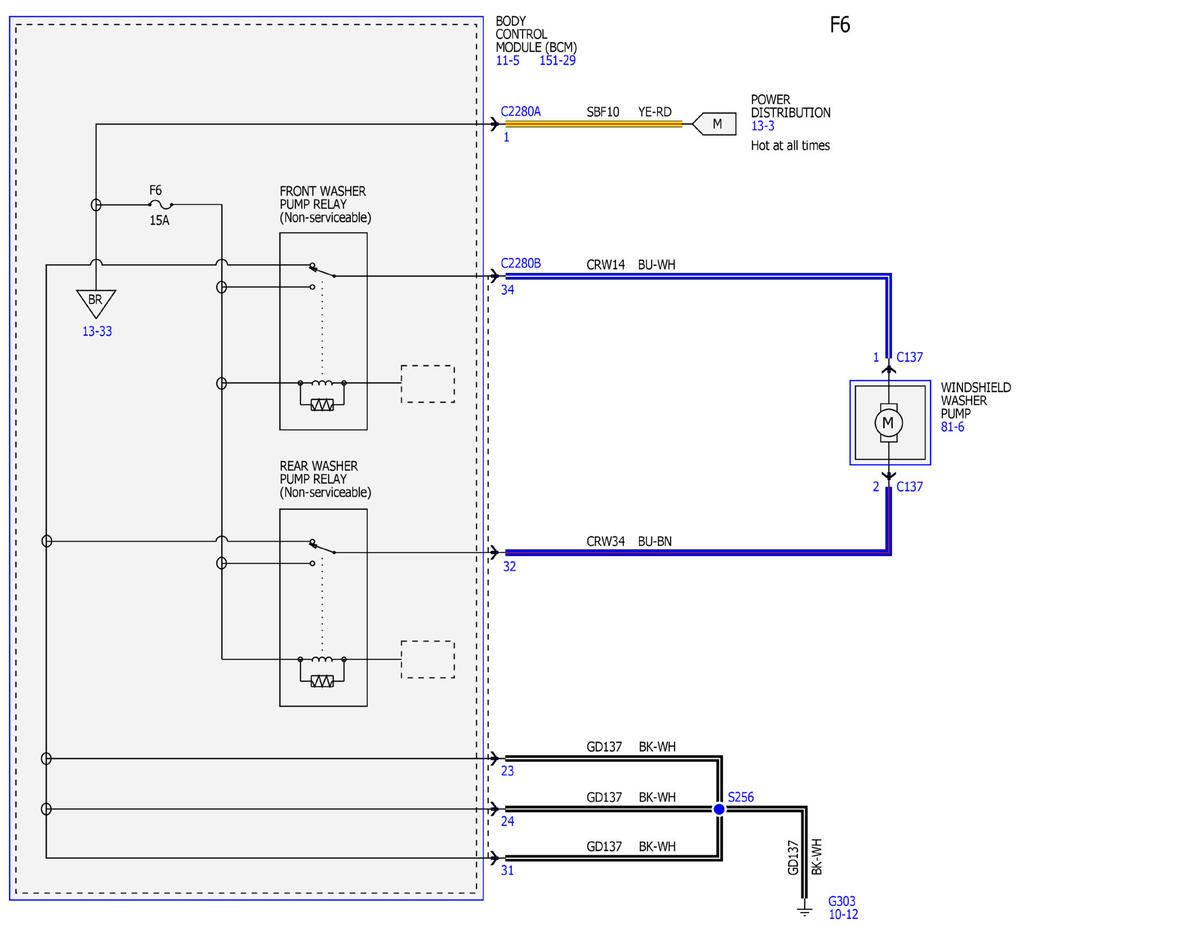

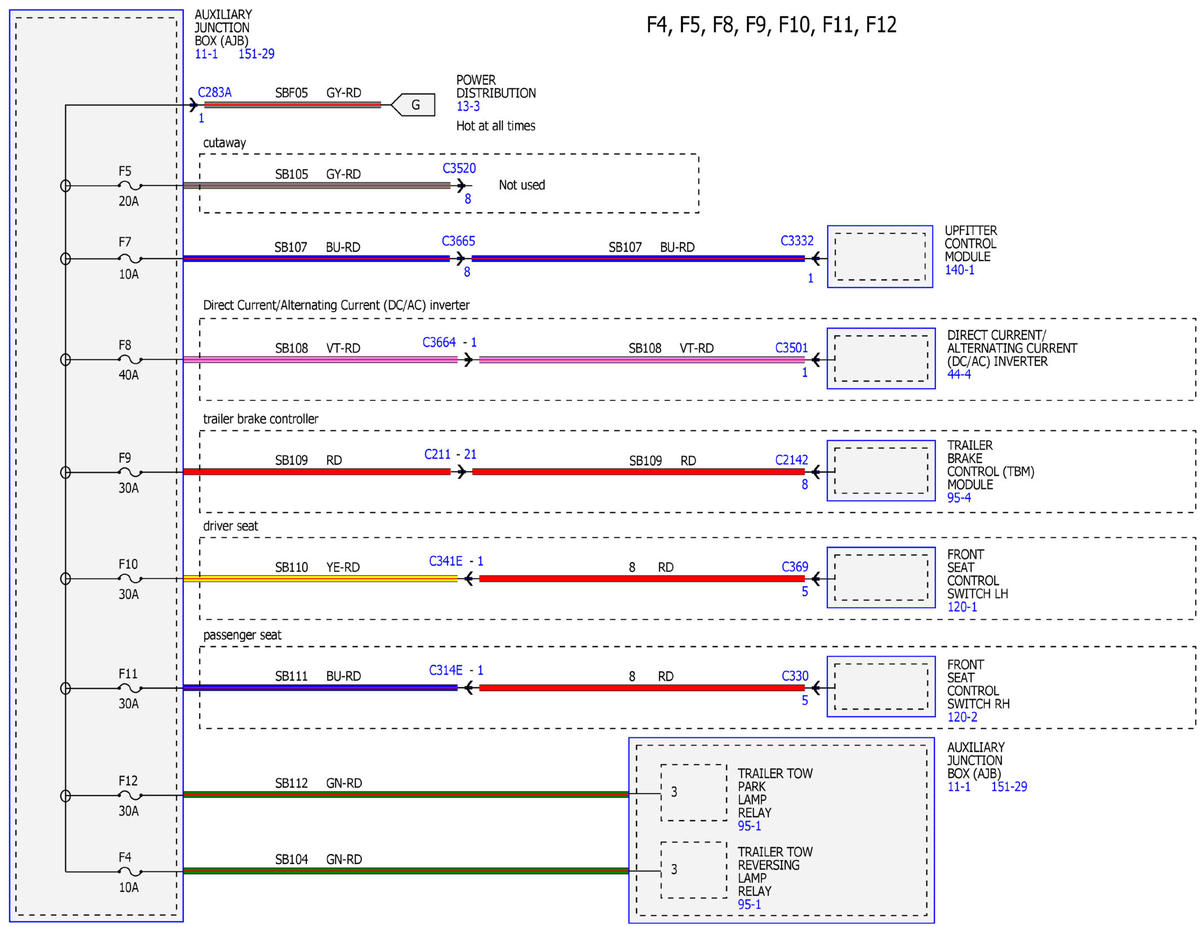

Fig 1: Power Distribution Wiring Diagram (1 of 67)

GFDWR21856

Courtesy of FORD MOTOR COMPANY

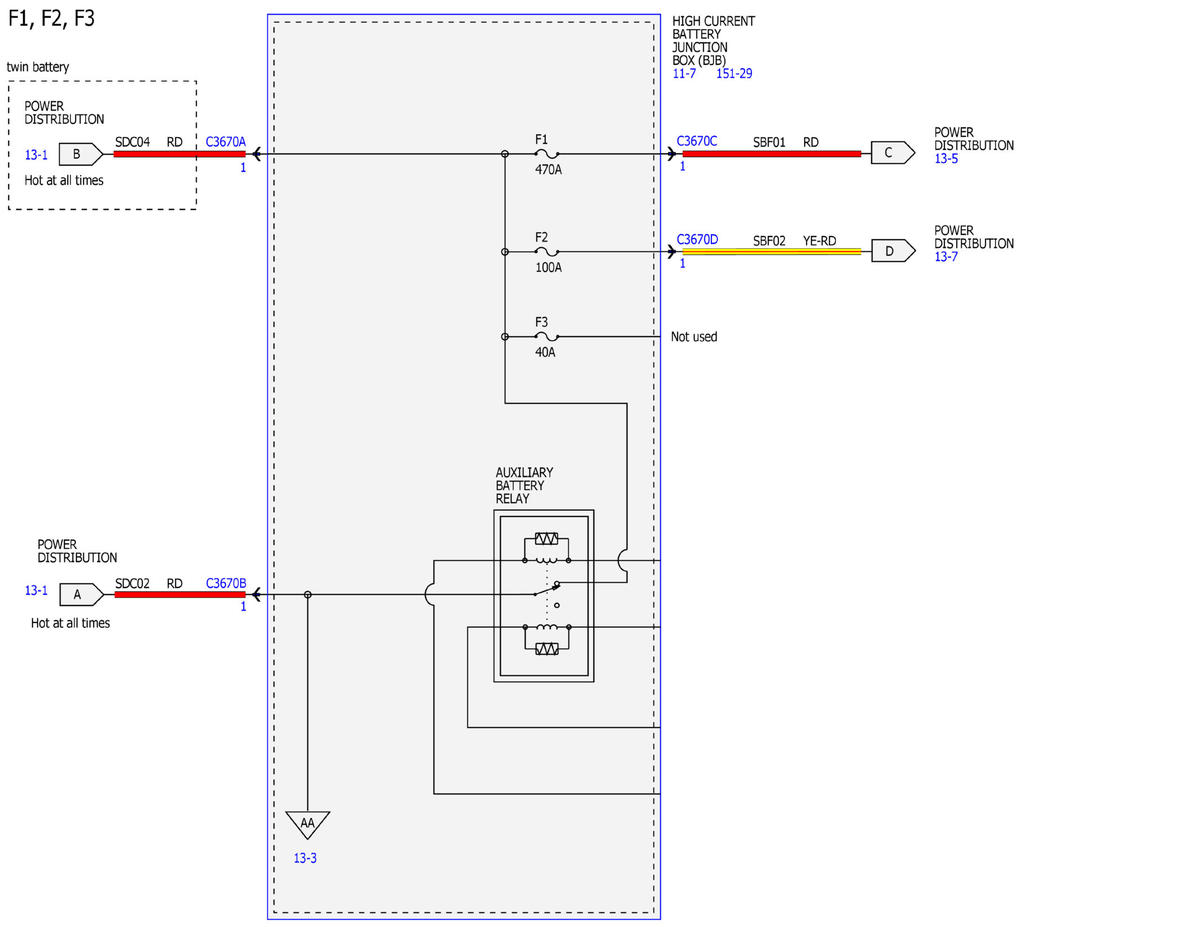

Fig 2: Power Distribution Wiring Diagram (2 of 67)

GFDWR21857

Courtesy of FORD MOTOR COMPANY

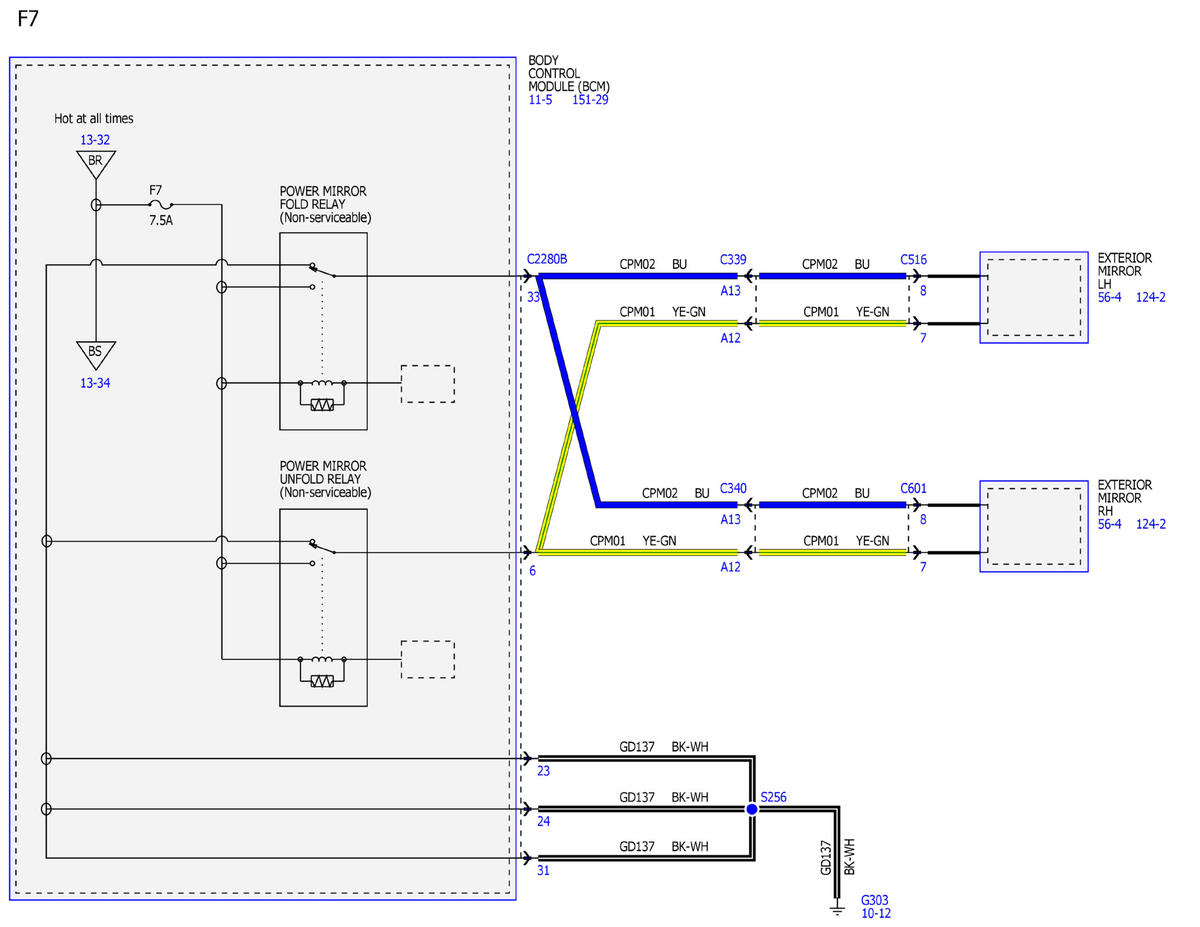

Fig 3: Power Distribution Wiring Diagram (3 of 67)

GFDWR21858

Courtesy of FORD MOTOR COMPANY

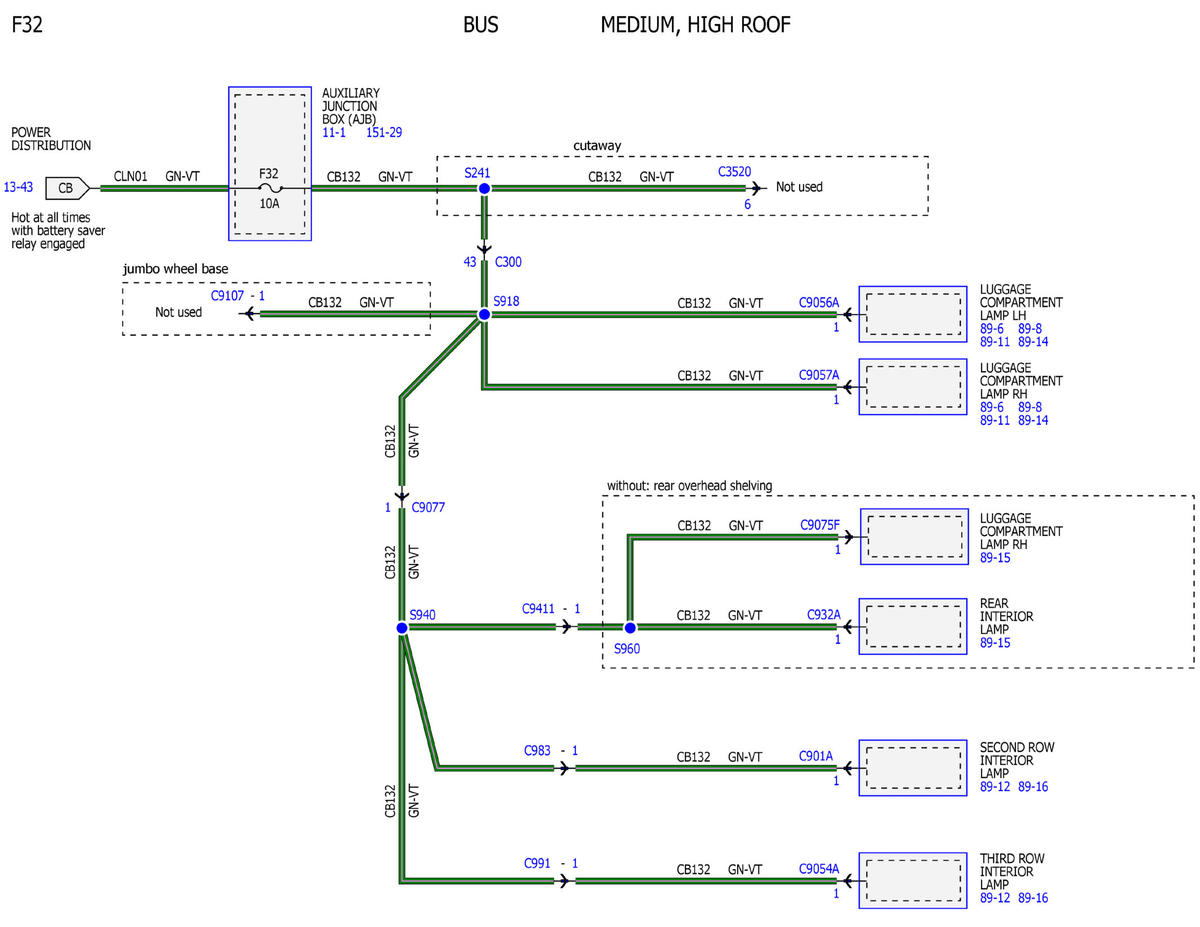

Fig 4: Power Distribution Wiring Diagram (4 of 67)

GFDWR21859

Courtesy of FORD MOTOR COMPANY

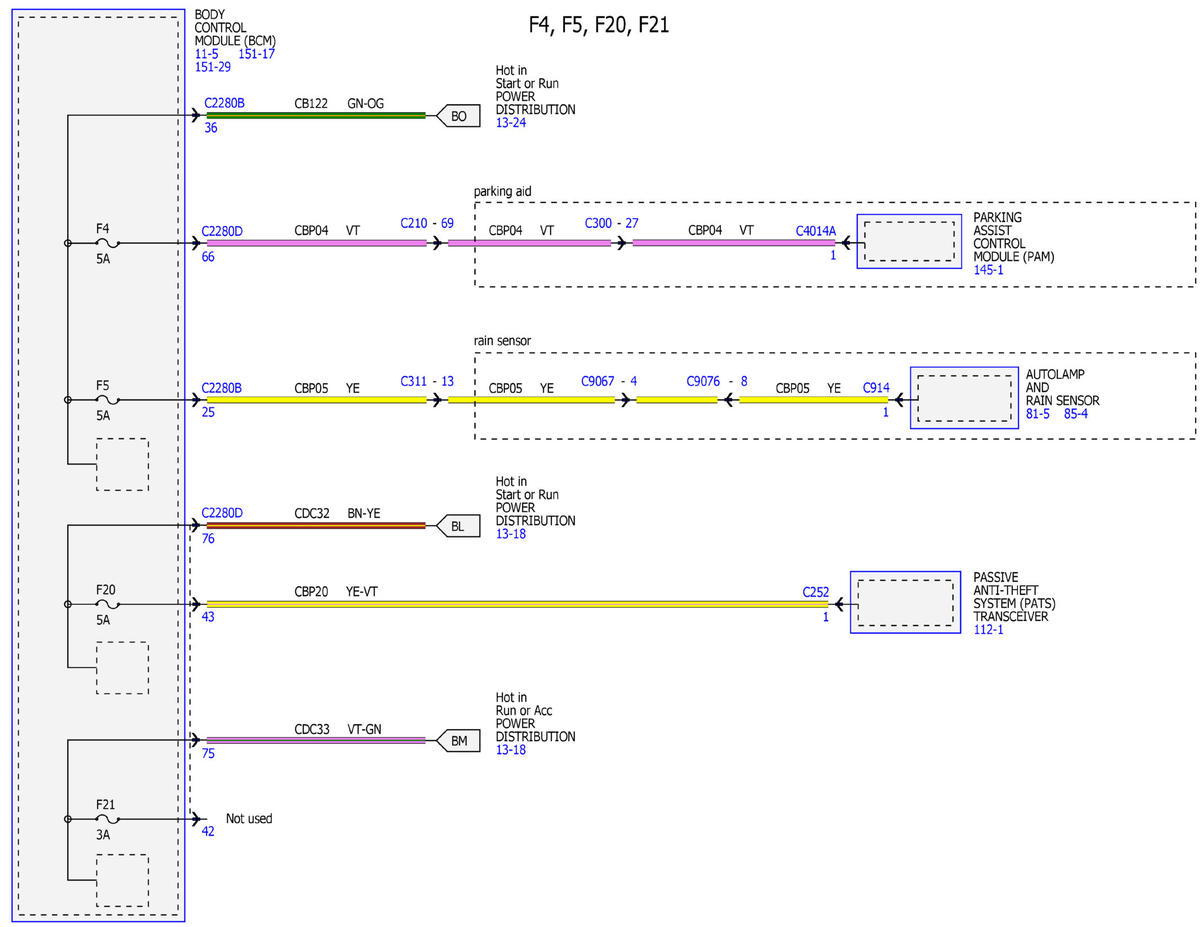

Fig 5: Power Distribution Wiring Diagram (5 of 67)

GFDWR21860

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Distribution Wiring Diagram (6 of 67)

GFDWR21861

Courtesy of FORD MOTOR COMPANY

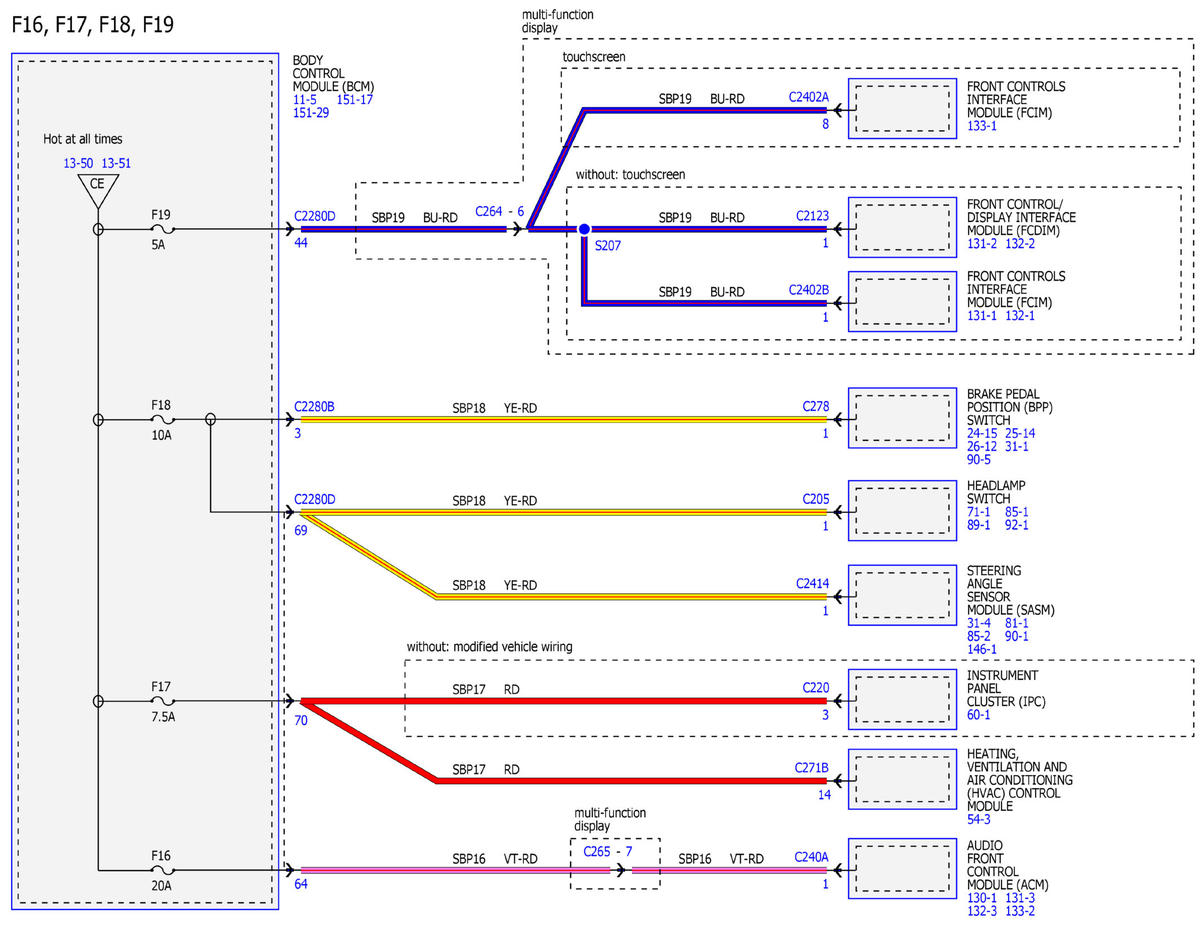

Fig 7: Power Distribution Wiring Diagram (7 of 67)

GFDWR21862

Courtesy of FORD MOTOR COMPANY

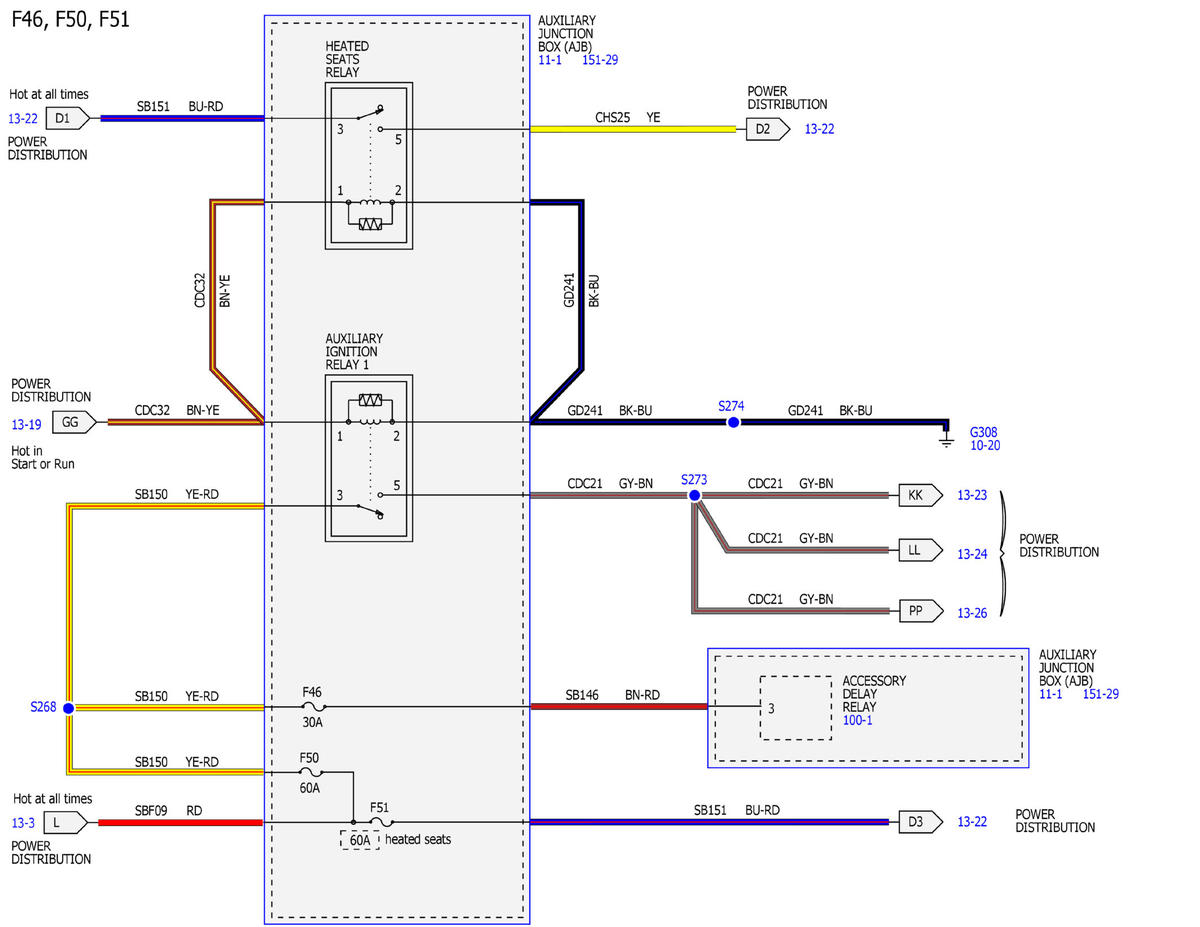

Fig 8: Power Distribution Wiring Diagram (8 of 67)

GFDWR21863

Courtesy of FORD MOTOR COMPANY

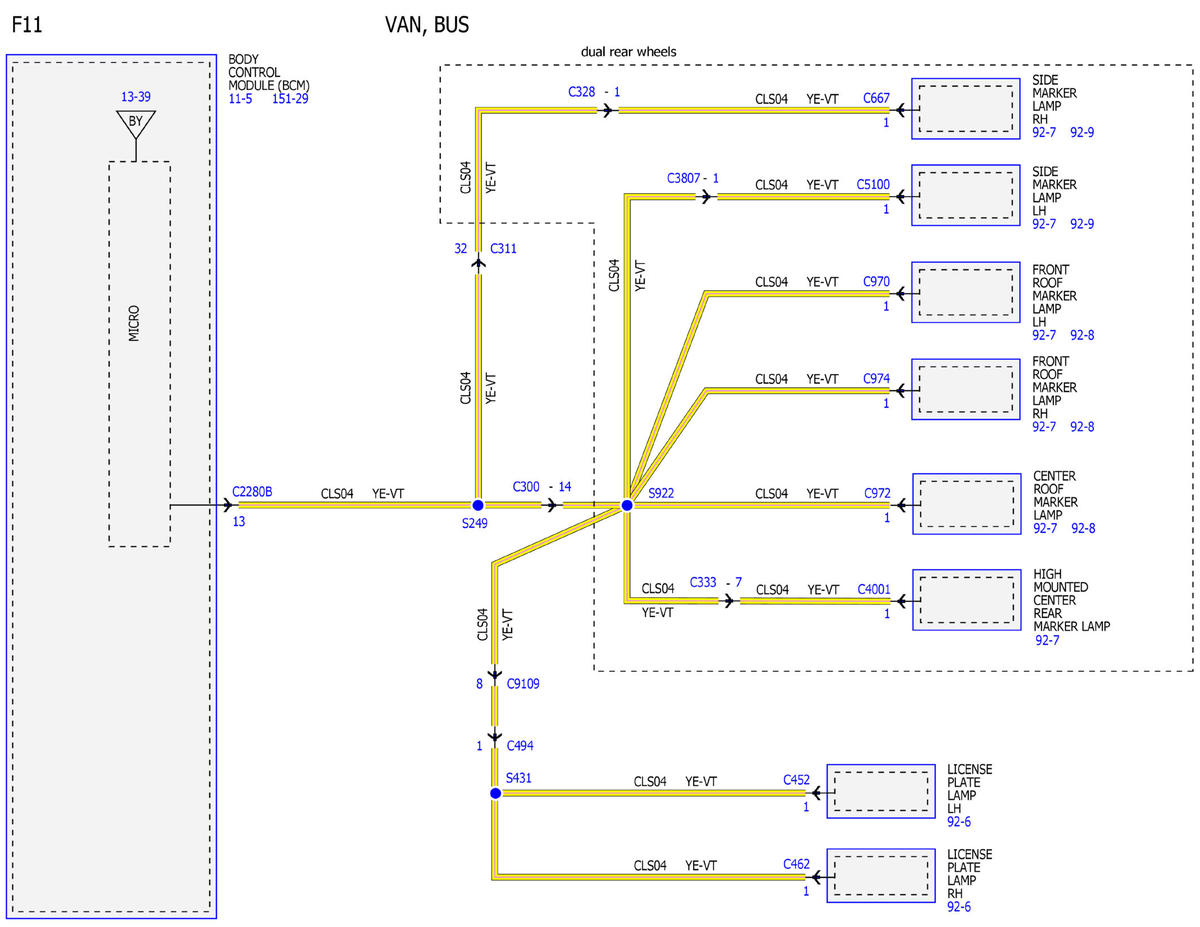

Fig 9: Power Distribution Wiring Diagram (9 of 67)

GFDWR21864

Courtesy of FORD MOTOR COMPANY

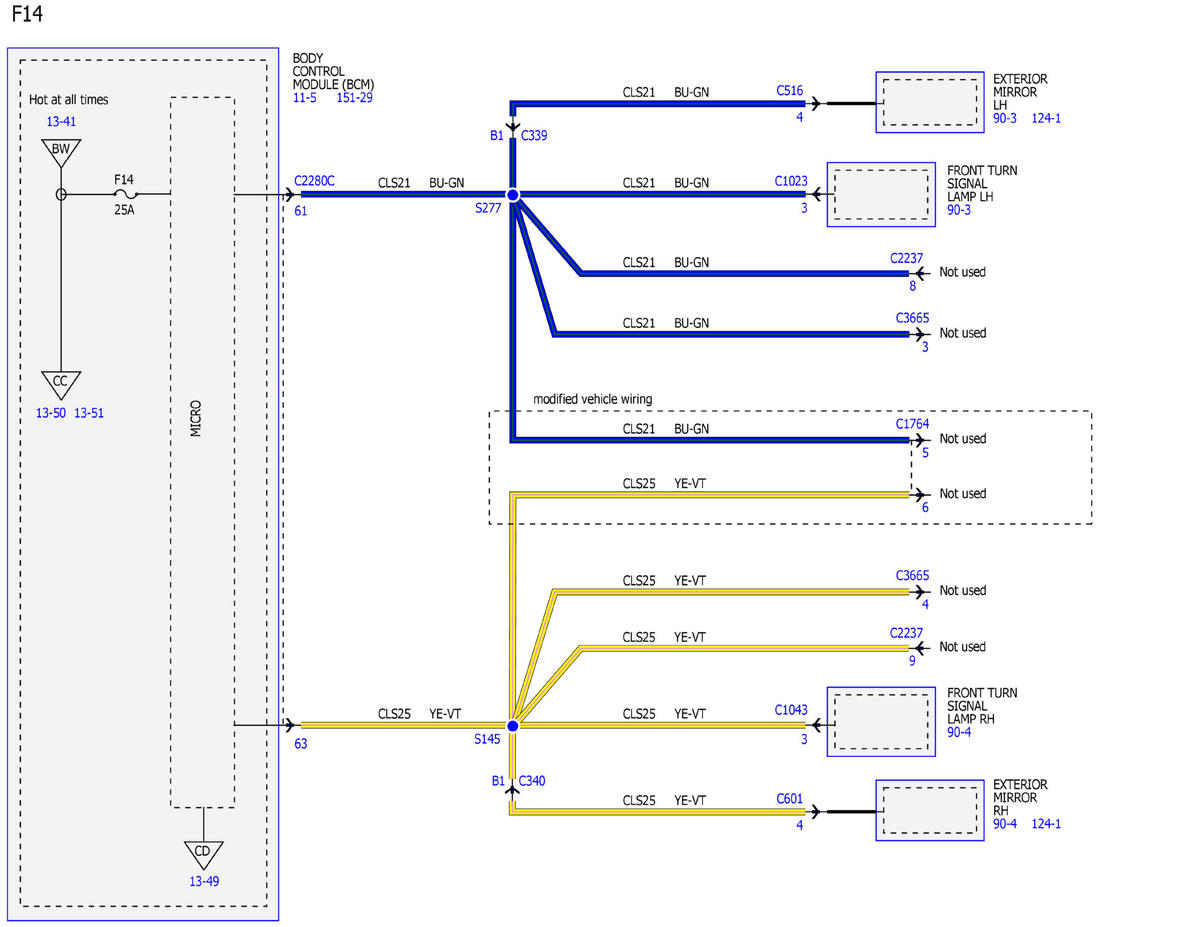

Fig 10: Power Distribution Wiring Diagram (10 of 67)

GFDWR21865

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Distribution Wiring Diagram (11 of 67)

GFDWR21866

Courtesy of FORD MOTOR COMPANY

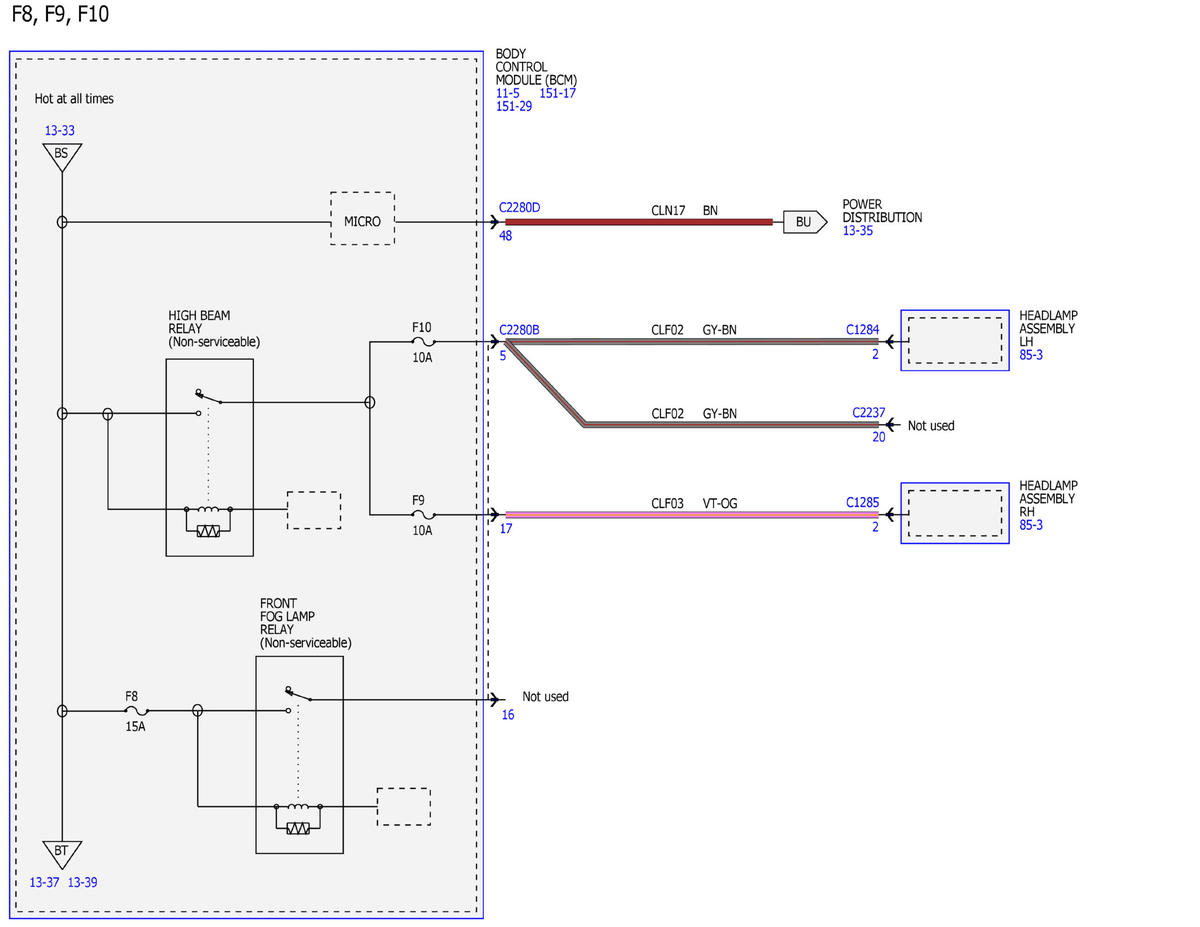

Fig 12: Power Distribution Wiring Diagram (12 of 67)

GFDWR21867

Courtesy of FORD MOTOR COMPANY

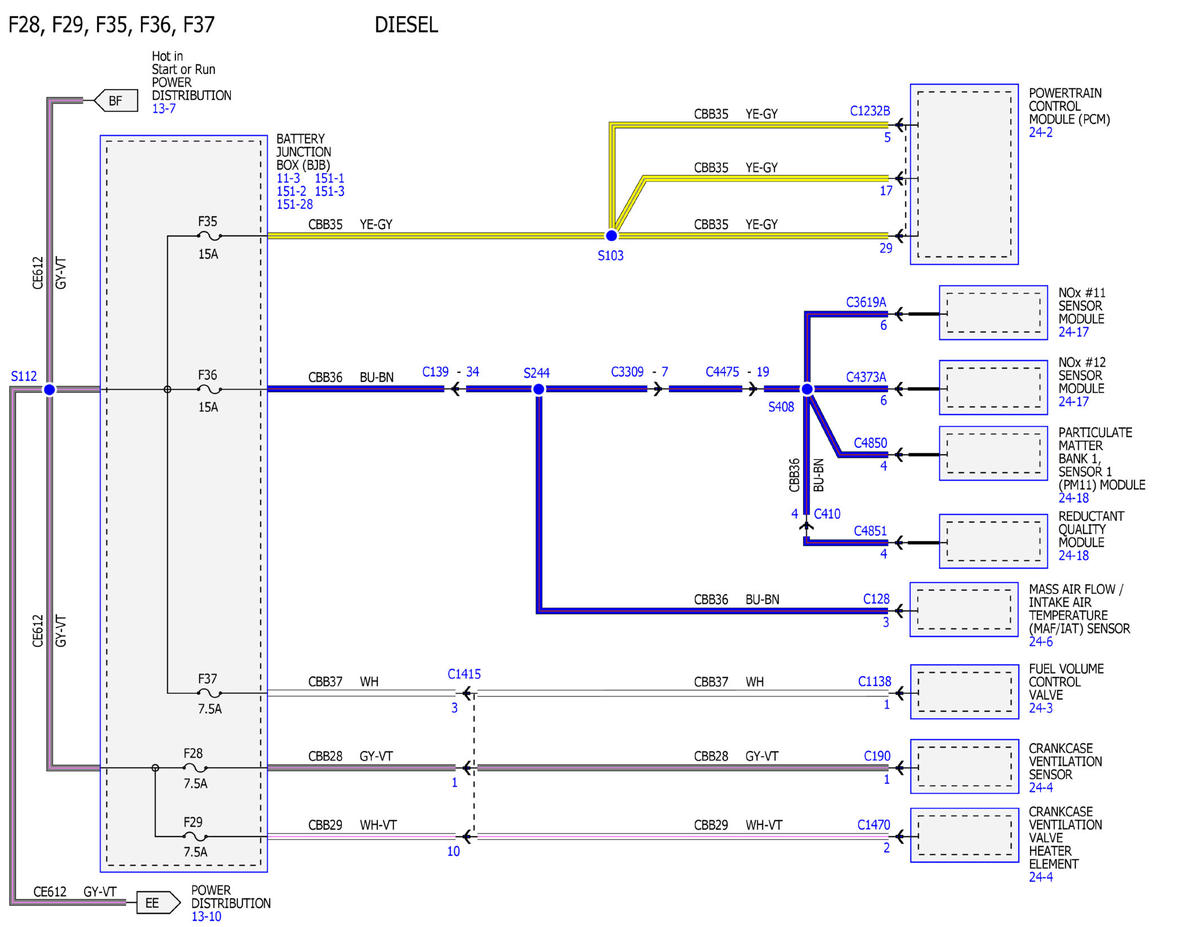

Fig 13: Power Distribution Wiring Diagram (13 of 67)

GFDWR21868

Courtesy of FORD MOTOR COMPANY

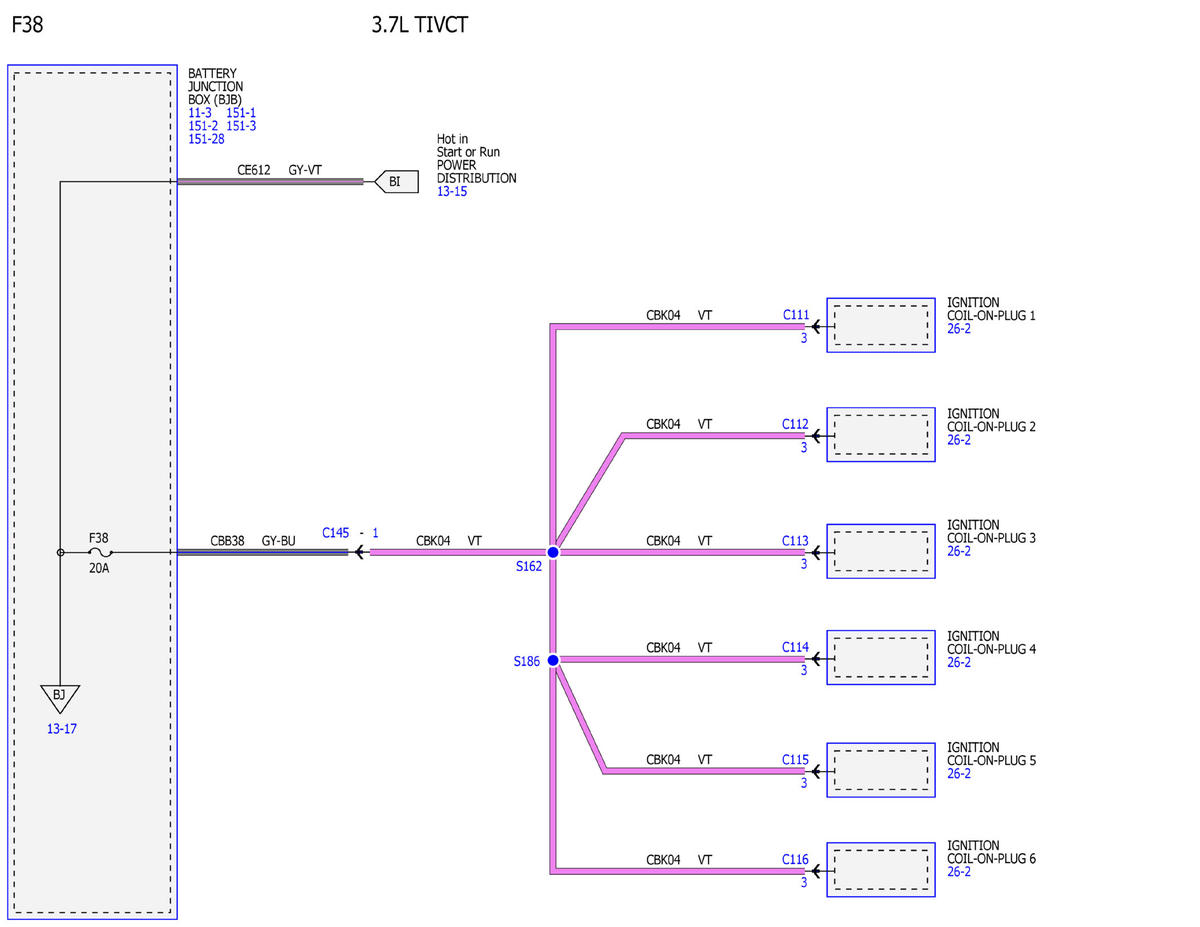

Fig 14: Power Distribution Wiring Diagram (14 of 67)

GFDWR21869

Courtesy of FORD MOTOR COMPANY

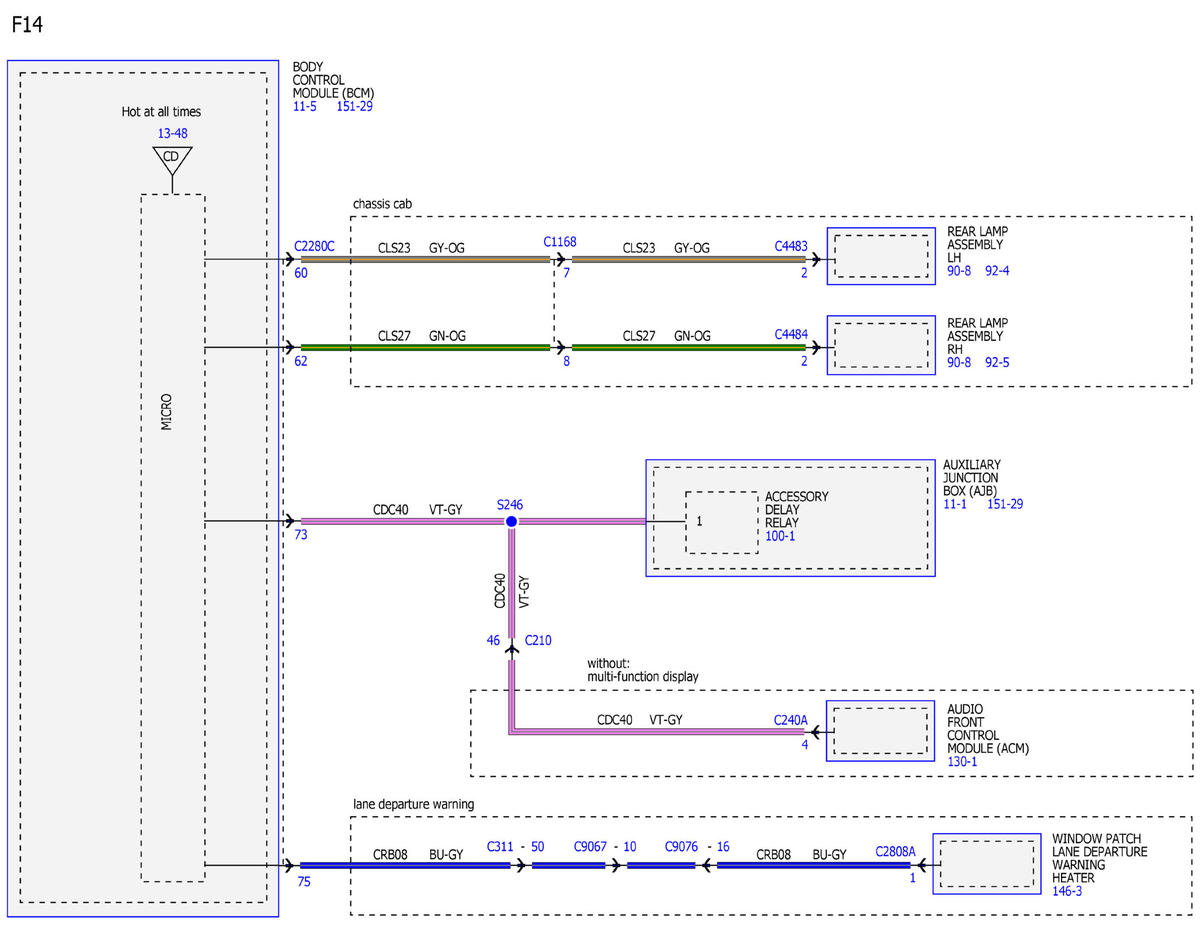

Fig 15: Power Distribution Wiring Diagram (15 of 67)

GFDWR21870

Courtesy of FORD MOTOR COMPANY

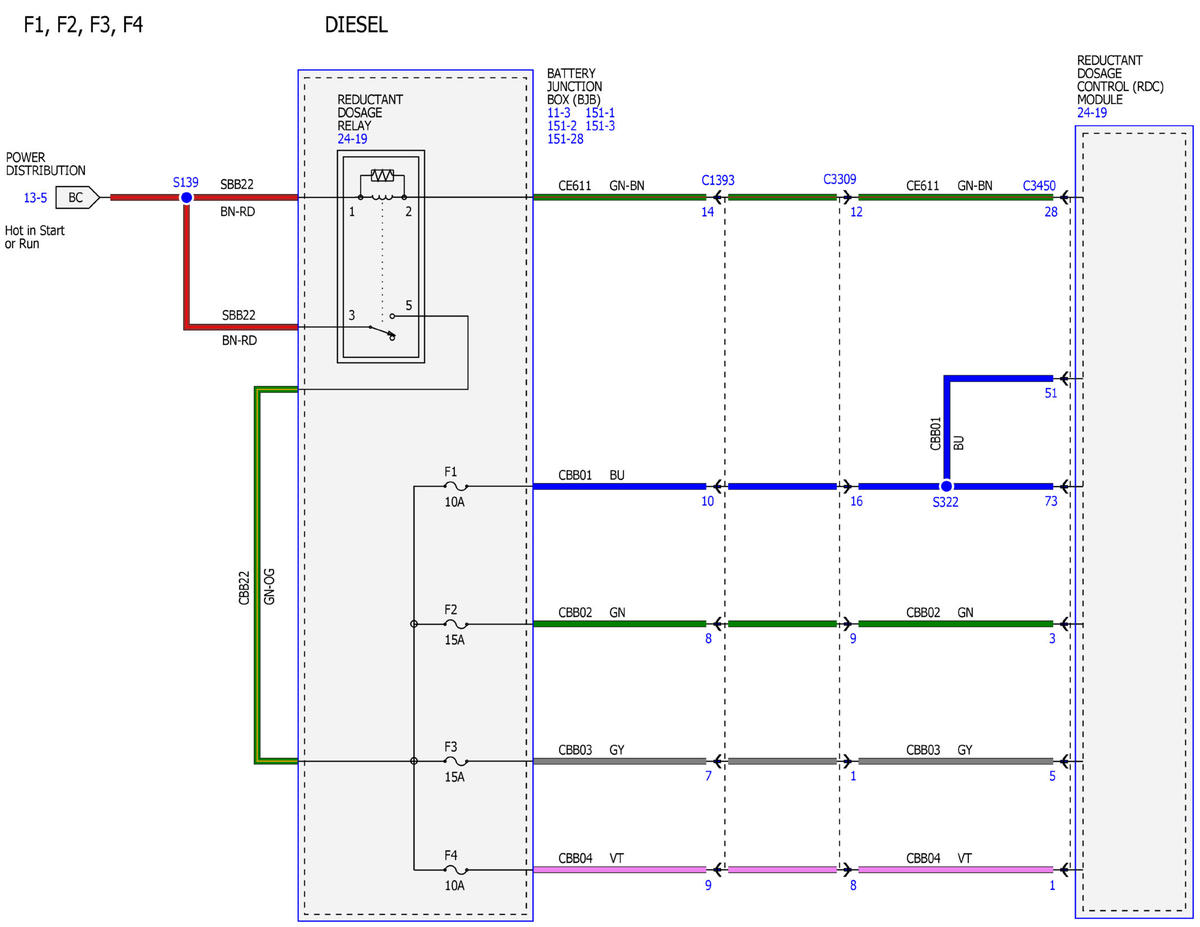

Fig 16: Power Distribution Wiring Diagram (16 of 67)

GFDWR21871

Courtesy of FORD MOTOR COMPANY

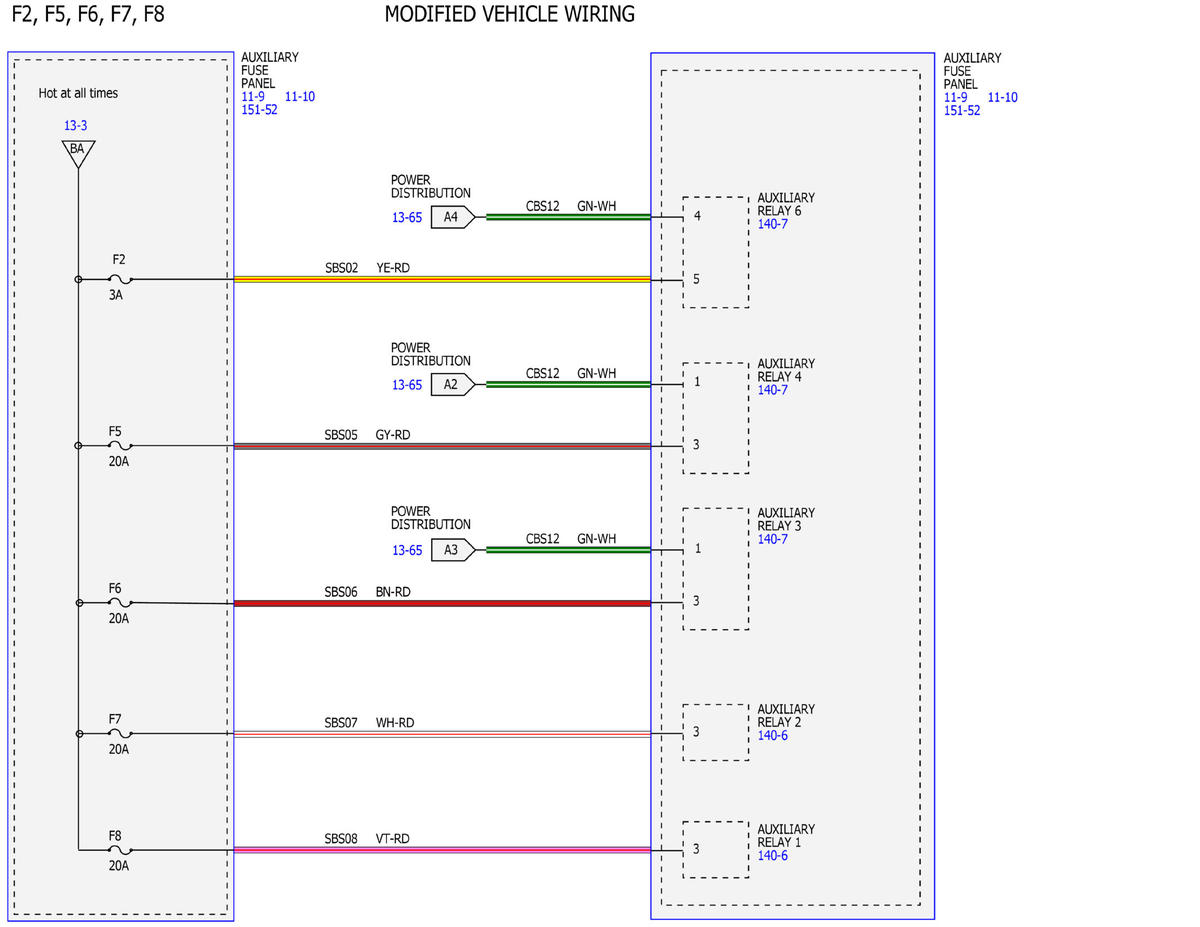

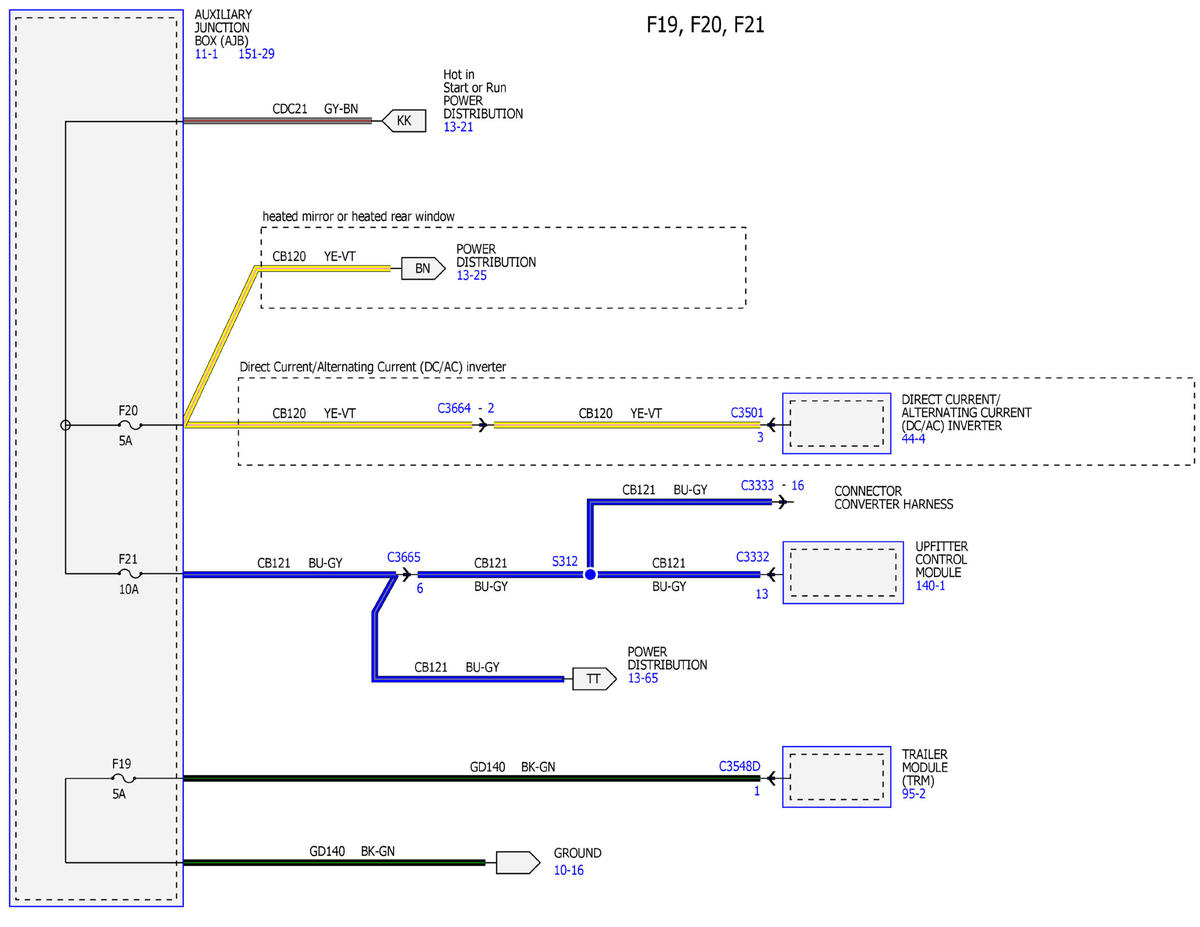

Fig 17: Power Distribution Wiring Diagram (17 of 67)

GFDWR21872

Courtesy of FORD MOTOR COMPANY

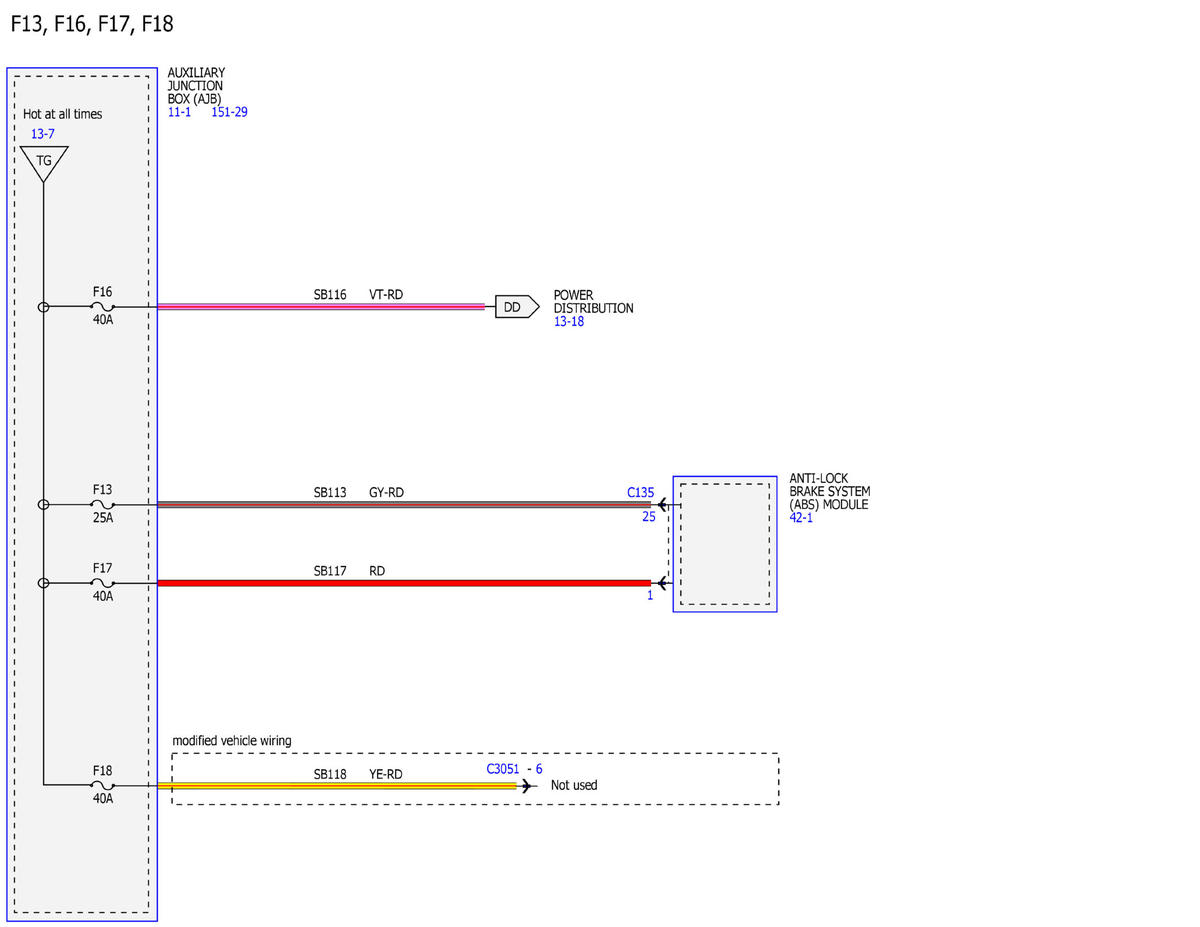

Fig 18: Power Distribution Wiring Diagram (18 of 67)

GFDWR21873

Courtesy of FORD MOTOR COMPANY

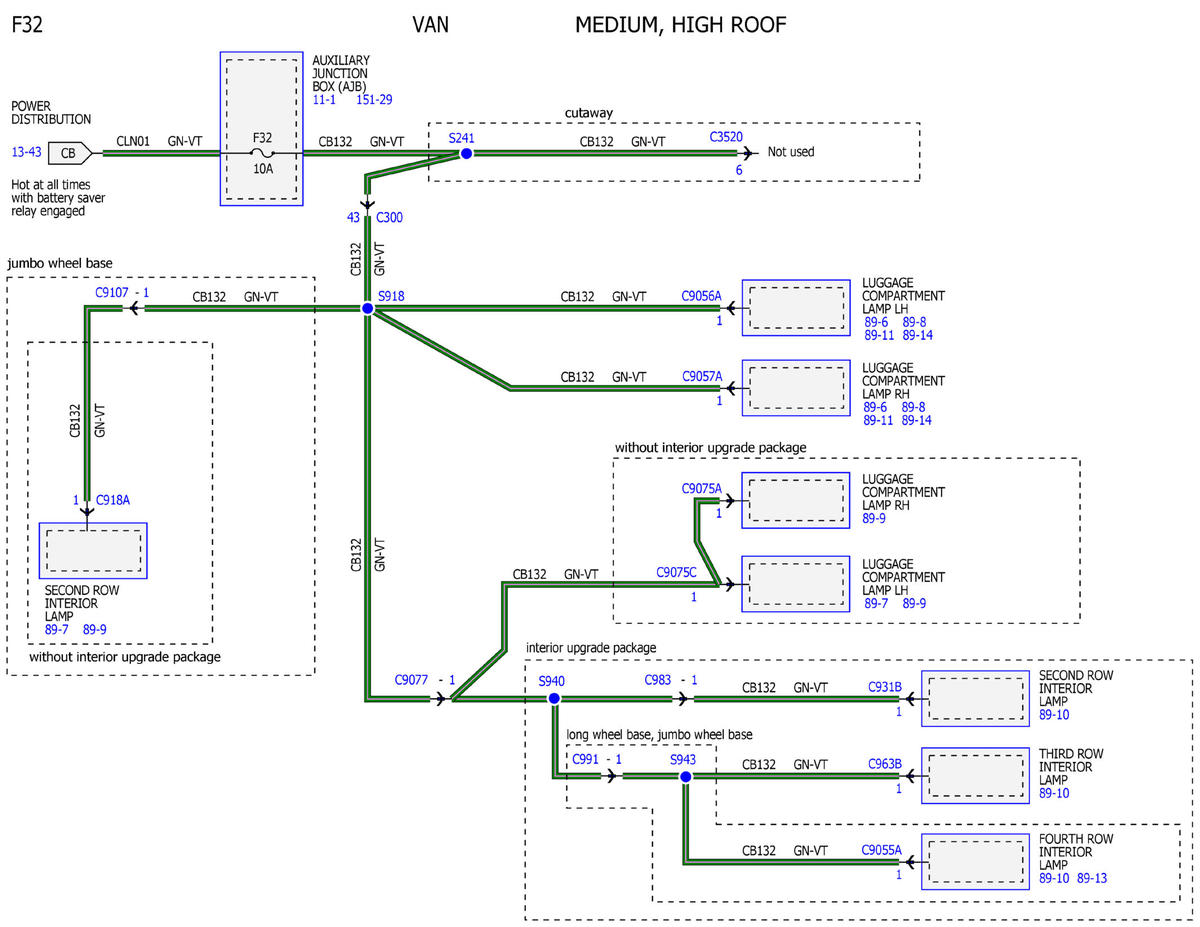

Fig 19: Power Distribution Wiring Diagram (19 of 67)

GFDWR21874

Courtesy of FORD MOTOR COMPANY

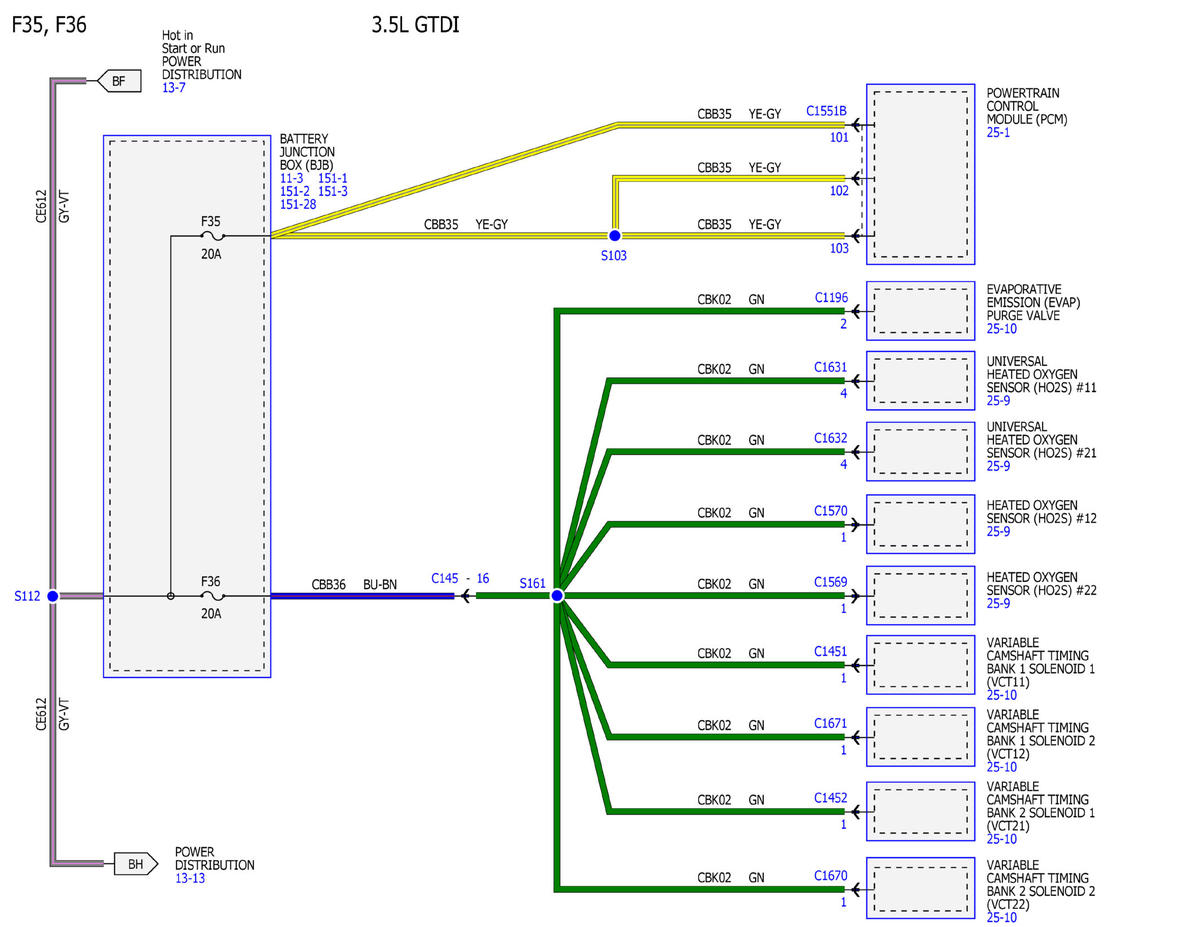

Fig 20: Power Distribution Wiring Diagram (20 of 67)

GFDWR21875

Courtesy of FORD MOTOR COMPANY

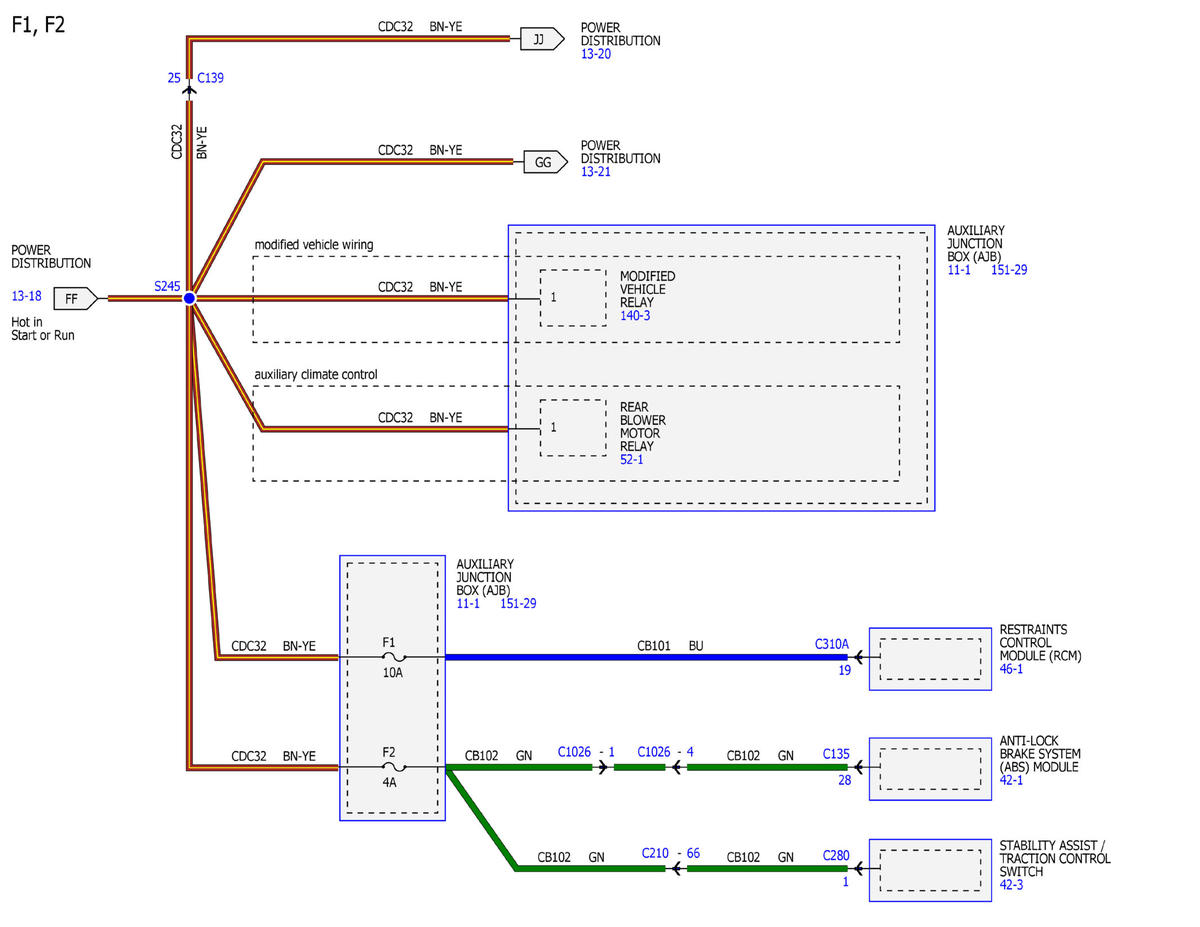

Fig 21: Power Distribution Wiring Diagram (21 of 67)

GFDWR21876

Courtesy of FORD MOTOR COMPANY

Fig 22: Power Distribution Wiring Diagram (22 of 67)

GFDWR21877

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution Wiring Diagram (23 of 67)

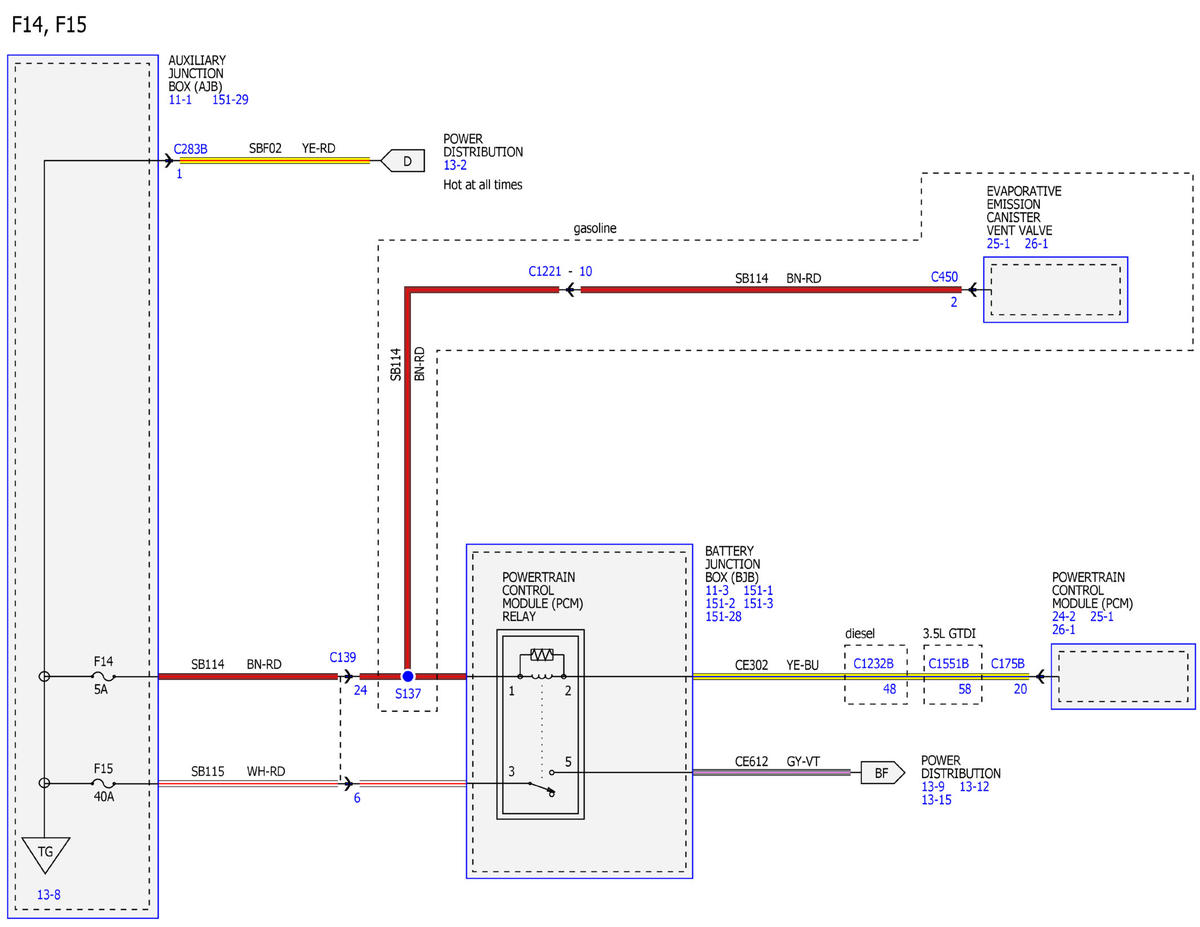

GFDWR21878

Courtesy of FORD MOTOR COMPANY

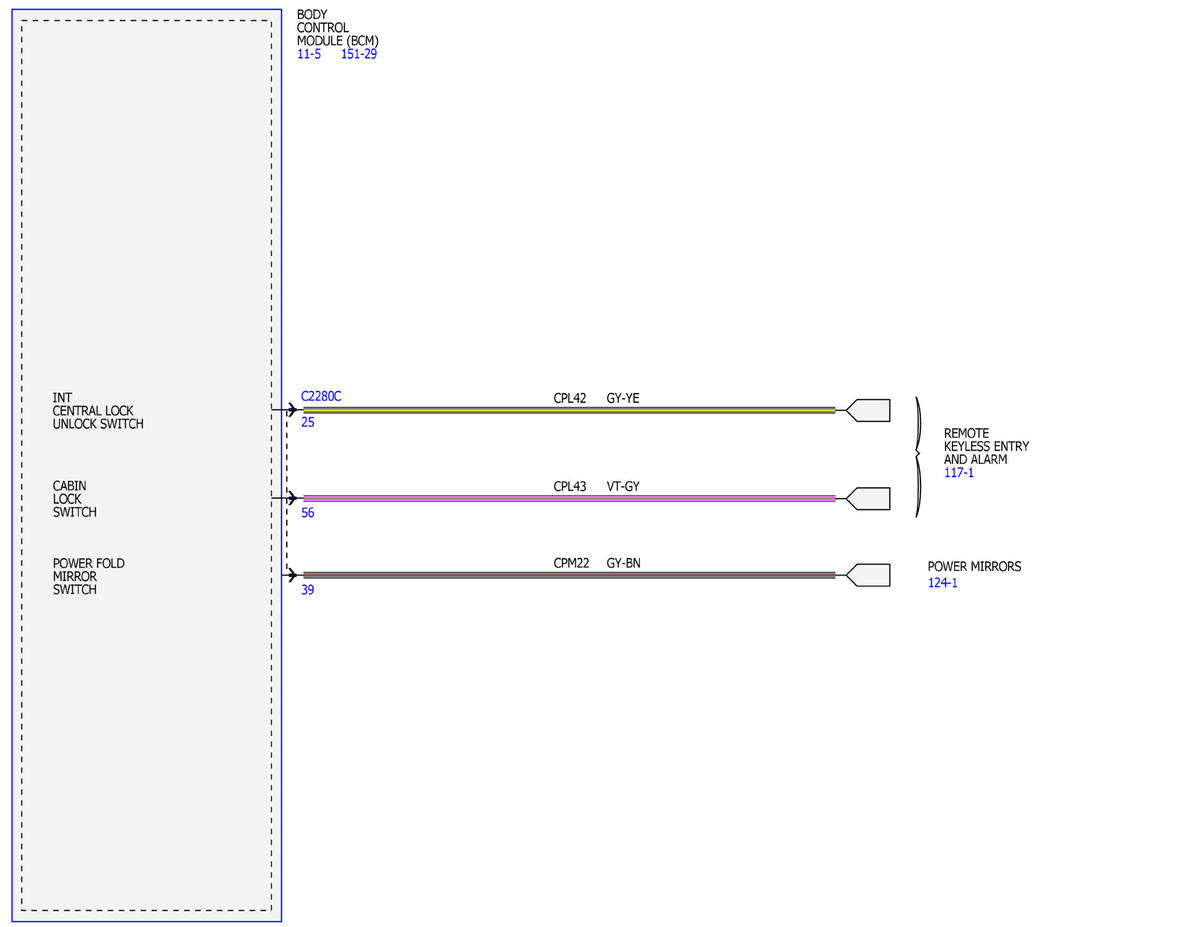

Fig 24: Power Distribution Wiring Diagram (24 of 67)

GFDWR21879

Courtesy of FORD MOTOR COMPANY

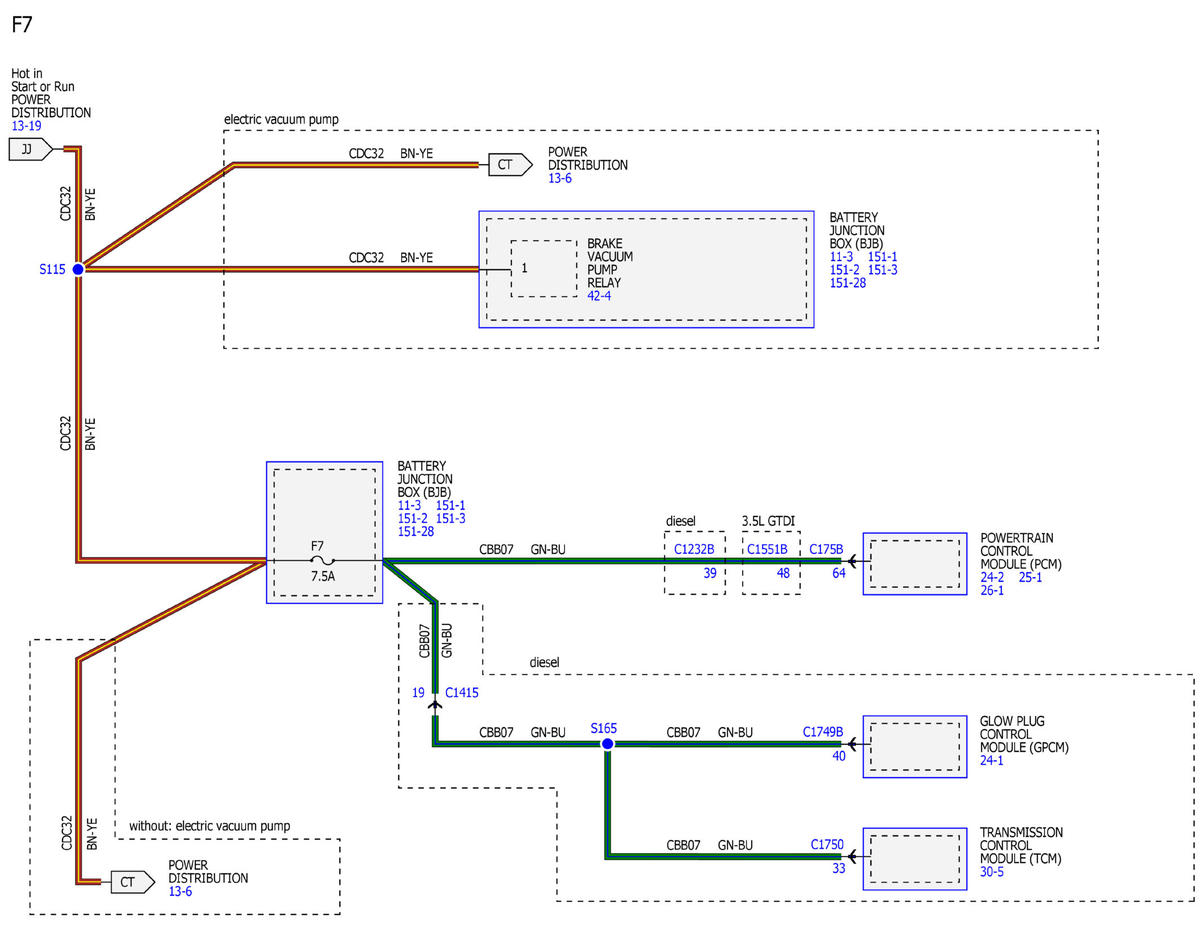

Fig 25: Power Distribution Wiring Diagram (25 of 67)

GFDWR21880

Courtesy of FORD MOTOR COMPANY

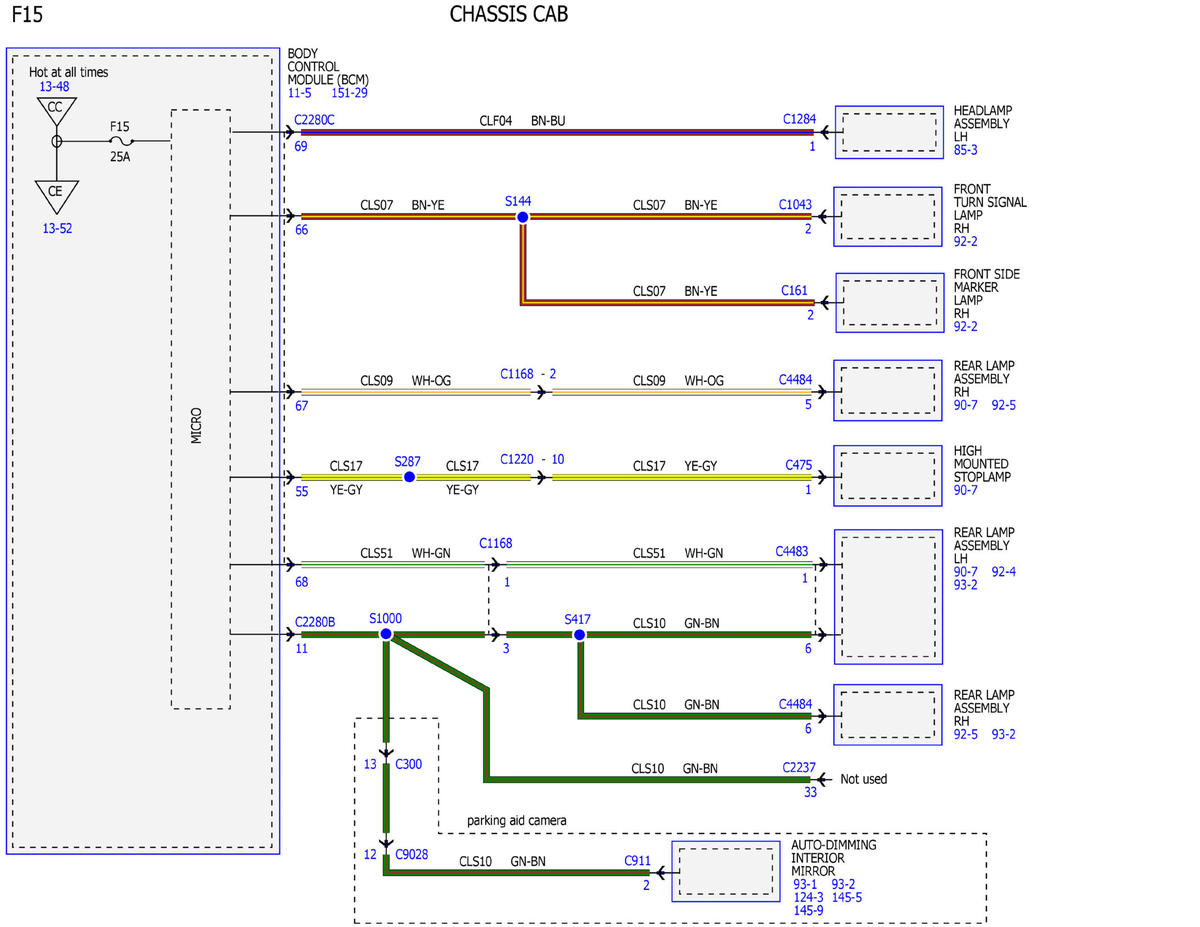

Fig 26: Power Distribution Wiring Diagram (26 of 67)

GFDWR21881

Courtesy of FORD MOTOR COMPANY

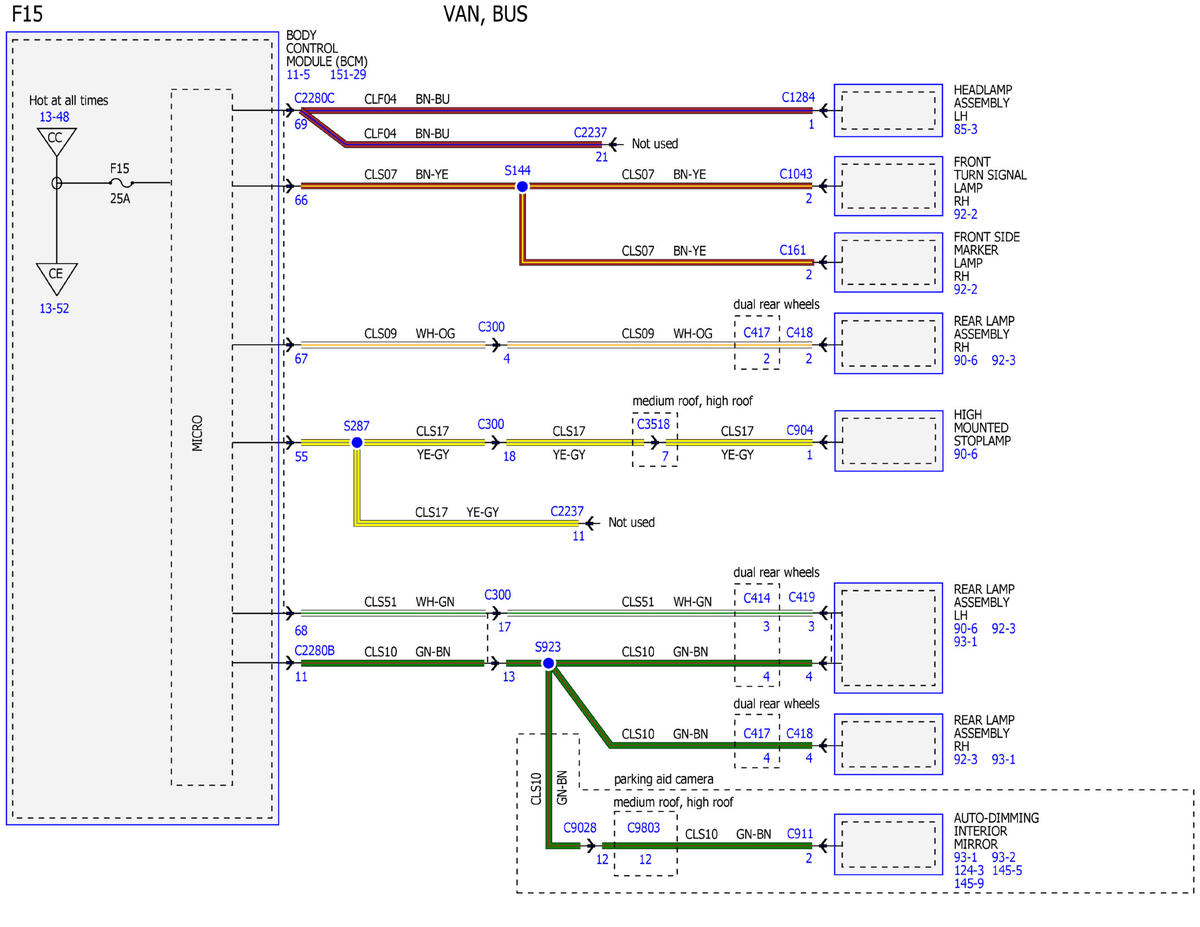

Fig 27: Power Distribution Wiring Diagram (27 of 67)

GFDWR21882

Courtesy of FORD MOTOR COMPANY

Fig 28: Power Distribution Wiring Diagram (28 of 67)

GFDWR21883

Courtesy of FORD MOTOR COMPANY

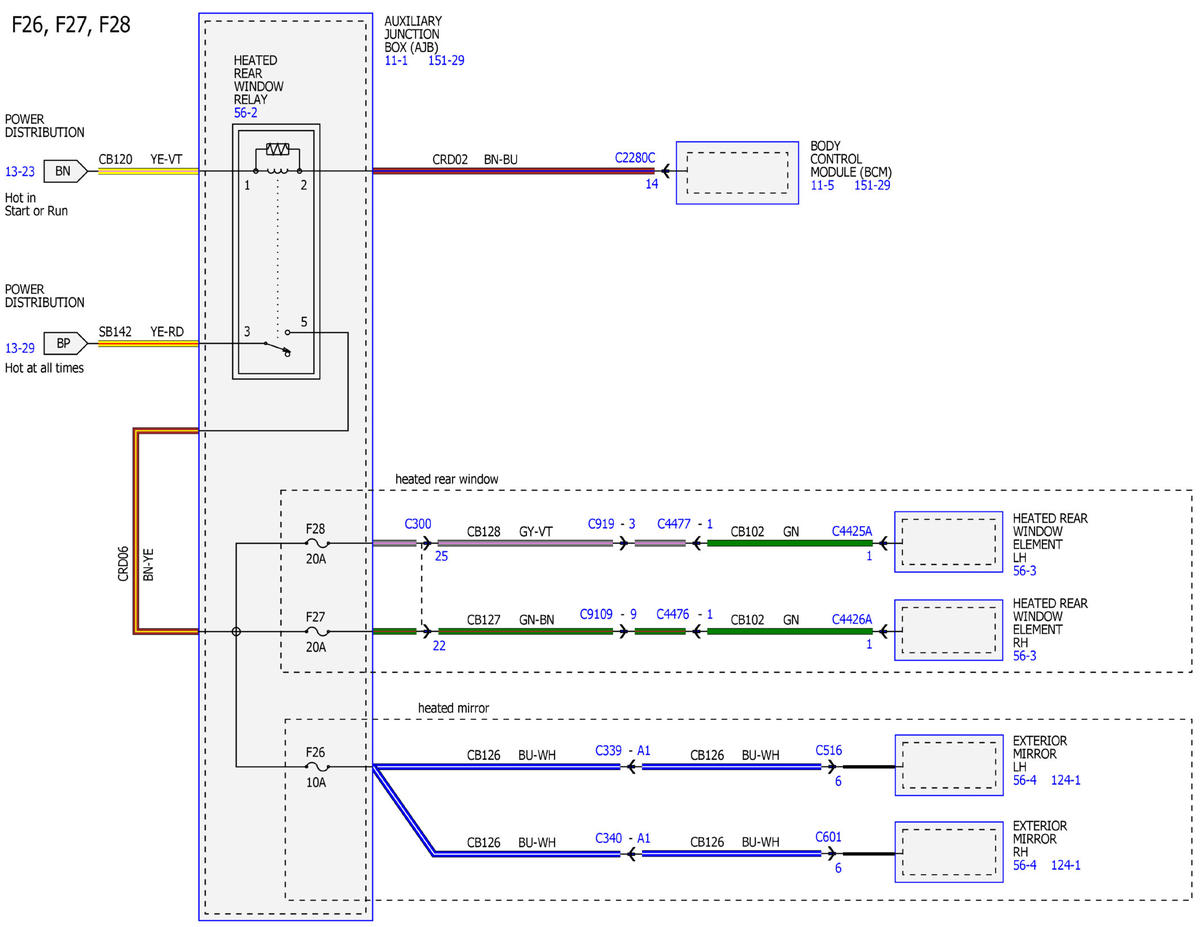

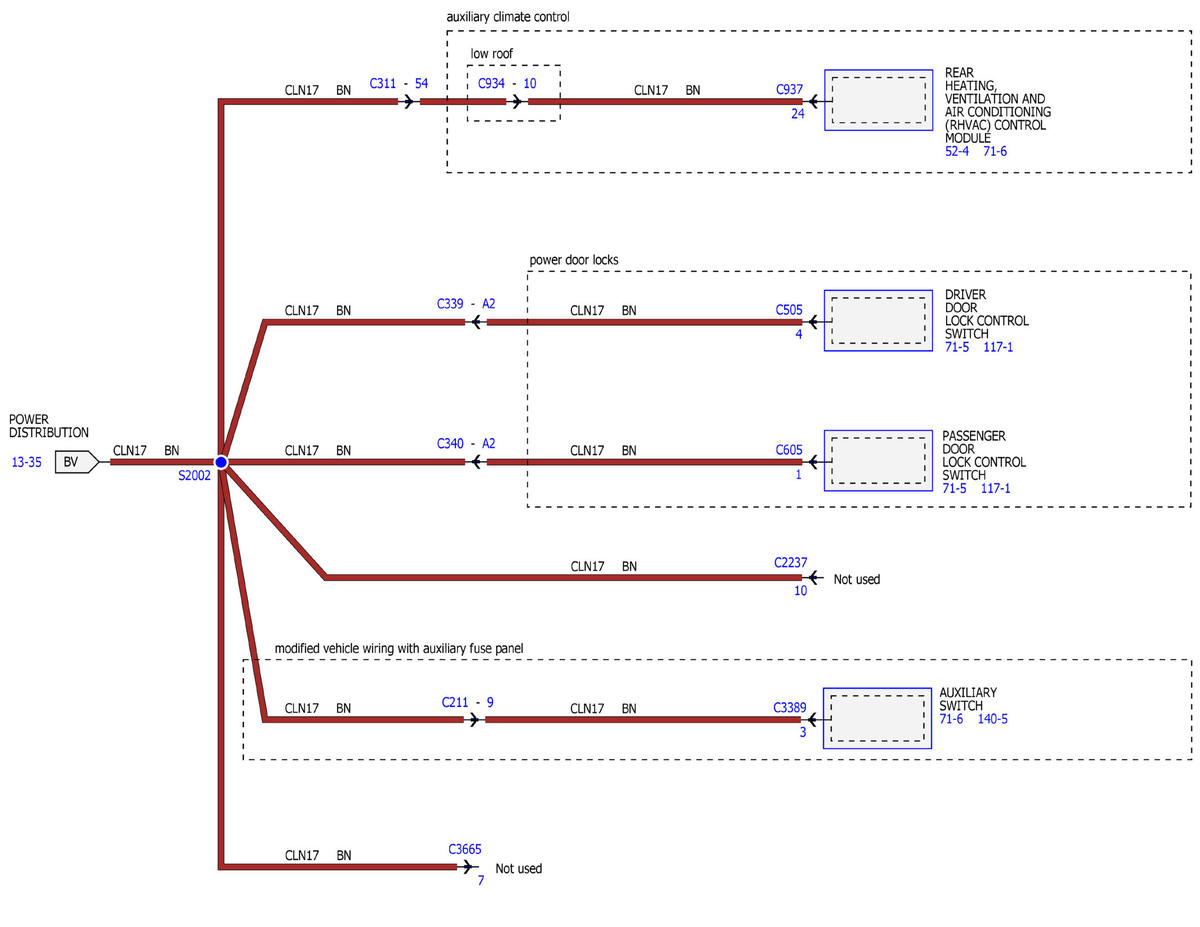

Fig 29: Power Distribution Wiring Diagram (29 of 67)

GFDWR21884

Courtesy of FORD MOTOR COMPANY

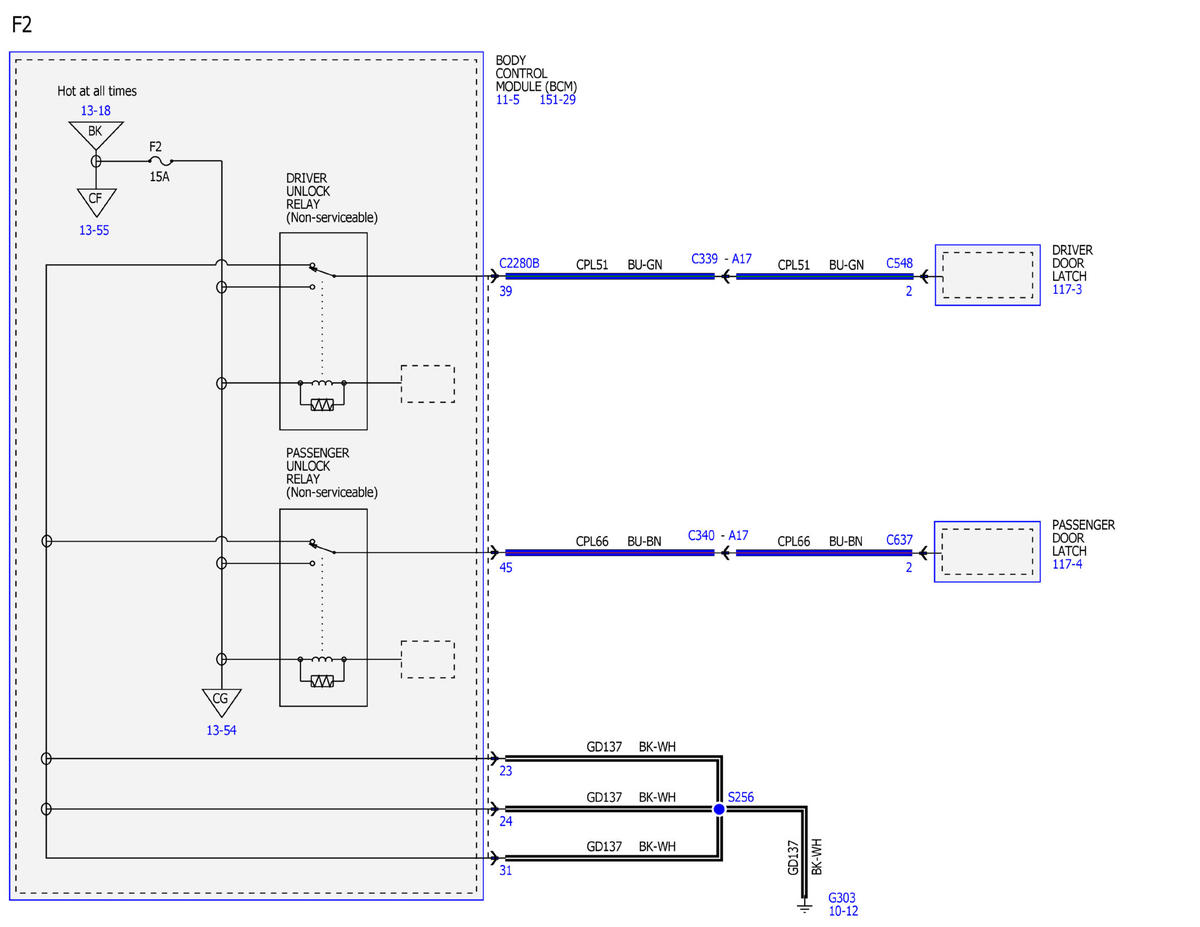

Fig 30: Power Distribution Wiring Diagram (30 of 67)

GFDWR21885

Courtesy of FORD MOTOR COMPANY

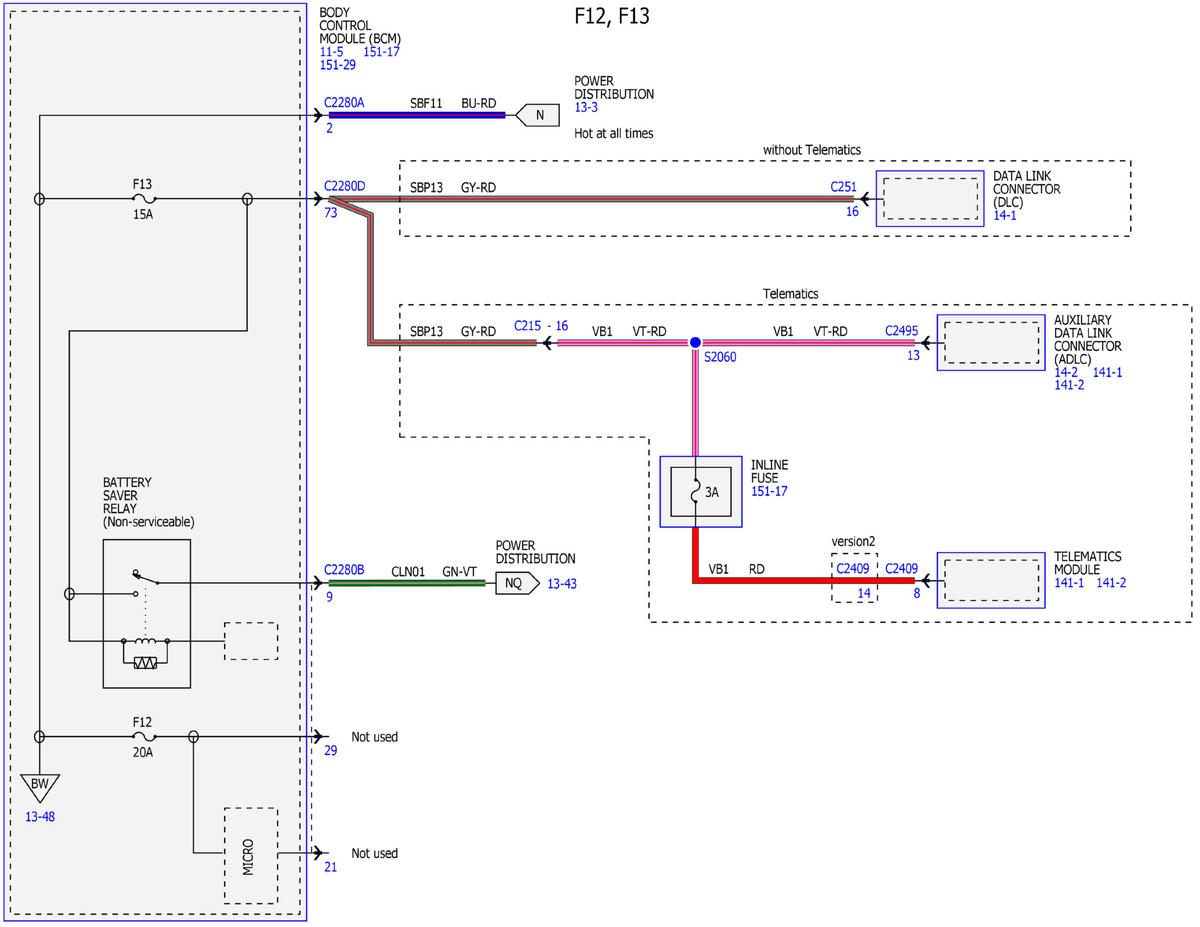

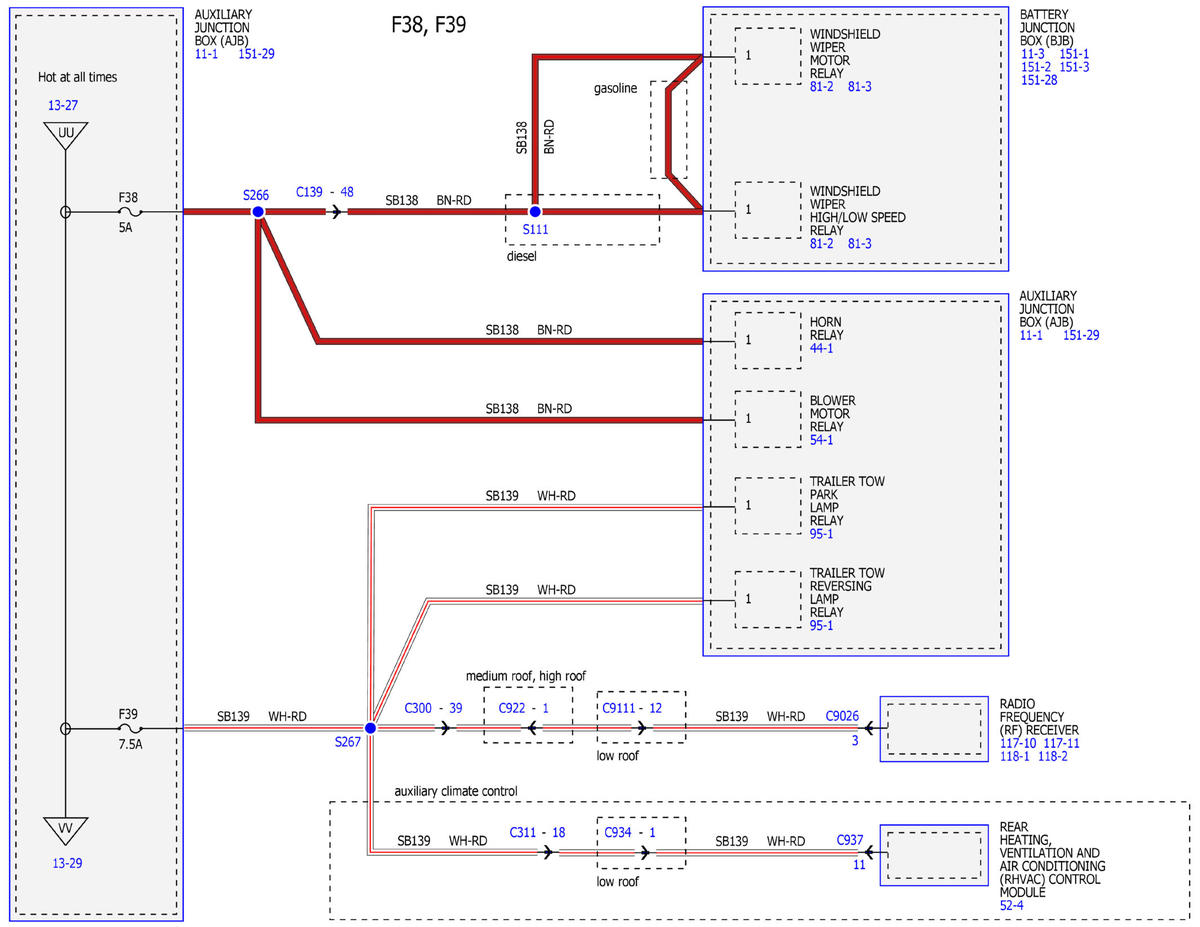

Fig 31: Power Distribution Wiring Diagram (31 of 67)

GFDWR21886

Courtesy of FORD MOTOR COMPANY

Fig 32: Power Distribution Wiring Diagram (32 of 67)

GFDWR21887

Courtesy of FORD MOTOR COMPANY

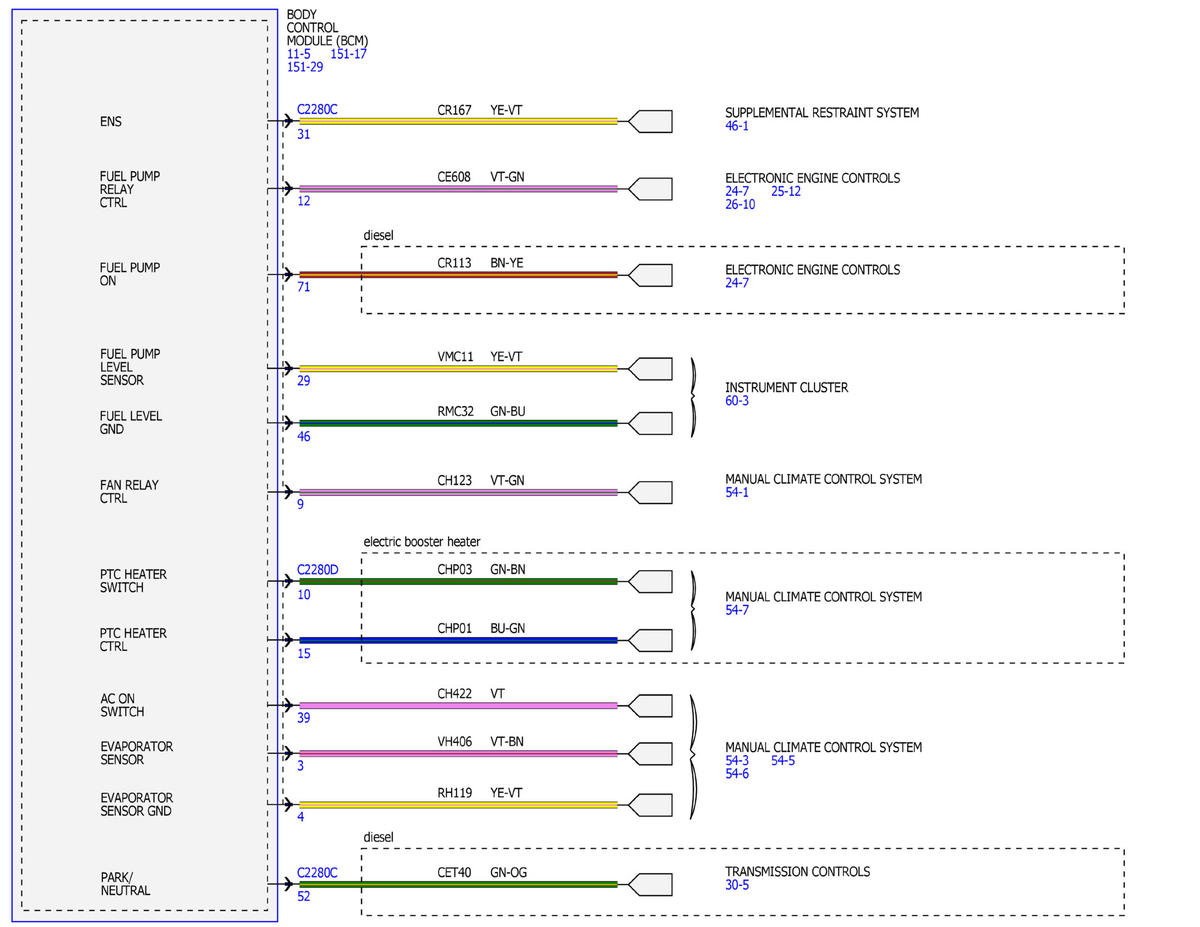

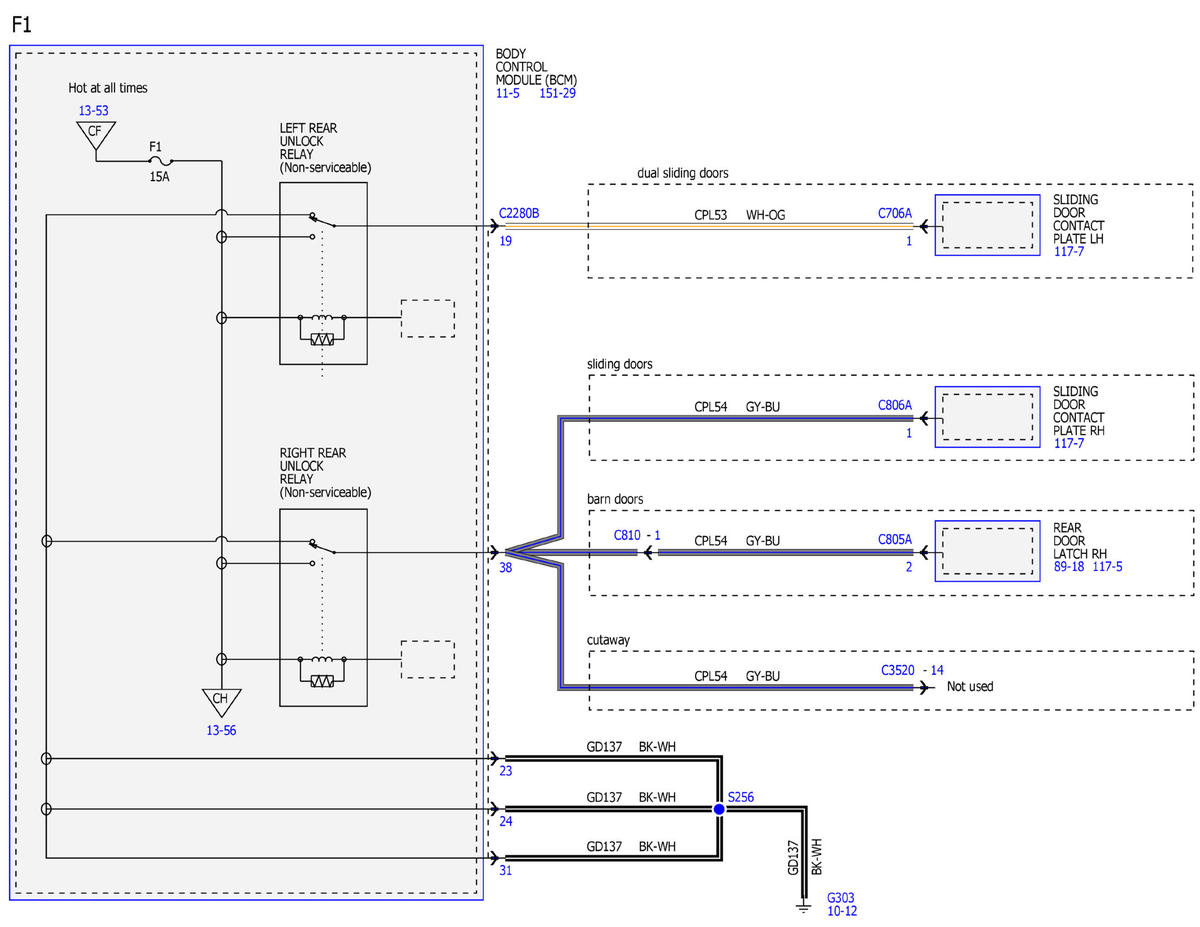

Fig 33: Power Distribution Wiring Diagram (33 of 67)

GFDWR21888

Courtesy of FORD MOTOR COMPANY

Fig 34: Power Distribution Wiring Diagram (34 of 67)

GFDWR21889

Courtesy of FORD MOTOR COMPANY

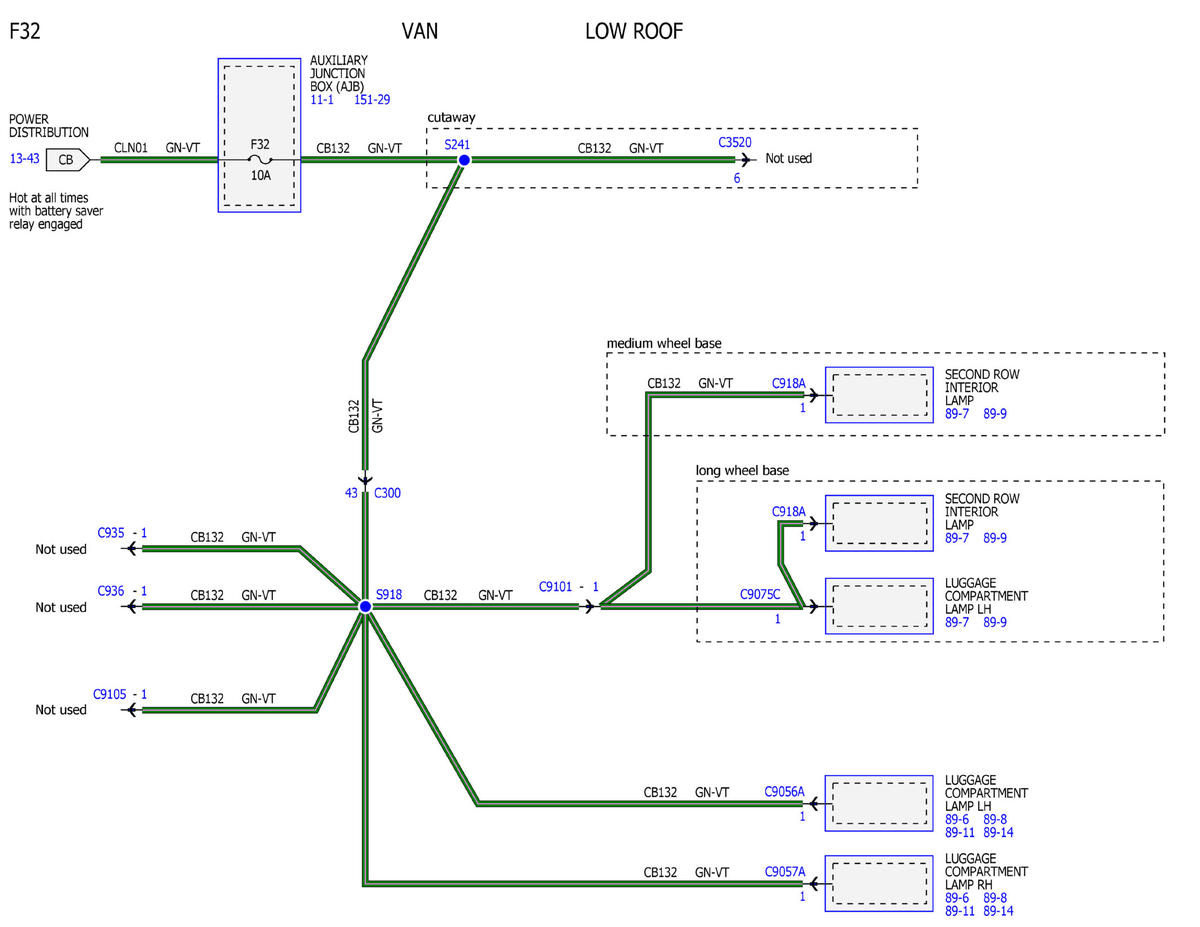

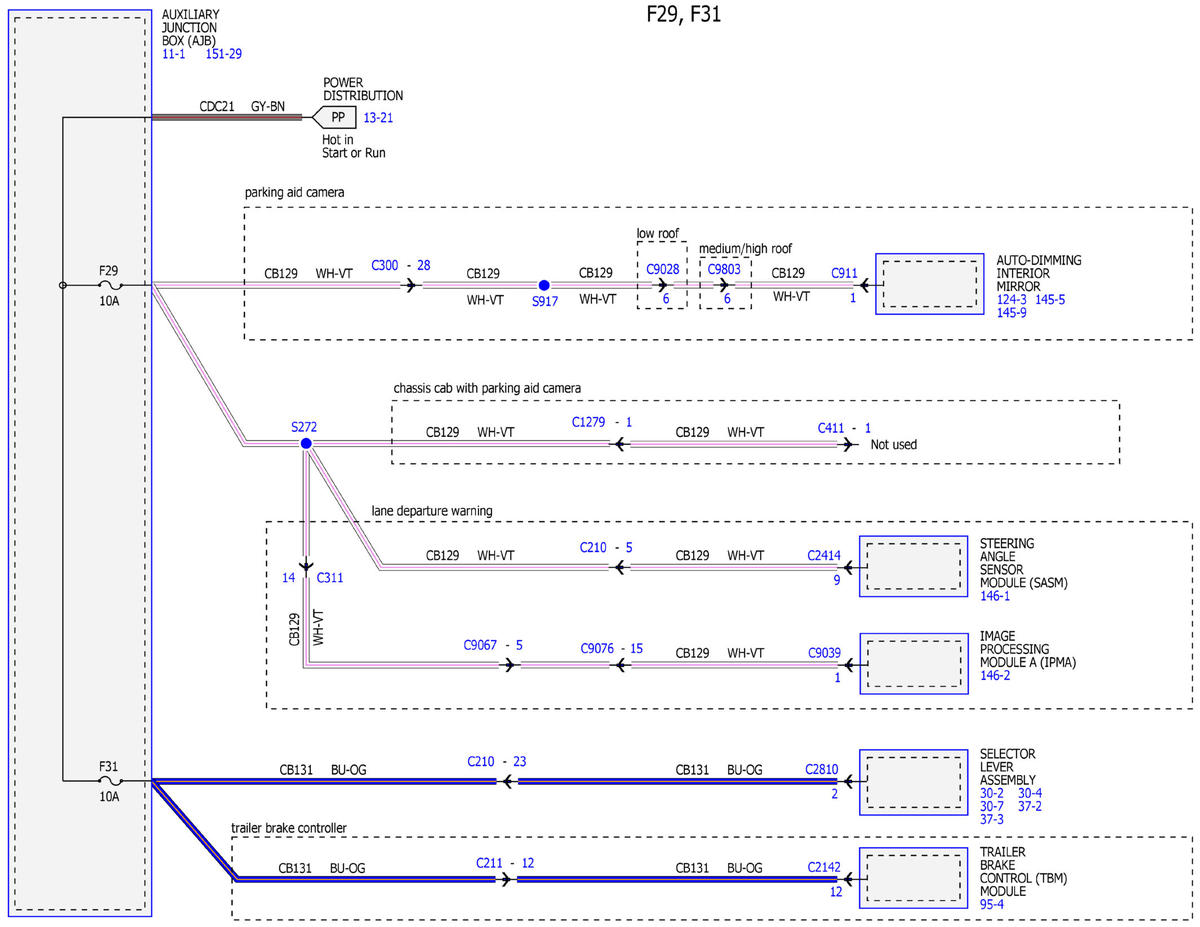

Fig 35: Power Distribution Wiring Diagram (35 of 67)

GFDWR21890

Courtesy of FORD MOTOR COMPANY

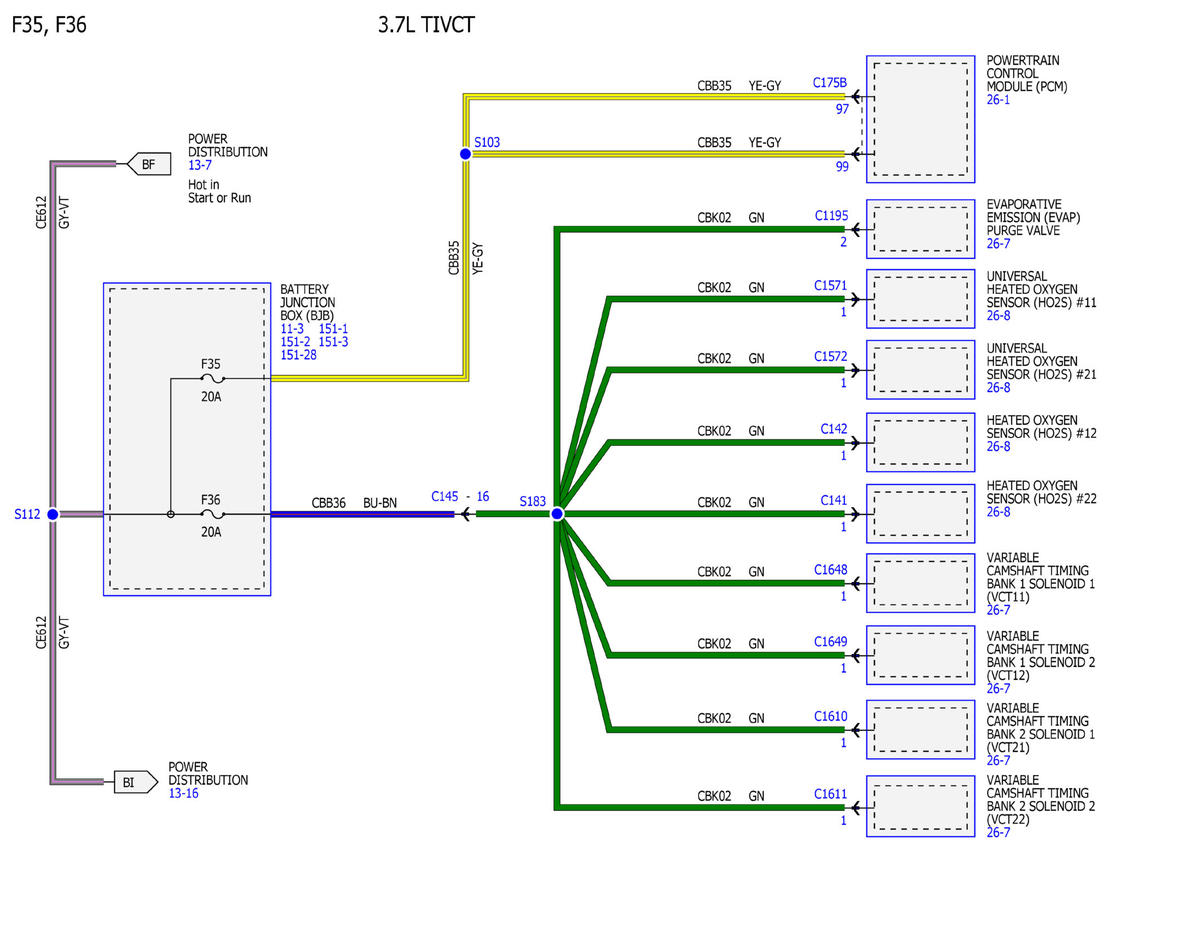

Fig 36: Power Distribution Wiring Diagram (36 of 67)

GFDWR21891

Courtesy of FORD MOTOR COMPANY

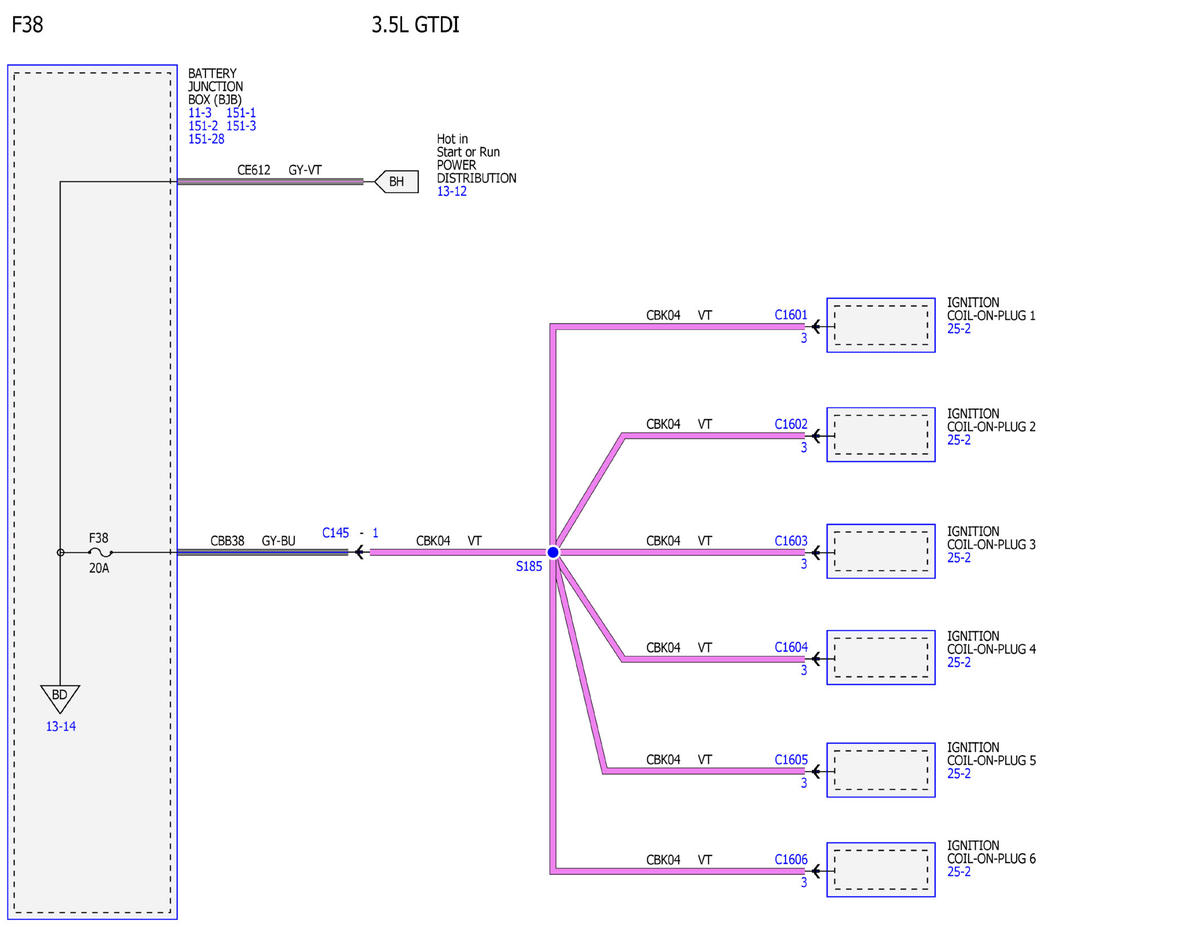

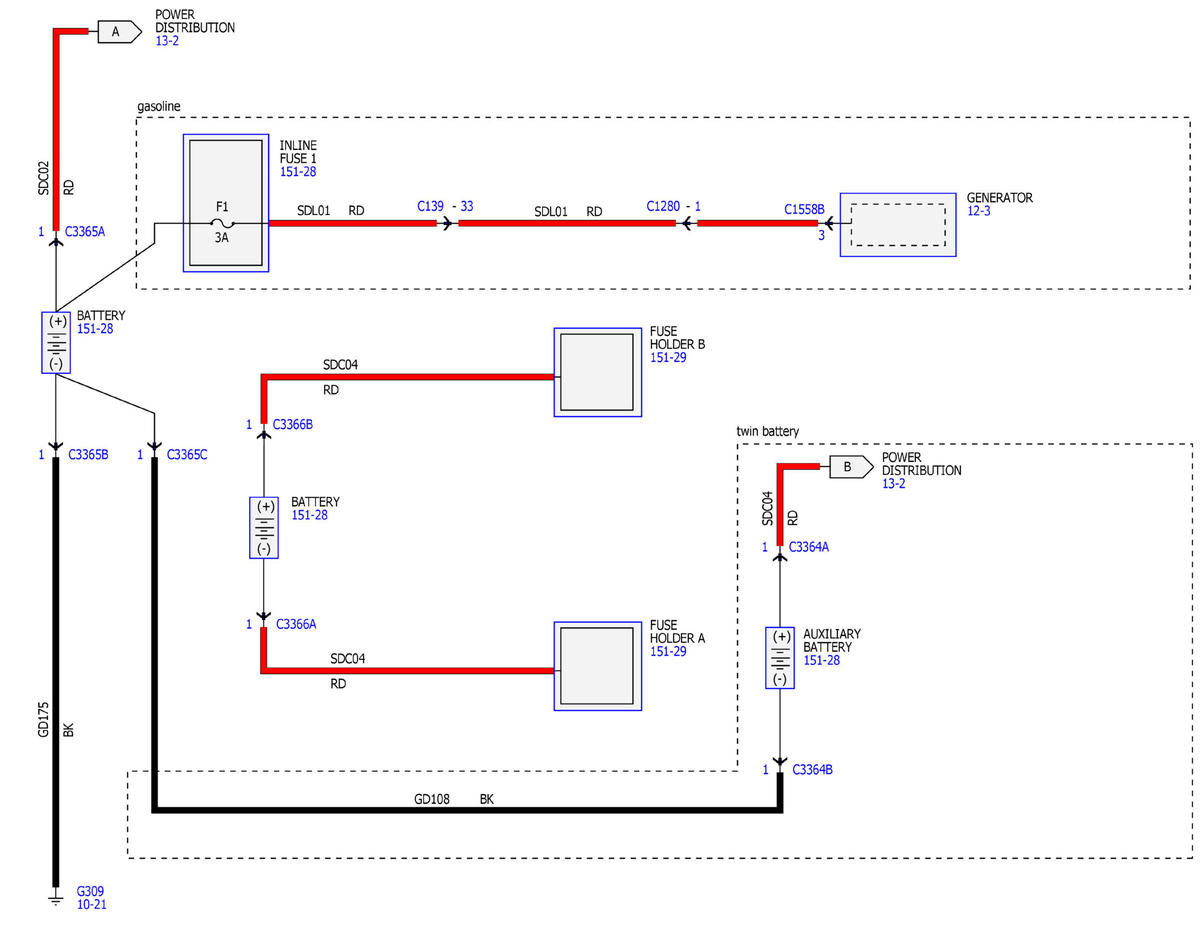

Fig 37: Power Distribution Wiring Diagram (37 of 67)

GFDWR21892

Courtesy of FORD MOTOR COMPANY

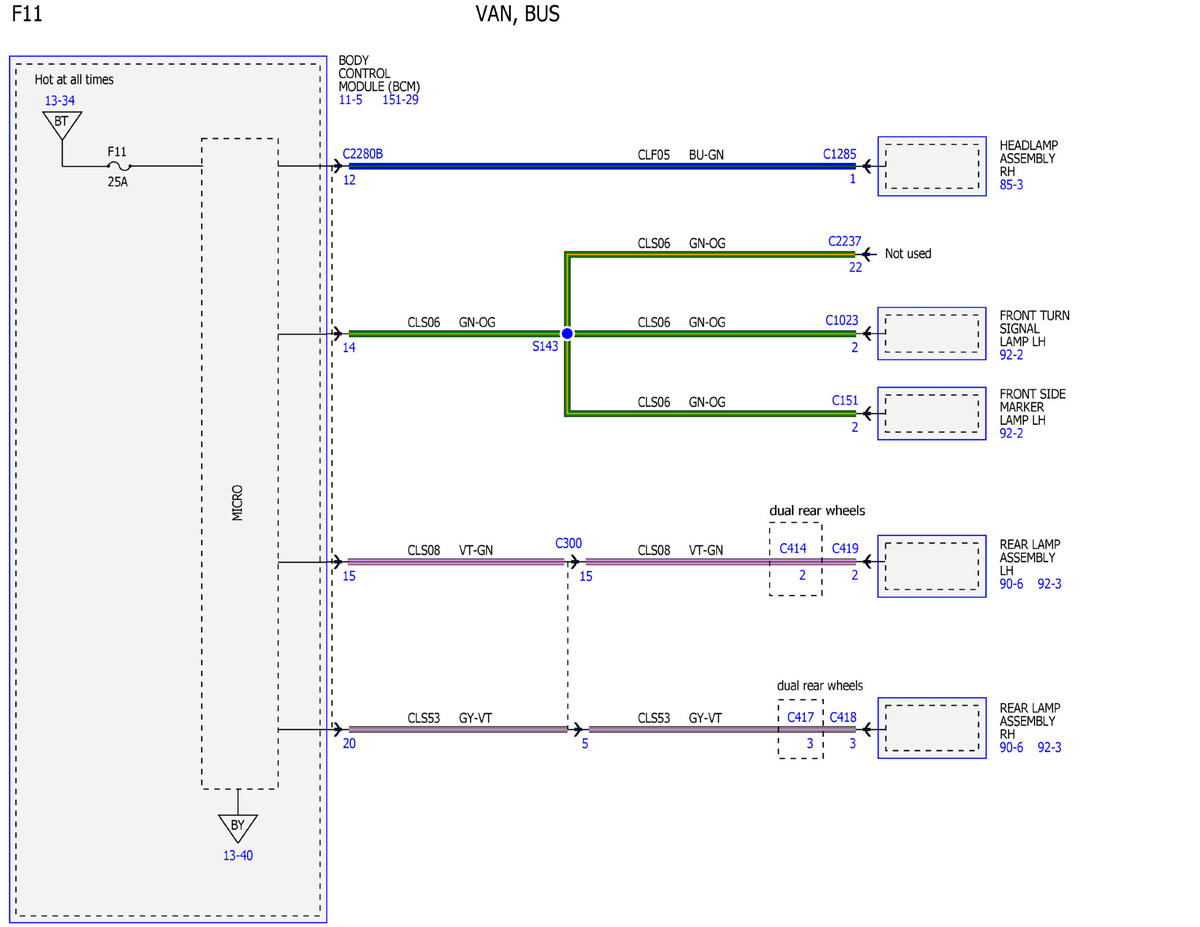

Fig 38: Power Distribution Wiring Diagram (38 of 67)

GFDWR21893

Courtesy of FORD MOTOR COMPANY

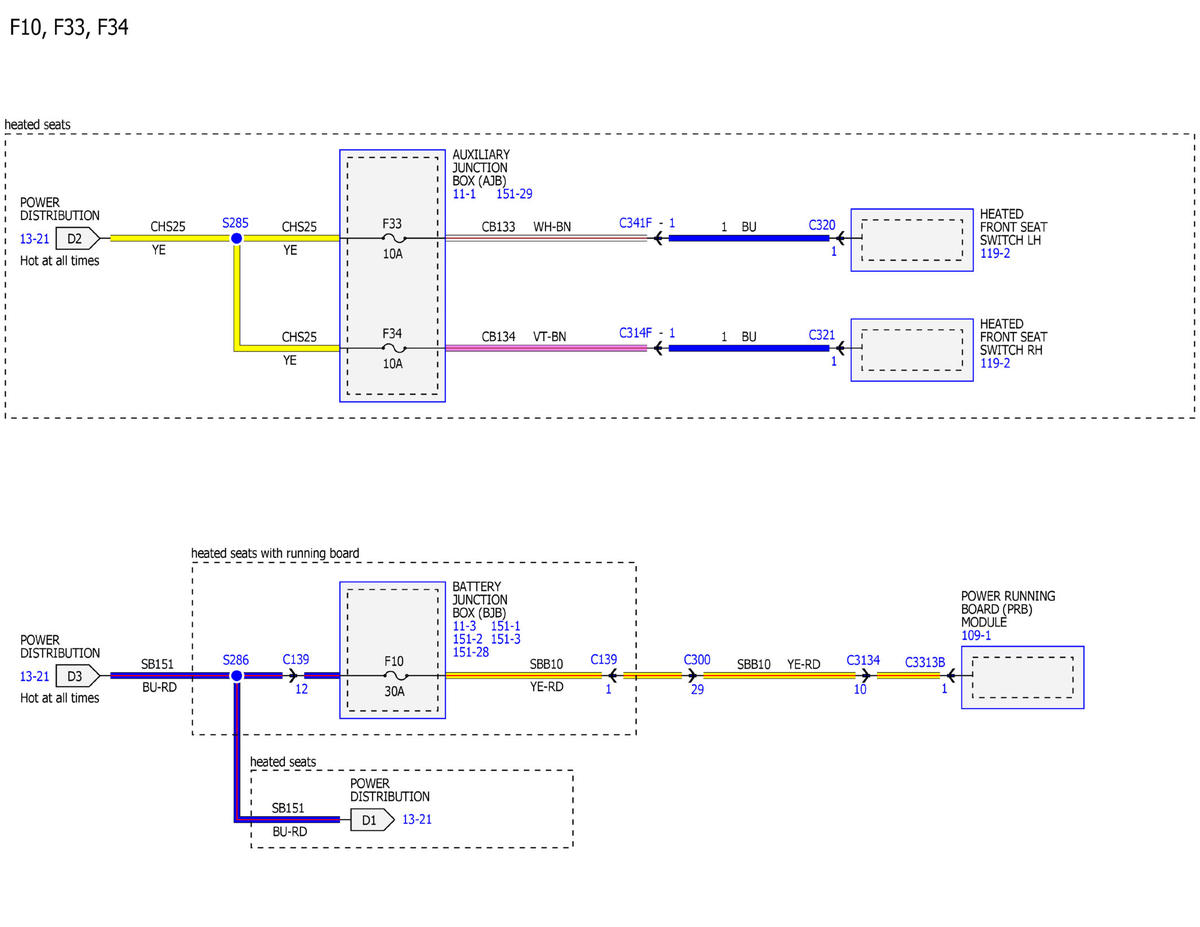

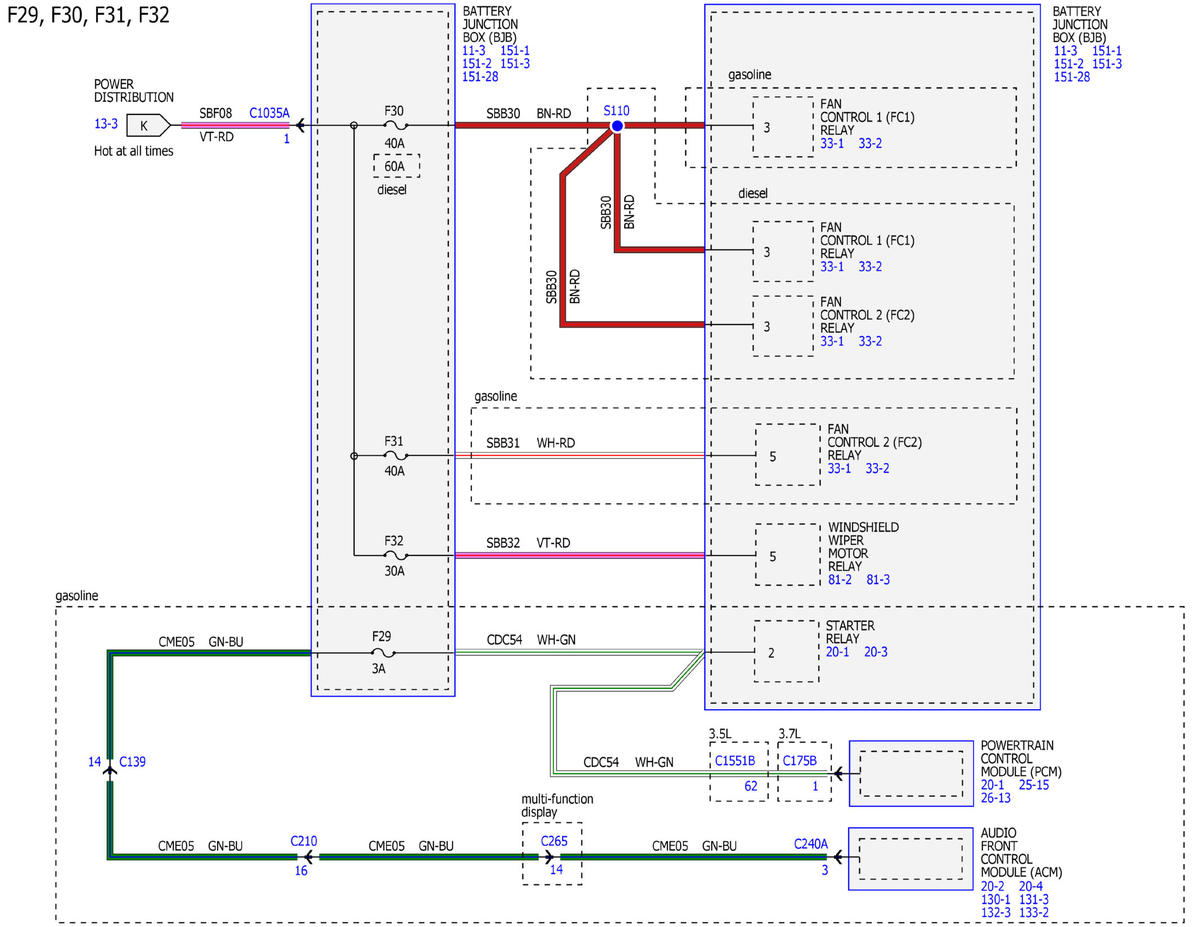

Fig 39: Power Distribution Wiring Diagram (39 of 67)

GFDWR21894

Courtesy of FORD MOTOR COMPANY

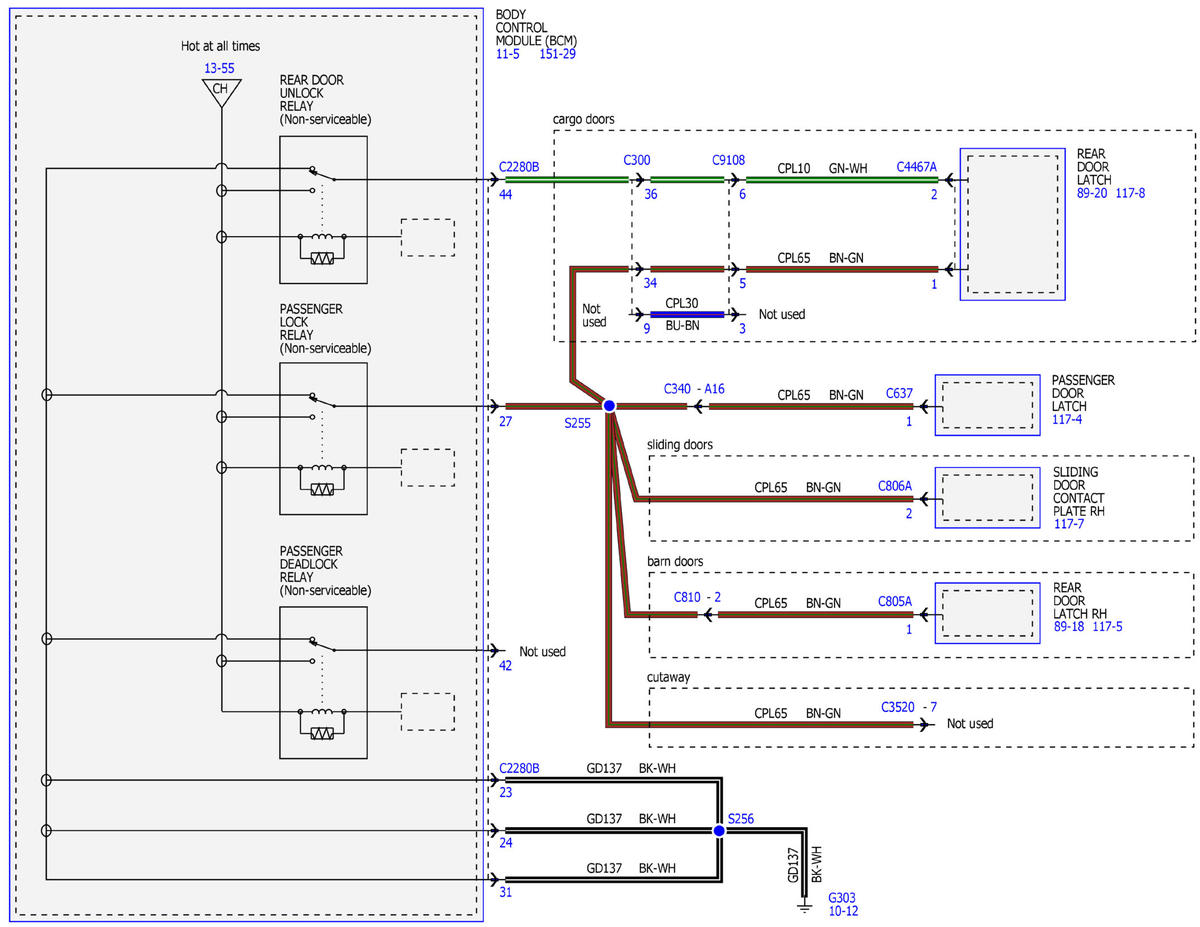

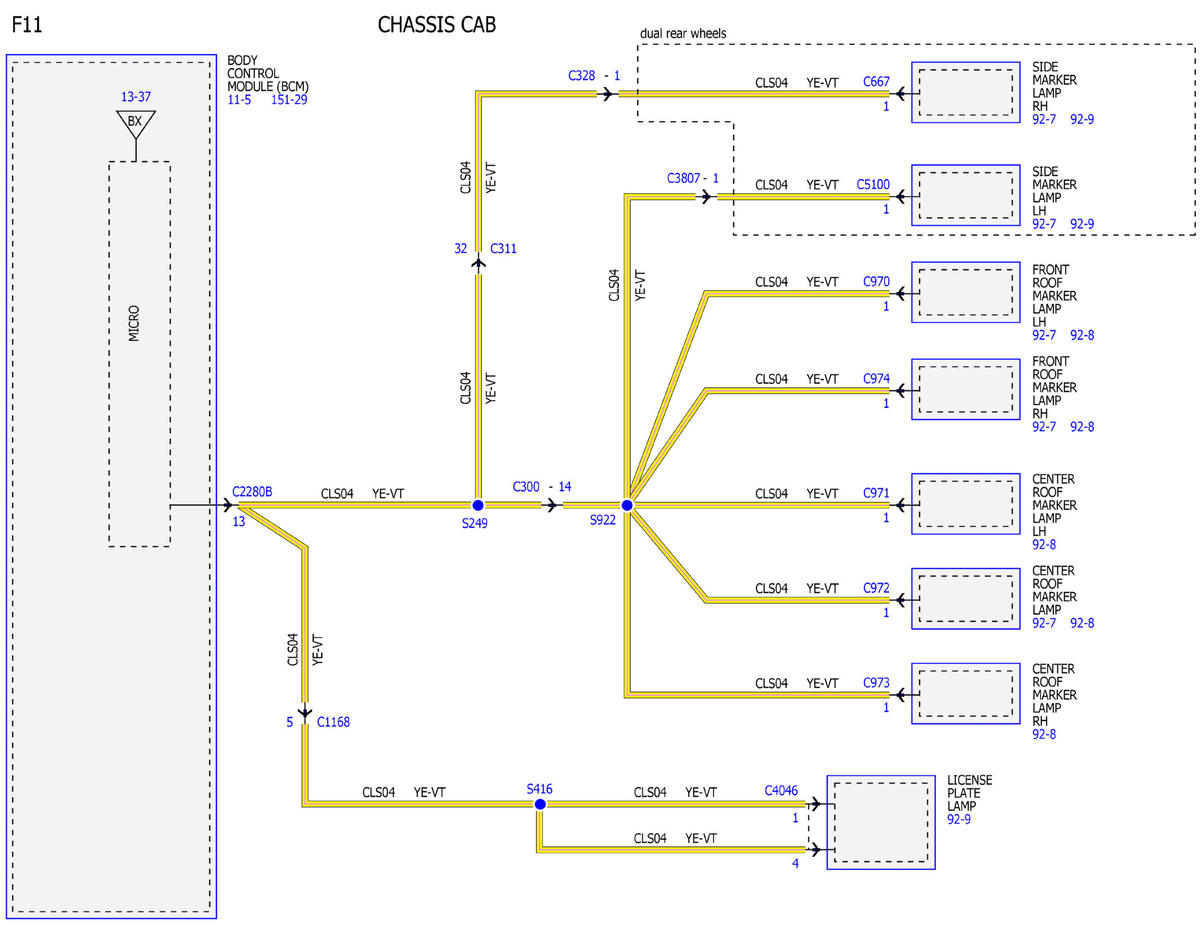

Fig 40: Power Distribution Wiring Diagram (40 of 67)

GFDWR21895

Courtesy of FORD MOTOR COMPANY

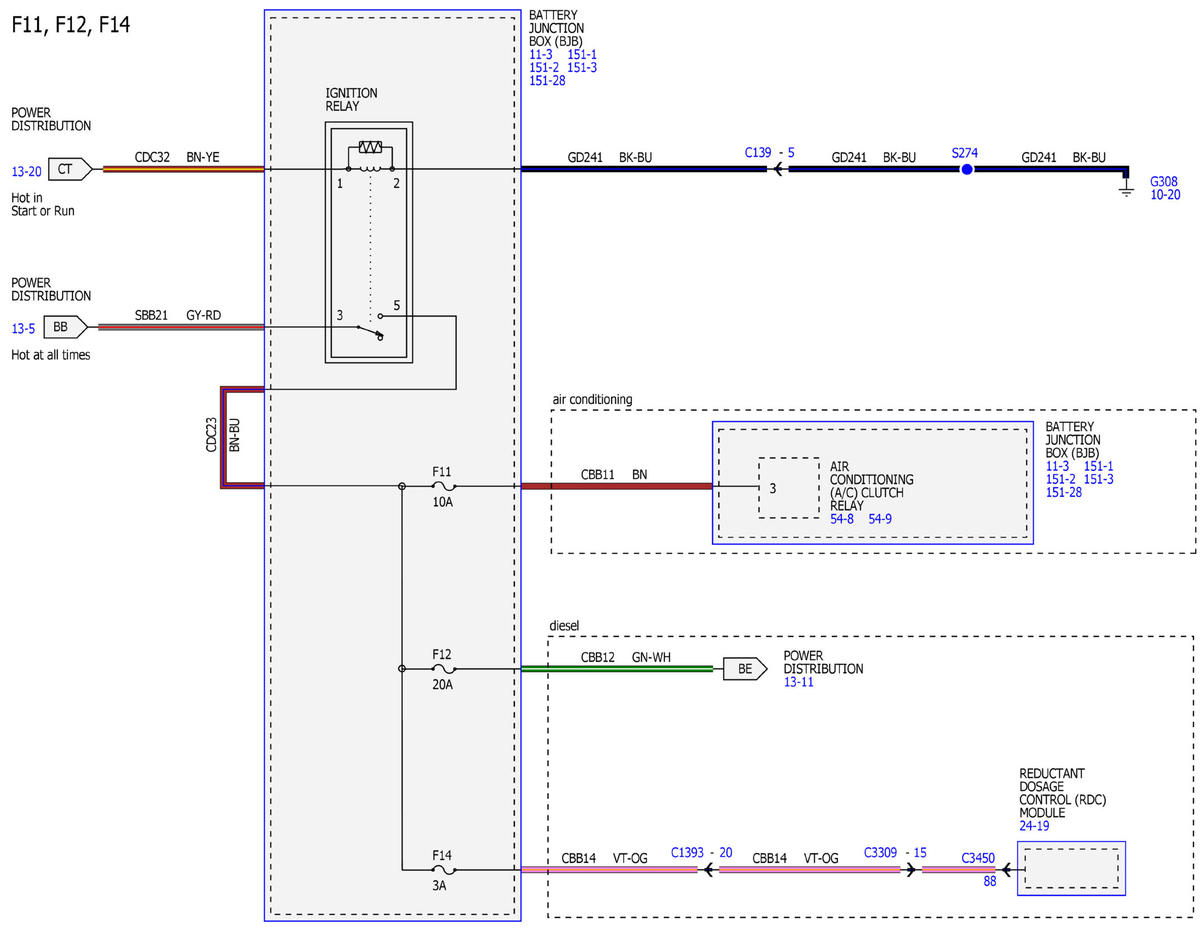

Fig 41: Power Distribution Wiring Diagram (41 of 67)

GFDWR21896

Courtesy of FORD MOTOR COMPANY

Fig 42: Power Distribution Wiring Diagram (42 of 67)

GFDWR21897

Courtesy of FORD MOTOR COMPANY

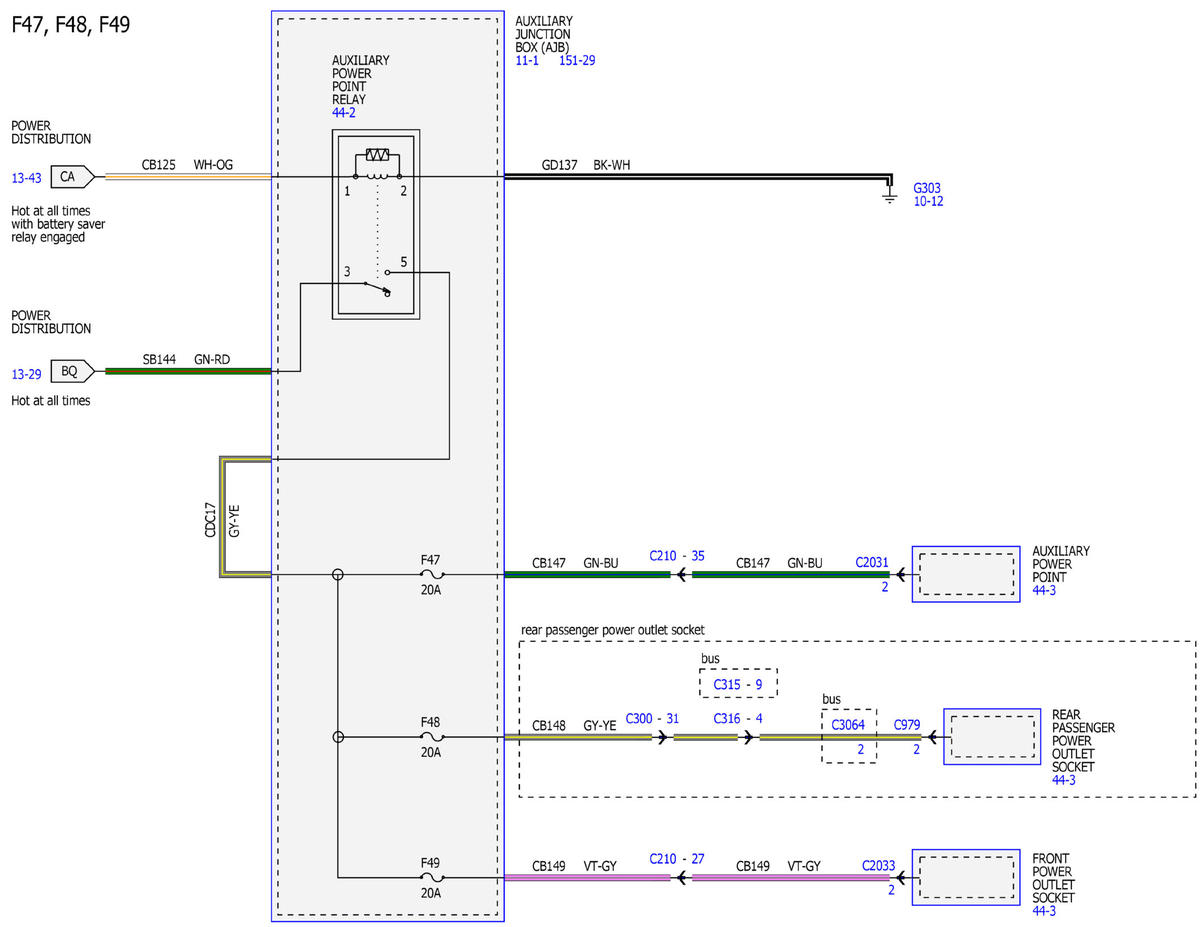

Fig 43: Power Distribution Wiring Diagram (43 of 67)

GFDWR21898

Courtesy of FORD MOTOR COMPANY

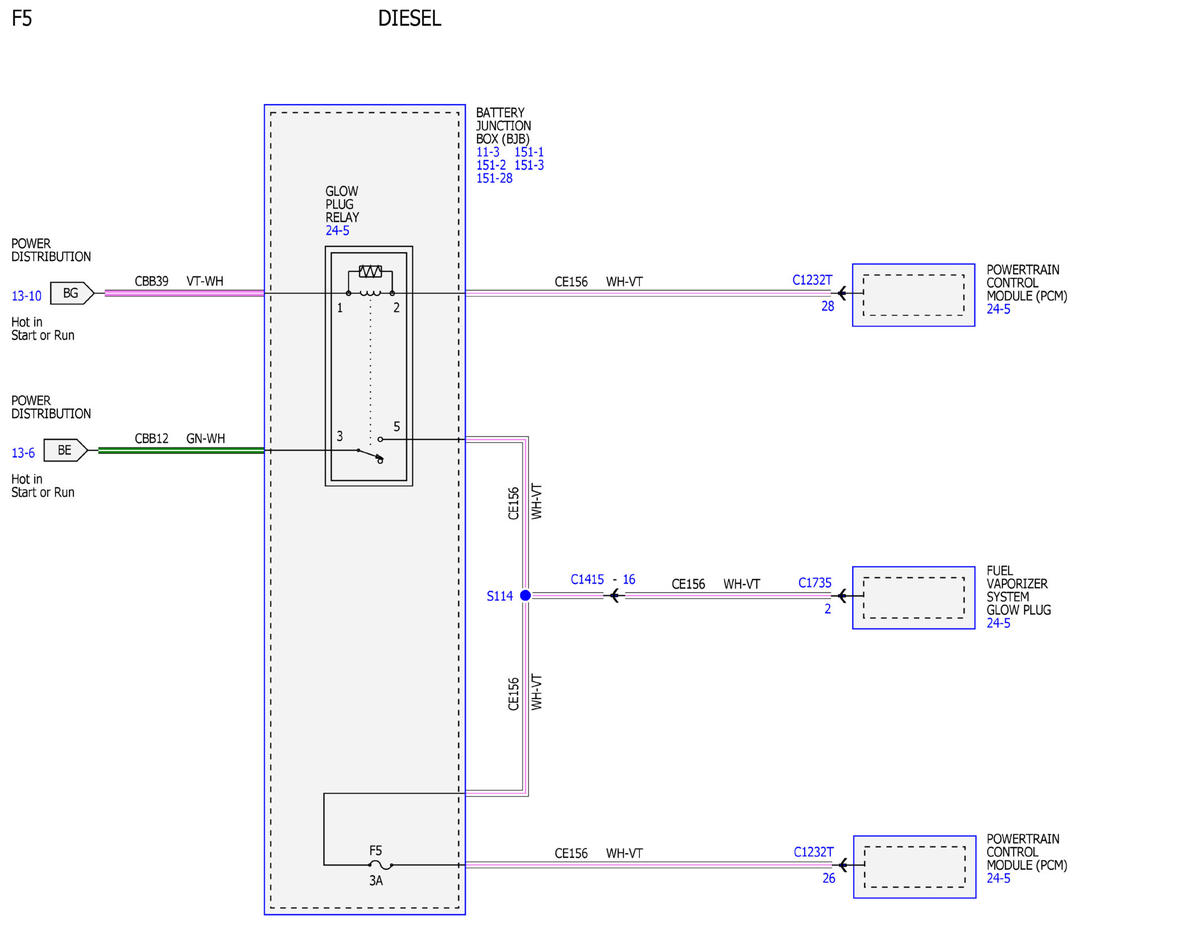

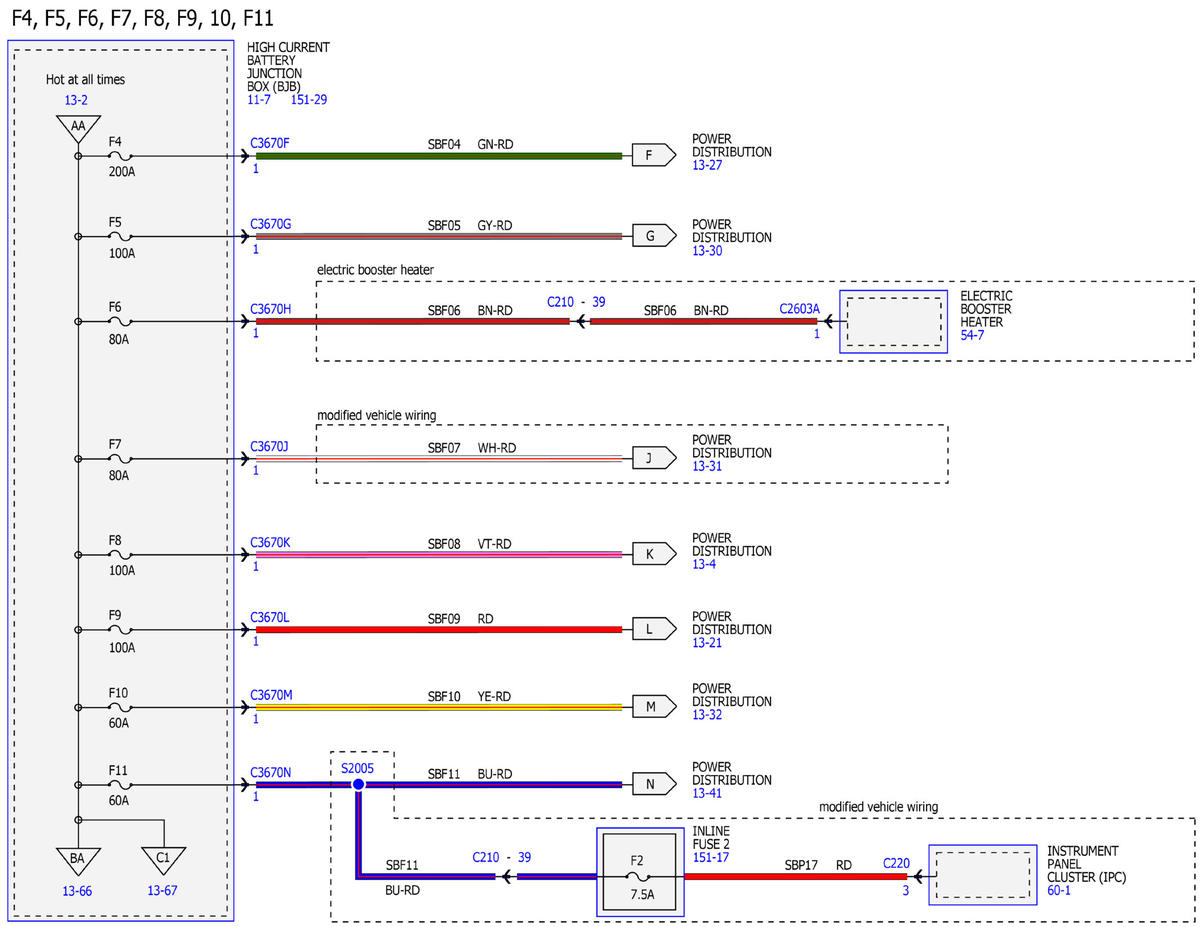

Fig 44: Power Distribution Wiring Diagram (44 of 67)

GFDWR21899

Courtesy of FORD MOTOR COMPANY

Fig 45: Power Distribution Wiring Diagram (45 of 67)

GFDWR21900

Courtesy of FORD MOTOR COMPANY

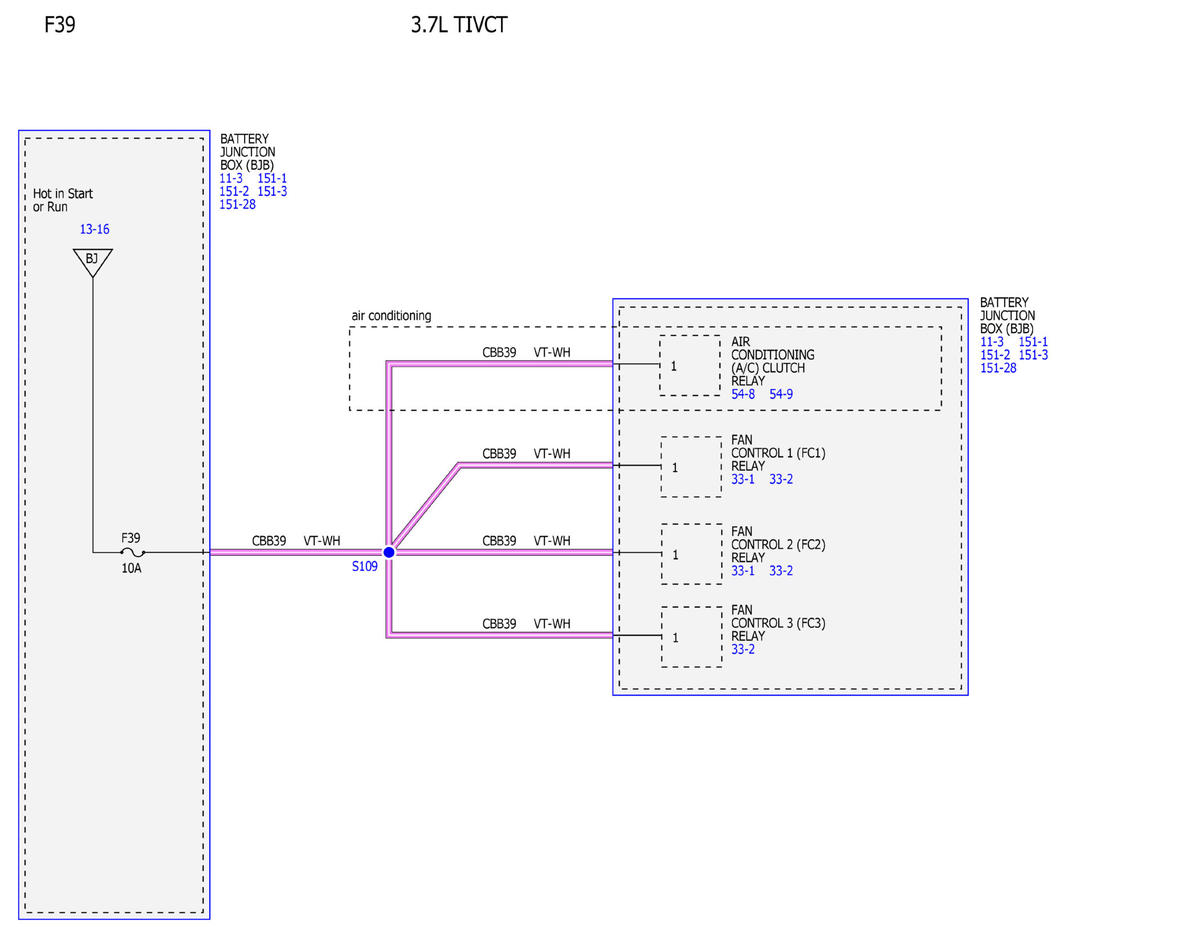

Fig 46: Power Distribution Wiring Diagram (46 of 67)

GFDWR21901

Courtesy of FORD MOTOR COMPANY

Fig 47: Power Distribution Wiring Diagram (47 of 67)

GFDWR21902

Courtesy of FORD MOTOR COMPANY

Fig 48: Power Distribution Wiring Diagram (48 of 67)

GFDWR21903

Courtesy of FORD MOTOR COMPANY

Fig 49: Power Distribution Wiring Diagram (49 of 67)

GFDWR21904

Courtesy of FORD MOTOR COMPANY

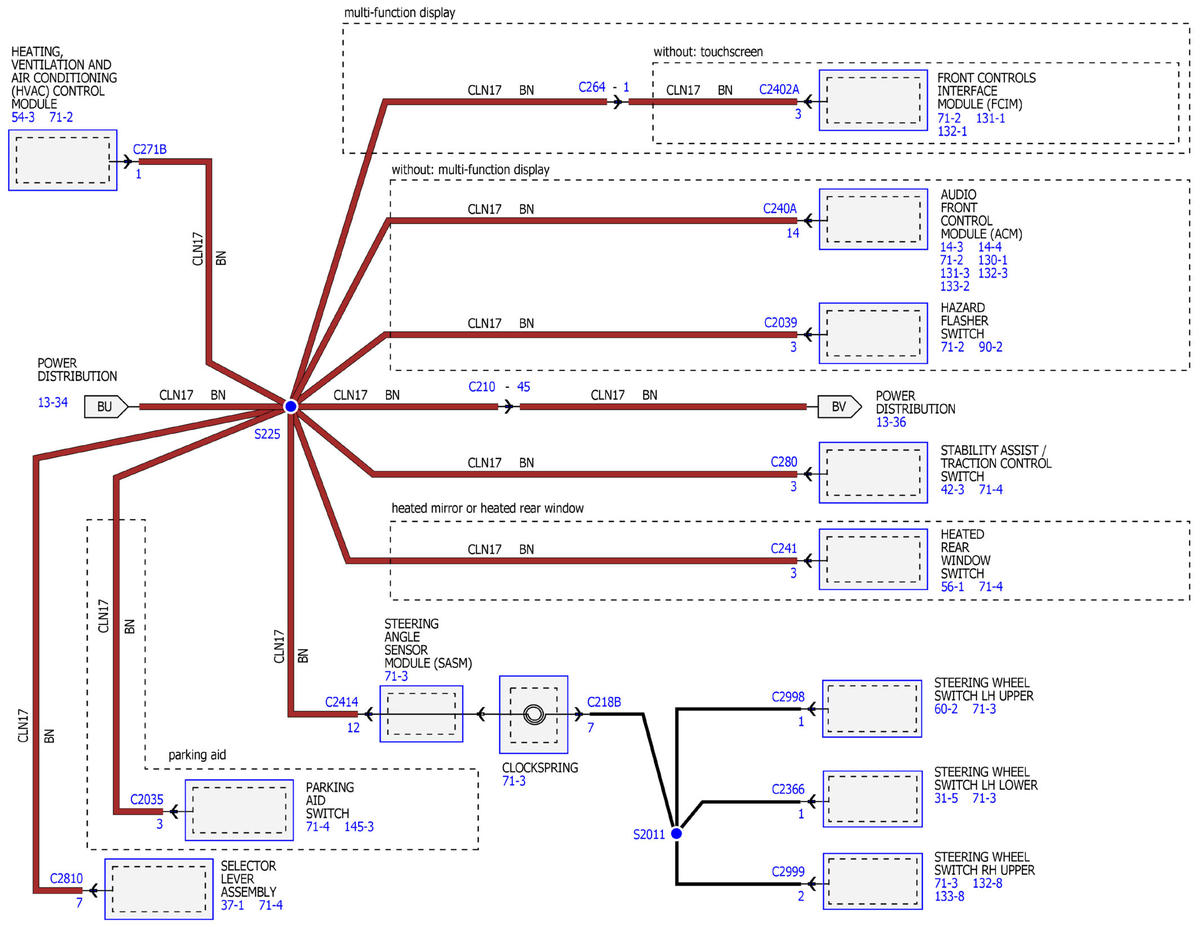

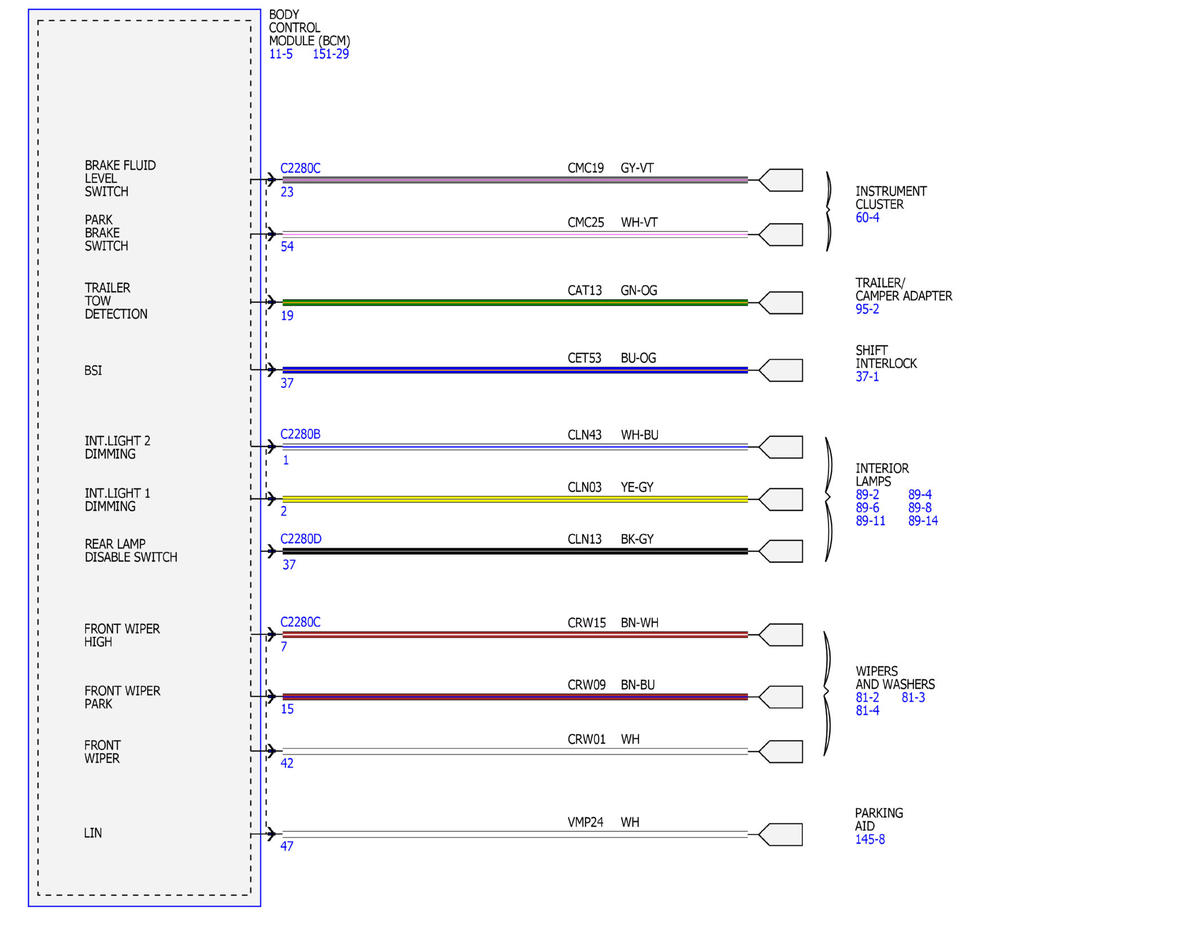

Fig 50: Power Distribution Wiring Diagram (50 of 67)

GFDWR21905

Courtesy of FORD MOTOR COMPANY

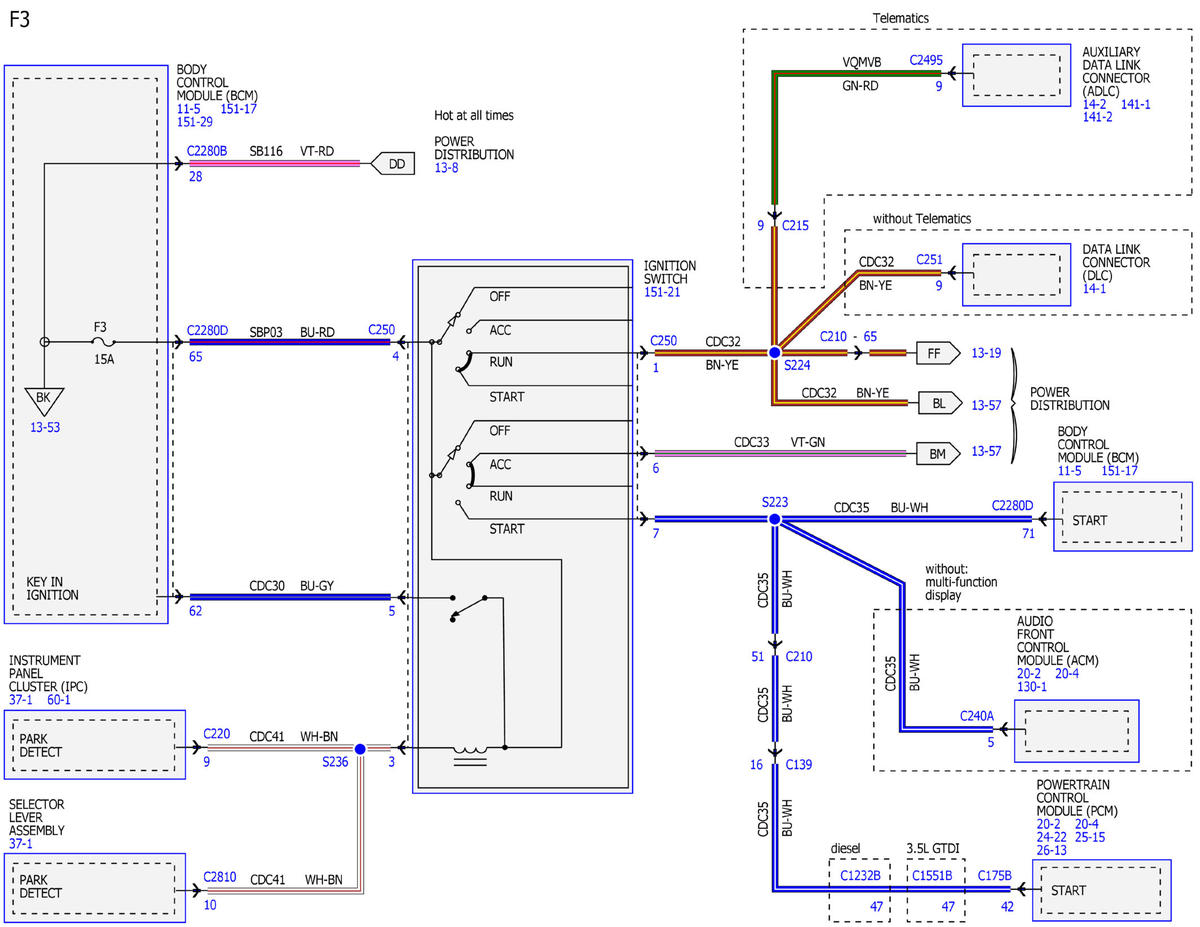

Fig 51: Power Distribution Wiring Diagram (51 of 67)

GFDWR21906

Courtesy of FORD MOTOR COMPANY

Fig 52: Power Distribution Wiring Diagram (52 of 67)

GFDWR21907

Courtesy of FORD MOTOR COMPANY

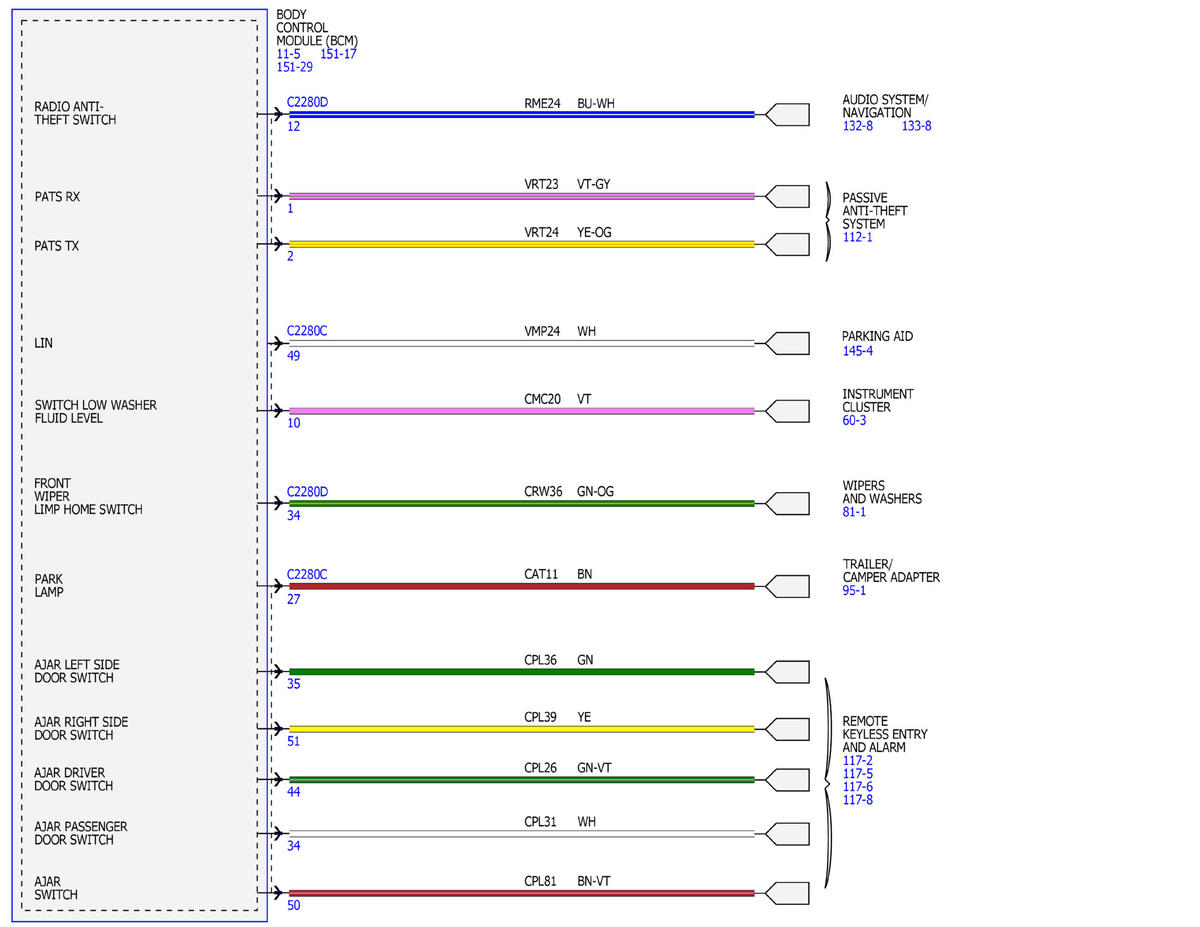

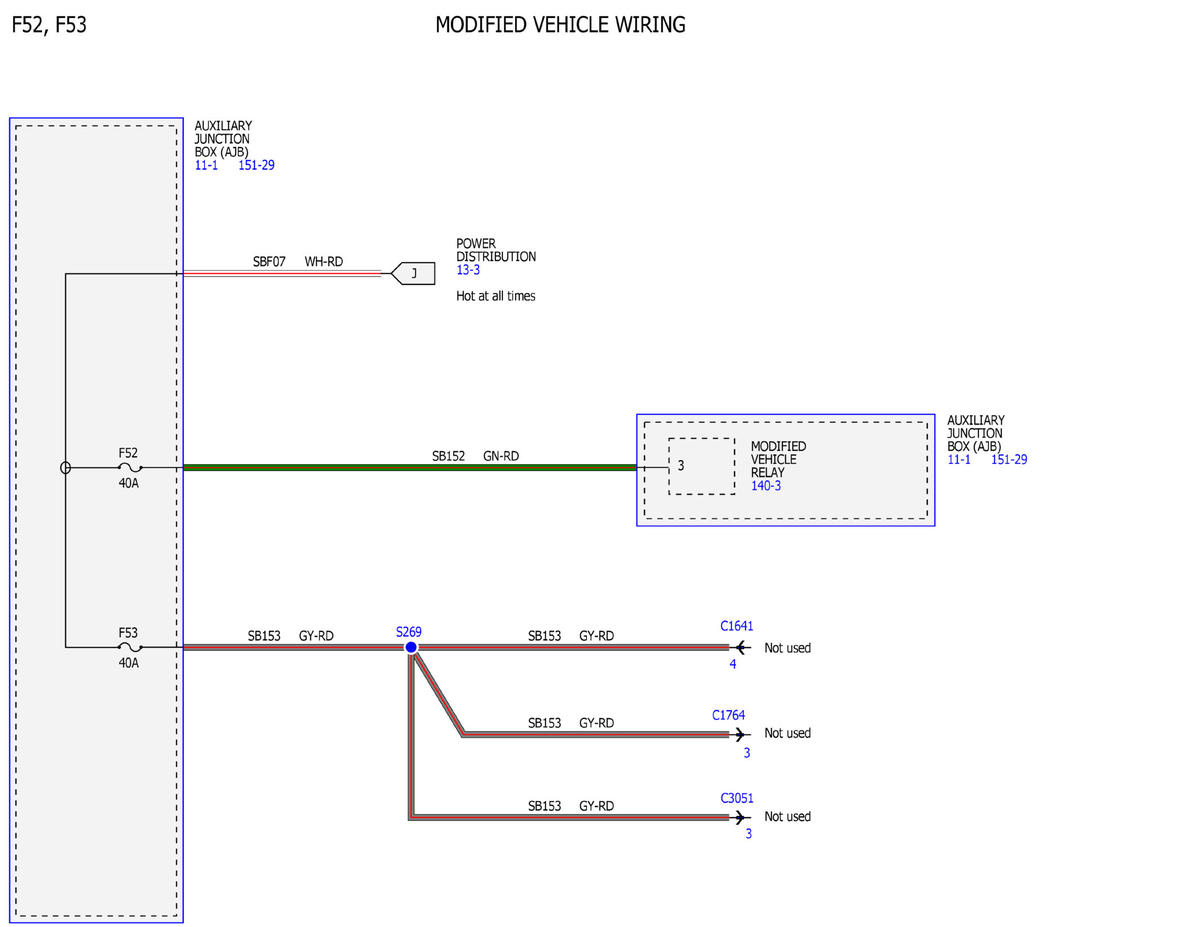

Fig 53: Power Distribution Wiring Diagram (53 of 67)

GFDWR21908

Courtesy of FORD MOTOR COMPANY

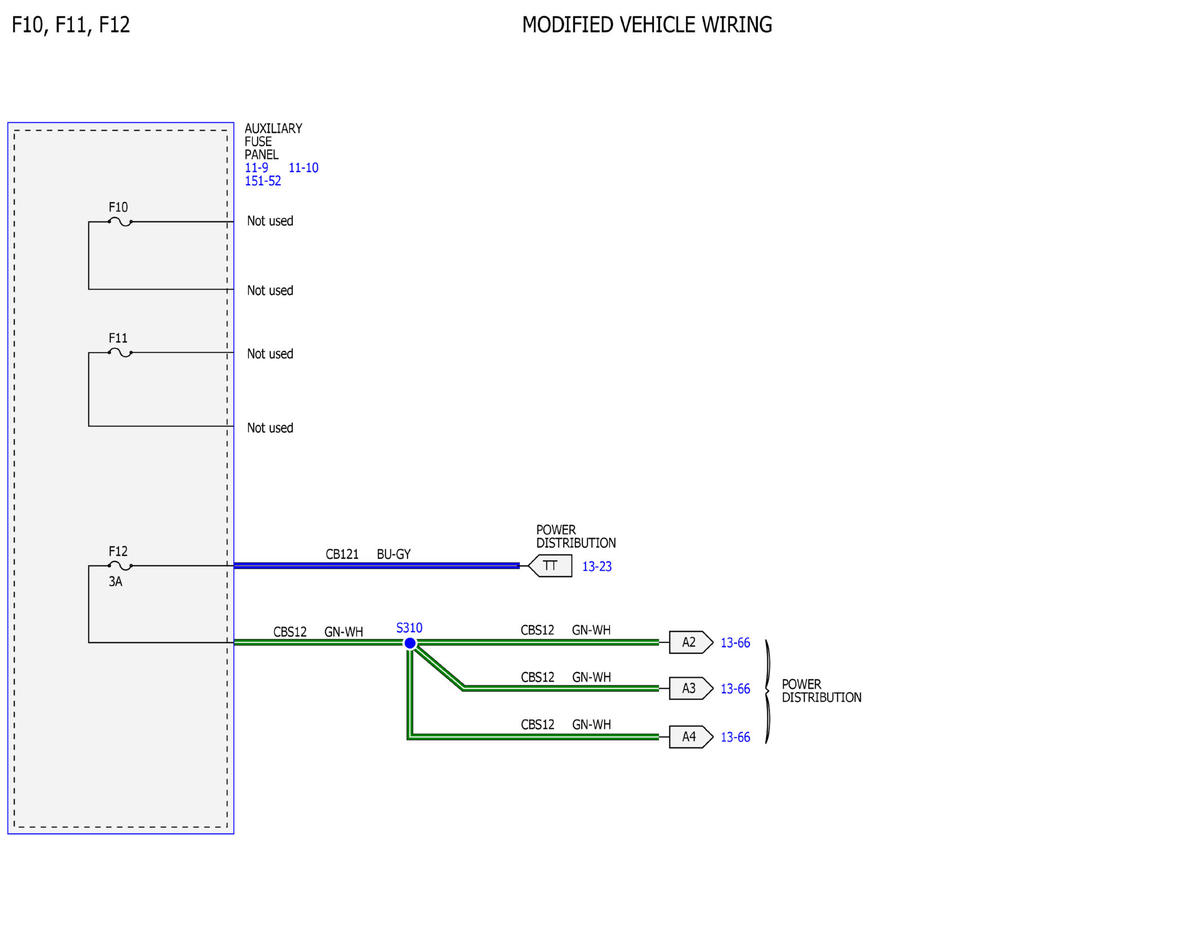

Fig 54: Power Distribution Wiring Diagram (54 of 67)

GFDWR21909

Courtesy of FORD MOTOR COMPANY

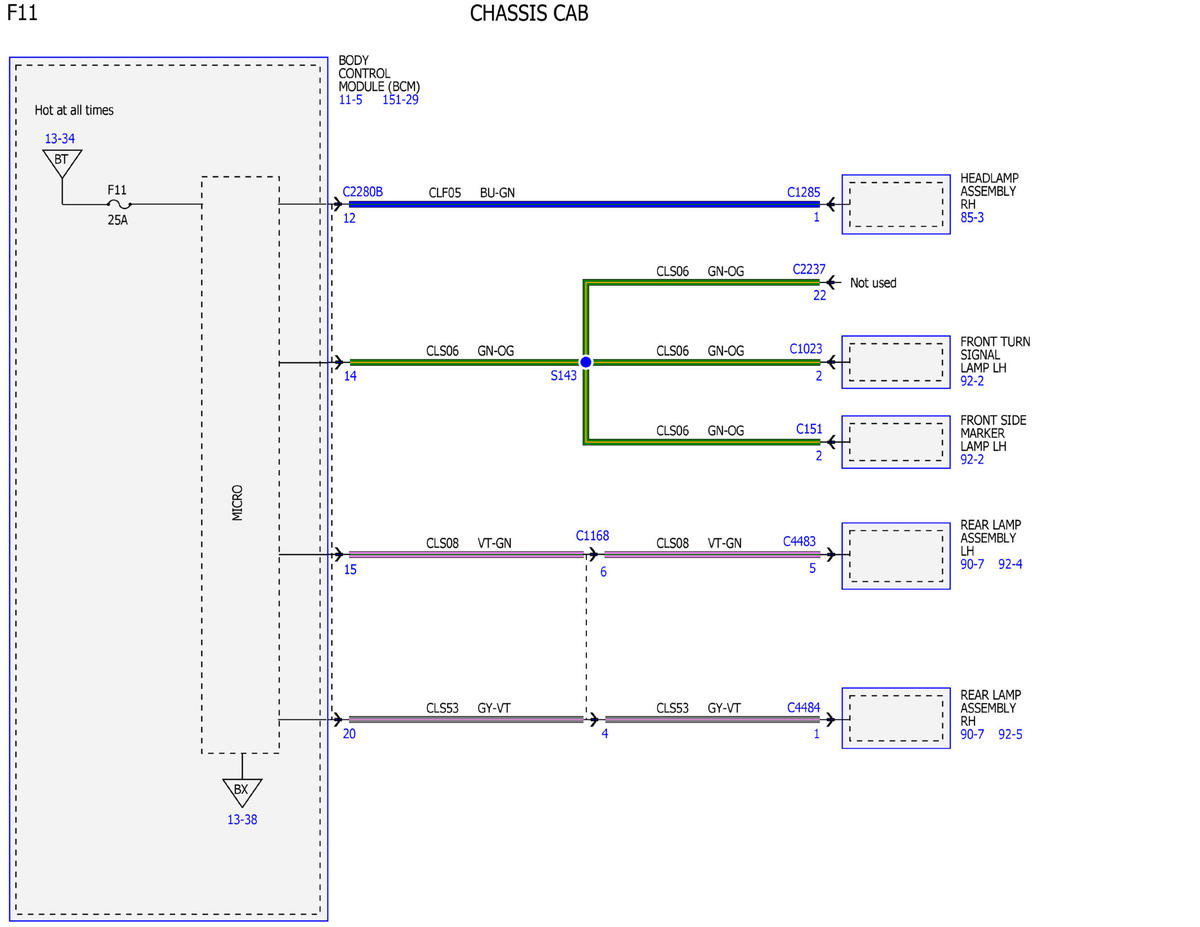

Fig 55: Power Distribution Wiring Diagram (55 of 67)

GFDWR21910

Courtesy of FORD MOTOR COMPANY

Fig 56: Power Distribution Wiring Diagram (56 of 67)

GFDWR21911

Courtesy of FORD MOTOR COMPANY

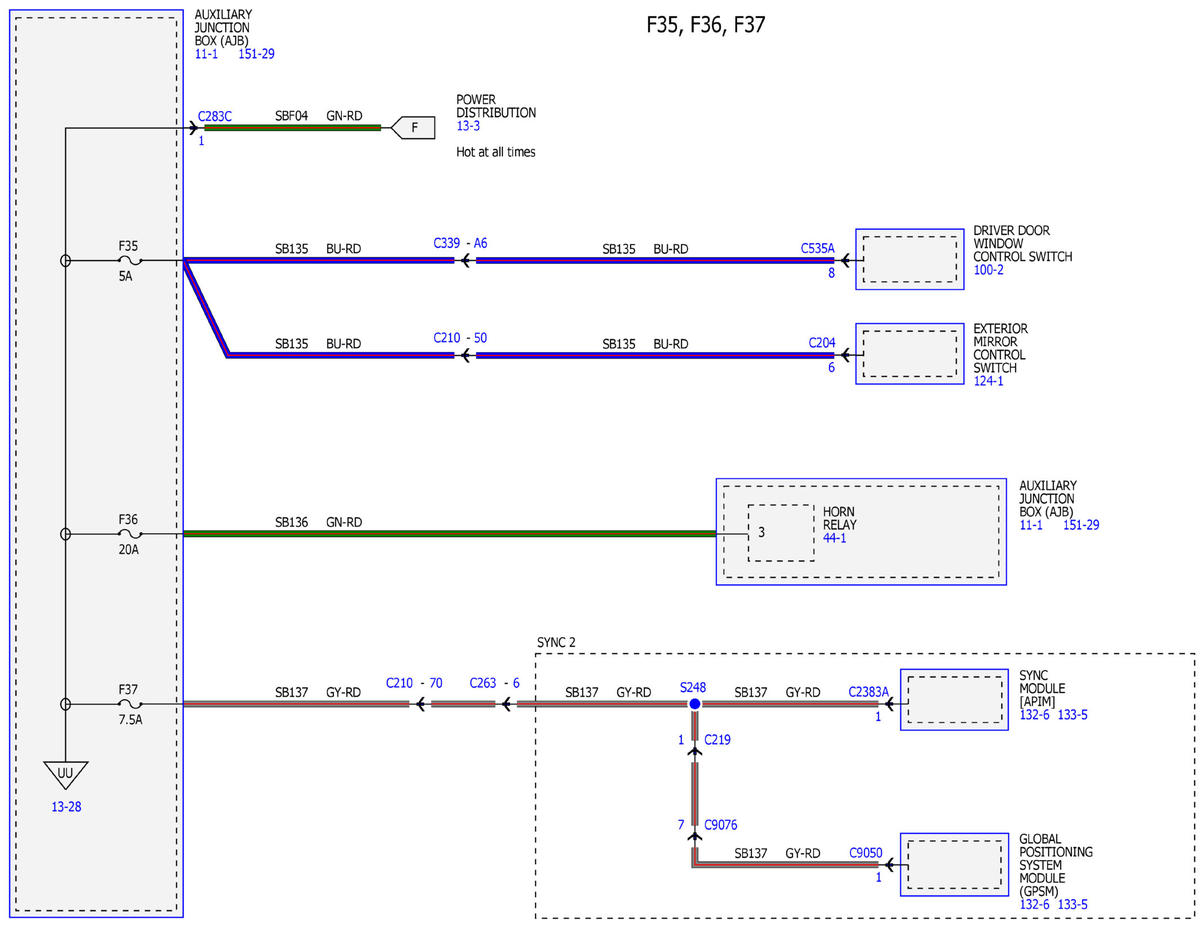

Fig 57: Power Distribution Wiring Diagram (57 of 67)

GFDWR21912

Courtesy of FORD MOTOR COMPANY

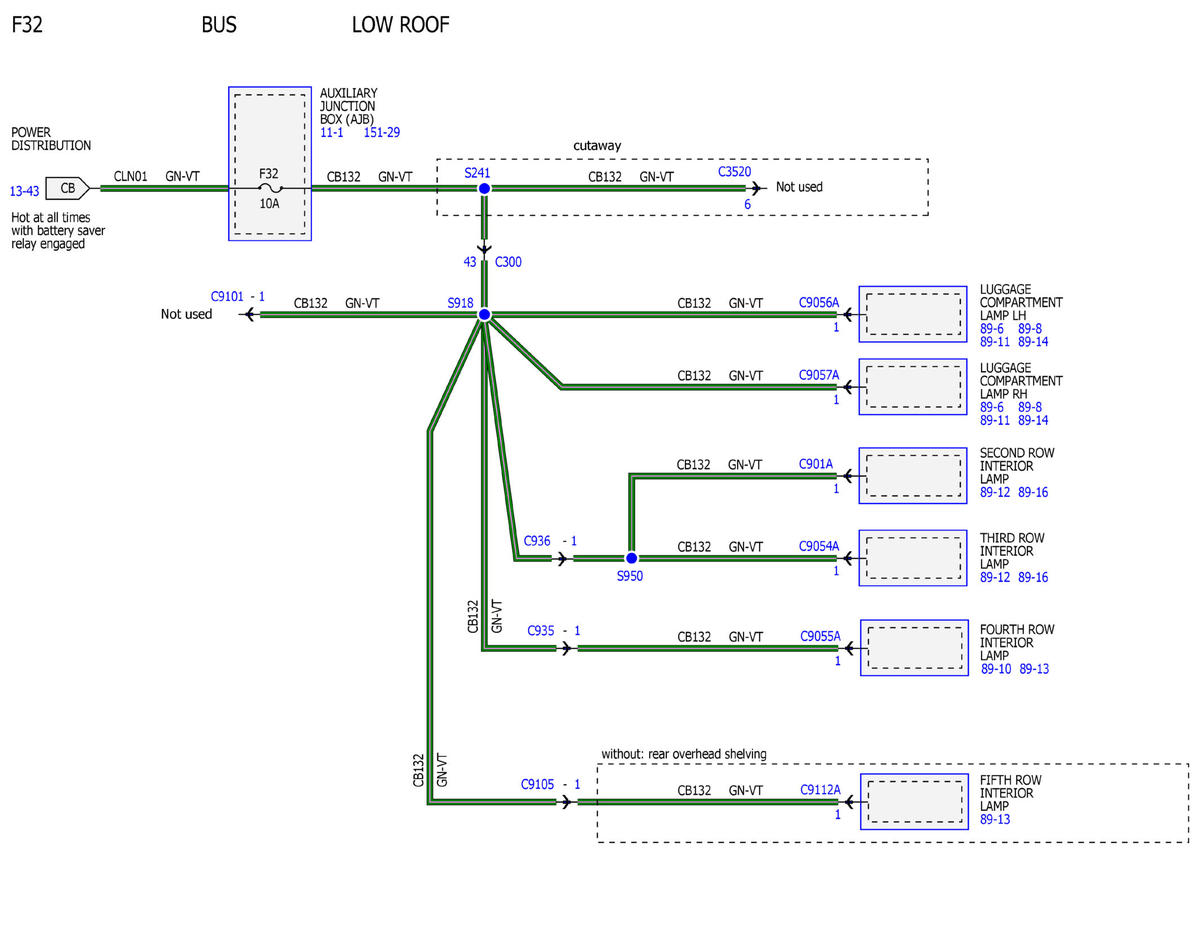

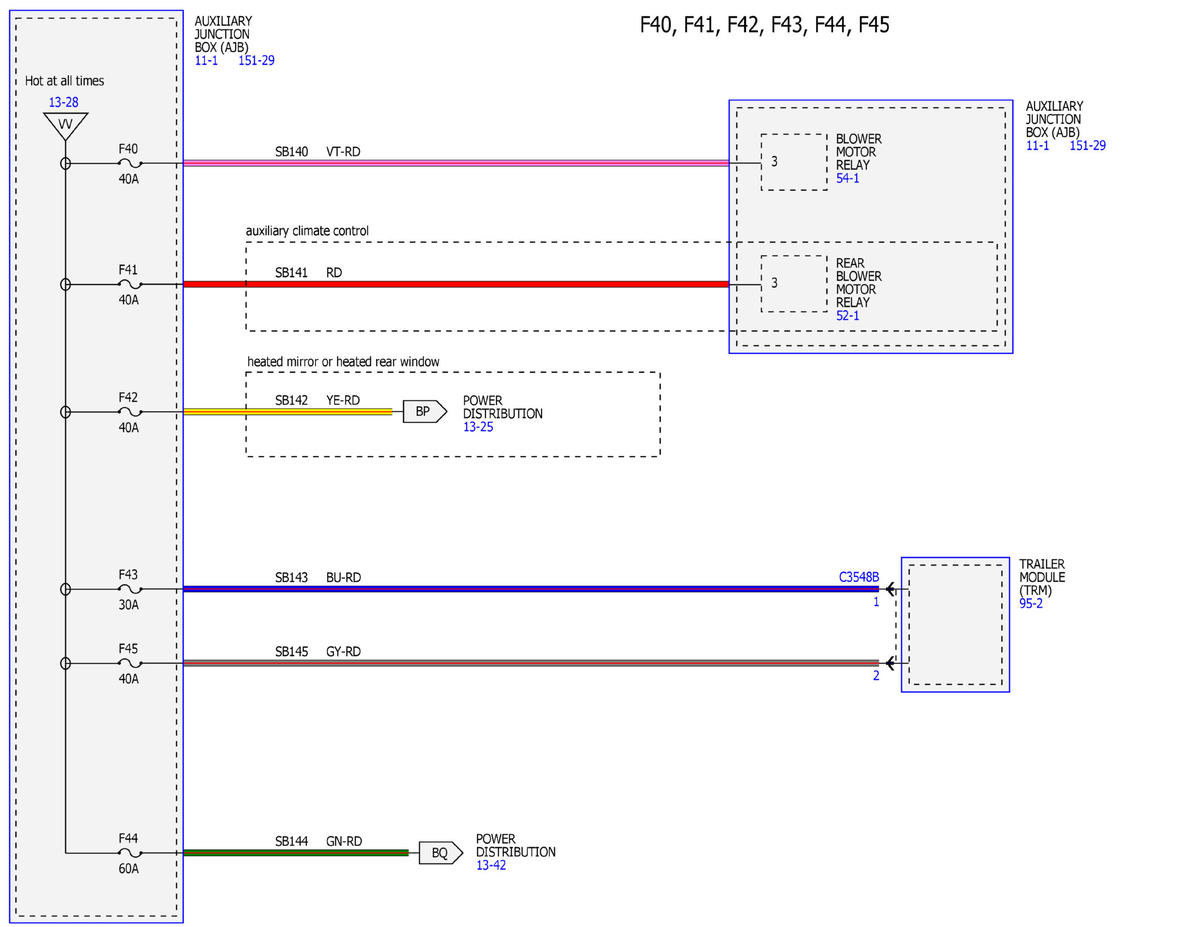

Fig 58: Power Distribution Wiring Diagram (58 of 67)

GFDWR21913

Courtesy of FORD MOTOR COMPANY

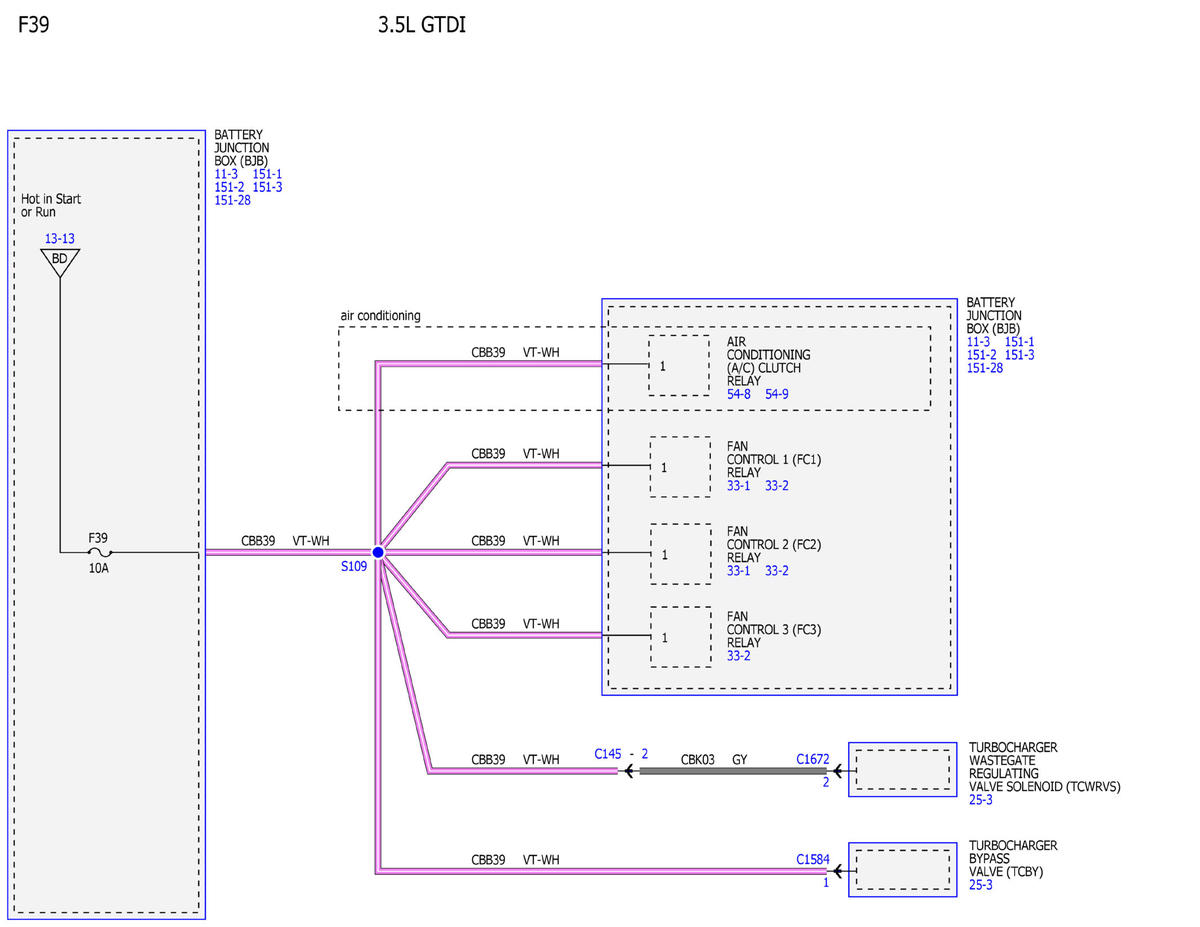

Fig 59: Power Distribution Wiring Diagram (59 of 67)

GFDWR21914

Courtesy of FORD MOTOR COMPANY

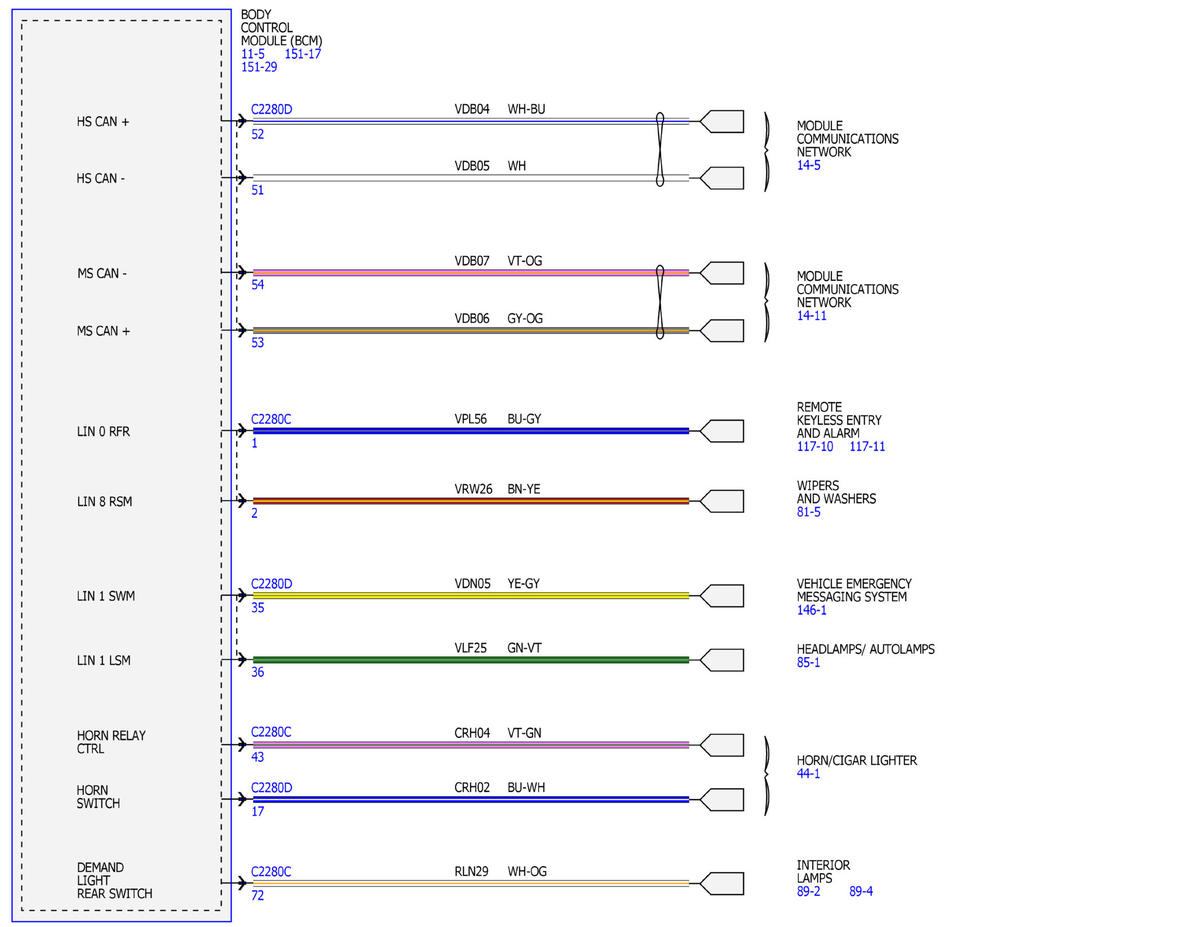

Fig 60: Power Distribution Wiring Diagram (60 of 67)

GFDWR21915

Courtesy of FORD MOTOR COMPANY

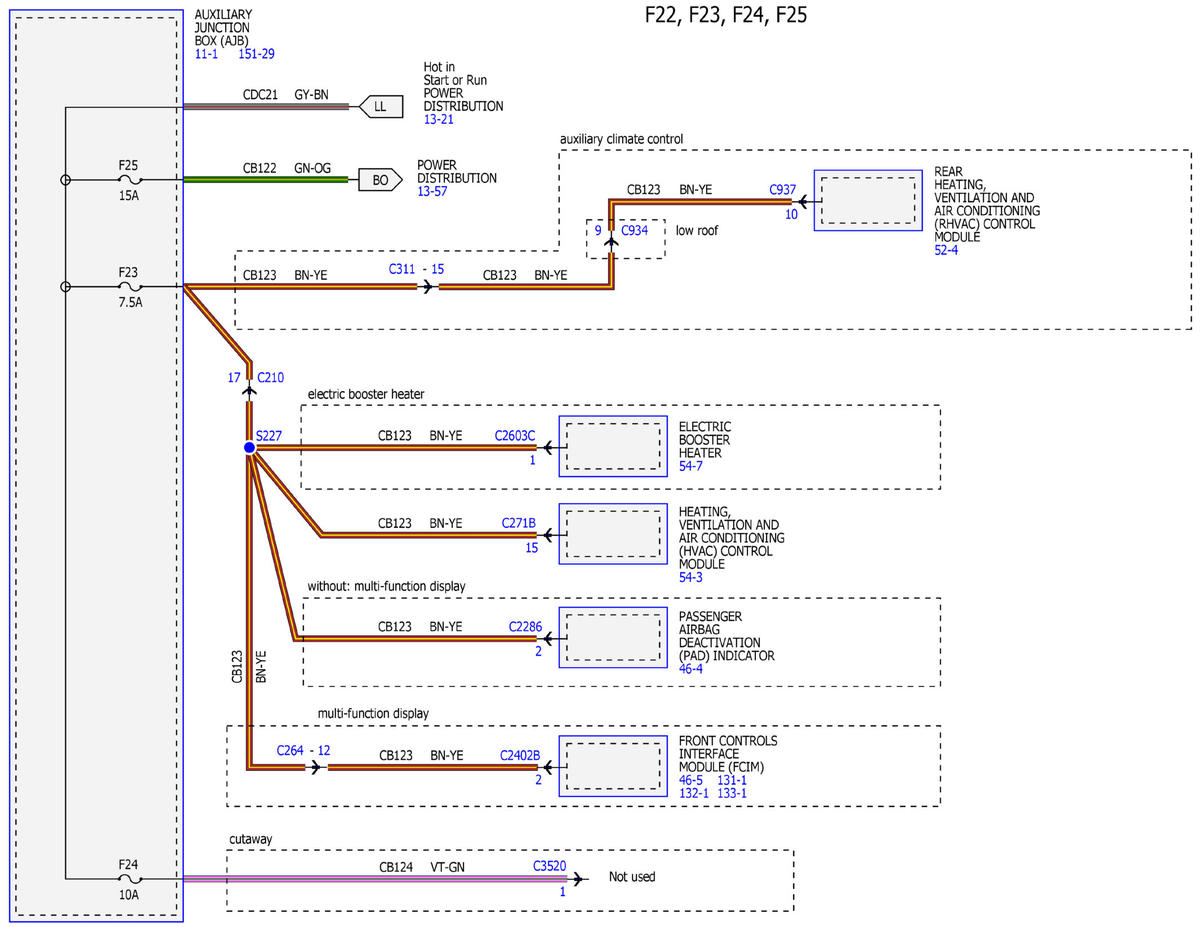

Fig 61: Power Distribution Wiring Diagram (61 of 67)

GFDWR21916

Courtesy of FORD MOTOR COMPANY

Fig 62: Power Distribution Wiring Diagram (62 of 67)

GFDWR21917

Courtesy of FORD MOTOR COMPANY

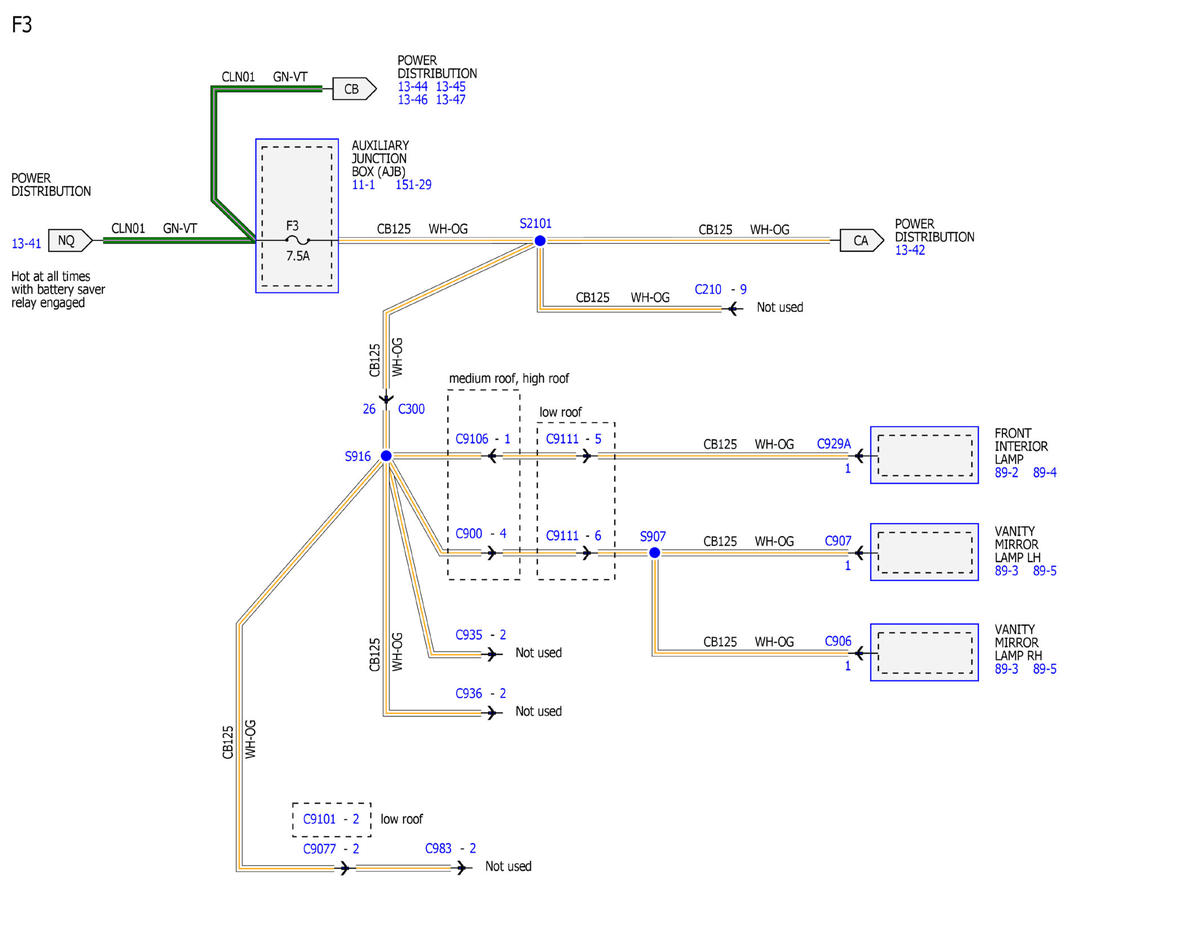

Fig 63: Power Distribution Wiring Diagram (63 of 67)

GFDWR21918

Courtesy of FORD MOTOR COMPANY

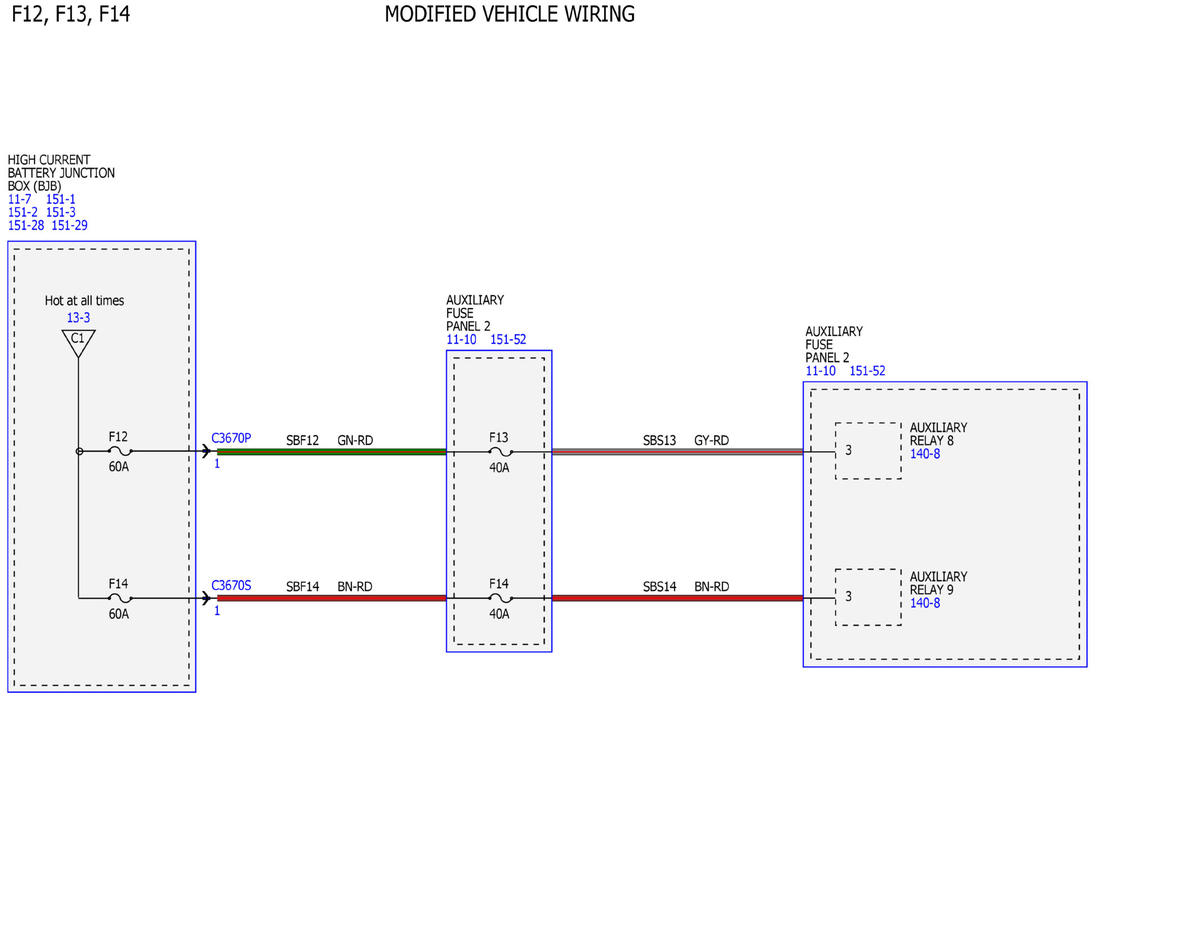

Fig 64: Power Distribution Wiring Diagram (64 of 67)

GFDWR21919

Courtesy of FORD MOTOR COMPANY

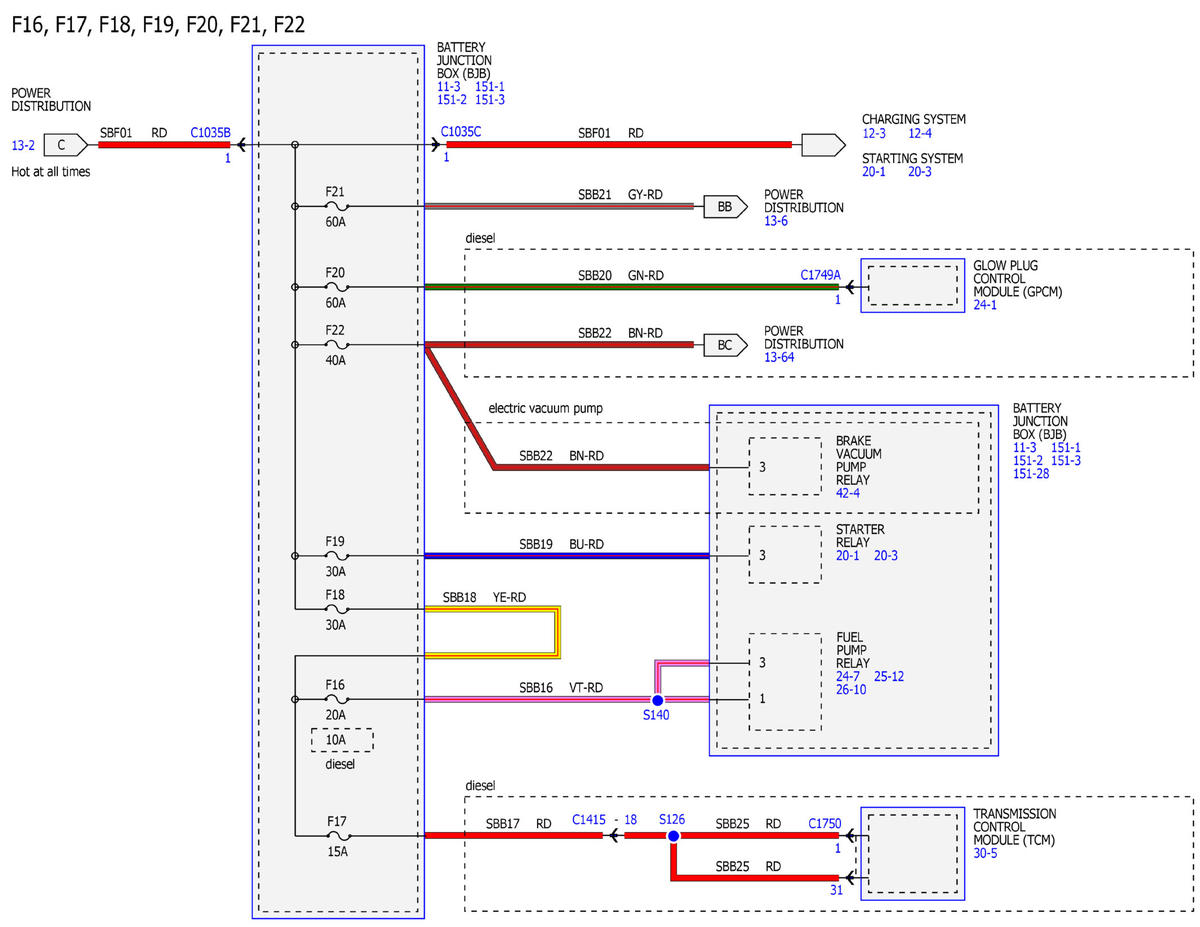

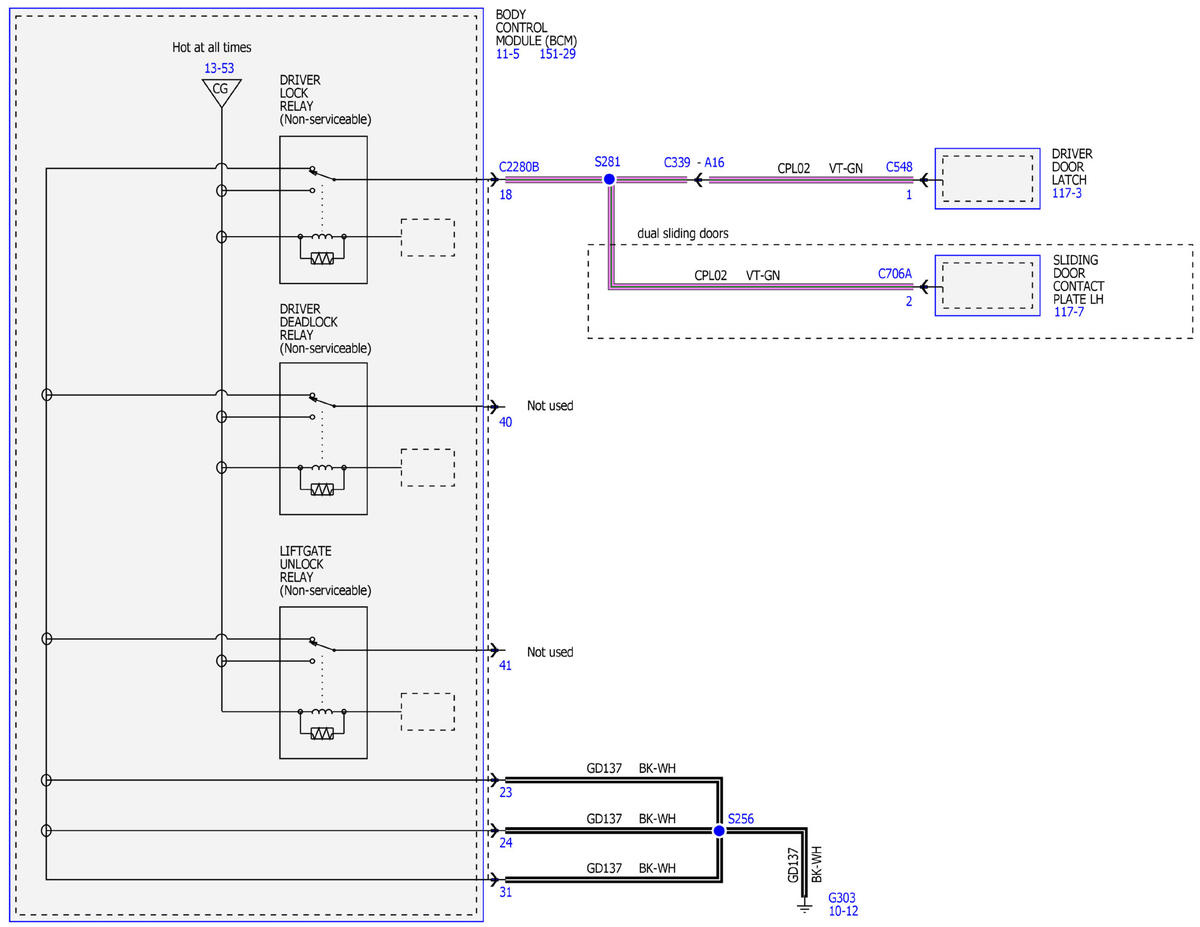

Fig 65: Power Distribution Wiring Diagram (65 of 67)

GFDWR21920

Courtesy of FORD MOTOR COMPANY

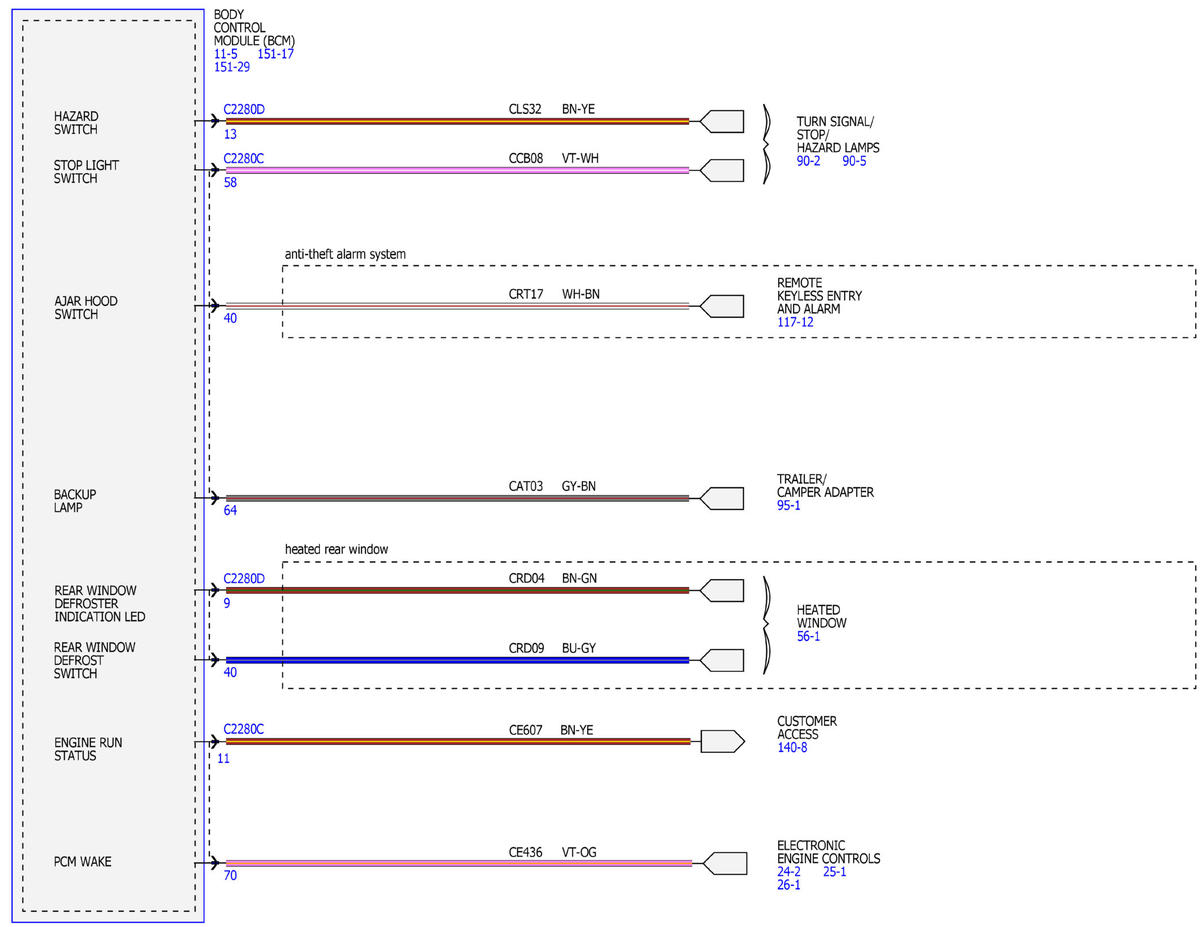

Fig 66: Power Distribution Wiring Diagram (66 of 67)

GFDWR21921

Courtesy of FORD MOTOR COMPANY

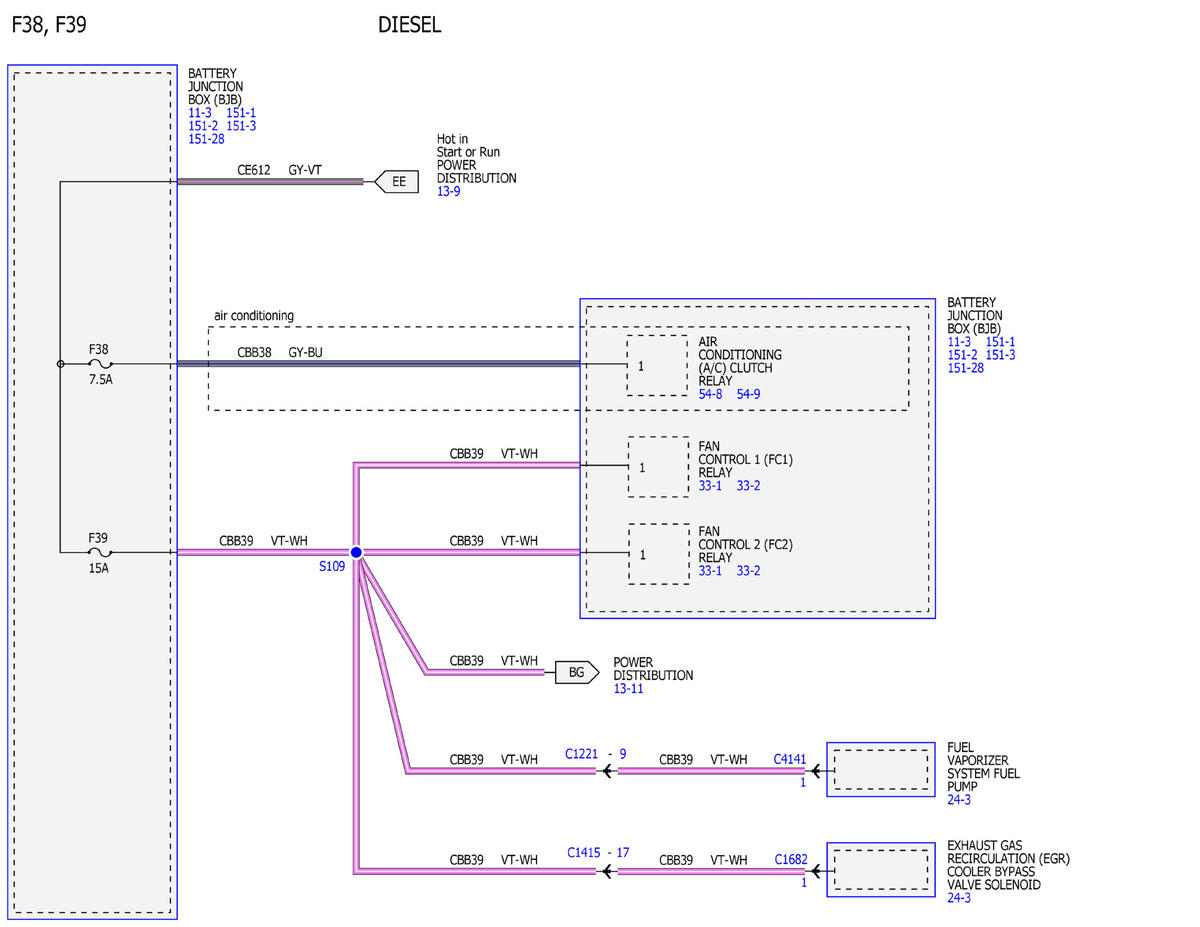

Fig 67: Power Distribution Wiring Diagram (67 of 67)

GFDWR21922

Courtesy of FORD MOTOR COMPANY
