Parking Aid

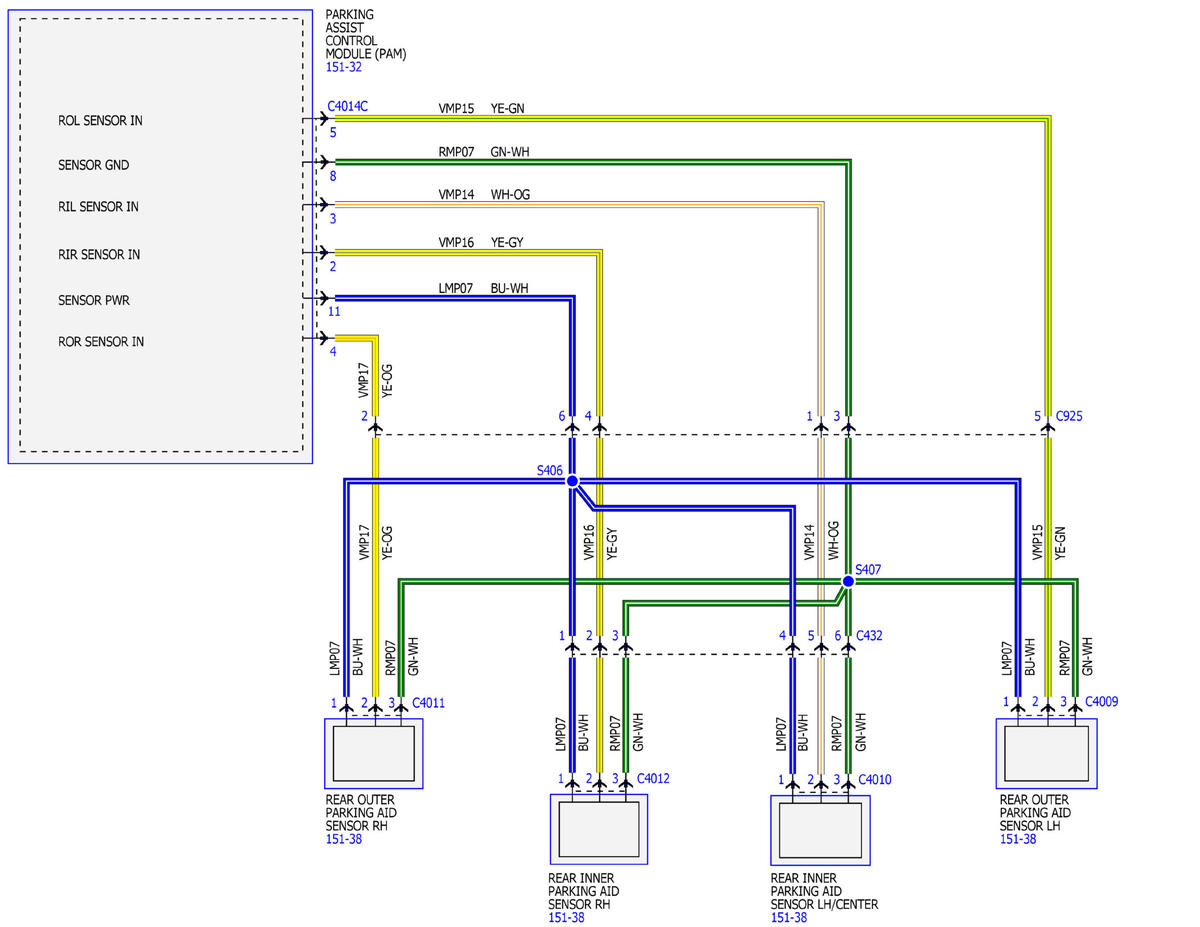

Fig 1: Parking Aid Wiring Diagram (1 of 14)
GFDWR21832Courtesy of FORD MOTOR COMPANY

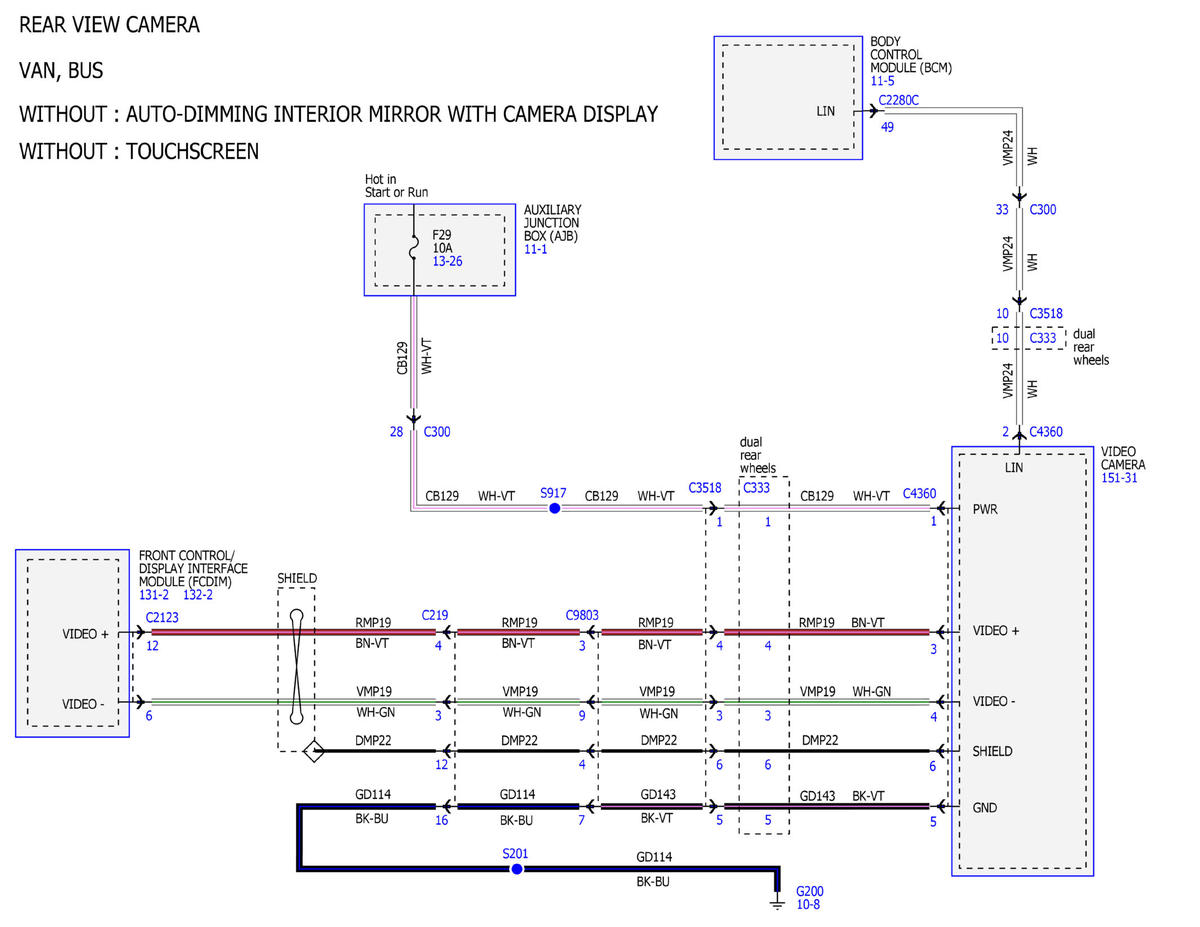

Fig 2: Parking Aid Wiring Diagram (2 of 14)
GFDWR21833Courtesy of FORD MOTOR COMPANY

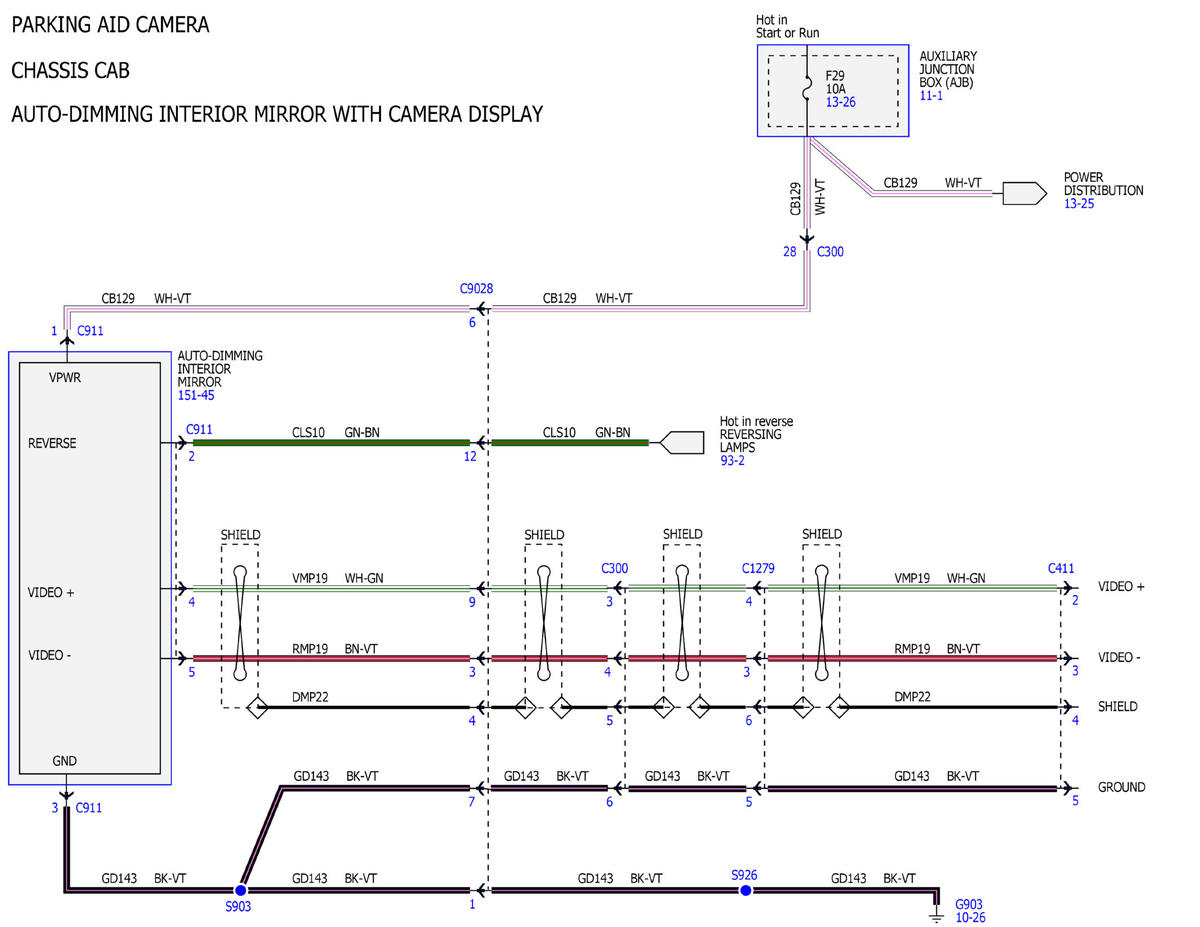

Fig 3: Parking Aid Wiring Diagram (3 of 14)
GFDWR21834Courtesy of FORD MOTOR COMPANY

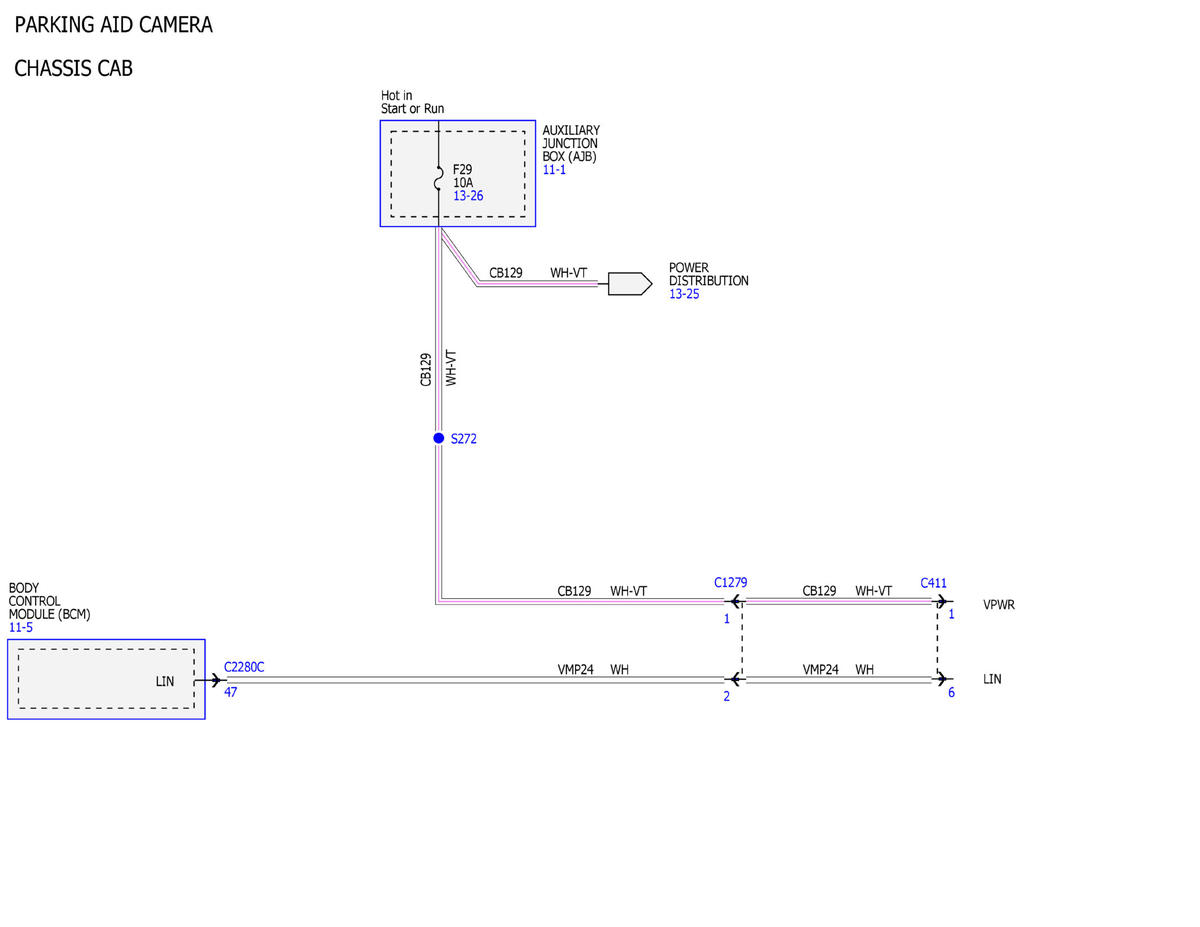

Fig 4: Parking Aid Wiring Diagram (4 of 14)
GFDWR21835Courtesy of FORD MOTOR COMPANY
Fig 5: Parking Aid Wiring Diagram (5 of 14)
GFDWR21836Courtesy of FORD MOTOR COMPANY
Fig 6: Parking Aid Wiring Diagram (6 of 14)
GFDWR21837Courtesy of FORD MOTOR COMPANY

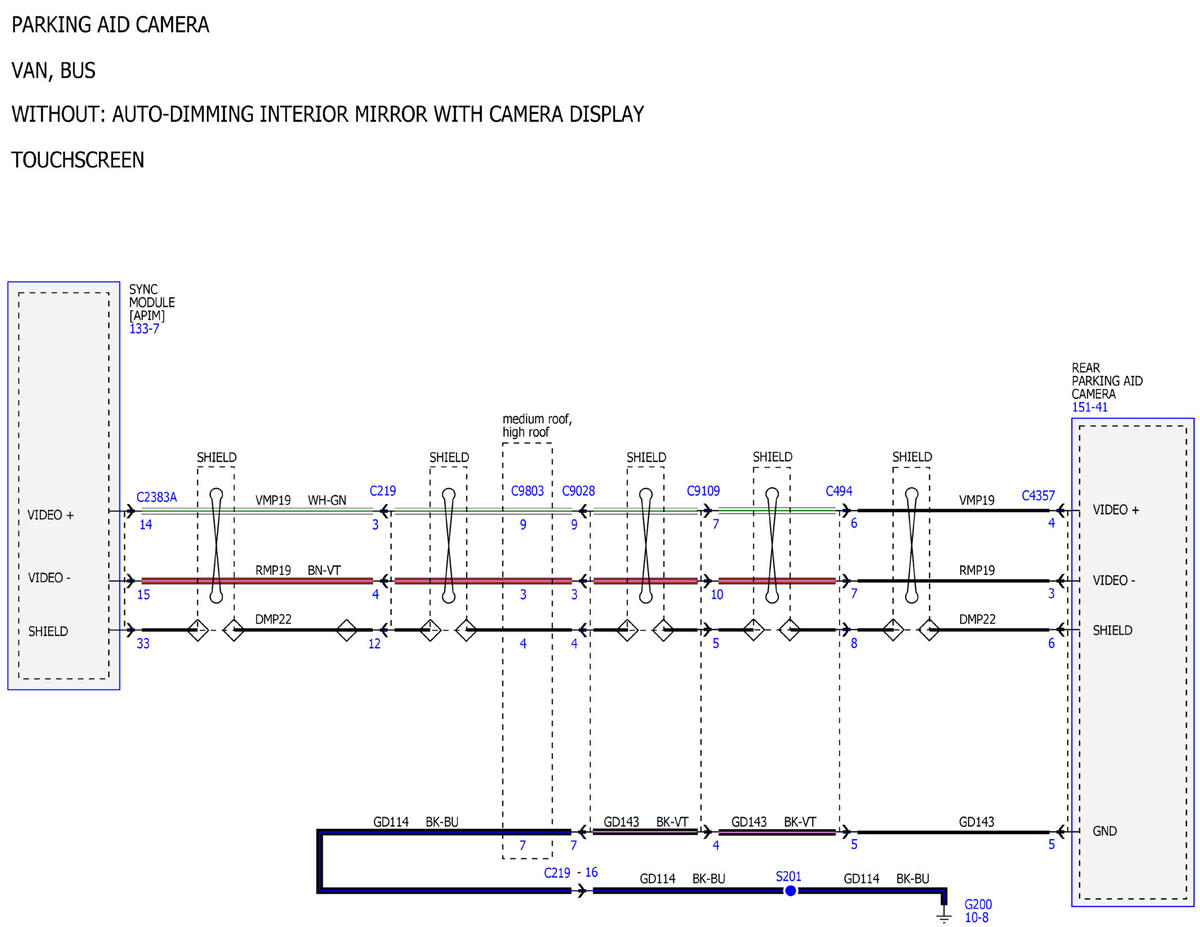

Fig 7: Parking Aid Wiring Diagram (7 of 14)
GFDWR21838Courtesy of FORD MOTOR COMPANY

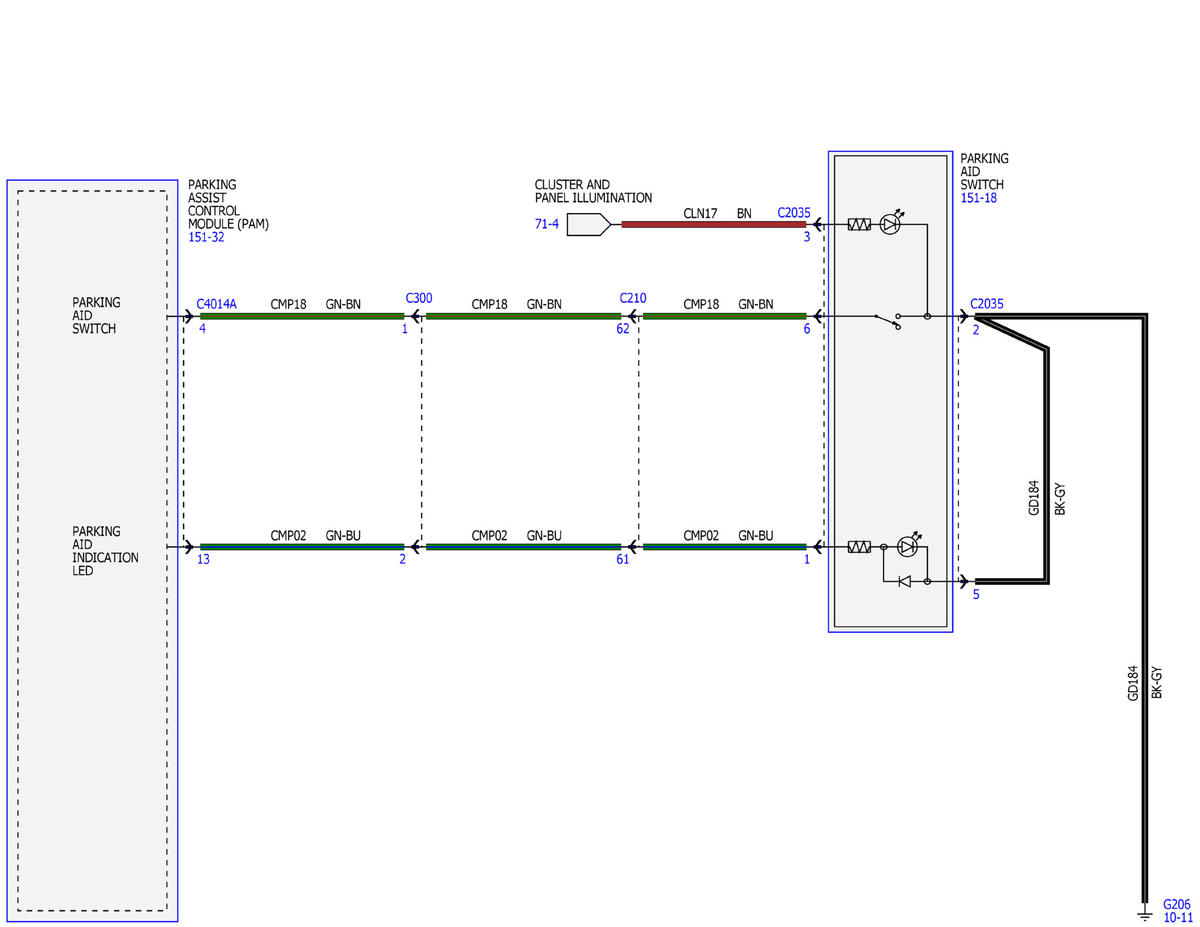

Fig 8: Parking Aid Wiring Diagram (8 of 14)
GFDWR21839Courtesy of FORD MOTOR COMPANY

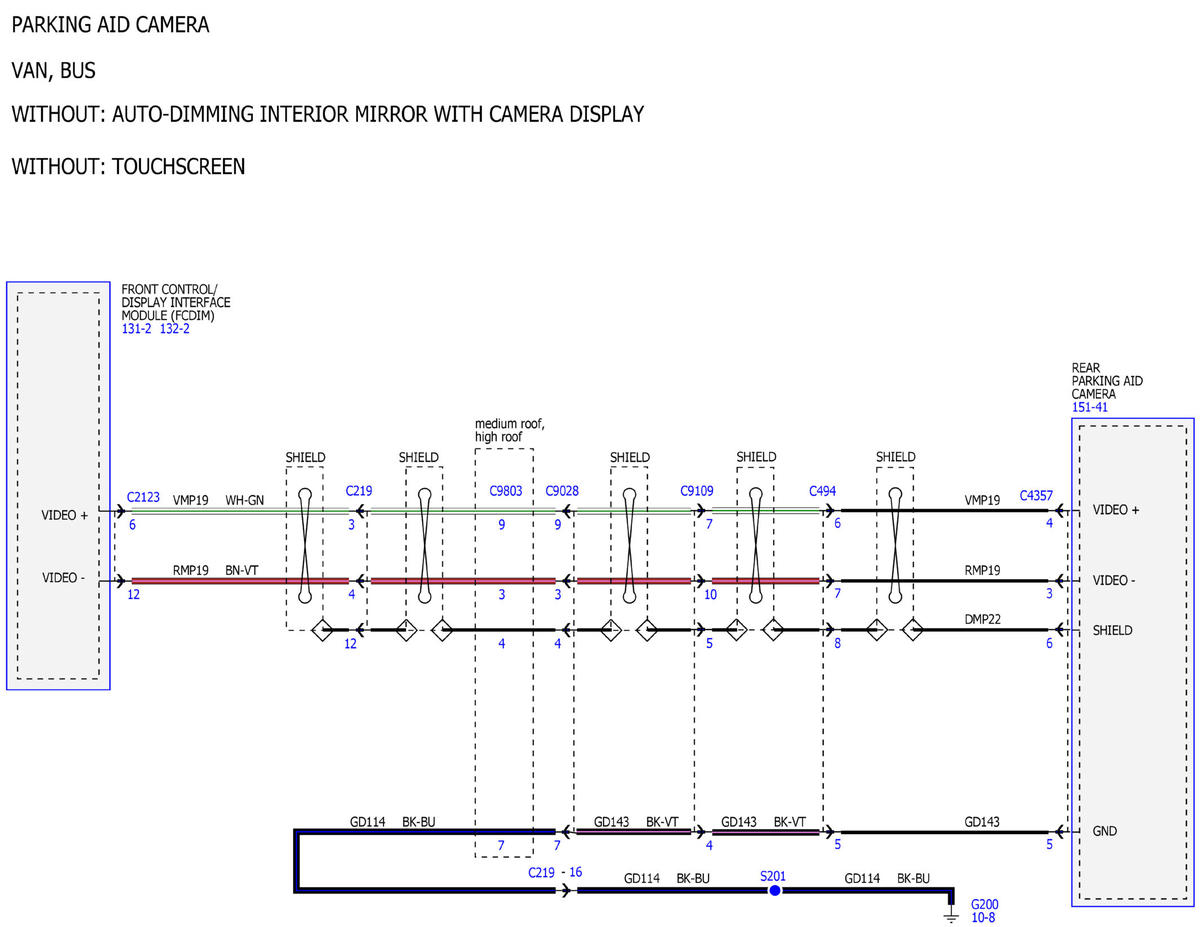

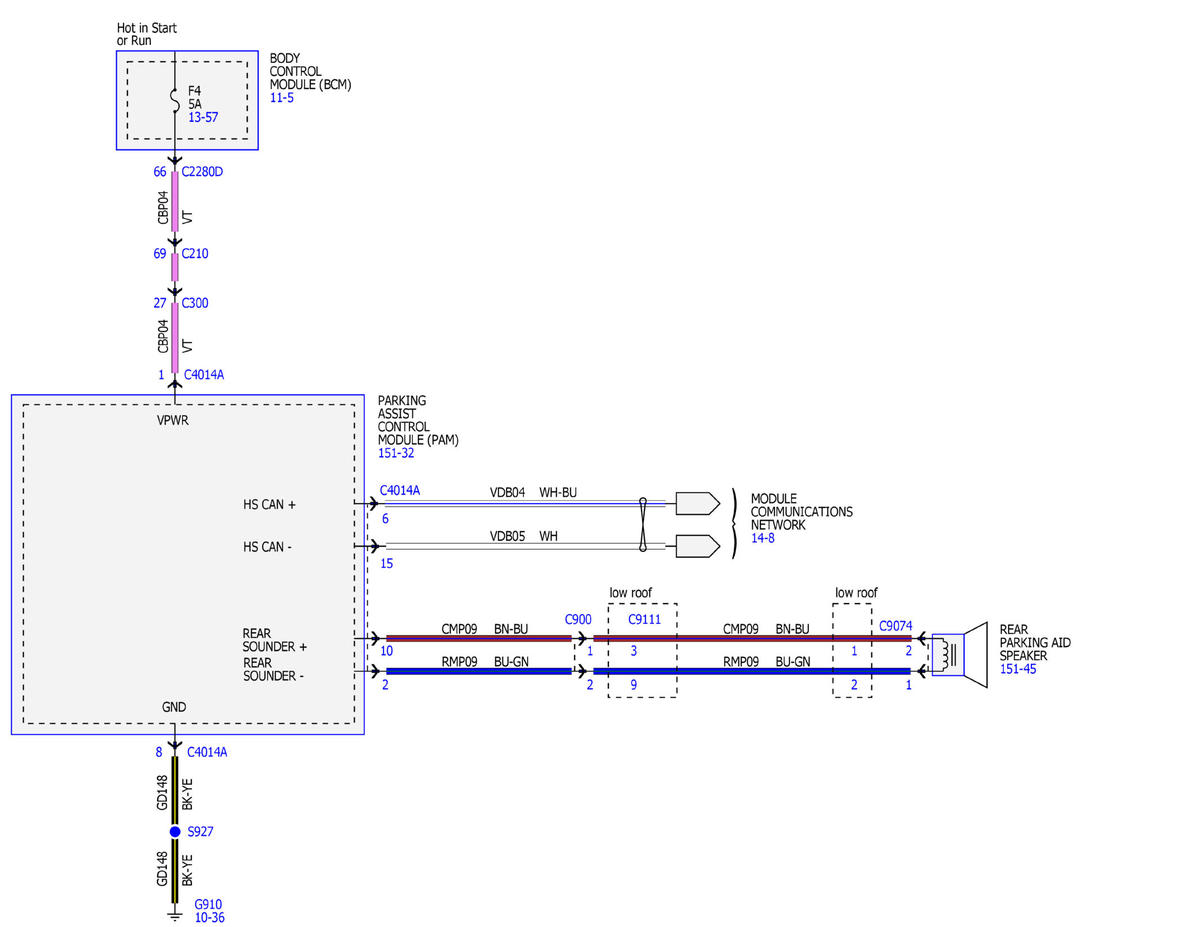

Fig 9: Parking Aid Wiring Diagram (9 of 14)
GFDWR21840Courtesy of FORD MOTOR COMPANY

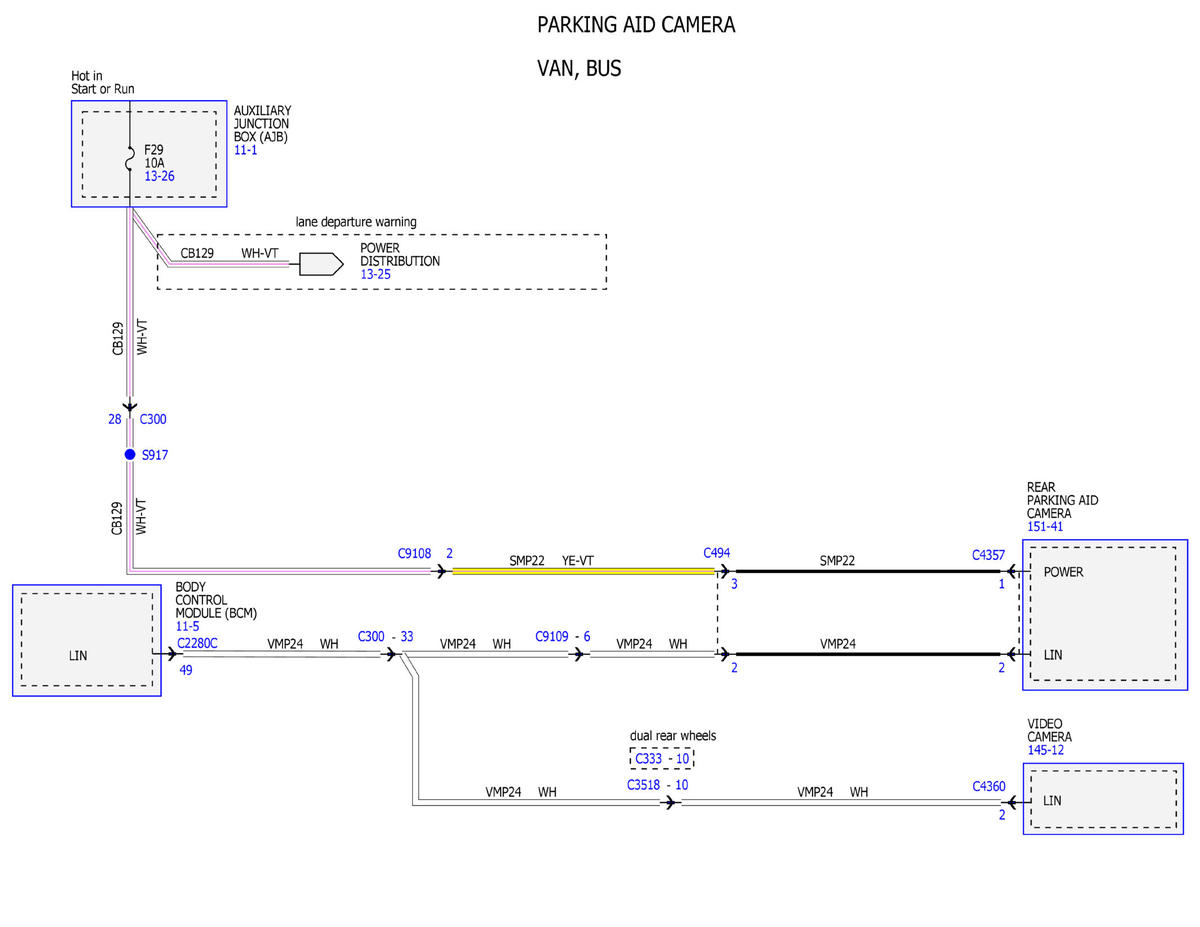

Fig 10: Parking Aid Wiring Diagram (10 of 14)
GFDWR21841Courtesy of FORD MOTOR COMPANY

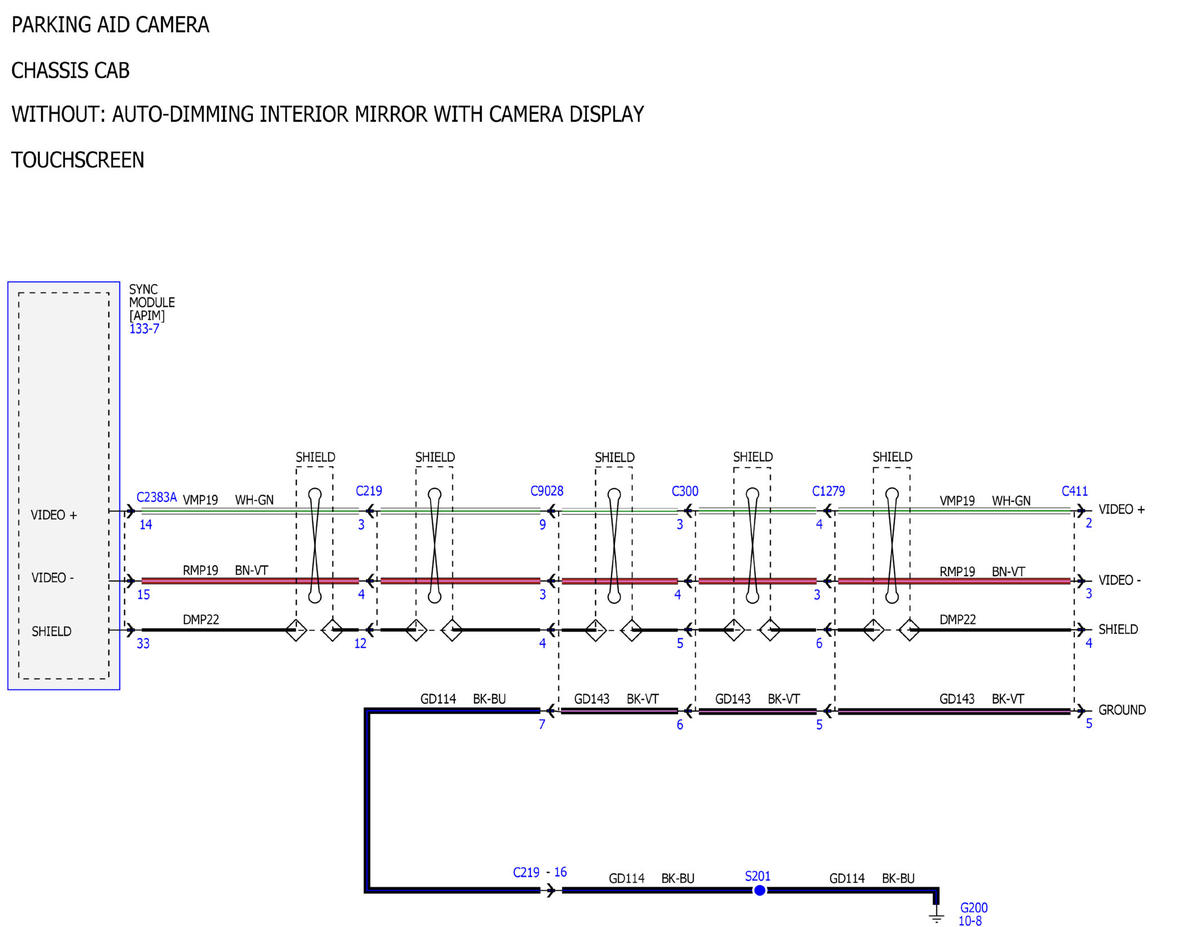

Fig 11: Parking Aid Wiring Diagram (11 of 14)
GFDWR21842Courtesy of FORD MOTOR COMPANY

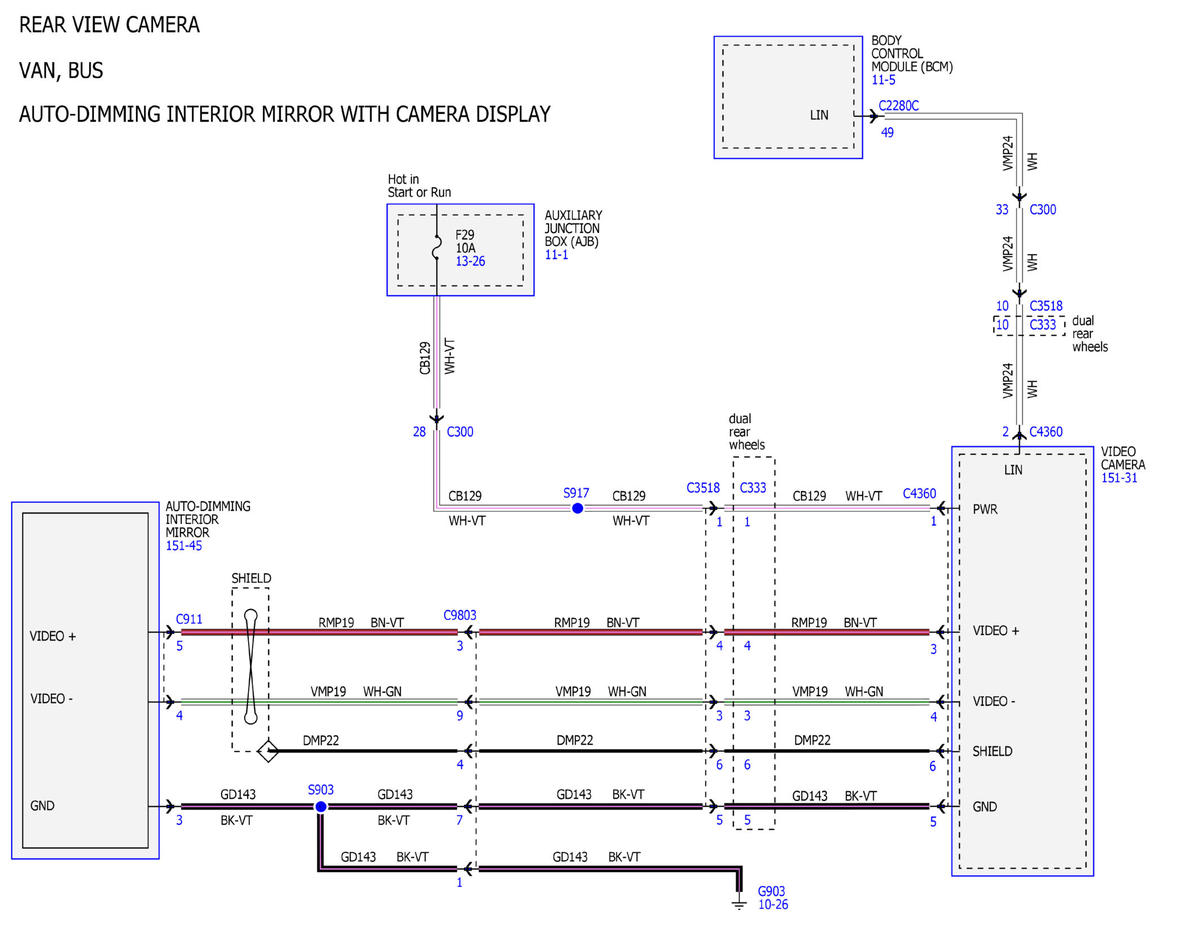

Fig 12: Parking Aid Wiring Diagram (12 of 14)
GFDWR21843Courtesy of FORD MOTOR COMPANY

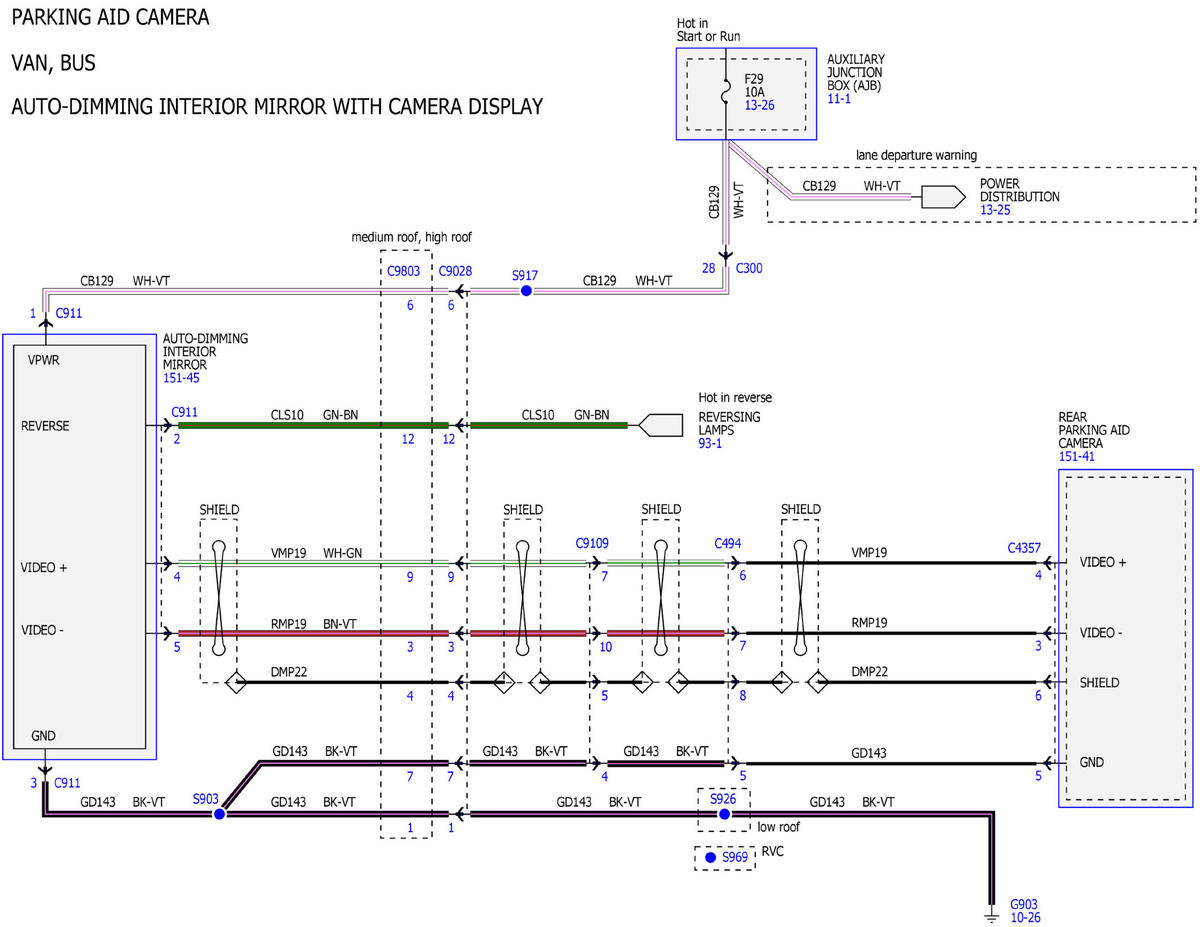

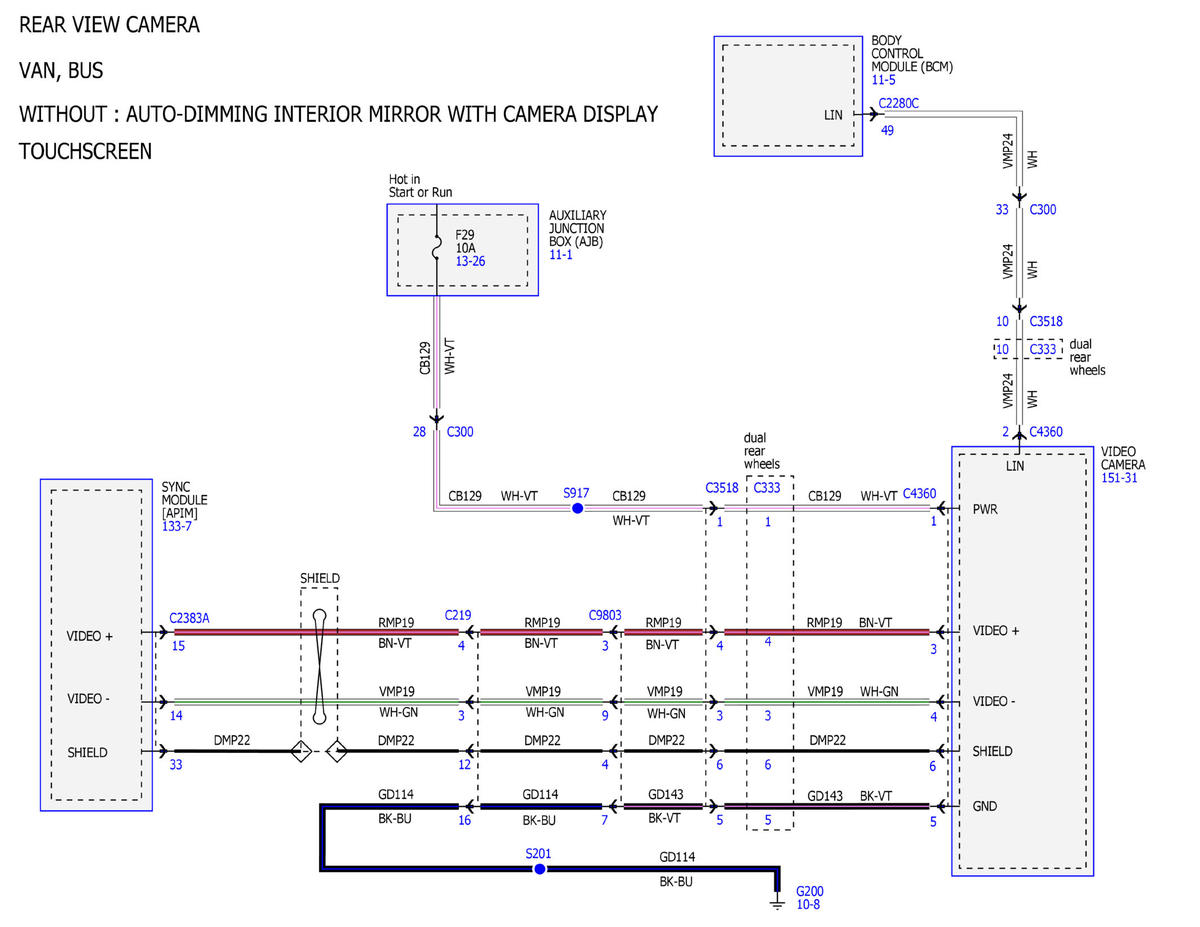

Fig 13: Parking Aid Wiring Diagram (13 of 14)
GFDWR21844Courtesy of FORD MOTOR COMPANY

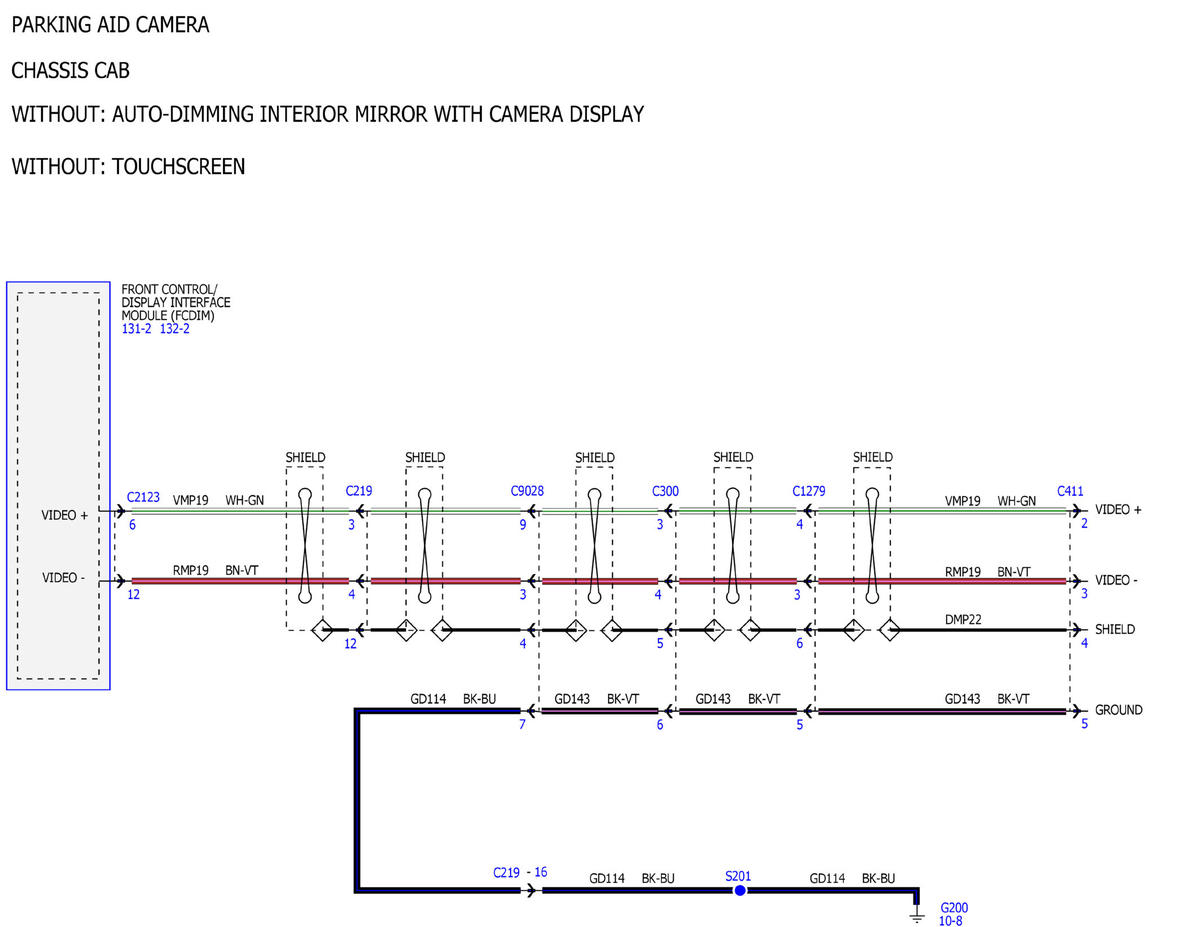

Fig 14: Parking Aid Wiring Diagram (14 of 14)
GFDWR21845Courtesy of FORD MOTOR COMPANY
