Instrument Cluster

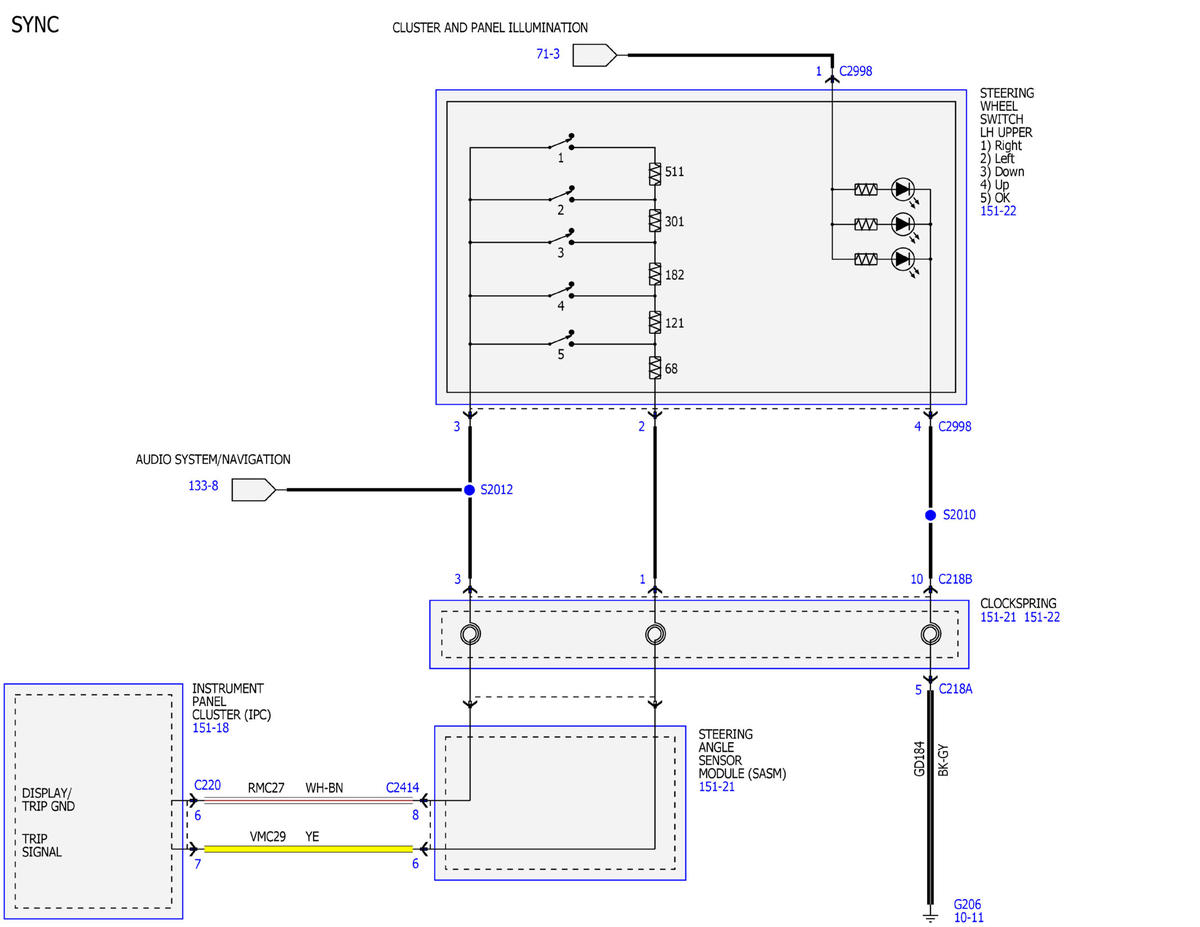

Fig 1: Instrument Cluster Wiring Diagram (1 of 6)
GFDWR21785Courtesy of FORD MOTOR COMPANY

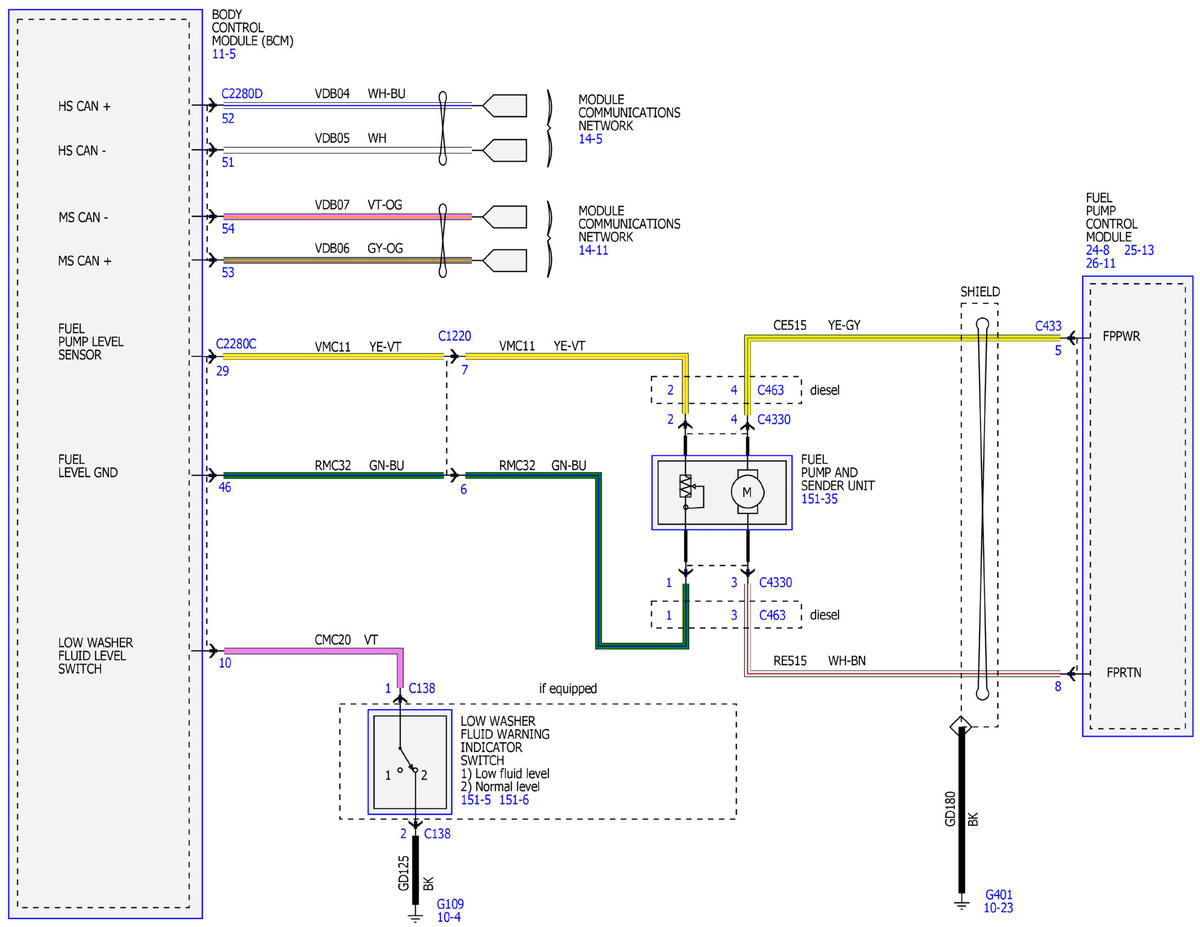

Fig 2: Instrument Cluster Wiring Diagram (2 of 6)
GFDWR21786Courtesy of FORD MOTOR COMPANY

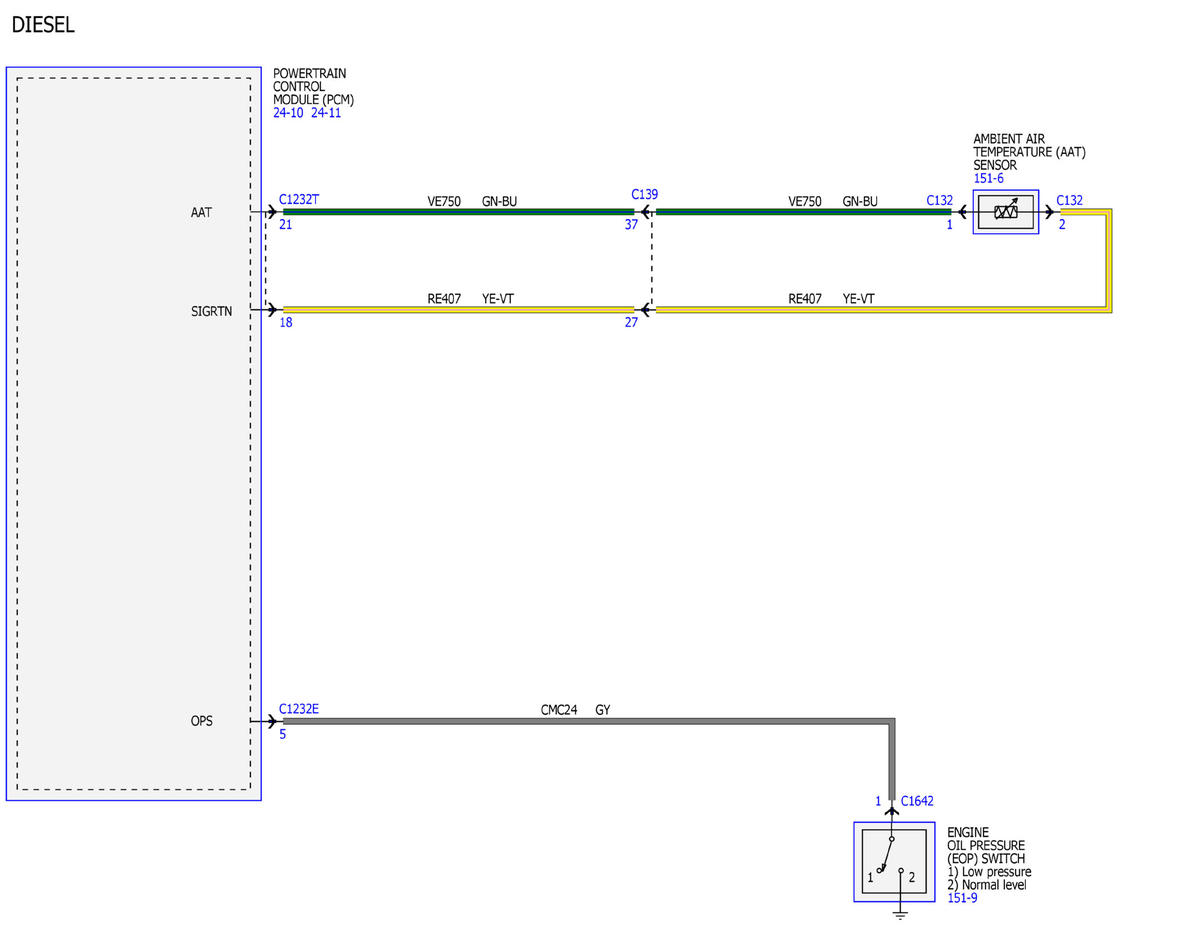

Fig 3: Instrument Cluster Wiring Diagram (3 of 6)
GFDWR21787Courtesy of FORD MOTOR COMPANY

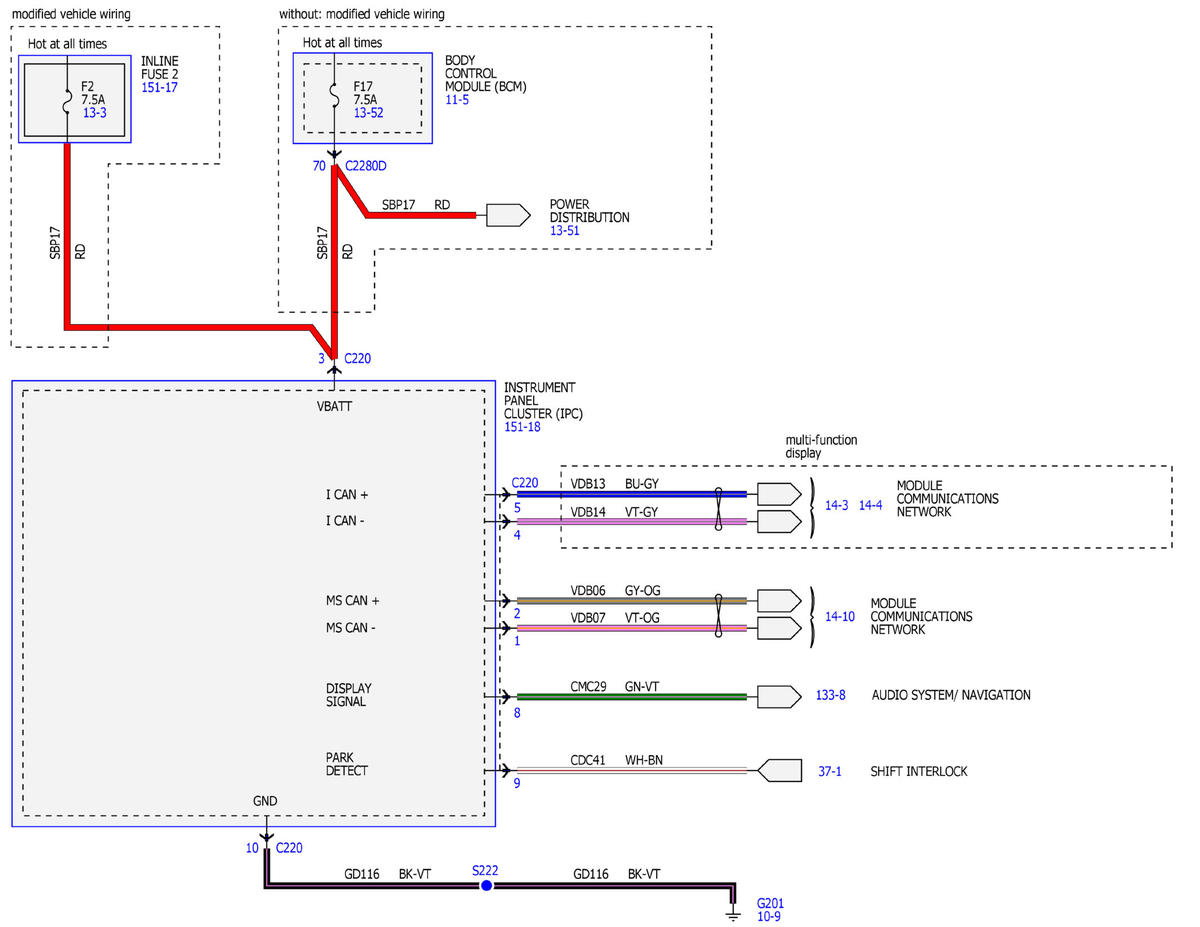

Fig 4: Instrument Cluster Wiring Diagram (4 of 6)
GFDWR21788Courtesy of FORD MOTOR COMPANY

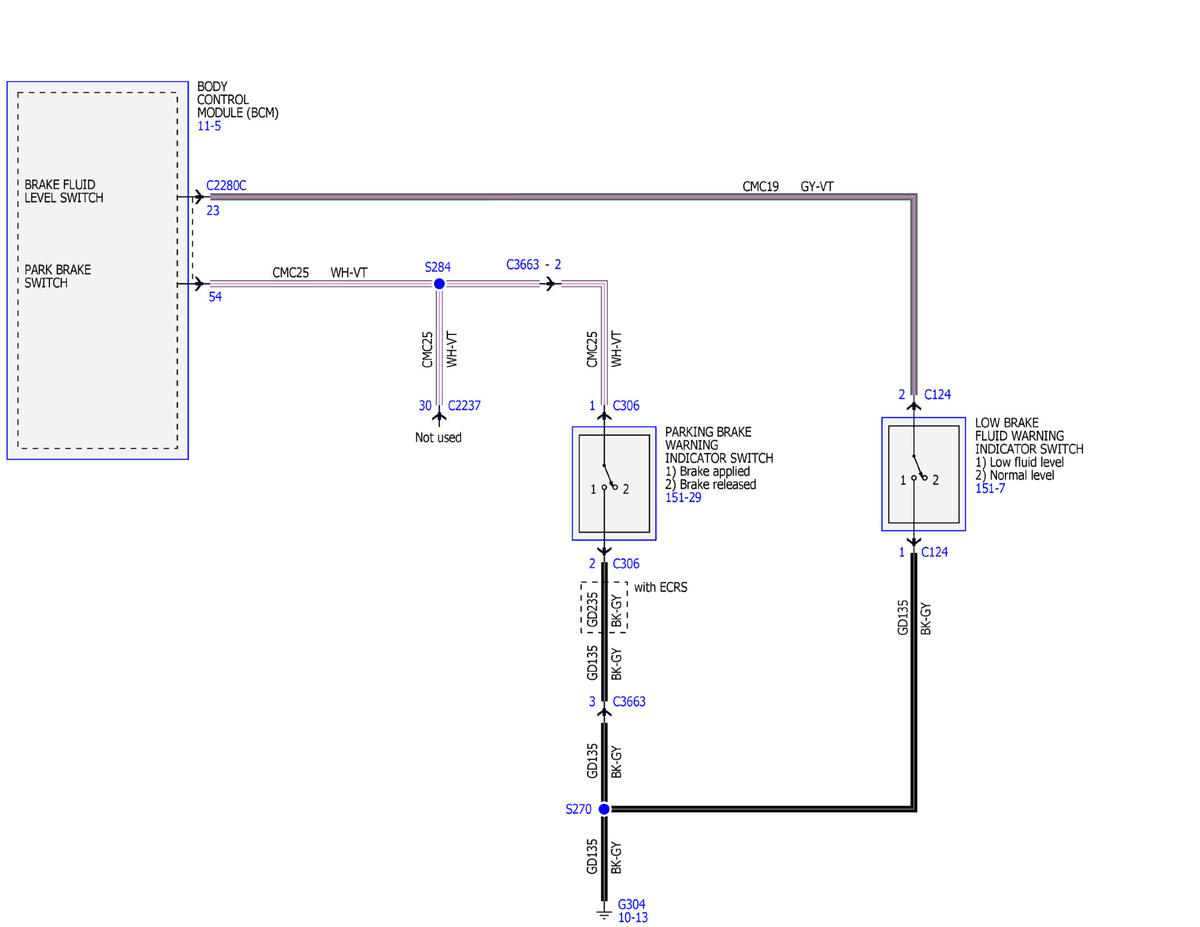

Fig 5: Instrument Cluster Wiring Diagram (5 of 6)
GFDWR21789Courtesy of FORD MOTOR COMPANY

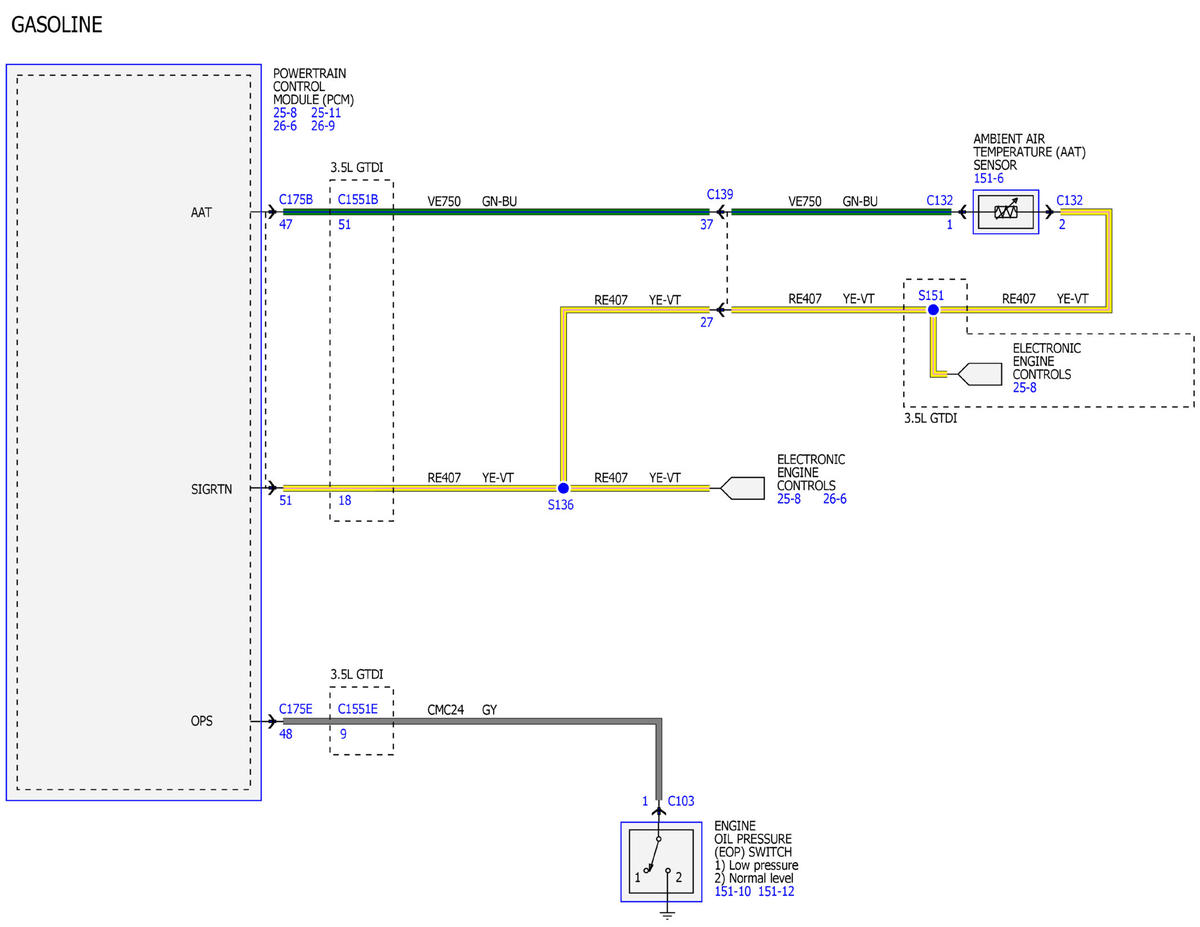

Fig 6: Instrument Cluster Wiring Diagram (6 of 6)
GFDWR21790Courtesy of FORD MOTOR COMPANY
