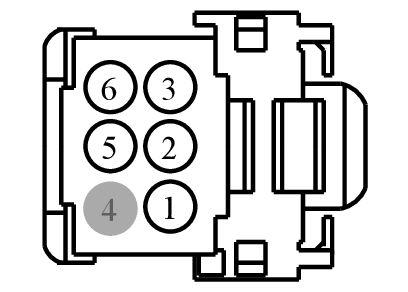

Connector End View (C2035) - PARKING AID SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2035 | PARKING AID SWITCH | BK | 14K024 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMP02 (GN-BU) | 22 | CTRL MOD. - PARKING AID # INDICATOR STATUS | 9U5T-14474-LA | ||||
| 2 | GD184 (BK-GY) | 22 | GROUND - CROSS CAR BEAM # 4TH POINT | 9U5T-14474-MA | ||||
| 3 | CLN17 (BN) | 22 | SWITCH - IP/SWITCH ILLUMINATION | 9U5T-14474-LA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | GD184 (BK-GY) | 22 | GROUND - CROSS CAR BEAM # 4TH POINT | 9U5T-14474-LA | ||||
| 6 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID | 9U5T-14474-LA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1237
Service Part Number:
3U2Z-14S411-PNB
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Switch - Hazard Warning
- Switch - Message Center
- Switch - Start/Stop
