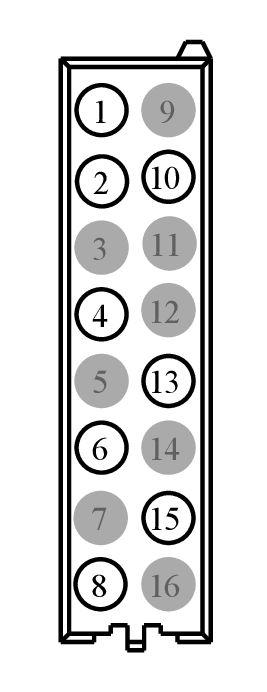

Connector End View (C4014A) - PARKING ASSIST CONTROL MODULE (PAM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4014A	PARKING ASSIST CONTROL MODULE (PAM)	BK	13A409	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-RZA	FU2Z-14474-AA	0.64
96AG-14474-RSA	FU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP04 (VT)	18	FUSE - 4 OR CIRCUIT BREAKER	96AG-14474-RZA
2	RMP09 (BU-GN)	20	CTRL MOD. - PARKING AID # SOUNDER REAR -	96AG-14474-RSA
3	*	*	Not Used	N/A
4	CMP18 (GN-BN)	20	SWITCH - PARKING AID	96AG-14474-RSA
5	*	*	Not Used	N/A
6	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	96AG-14474-RSA
7	*	*	Not Used	N/A
8	GD148 (BK-YE)	18	GROUND - PILLAR C OR QUARTER PANEL RIGHT	96AG-14474-RZA
9	*	*	Not Used	N/A
10	CMP09 (BN-BU)	20	CTRL MOD. - PARKING AID # SOUNDER REAR +	96AG-14474-RSA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CMP02 (GN-BU)	20	CTRL MOD. - PARKING AID # INDICATOR STATUS	96AG-14474-RSA
14	*	*	Not Used	N/A
15	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	96AG-14474-RSA
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1189

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ZA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

16

Vehicle Uses:

• Module - Reverse Park Aid (RPA)
