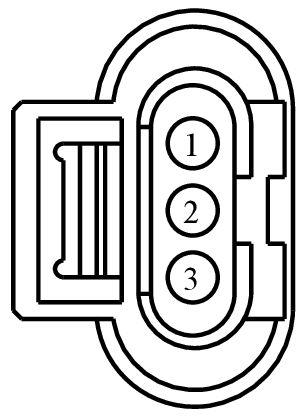

Connector End View (C4010) - REAR INNER PARKING AID SENSOR LH/CENTER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4010	REAR INNER PARKING AID SENSOR LH/CENTER	BK	15K868	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6W8T-14474-GA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP07 (BU-WH)	20	CTRL MOD. - PARKING AID # SENSORS REAR +	6W8T-14474-GA
2	VMP14 (WH-OG)	20	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	6W8T-14474-GA
3	RMP07 (GN-WH)	20	CTRL MOD. - PARKING AID # SENSORS REAR -	6W8T-14474-GA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1301

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ANA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Sensor - Front Park Aid (FPA)
