Connector End View (C2280D) - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280D BODY CONTROL MODULE (BCM) BU 14K024 part# N/A Not Available

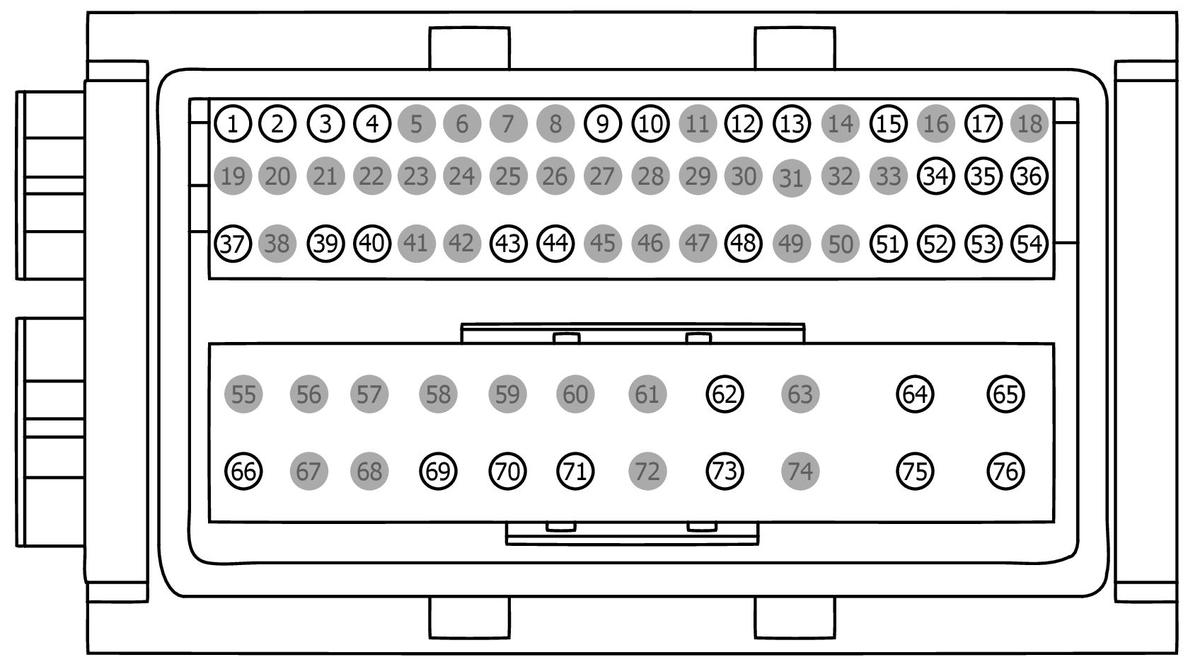

GFDWR21370Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
AU5T-14474-DA Not Available
AU5T-14474-CA Not Available
9U5T-14474-LA DU2Z-14474-BA 0.64
3M5T-14474-HCA DU2Z-14474-EA 2.8
9U5T-14474-MA DU2Z-14474-BA 0.64
3M5T-14474-HBA DU2Z-14474-EA 2.8
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 VRT23 (VT-GY) 22 TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN) 9U5T-14474-LA
2 VRT24 (YE-OG) 22 TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL 9U5T-14474-LA
3 VH406 (VT-BN) 22 SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) 9U5T-14474-LA
4 RH119 (YE-VT) 22 CTRL MOD. - CLIMATE # SENSOR A/C EVAPORATOR TEMPERATURE 9U5T-14474-LA
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 CRD04 (BN-GN) 22 INDICATOR - HEATER REAR WINDOW 9U5T-14474-LA
10 CHP03 (GN-BN) 22 SWITCH - PTC HEATER 9U5T-14474-LA
11 * * Not Used N/A
12 RME24 (BU-WH) 22 CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO 9U5T-14474-LA
13 CLS32 (BN-YE) 22 SWITCH - HAZARD 9U5T-14474-LA
14 * * Not Used N/A
15 CHP01 (BU-GN) 20 CTRL MOD. - PTC HEATER # HEATER 9U5T-14474-MA
16 * * Not Used N/A
17 CRH02 (BU-WH) 22 SWITCH - HORN 9U5T-14474-LA
18 * * Not Used N/A
19 * * Not Used N/A
20 * * Not Used N/A
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 * * Not Used N/A
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 CRW36 (GN-OG) 22 CTRL MOD. - FRONT WIPER 9U5T-14474-LA
35 VDN05 (YE-GY) 22 CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 9U5T-14474-LA
36 VLF25 (GN-VT) 22 CTRL MOD. - LIGHT SWITCH LIN BUS 9U5T-14474-LA
37 CLN13 (BK-GY) 20 SWITCH - TRUNK/CARGO LAMP N/A
38 * * Not Used N/A
39 CH422 (VT) 22 SWITCH - A/C FULL DEMAND (ACFDS) 9U5T-14474-LA
40 CRD09 (BU-GY) 22 SWITCH - HEATER REAR WINDOW 9U5T-14474-LA
41 * * Not Used N/A
42 * * Not Used N/A
43 CBP20 (YE-VT) 22 FUSE - 20 OR CIRCUIT BREAKER 9U5T-14474-LA
44 SBP19 (BU-RD) 22 FUSE - 19 OR CIRCUIT BREAKER 9U5T-14474-LA
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 CLN17 (BN) 22 SWITCH - IP/SWITCH ILLUMINATION 9U5T-14474-LA
49 * * Not Used N/A
50 * * Not Used N/A
51 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW 9U5T-14474-LA
52 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH 9U5T-14474-LA
53 VDB06 (GY-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH 9U5T-14474-LA
54 VDB07 (VT-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW 9U5T-14474-LA
55 * * Not Used N/A
56 * * Not Used N/A
57 * * Not Used N/A
58 * * Not Used N/A
59 * * Not Used N/A
60 * * Not Used N/A
61 * * Not Used N/A
62 CDC30 (BU-GY) 22 SWITCH - IGNITION # KEY IN AU5T-14474-DA
63 * * Not Used N/A
64 SBP16 (VT-RD) 14 FUSE - 16 OR CIRCUIT BREAKER 3M5T-14474-HCA
65 SBP03 (BU-RD) 18 FUSE - 3 OR CIRCUIT BREAKER 3M5T-14474-HBA
66 CBP04 (VT) 20 FUSE - 4 OR CIRCUIT BREAKER AU5T-14474-DA
67 * * Not Used N/A
68 * * Not Used N/A
69 SBP18 (YE-RD) 20 FUSE - 18 OR CIRCUIT BREAKER AU5T-14474-CA
70 SBP17 (RD) 20 FUSE - 17 OR CIRCUIT BREAKER AU5T-14474-CA
71 CDC35 (BU-WH) 18 SWITCH - IGNITION # START AU5T-14474-CA
72 * * Not Used N/A
73 SBP13 (GY-RD) 18 FUSE - 13 OR CIRCUIT BREAKER AU5T-14474-CA
74 * * Not Used N/A
75 CDC33 (VT-GN) 18 SWITCH - IGNITION # RUN; ACCESSORY 3M5T-14474-HBA
76 CDC32 (BN-YE) 18 SWITCH - IGNITION # RUN 3M5T-14474-HBA
