Connector End View (C2280C) - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280C BODY CONTROL MODULE (BCM) BN 14401 part# N/A Not Available

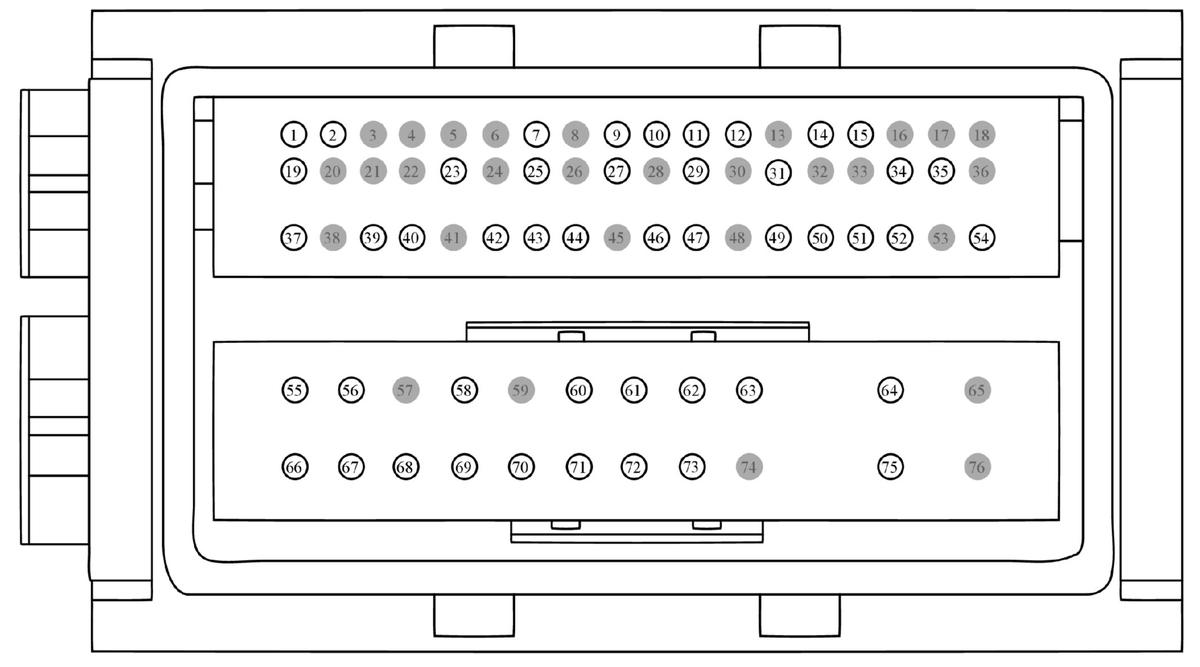

GFDWR21371Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
AU5T-14474-CA Not Available
AU5T-14474-DA Not Available
9U5T-14474-LA DU2Z-14474-BA 0.64
3M5T-14474-HAA DU2Z-14474-EA 2.8
9U5T-14474-MA DU2Z-14474-BA 0.64
3M5T-14474-HBA DU2Z-14474-EA 2.8
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 VPL56 (BU-GY) 22 RECEIVER - REMOTE RF 9U5T-14474-LA
2 VRW26 (BN-YE) 22 CTRL MOD. - RAIN SENSOR LIN BUS 9U5T-14474-LA
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 CRW15 (BN-WH) 20 CTRL MOD. - FRONT WIPER HIGH 9U5T-14474-MA
8 * * Not Used N/A
9 CH123 (VT-GN) 20 CTRL MOD. - BLOWER MOTOR RELAY 9U5T-14474-MA
10 CMC20 (VT) 20 SWITCH - LOW LEVEL WASHER FLUID 9U5T-14474-MA
11 CE607 (BN-YE) 22 RELAY - ENGINE RUNNING 9U5T-14474-LA
12 CE608 (VT-GN) 20 FUEL PUMP (FP) 9U5T-14474-MA
13 * * Not Used N/A
14 CRD02 (BN-BU) 20 CTRL MOD. - RELAY HEATER REAR WINDOW 9U5T-14474-MA
15 CRW09 (BN-BU) 20 SWITCH - FRONT WIPER PARK POSITION 9U5T-14474-MA
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 CAT13 (GN-OG) 20 CTRL MOD. - TRAILER TOW # TRAILER CONNECT SIGNAL 9U5T-14474-MA
20 * * Not Used N/A
21 * * Not Used N/A
22 * * Not Used N/A
23 CMC19 (GY-VT) 22 SWITCH - LOW LEVEL BRAKE FLUID 9U5T-14474-LA
24 * * Not Used N/A
25 CPL42 (GY-YE) 22 SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK 9U5T-14474-LA
26 * * Not Used N/A
27 CAT11 (BN) 20 CTRL MOD. - TRAILER TOW # PARK LAMPS 9U5T-14474-MA
28 * * Not Used N/A
29 VMC11 (YE-VT) 22 SENSOR - FUEL LEVEL (FLI) 9U5T-14474-LA
30 * * Not Used N/A
31 CR167 (YE-VT) 20 EVENT NOTIFICATION SIGNAL (ENS) 9U5T-14474-MA
31 CR167 (YE-VT) 22 EVENT NOTIFICATION SIGNAL (ENS) 9U5T-14474-LA
32 * * Not Used N/A
33 * * Not Used N/A
34 CPL31 (WH) 22 SWITCH - LATCH PASSENGER # AJAR 9U5T-14474-LA
35 CPL36 (GN) 22 SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR) 9U5T-14474-LA
36 * * Not Used N/A
37 CET53 (BU-OG) 18 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK 9U5T-14474-MA
38 * * Not Used N/A
39 CPM22 (GY-BN) 20 SWITCH - POWER MIRROR # FOLD/DRIVE TOGGLE N/A
40 CRT17 (WH-BN) 22 SWITCH - ANTI THEFT INHIBIT # HOOD 9U5T-14474-LA
41 * * Not Used N/A
42 CRW01 (WH) 20 CTRL MOD. - FRONT WIPER 9U5T-14474-MA
43 CRH04 (VT-GN) 22 CTRL MOD. - RELAY HORN 9U5T-14474-LA
44 CPL26 (GN-VT) 22 SWITCH - LATCH DRIVER # AJAR 9U5T-14474-LA
45 * * Not Used N/A
46 RMC32 (GN-BU) 22 CTRL MOD. - SENSOR FUEL LEVEL 9U5T-14474-LA
47 VMP24 (WH) 18 CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS 9U5T-14474-MA
48 * * Not Used N/A
49 VMP24 (WH) 18 CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS N/A
50 CPL81 (BN-VT) 22 CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO AJAR 9U5T-14474-LA
51 CPL39 (YE) 22 SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR) 9U5T-14474-LA
52 CET40 (GN-OG) 20 SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) 9U5T-14474-MA
53 * * Not Used N/A
54 CMC25 (WH-VT) 22 SWITCH - PARKING BRAKE 9U5T-14474-LA
55 CLS17 (YE-GY) 18 CTRL MOD. - STOP HIGH MOUNT AU5T-14474-CA
56 CPL43 (VT-GY) 22 SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK AU5T-14474-DA
57 * * Not Used N/A
58 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN (BPP) AU5T-14474-CA
58 CCB08 (VT-WH) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN (BPP) AU5T-14474-CA
59 * * Not Used N/A
60 CLS23 (GY-OG) 20 CTRL MOD. - TURN LAMP LEFT REAR AU5T-14474-DA
61 CLS21 (BU-GN) 18 CTRL MOD. - TURN LAMP LEFT FRONT AU5T-14474-CA
62 CLS27 (GN-OG) 20 CTRL MOD. - TURN LAMP RIGHT REAR AU5T-14474-DA
63 CLS25 (YE-VT) 18 CTRL MOD. - TURN LAMP RIGHT FRONT AU5T-14474-CA
64 CAT03 (GY-BN) 20 CTRL MOD. - TRAILER TOW # BACKUP LAMPS 3M5T-14474-HAA
65 * * Not Used N/A
66 CLS07 (BN-YE) 20 CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT AU5T-14474-DA
67 CLS09 (WH-OG) 20 CTRL MOD. - PARK REAR RIGHT AU5T-14474-DA
68 CLS51 (WH-GN) 20 CTRL MOD. - STOP/TURN LEFT OUTBOARD AU5T-14474-DA
69 CLF04 (BN-BU) 20 CTRL MOD. - BEAM LOW LEFT AU5T-14474-DA
70 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM AU5T-14474-DA
71 CR113 (BN-YE) 20 CTRL MOD. - DEPLOY OUTPUT VEMS/TAS AU5T-14474-DA
72 RLN29 (WH-OG) 22 CTRL MOD. - DOME LAMP AU5T-14474-DA
73 CDC40 (VT-GY) 22 RELAY - DELAY ACCESSORY AU5T-14474-DA
74 * * Not Used N/A
75 CRB08 (BU-GY) 18 CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW + 3M5T-14474-HBA
76 * * Not Used N/A
