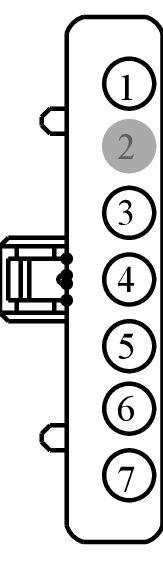

Connector End View (C250) - IGNITION SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C250	IGNITION SWITCH	BK	14K024	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	Not Available
92GG-14474-KBB	Not Available
AU5T-14474-CA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CDC32 (BN-YE)	18	SWITCH - IGNITION # RUN	92GG-14474-KBB
2	*	*	Not Used	N/A
3	CDC41 (WH-BN)	20	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)	AU5T-14474-DA
4	SBP03 (BU-RD)	18	FUSE - 3 OR CIRCUIT BREAKER	92GG-14474-KBB
5	CDC30 (BU-GY)	22	SWITCH - IGNITION # KEY IN	AU5T-14474-DA
6	CDC33 (VT-GN)	18	SWITCH - IGNITION # RUN; ACCESSORY	AU5T-14474-CA
7	CDC35 (BU-WH)	18	SWITCH - IGNITION # START	92GG-14474-KBB

Available Pigtail Kits

Pigtail Kit Part Number WPT-957

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FMAB

Gauge:

12 14

Pin material:

Tin & Silver

Cavities:

7

Vehicle Uses:

• Switch - Ignition
