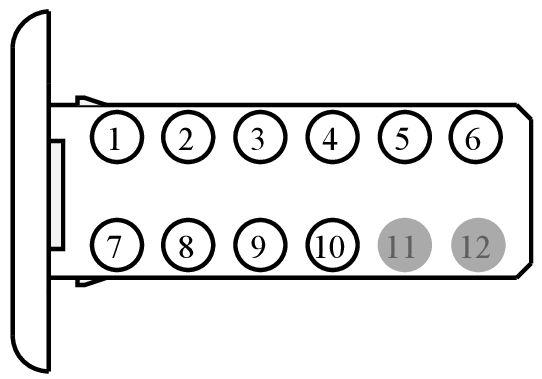

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C220 | INSTRUMENT PANEL CLUSTER (IPC) | BK | 14K024 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 96AG-14474-RSA | FU2Z-14474-AA | 0.64 |
| 96AG-14474-RZA | FU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | 96AG-14474-RSA | ||||
| 2 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | 96AG-14474-RSA | ||||
| 3 | SBP17 (RD) | 20 | FUSE - 17 OR CIRCUIT BREAKER | 96AG-14474-RSA | ||||
| 4 | VDB14 (VT-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | 96AG-14474-RSA | ||||
| 5 | VDB13 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | 96AG-14474-RSA | ||||
| 6 | RMC27 (WH-BN) | 22 | CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION / MESSAGE CENTER SELECT | 96AG-14474-RSA | ||||
| 7 | VMC29 (YE) | 22 | SWITCH - INFORMATION / MESSAGE CENTER SELECT | 96AG-14474-RSA | ||||
| 8 | CMC29 (GN-VT) | 22 | SWITCH - INFORMATION / MESSAGE CENTER SELECT + | 96AG-14474-RSA | ||||
| 9 | CDC41 (WH-BN) | 20 | SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) | 96AG-14474-RSA | ||||
| 10 | GD116 (BK-VT) | 18 | GROUND - CROSS CAR BEAM # 3RD POINT | 96AG-14474-RZA | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1278
Service Part Number:
CU2Z-14S411-ABA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
12
Vehicle Uses:
- Message Center
- Module - Driver Information
- Module - Front Interface
