Connector End View (C175B) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175B POWERTRAIN CONTROL MODULE (PCM) 9K499 part# N/A Not Available

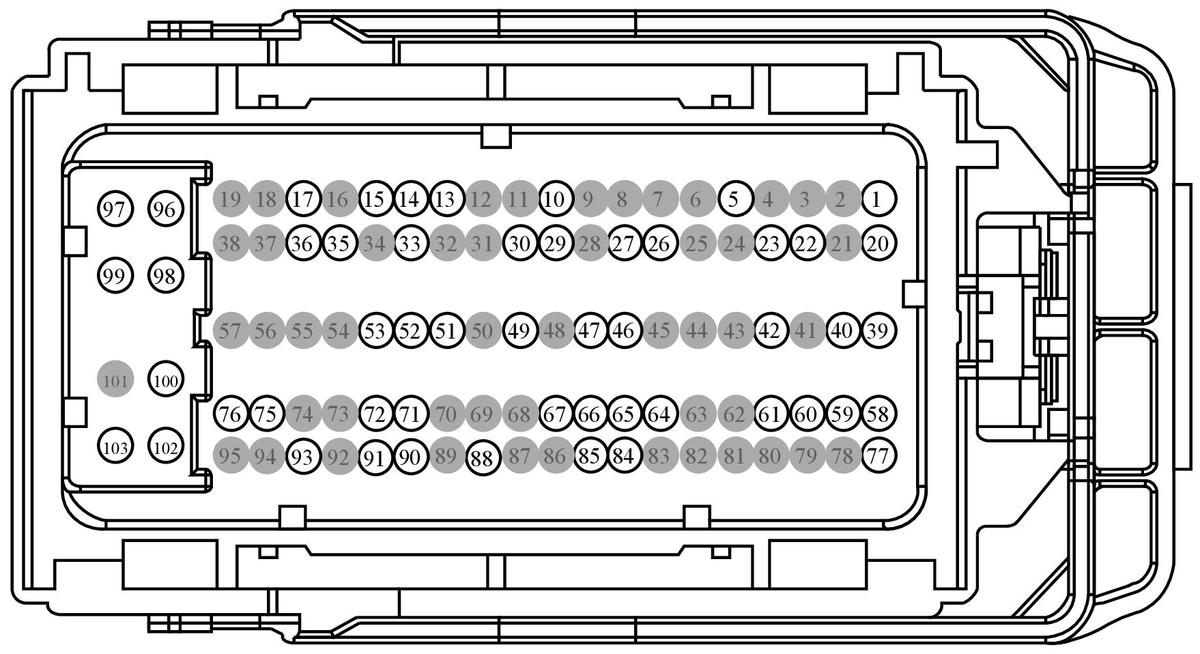

GFDWR20987Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
AU5T-14474-DA Not Available
AU5T-14474-BA Not Available
BU5T-14474-AA DU2Z-14474-CA 0.64
BU5T-14474-BA DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CDC54 (WH-GN) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-AA
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 GD121 (BK-YE) 18 GROUND - FENDER FRONT LEFT # 2ND POINT (PWRGND) BU5T-14474-BA
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 CE201 (VT) 20 CTRL MOD. - POWERTRAIN # FAN CONTROL HIGH (HFC) BU5T-14474-AA
11 * * Not Used N/A
12 * * Not Used N/A
13 CDC10 (BU-OG) 20 CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENMON) BU5T-14474-AA
14 VE225 (YE-OG) 20 FUEL PUMP COMMAND (FPC) BU5T-14474-AA
15 CH302 (WH-BN) 20 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) BU5T-14474-AA
16 * * Not Used N/A
17 CEC02 (GN-BU) 20 CTRL MOD. - COOLING FAN CONTROL LOW (LFC) BU5T-14474-AA
18 * * Not Used N/A
19 * * Not Used N/A
20 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) BU5T-14474-AA
21 * * Not Used N/A
22 CET42 (GN-VT) 20 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST-D) BU5T-14474-AA
23 CET43 (GY) 20 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST-U) BU5T-14474-AA
24 * * Not Used N/A
25 * * Not Used N/A
26 CDC15 (VT) 20 GENERATOR (ALTERNATOR) # LOAD INPUT (GENMON) BU5T-14474-AA
27 VE518 (BN-WH) 20 MONITOR - FUEL PUMP (FPM) BU5T-14474-AA
28 * * Not Used N/A
29 LE230 (BN-BU) 20 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE (VREF) BU5T-14474-AA
30 RE259 (BU) 20 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER 2ND (GND_FTPT2) BU5T-14474-AA
31 * * Not Used N/A
32 * * Not Used N/A
33 VH433 (VT-OG) 20 TRANSDUCER - A/C PRESSURE (ACPT) BU5T-14474-AA
34 * * Not Used N/A
35 RE136 (VT-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) BU5T-14474-AA
36 LE136 (GN-OG) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) BU5T-14474-AA
37 * * Not Used N/A
38 * * Not Used N/A
39 CE114 (GN-BU) 18 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANV) BU5T-14474-BA
40 LE137 (BU-GY) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) BU5T-14474-AA
41 * * Not Used N/A
42 CDC35 (BU-WH) 18 SWITCH - IGNITION # START BU5T-14474-BA
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 VE922 (VT-GN) 20 TRANSDUCER - FUEL TANK PRESSURE (FTP) BU5T-14474-AA
47 VE750 (GN-BU) 20 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) BU5T-14474-AA
48 * * Not Used N/A
49 CR167 (YE-VT) 20 EVENT NOTIFICATION SIGNAL (ENS) BU5T-14474-AA
50 * * Not Used N/A
51 RE407 (YE-VT) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) BU5T-14474-BA
52 LE458 (BU-WH) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF) BU5T-14474-BA
53 VDC61 (VT-GN) 20 SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR (BCS2 ALT) BU5T-14474-AA
54 * * Not Used N/A
55 * * Not Used N/A
56 * * Not Used N/A
57 * * Not Used N/A
58 CDC12 (YE) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) BU5T-14474-AA
59 RE137 (YE-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) BU5T-14474-AA
60 VE702 (BU-WH) 20 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AA
61 VE701 (YE-OG) 20 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AA
62 * * Not Used N/A
63 * * Not Used N/A
64 CBB07 (GN-BU) 22 FUSE - 7 OR CIRCUIT BREAKER (ISP-R) BU5T-14474-AA
65 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM BU5T-14474-AA
66 CCB15 (BN-GN) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL CLOSED (BPS) BU5T-14474-AA
67 CCB08 (VT-WH) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN (BPP) BU5T-14474-AA
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 RE242 (GN) 20 CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (SIGRTN) BU5T-14474-AA
72 VE731 (YE-GN) 20 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-AA
73 * * Not Used N/A
74 * * Not Used N/A
75 VDB04 (WH-BU) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH BU5T-14474-AA
76 VDB05 (WH) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW BU5T-14474-AA
77 VMC02 (BU-WH) 20 CTRL MOD. - POWERTRAIN # CLEAN TACHOMETER OUTPUT (CTO) BU5T-14474-AA
78 * * Not Used N/A
79 * * Not Used N/A
80 * * Not Used N/A
81 * * Not Used N/A
82 * * Not Used N/A
83 * * Not Used N/A
84 CE913 (BU) 20 SWITCH - POWER TAKE OFF IDLE CONTROL 1 (PTOIC) BU5T-14474-AA
85 VE925 (GN-WH) 20 SWITCH - POWER TAKE OFF RPM ADJUST (PTO_RPM) BU5T-14474-AA
86 * * Not Used N/A
87 * * Not Used N/A
88 CE914 (GN) 20 SWITCH - POWER TAKE OFF IDLE CONTROL 2 (PTOIC) BU5T-14474-AA
89 * * Not Used N/A
90 RE733 (GN) 20 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-AA
91 VE733 (WH) 20 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-AA
92 * * Not Used N/A
93 CET34 (BN-GN) 20 SWITCH - TOW MODE CONTROL (TOWS) BU5T-14474-AA
94 * * Not Used N/A
95 * * Not Used N/A
96 CE326 (BU-WH) 20 CTRL MOD. - POWERTRAIN # POWER TAKE OFF OK INDICATOR (PTOIL) AU5T-14474-DA
97 CBB35 (YE-GY) 14 FUSE - 35 OR CIRCUIT BREAKER (VPWR) AU5T-14474-BA
98 CE326 (BU-WH) 20 CTRL MOD. - POWERTRAIN # POWER TAKE OFF OK INDICATOR (PTO_OKAY) (PTO_IND) N/A
99 CBB35 (YE-GY) 14 FUSE - 35 OR CIRCUIT BREAKER (VPWR) AU5T-14474-BA
100 GD120 (BK-GN) 14 GROUND - FENDER FRONT LEFT (PWRGND) AU5T-14474-BA
101 * * Not Used N/A
102 GD120 (BK-GN) 14 GROUND - FENDER FRONT LEFT (PWRGND) AU5T-14474-BA
103 GD120 (BK-GN) 14 GROUND - FENDER FRONT LEFT (PWRGND) AU5T-14474-BA
