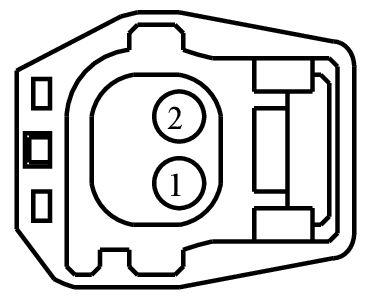

Connector End View (C138) - LOW WASHER FLUID WARNING INDICATOR SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C138 | LOW WASHER FLUID WARNING INDICATOR SWITCH | BK | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ADA | Not Available | |
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC20 (VT) | 20 | SWITCH - LOW LEVEL WASHER FLUID | 97BG-14474-ADA | ||||
| 2 | GD125 (BK) | 18 | GROUND - FENDER FRONT RIGHT # 3RD POINT | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-273
Service Part Number:
3U2Z-14S411-GVA
Gauge:
16
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Sensor - Ambient Temp
- Sensor - Heated Thermostat
