Brake Vacuum Pump - 3.5L EcoBoost (235kW/320PS): Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the RH valve cover. Refer to: Valve Cover RH .
2. Release the coupling and disconnect the vacuum tube.

   Courtesy of FORD MOTOR COMPANY

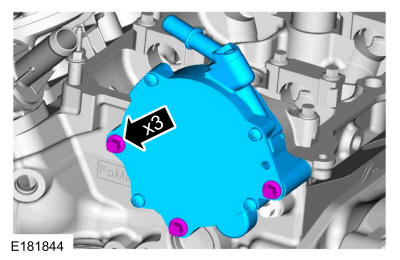

3. NOTE: The upper/inboard vacuum pump bolt will remain in the vacuum pump housing when removing the vacuum pump.

   Remove the 3 bolts and the brake vacuum pump.

Courtesy of FORD MOTOR COMPANY
