Brake Booster: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly .
  2. Remove the brake master cylinder. Refer to: Brake Master Cylinder .

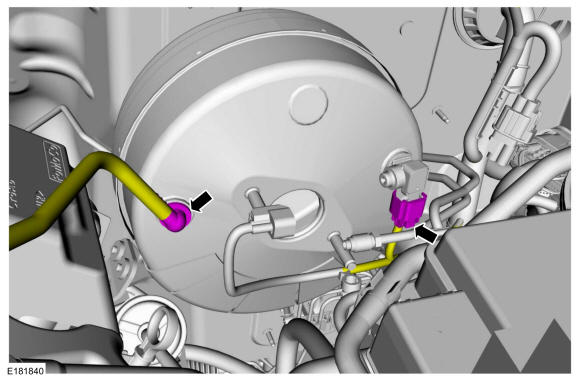

  3. Detach the brake booster check valve and disconnect the vacuum sensor electrical connector.
    GFD307625Courtesy of FORD MOTOR COMPANY
  4. NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

    Remove the stoplamp switch. Refer to: Stoplamp Switch .

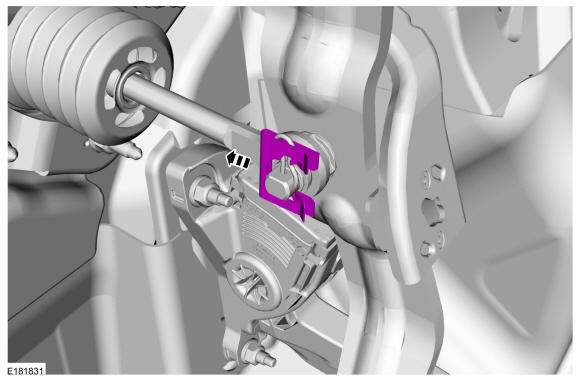

  5. Remove the clip.
    GFD307618Courtesy of FORD MOTOR COMPANY

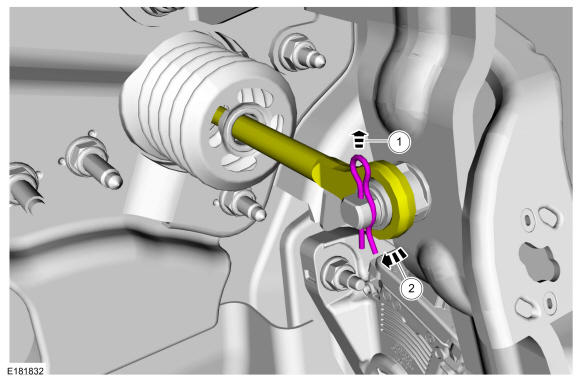

  6. Remove the pin and detach the brake booster rod from the brake pedal.
    GFD307619Courtesy of FORD MOTOR COMPANY

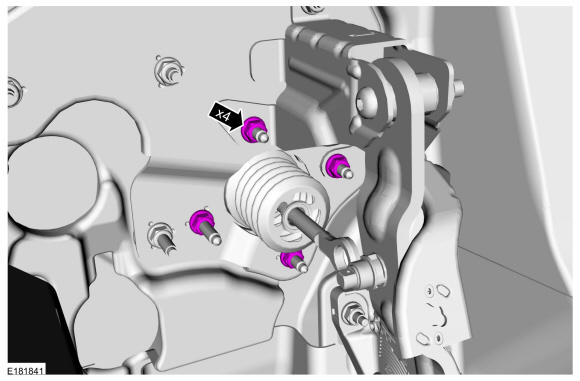

  7. Remove the 4 brake booster nuts.

    Torque: 177 lb.in (20 Nm)

    GFD307626Courtesy of FORD MOTOR COMPANY

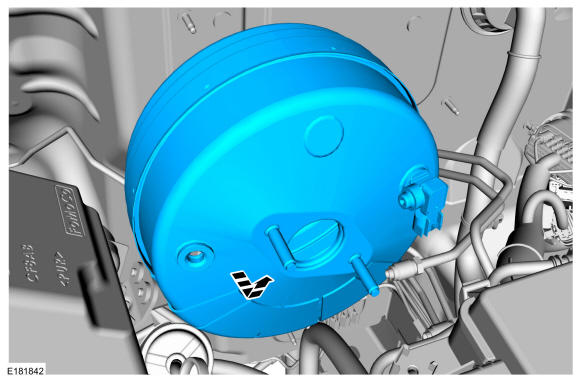

  8. Remove the brake booster.
GFD307627Courtesy of FORD MOTOR COMPANY
