Brake Master Cylinder: Removal
NOTE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.

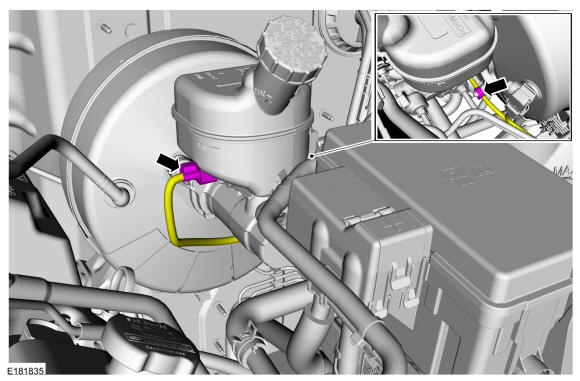

- Disconnect the brake fluid level sensor electrical connector and detach the wiring harness retainer from the stud.
-
NOTE: Make sure that all openings are sealed.

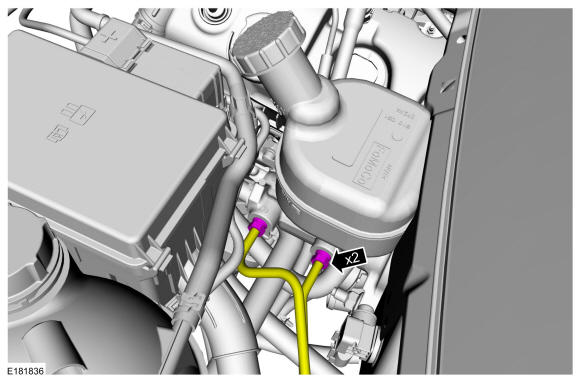

Disconnect the 2 brake tube fittings.
Torque: 150 lb.in (17 Nm)

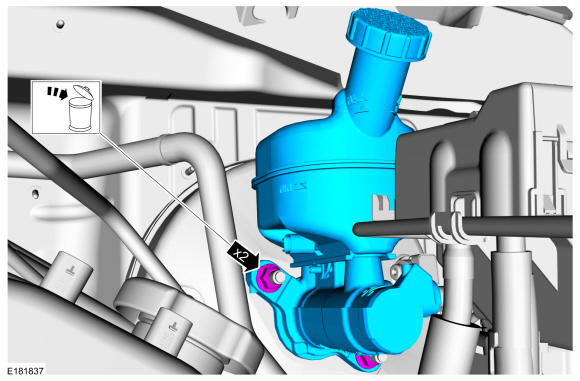

- Remove the 2 nuts and the brake master cylinder. Discard the nuts.
Torque: 18 lb.ft (25 Nm)
