Rear Parking Aid Speaker: Removal

  1. Lower the front headliner assembly. Refer to: Front Headliner .

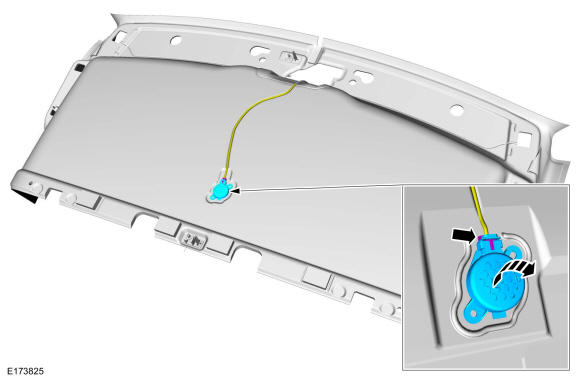

  2. Disconnect the electrical connector and remove the rear parking aid speaker.
GFD311379Courtesy of FORD MOTOR COMPANY
