Parking Assist Control Module (PAM): Removal

Medium wheelbase

1. Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel RH .

   Long wheelbase

2. Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel RH .

   Extra Long wheelbase

3. Remove the D-ring bolt and position the rear seatbelt aside.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Remove the upper D pillar trim panel.

   Courtesy of FORD MOTOR COMPANY

5. Remove the upper C-pillar trim panel.

   Courtesy of FORD MOTOR COMPANY

6. Remove the center rear seats.

   Courtesy of FORD MOTOR COMPANY

7. Remove the rear seatbelt retractor cover.

   Courtesy of FORD MOTOR COMPANY

8. 1. Remove the rear seat belt retractor bolt.

      Torque: 30 lb.ft (40 Nm)

   2. Remove the rear outer seat anchor bolt.

      Torque: 30 lb.ft (40 Nm)

   3. Remove the rear outer seat belt to seat anchor bolt and the rear outer seat.

      Torque: 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Remove the rear middle trim panel.

   Courtesy of FORD MOTOR COMPANY

10. Remove the trim panel.

    Courtesy of FORD MOTOR COMPANY

11. Remove 5 screws and the loadspace sill panel.

    Courtesy of FORD MOTOR COMPANY

12. Remove the lower D-pillar trim panel.

    Courtesy of FORD MOTOR COMPANY

13. Remove the jack.

    Courtesy of FORD MOTOR COMPANY

14. Remove the screws and the jack bracket and strap assembly.

    Courtesy of FORD MOTOR COMPANY

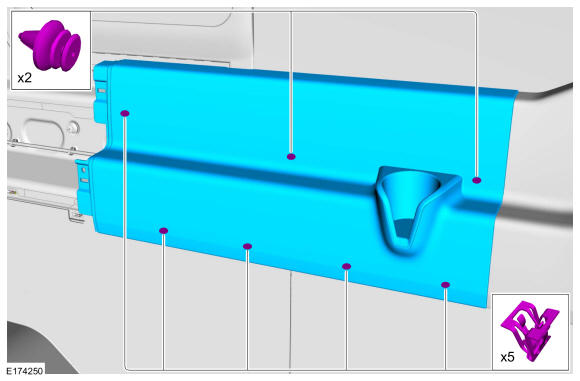

15. Remove 11 pin-type retainers and the rear lower loadspace trim panel.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

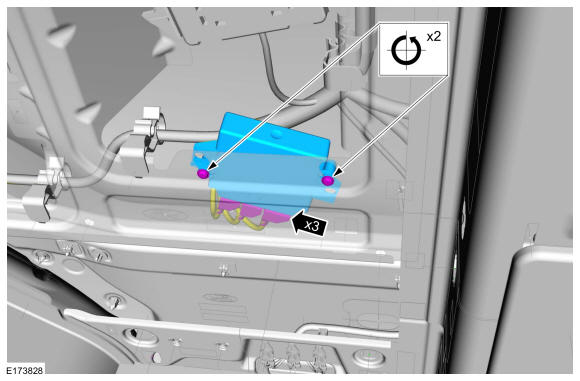

16. Loosen the 2 screws and remove and disconnect the parking aid module.
