Parking Aid Switch: Removal

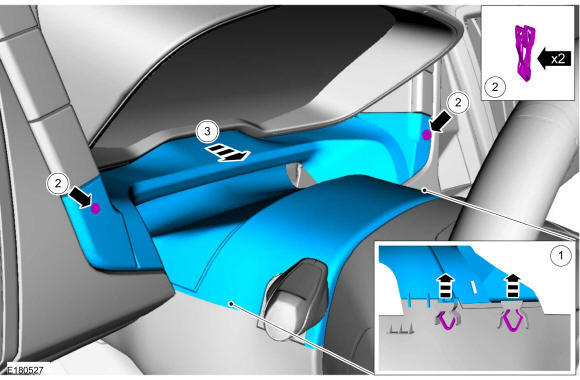

    1. Release the RH and LH upper steering column clips.
    2. Release the two clips and remove the IPC trim panel.
    GFD311356Courtesy of FORD MOTOR COMPANY

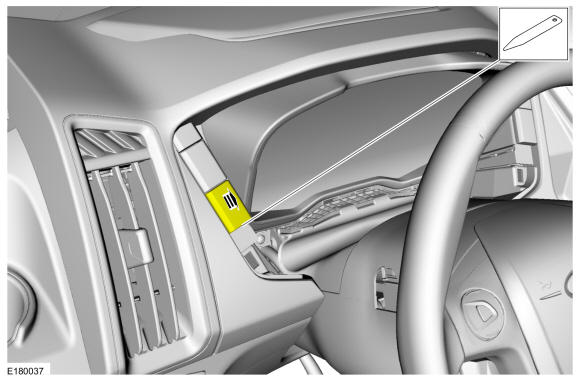

  2. Using a non marring tool pry up on the parkaid switch and position the switch aside.
    GFD311357Courtesy of FORD MOTOR COMPANY

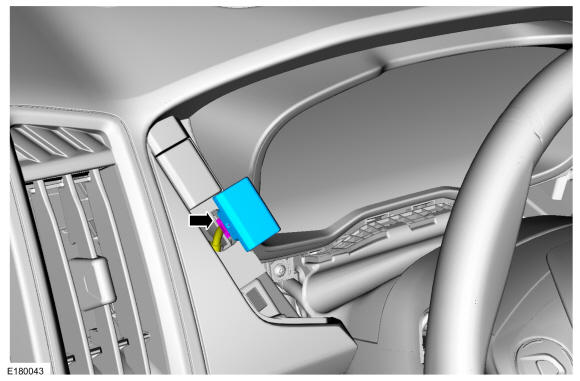

  3. Disconnect and remove the park aid switch.
GFD311358Courtesy of FORD MOTOR COMPANY
