Parking Aid - Component Location

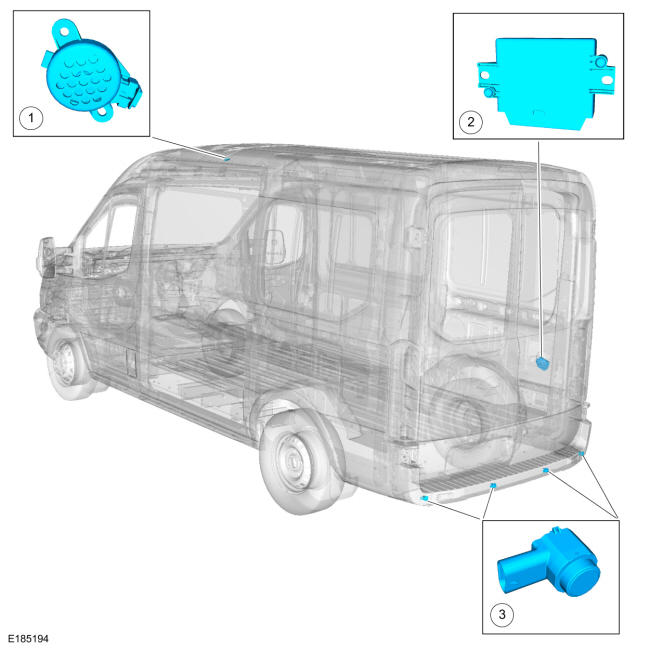

Component Location

GFD311349Courtesy of FORD MOTOR COMPANY
Item Description
1 Rear parking aid speaker
2 PAM
3 Rear parking aid sensors
