Turbine Shaft Speed (TSS) Sensor: Installation

Lubricate the TSS sensor O-ring seal with clean transmission fluid.
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

Courtesy of FORD MOTOR COMPANY

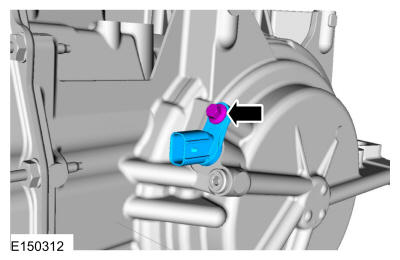

Install the TSS sensor and install the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

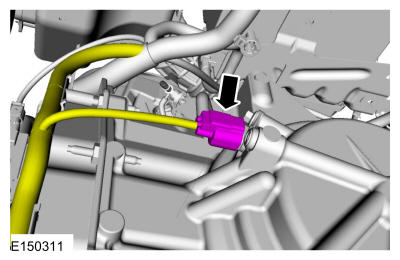

Connect the TSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

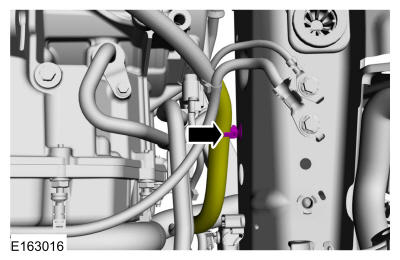

Attach the TSS sensor wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner .
