Transmission Internal Wiring Harness Frame: Installation

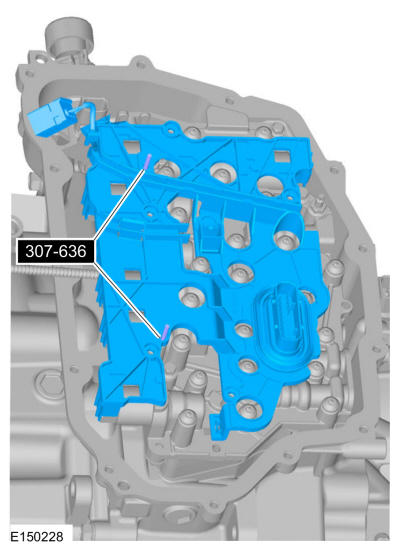

  1. Position the transmission internal wiring harness frame on the guide pins and carefully install the transmission internal wiring harness frame by pushing it straight down into the solenoids. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.
    GFD304765Courtesy of FORD MOTOR COMPANY

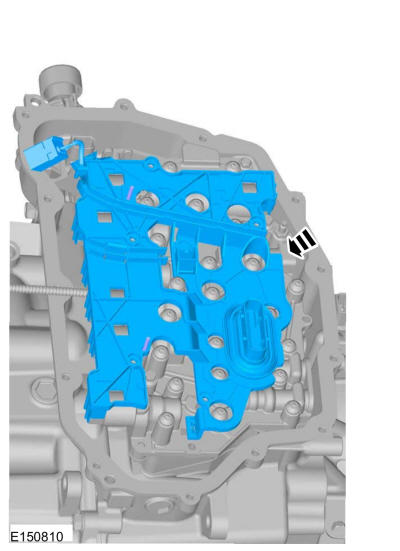

  2. Position and install the solenoid body assembly on the valve body.
    GFD304766Courtesy of FORD MOTOR COMPANY

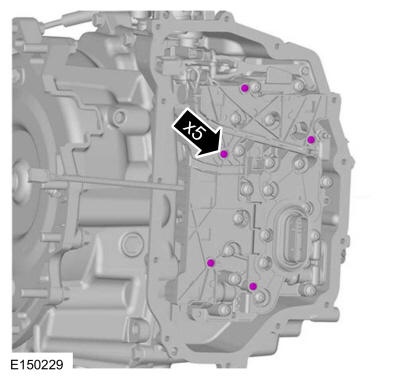

  3. Install the transmission internal wiring harness frame screws.

    Torque: 31 lb.in (3.5 Nm)

    GFD304767Courtesy of FORD MOTOR COMPANY

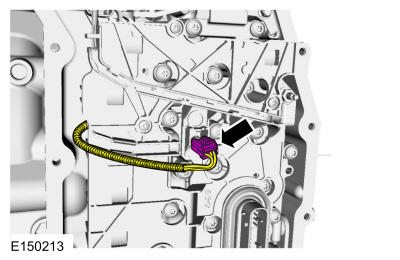

  4. Connect the OSS sensor electrical connector.
    GFD304762Courtesy of FORD MOTOR COMPANY

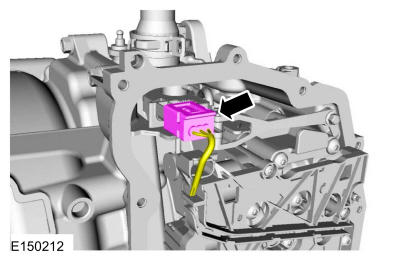

  5. Connect the TR sensor electrical connector.
    GFD304768Courtesy of FORD MOTOR COMPANY

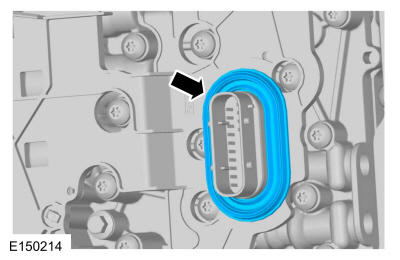

  6. Install the main control-to-cover seal.
    GFD304763Courtesy of FORD MOTOR COMPANY
  7. Install the main control cover. Refer to: Main Control Cover .
