Solenoid Body: Removal

  1. Remove the main control valve body. Refer to: Main Control Valve Body .
  2. Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.
    GFD304736Courtesy of FORD MOTOR COMPANY

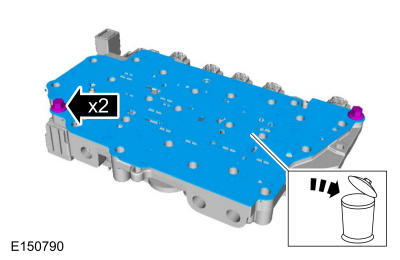

  3. Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.
GFD304757Courtesy of FORD MOTOR COMPANY
