Selector Shaft Seal: Removal

  1. Remove the TR sensor. Refer to: Transmission Range (TR) Sensor .

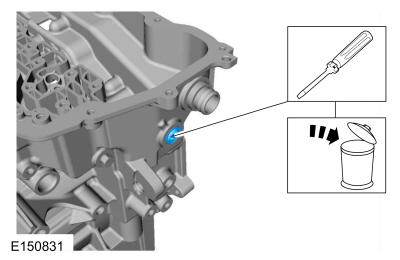

  2. Remove and discard the selector shaft seal. Use the General Equipment: Flat Headed Screw Driver
GFD304749Courtesy of FORD MOTOR COMPANY
