Main Control Valve Body: Removal

  1. Remove the main control cover. Refer to: Main Control Cover .
  2. Disconnect the TR sensor electrical connector.
    GFD304731Courtesy of FORD MOTOR COMPANY
  3. Disconnect the OSS electrical connector.
    GFD304732Courtesy of FORD MOTOR COMPANY
  4. Remove the rubber grommet.
    GFD304733Courtesy of FORD MOTOR COMPANY

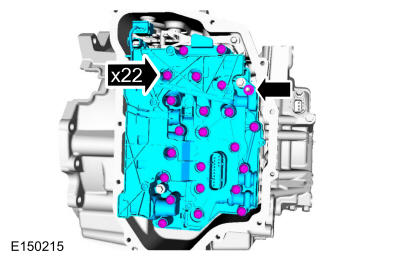

  5. NOTE: Take extra care when handling the components.
    NOTE: Note the different lengths of the bolts.

    Remove the nut, the bolts and the main control.

    GFD304734Courtesy of FORD MOTOR COMPANY

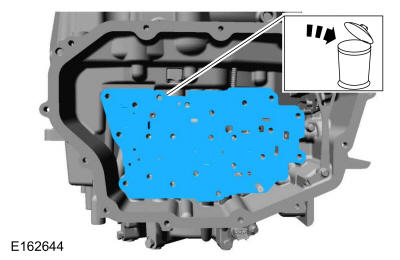

  6. Remove and discard the main control-to-transmission case separator plate.
    GFD304735Courtesy of FORD MOTOR COMPANY

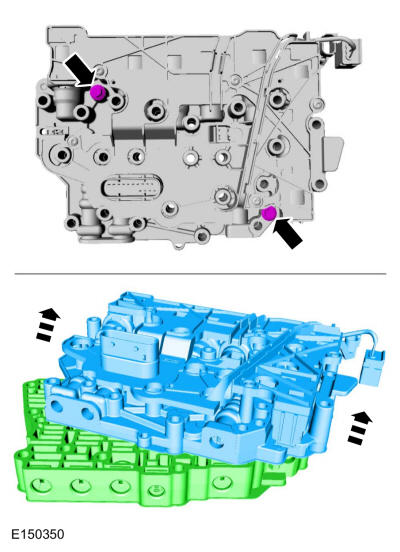

  7. Remove the bolts and separate the solenoid body assembly from the main control valve body.
    GFD304736Courtesy of FORD MOTOR COMPANY

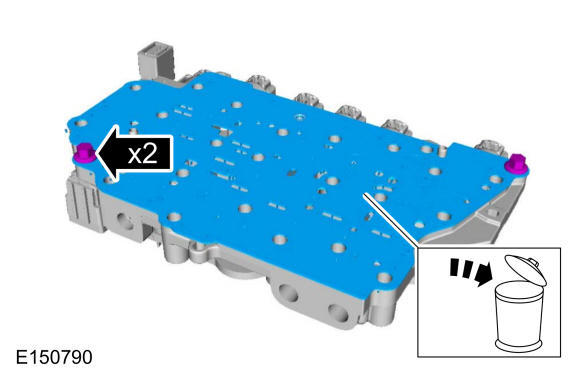

  8. Remove the 2 bolts and remove and discard the separator plate.
GFD304737Courtesy of FORD MOTOR COMPANY
