Halfshaft Seal RH: Removal

  1. Remove the RH halfshaft. Refer to: Front Halfshaft RH .

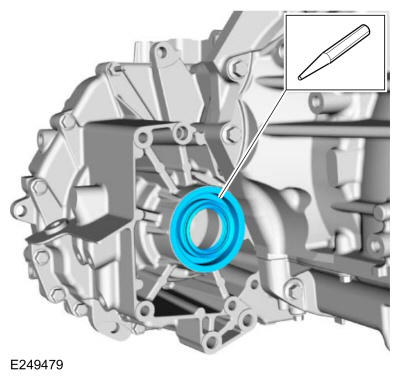

  2. Using a punch, poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD304717Courtesy of FORD MOTOR COMPANY

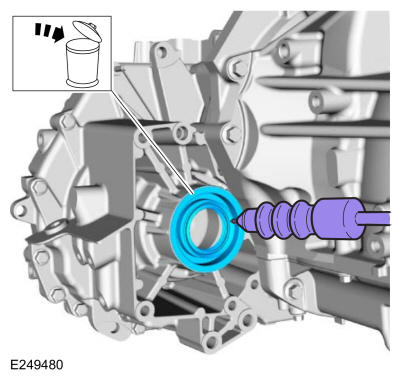

  3. Using a dent puller, remove and discard the halfshaft seal. Use the General Equipment: Puller
GFD304718Courtesy of FORD MOTOR COMPANY
