Transmission Description - Overview: Overview

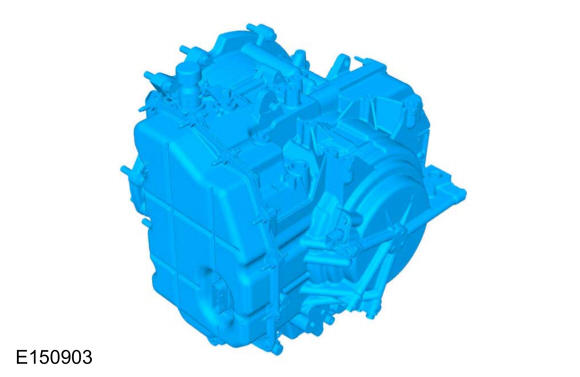

This automatic transmission is a 6-speed transmission with electronic shift control. It is designed for operation in a transverse powertrain for FWD and AWD vehicles.
This transmission has a 4-element torque converter design, which includes a TCC and a geartrain with 3 planetary gearsets.
The hydraulic control system of this transmission uses 7 electronically controlled solenoids for:
- Shift feel (through line pressure control and shift pressure control)
- Shift scheduling and timing
- TCC operation
