Rear Climate Control Assembly: Removal

  1. Release the clips and remove the rear floor console finish panel.

    1. Remove the retainer.

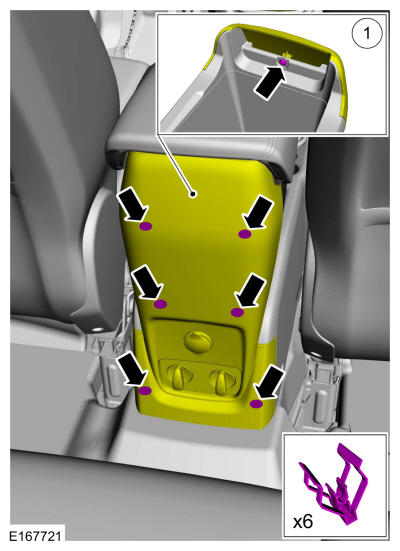

    GFD305492Courtesy of FORD MOTOR COMPANY
  2. Disconnect the electrical connectors.

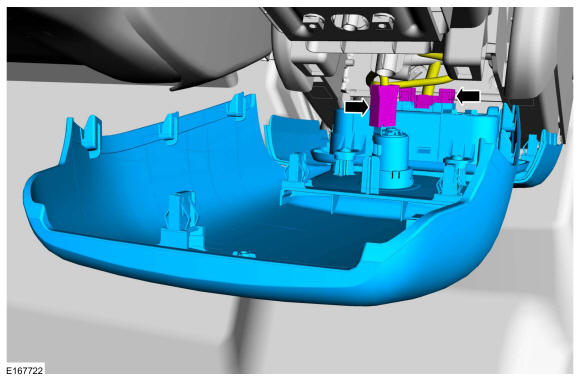

    GFD305493Courtesy of FORD MOTOR COMPANY
  3. Remove the retainers and the RHVAC control module.

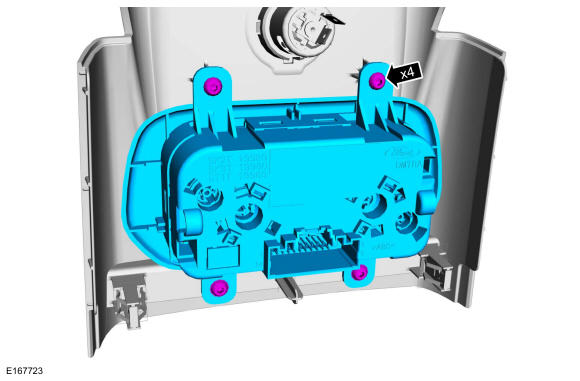

GFD305494Courtesy of FORD MOTOR COMPANY
