Climate Control Assembly: Removal

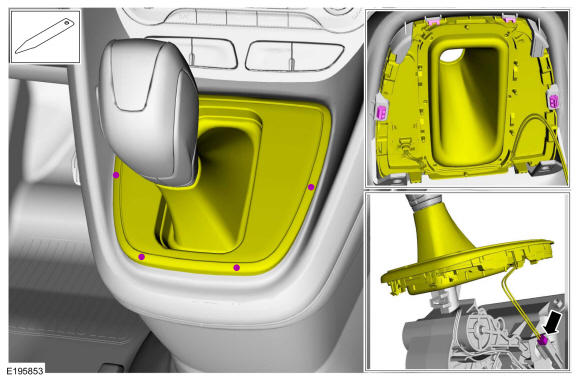

  1. Release the clips and position the selector lever bezel aside.

    • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

    GFD305380Courtesy of FORD MOTOR COMPANY

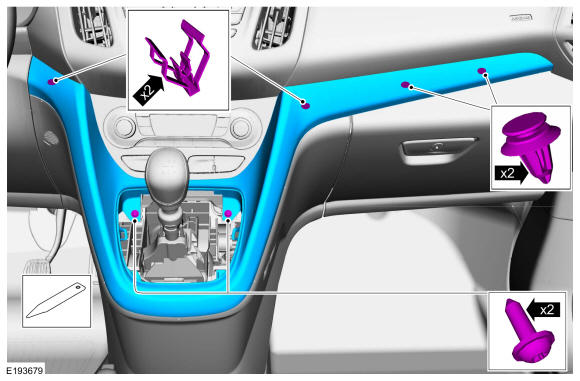

  2. Remove the retainers, release the clips and remove the floor console upper trim panel. Use the General Equipment: Interior Trim Remover
    GFD305381Courtesy of FORD MOTOR COMPANY

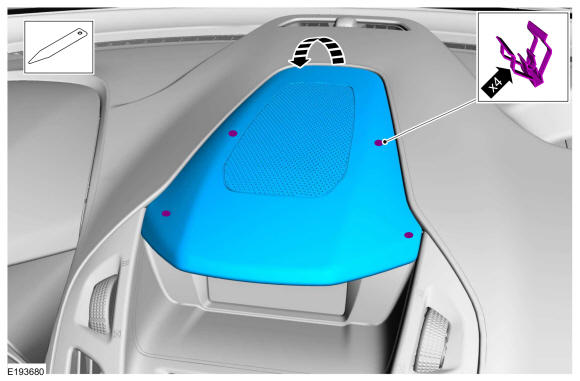

  3. Release the clips and remove the instrument panel center upper trim panel. Use the General Equipment: Interior Trim Remover
    GFD305382Courtesy of FORD MOTOR COMPANY

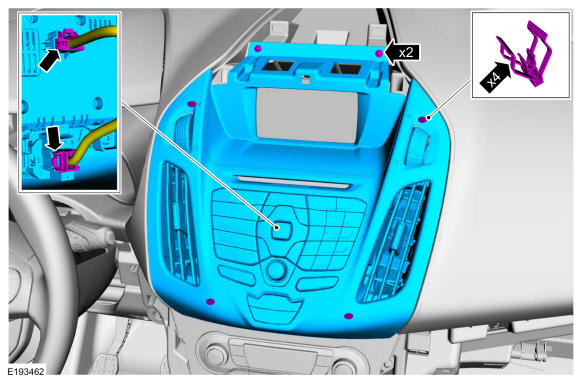

  4. Remove the retainers, release the clips and remove the FCIM.

    • Disconnect the electrical connectors.

    GFD305383Courtesy of FORD MOTOR COMPANY

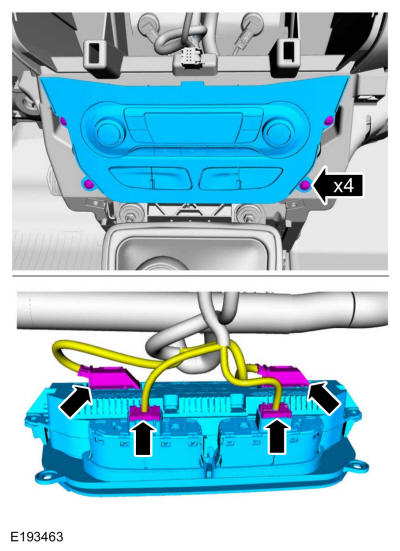

  5. Remove the retainers and the climate control assembly.

    • Disconnect the electrical connectors.

    GFD305384Courtesy of FORD MOTOR COMPANY

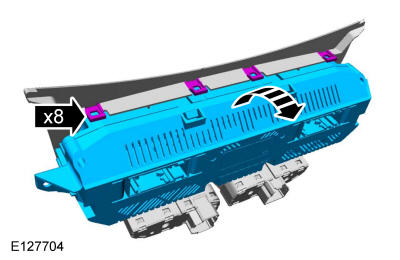

  6. NOTE: This step is only necessary when installing a new component.

    Release the retaining clips and remove the HVAC control module.

GFD305385Courtesy of FORD MOTOR COMPANY
