Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	412-001 (T71P-19703-B) Remover, Compressor Pulley

Activation

1. Remove the A/C compressor. Refer to Air Conditioning (A/C) Compressor - 2.5L Duratec (125kW/170PS) .

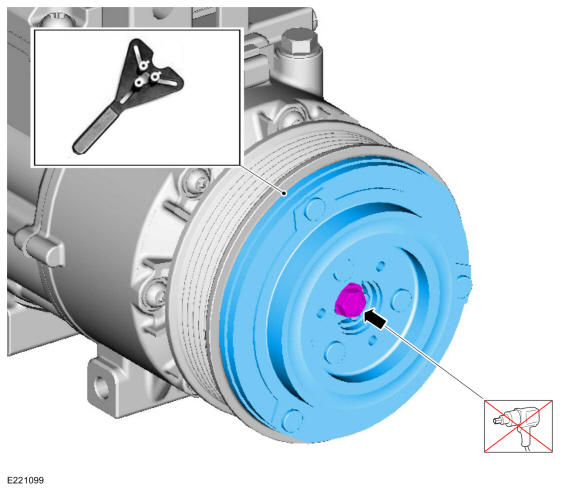

2. NOTE: If equipped with spring rubber clutch.

   Using the universal clutch holding tool, hold the clutch and remove the A/C clutch disc and hub bolt.

3. • For fixed compressor

     Torque: 177 lb.in (20 Nm)

   • For EVDC compressor

     Torque: 128 lb.in (14.5 Nm)

   Courtesy of FORD MOTOR COMPANY

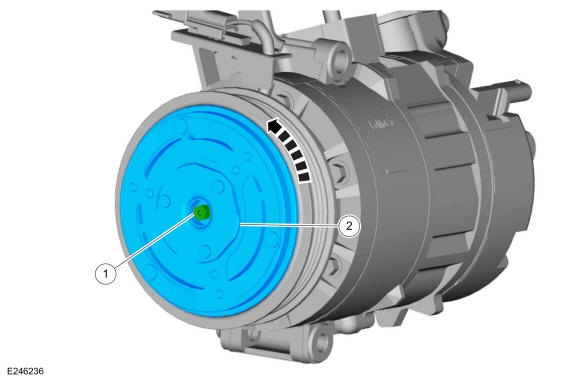

4. NOTE: If equipped with spring plate clutch.
   • Hold the A/C compressor shaft.
   • Rotate the A/C clutch hub counter clockwise to remove.
   • For fixed compressor

     Torque: 177 lb.in (20 Nm)

   • For EVDC compressor

     Torque: 128 lb.in (14.5 Nm)

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Replacing the snap ring is only necessary when installing a new component.

   Remove the A/C compressor pulley snap ring.

   Courtesy of FORD MOTOR COMPANY

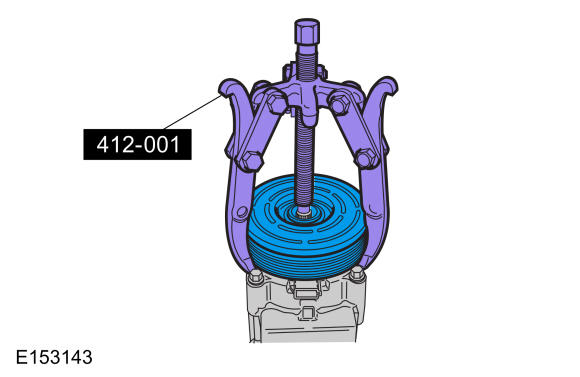

6. NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

   Remove the A/C compressor pulley. Install Special Service Tool: 412-001 (T71P-19703-B) Remover, Compressor Pulley.

   Courtesy of FORD MOTOR COMPANY

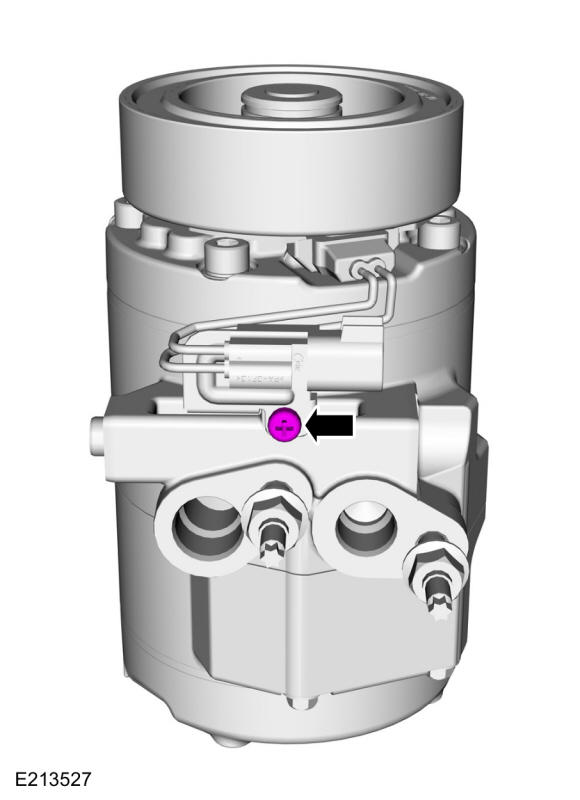

7. Remove the A/C clutch field coil electrical connector retainer.

   Torque: 35 lb.in (4 Nm)

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Replacing the snap ring is only necessary when installing a new component.

   Remove the A/C clutch field coil snap ring, and remove the clutch field coil.

   Courtesy of FORD MOTOR COMPANY

9. • Visually inspect the A/C clutch disc and hub, compressor pulley and clutch field coil for damage.
   • Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
   • Inspect for excessive wear, including grooving in the A/C clutch disc and hub or the compressor pulley that is more than fingernail depth.
   • Inspect for roughness in the A/C compressor pulley bearing.

10. To install, reverse the steps in this procedure.
11. NOTE: Spring plate clutch similar.

    Measure and adjust the clutch air gap by removing or adding clutch disc and hub spacers. Refer to Air Conditioning (A/C) Clutch Air Gap Adjustment .

Courtesy of FORD MOTOR COMPANY
