Pinpoint Test Kn: Variable Speed Electric Cooling Fan Motor: Introduction
This pinpoint test is intended to diagnose the following:
- cooling fan (CF) module (8B658)
- cooling fan assembly (8C607)
- harness circuits: FCV, FANPWR and GND
- PCM (12A650)
| Pin | Circuit |
|---|---|
| 2, 26 | FANPWR (Fan Power) |
| Pin | Circuit |
|---|---|
| 10, 6 | GND (Ground) |
| Pin | Circuit |
|---|---|
| 4 | FCV (Fan Control Variable) |
| 2 | GND (Ground) |
| 1 | FANPWR (Fan Power) |
| Pin | Circuit |
|---|---|
| 1 | GND (Ground) |
| 2 | FANPWR (Fan Power) |

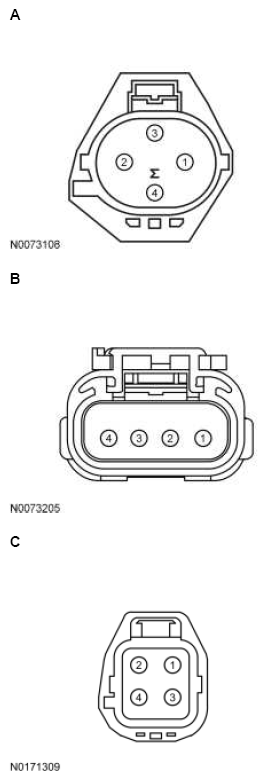

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental 3 Pin Cooling Fan Motor, Ford GT |
A | 4 2 1 |
FCV GND FANPWR |
| Edge 3 Pin Cooling Fan Motor, MKX 3 Pin Cooling Fan Motor |
B | 4 1 2 |
FCV GND FANPWR |
| Expedition 3 Pin Cooling Fan Motor, F-150 3 Pin Cooling Fan Motor, Navigator 3 Pin Cooling Fan Motor |
C | 2 1 3 |
FCV GND FANPWR |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental 3 Pin Cooling Fan Motor, Ford GT |
A | 4 2 1 |
FCV GND FANPWR |
| Edge 3 Pin Cooling Fan Motor | B | 4 1 2 |
FCV GND FANPWR |
| Expedition 3 Pin Cooling Fan Motor, F-150 3 Pin Cooling Fan Motor, Navigator 3 Pin Cooling Fan Motor |
C | 2 1 3 |
FCV GND FANPWR |
| MKX 3 Pin Cooling Fan Motor | C | 4 1 2 |
FCV GND FANPWR |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Fiesta | A | 5 2 1 3 |
FANPWR GND VPWR B+ |
| All other vehicles | B | 5 2 1 3 |
FANPWR GND VPWR B+ |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental, Edge, MKX |
A | 5 2 3 1 3 |
FANPWR GND B+ VPWR B+ |
| EcoSport, Explorer, Fiesta, Flex, Fusion, KA, MKT, MKZ, Mustang, Taurus |
A | 3 | B+ |
| Escape/Kuga, Focus, MKC, Transit |
B | 3 | B+ |
| Ford GT | A | 5 2 3 1 |
FANPWR GND B+ VPWR |
| Ranger | A | 2, 5 | B+ |
| Pin | Circuit |
|---|---|
| 5 | FANPWR (Fan Power) |
| 2 | GND (Ground) |
| 1 | VPWR (Vehicle Power) |
| 3 | B+ (Battery Positive Voltage) |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental | A | 5 2 1 3 |
FANPWR GND VPWR B+ |
| Edge | A | 3 1 2 5 |
FANPWR GND VPWR B+ |
| MKX | A | 3 2 1 5 |
FANPWR GND VPWR B+ |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Continental, MKX 2.7L |
198 PIN | B4 | FCV |
| Escape/Kuga | 198 PIN | B32 | FCV |
| Explorer | 198 PIN | B17 | FCV |
| F-150 2.7L, F-150 3.3L, F-150 5.0L |
306 PIN | B59 | FCV |
| Fiesta | 198 PIN | B5 | FCV |
| Focus 1.0L | 198 PIN | B23 | FCV |
| Focus GDI 2.0L | 154 PIN | B8 | FCV |
| Focus GTDI 2.0L | 198 PIN | B4 | FCV |
| Ford GT | 198 PIN | B83 | FCV |
| MKX 3.7L | 198 PIN | B10 | FCV |
| Transit Connect | 198 PIN | B66 | FCV |
| All other vehicles | 198 PIN | B41 | FCV |
