Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

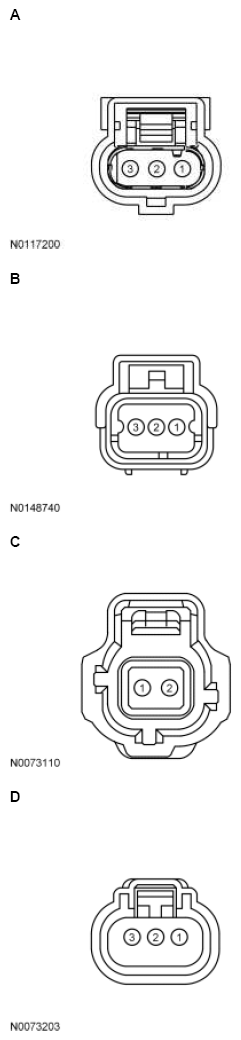

Fig 1: Crankshaft Position (CKP) Sensor Connector (1 Of 2)
G12083804Courtesy of FORD MOTOR CO.
Fig 2: Crankshaft Position (CKP) Sensor Connector (2 Of 2)
G11848483Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Continental 2.0L,
EcoSport 2.0L,
Edge 2.0L,
Escape/Kuga 2.0L,
Focus GTDI 2.0L,
Focus 2.3L,
Fusion 2.0L,
MKC 2.0L,
MKX 2.0L,
MKZ 2.0L		 A 2
3
1		 CKP
SIGRTN
VREF
Continental 2.7L,
Continental 3.0L,
Edge 2.7L,
F-150 2.7L,
F-150 5.0L,
MKX 2.7L,
MKZ 3.0L,
Mustang 5.0L		 A 2
1
3		 CKP
SIGRTN
VREF
EcoSport 1.0L,
Escape/Kuga 1.5L,
Fiesta 1.0L,
Fiesta GTDI 1.6L,
Focus 1.0L,
KA 1.0L		 B 3
2
1		 CKP
SIGRTN
VREF
EcoSport 1.5L A 3
2
1		 CKP
SIGRTN
VREF
Escape/Kuga 2.5L,
Fusion 2.5L,
Ranger,
Transit Connect		 C 2
1		 CKP-
CKP+
Expedition,
Explorer GTDI 3.5L,
F-150 3.3L,
F-150 3.5L,
Flex GTDI 3.5L,
Ford GT,
MKT 3.5L,
Navigator,
Taurus GTDI 3.5L,
Transit 3.5L		 A 1
2
3		 CKP
SIGRTN
VREF
Explorer 2.3L,
Focus GDI 2.0L,
MKC 2.3L,
MKT 2.0L,
Mustang 2.3L,
Taurus 2.0L		 D 2
3
1		 CKP
SIGRTN
VREF
Fiesta TiVCT 1.6L,
KA 1.5L		 E 2
1		 CKP-
CKP+
Fusion 1.5L F 3
2
1		 CKP
SIGRTN
VREF
Fusion 2.7L A 3
1
2		 CKP
SIGRTN
VREF
All other vehicles G 1
2		 CKP-
CKP+

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

Vehicle Connector Pin Circuit
Continental 3.7L,
E-Series,
Edge 3.5L,
Explorer TiVCT 3.5L,
Explorer 3.7L,
F-650/F-750,
F-Series Super Duty,
Flex TiVCT 3.5L,
MKT 3.7L,
MKX 3.7L,
Motorhome/Stripped Chassis/Step Van,
Taurus TiVCT 3.5L,
Taurus 3.7L,
Transit 3.7L		 198 PIN E70
E69		 CKP+
CKP-
EcoSport 1.0L Manual Transmission,
Fiesta 1.0L,
Fiesta GTDI 1.6L		 198 PIN E49 CKP
EcoSport 1.5L Automatic Transmission 198 PIN E60 CKP
EcoSport 1.5L Manual Transmission 112 PIN E35 CKP
Escape/Kuga 1.5L 198 PIN E38 CKP
Escape/Kuga 2.5L,
Fusion 2.5L,
Transit Connect		 198 PIN E60
E59		 CKP+
CKP-
Expedition,
F-150 3.5L,
Navigator		 198 PIN E27 CKP
F-150 2.7L,
F-150 3.3L,
F-150 5.0L,
Mustang 5.0L		 306 PIN E78 CKP
Fiesta TiVCT 1.6L,
Ranger		 128 PIN T6
T14		 CKP+
CKP-
Focus GDI 2.0L 154 PIN E45 CKP
KA 1.0L 128 PIN E37 CKP
KA 1.5L 128 PIN E38
E37		 CKP+
CKP-
Mustang 2.3L 198 PIN E23 CKP
Mustang 5.2L 198 PIN E70
E60		 CKP+
CKP-
All other vehicles 198 PIN E11 CKP
