Exhaust Gas Recirculation (EGR) Cooler

The exhaust gases are directed through the EGR cooler to lower the exhaust gas temperature before entering the intake manifold. The EGR cooler uses engine coolant to reduce the exhaust gas temperature.

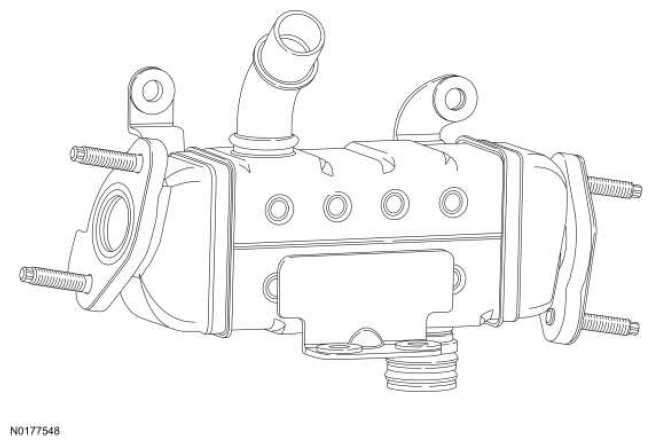

Fig 1: Typical EGR Cooler
G12083573Courtesy of FORD MOTOR CO.
