Clutch Pedal Position (CPP) Switch - Vehicles With: Auto-Start-Stop: Removal

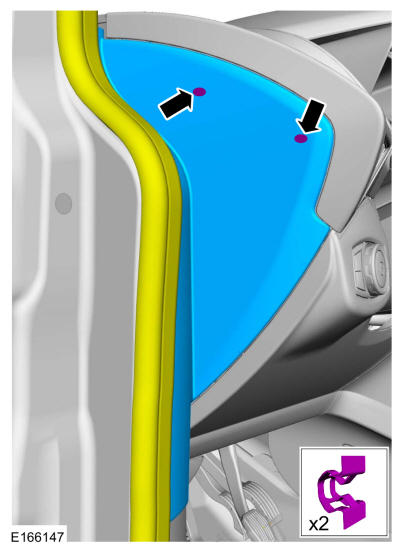

1. Position aside the weather-strip, release the clips and remove the instrument panel side trim panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

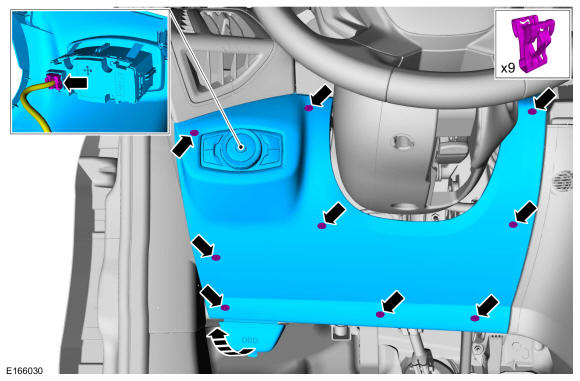

2. Release the clips and remove the steering column opening trim panel. Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

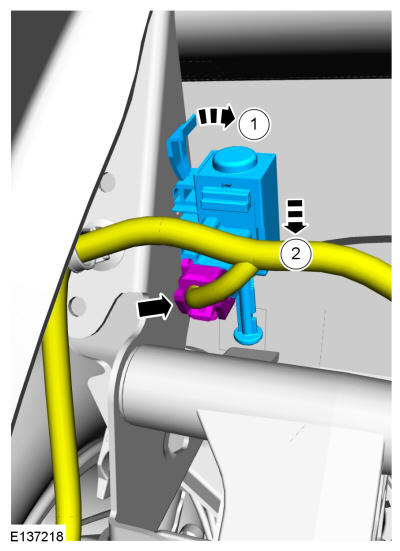

3. NOTE: Make sure that the clutch pedal remains in the rest position.

   Disconnect the electrical connector and remove the CPP switch.

Courtesy of FORD MOTOR COMPANY
